| Country of Origin | China |
| ASIN | B0CFL5GRJ7 |
| Item model number | rosmaster x3 plus |
| Manufacturer recommended age | 18 years and up |
| Best Sellers Rank | #14,071 in Single Board Computers (Computers & Accessories) |
| Manufacturer | Yahboom |

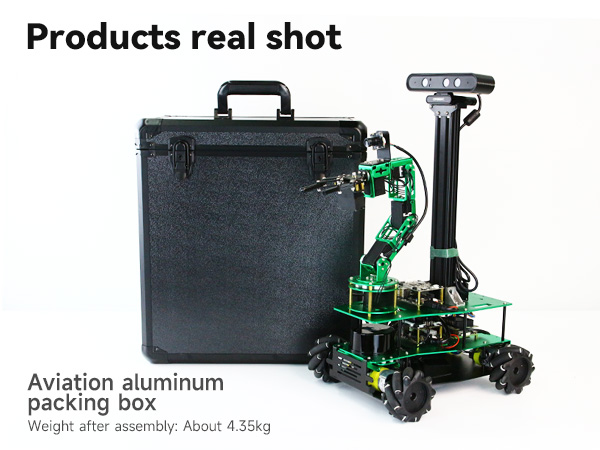

ROSMASTER X3 PLUS is an omni-directional robot developed based on the ROS robot operating system. It supports Jetson series boards and Raspberry Pi 5 board,Robot can realize applications such as mapping and navigation, Autopilot, human feature recognition, and movelt robotic arm simulation control.
Please note: X3 Plus with Orin NX 16GB version shipped by Amazon uses the old voice module; those shipped by Yahboom use the new AI voice module.

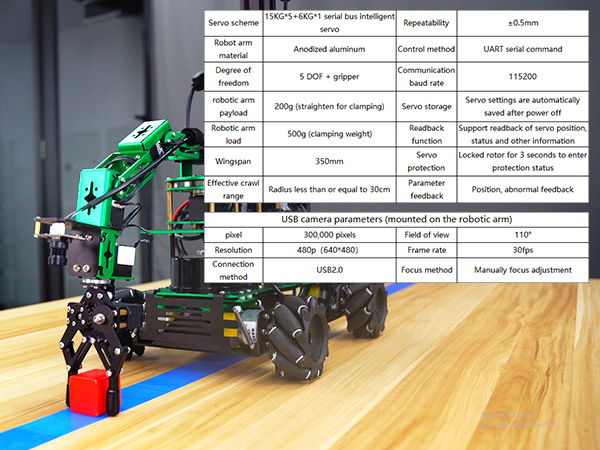

The robotic arm is composed of 6 serial bus servos with a repeat positioning accuracy of ±0.5mm. With the robotic arm as the central axis, it can grasp objects within a radius of 30cm. It can handle objects of less than 500g, and provides movelt simulation courses. Combined with voice interaction, it can complete voice-control handling, garbage sorting and other games.

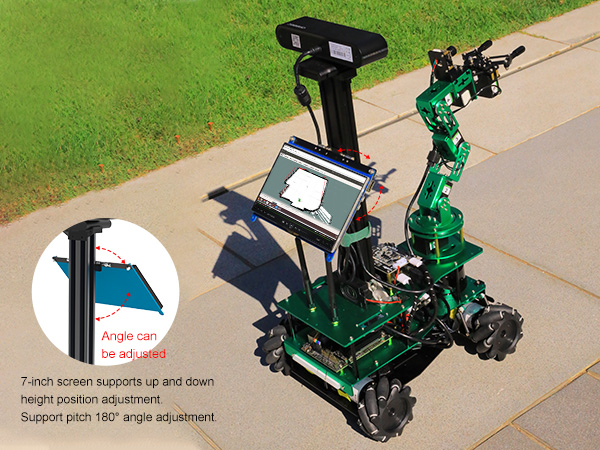

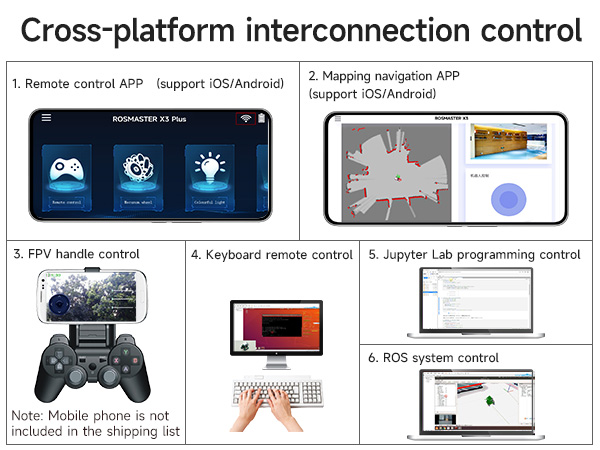

The standard 7-inch touch screen allows you to debug the robot anytime, anywhere. Through the touch screen, you can directly open ROS, install software, configure or connect to WiFi, which is as convenient as operating a computer.

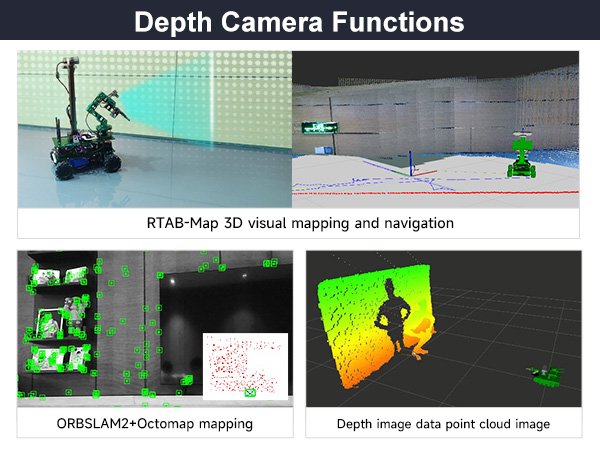

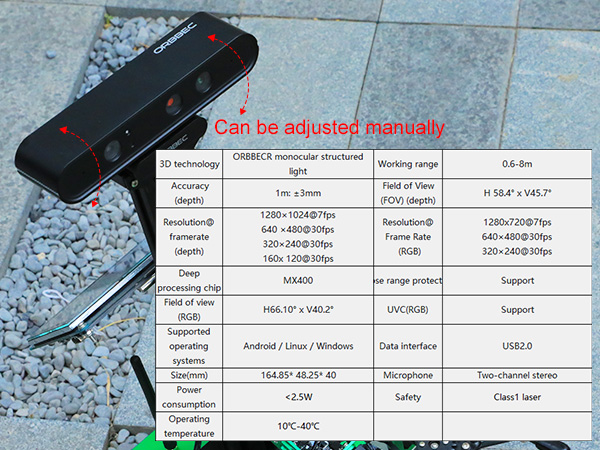

It can not only realize all Al visual functions of HD cameras, but also realize advanced functions such as depth image data processing and 3D navigation and mapping. With the high-angle bracket, it can be adjusted manually.

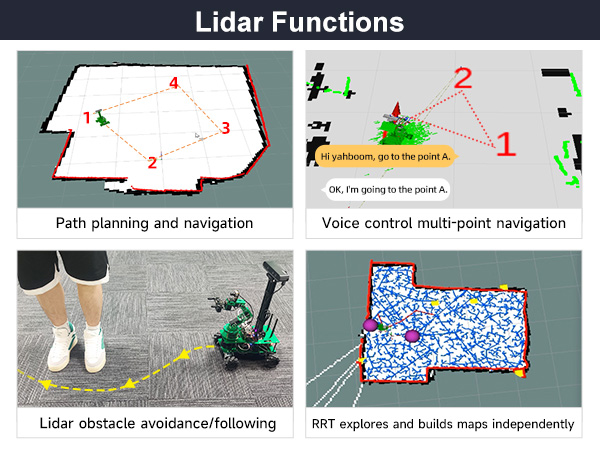

It adopts TOF ranging method, can resist 70KLux~100Klux strong light irradiation, supports indoor and outdoor mapping and navigation, the measurement radius can reach 30m, the measurement blind area is only 5cm, the ranging error within 5 meters is only ±6cm, and the sampling frequency is 20000 times/s, scan frequency 5HZ~12HZ, support 512000bps communication rate.

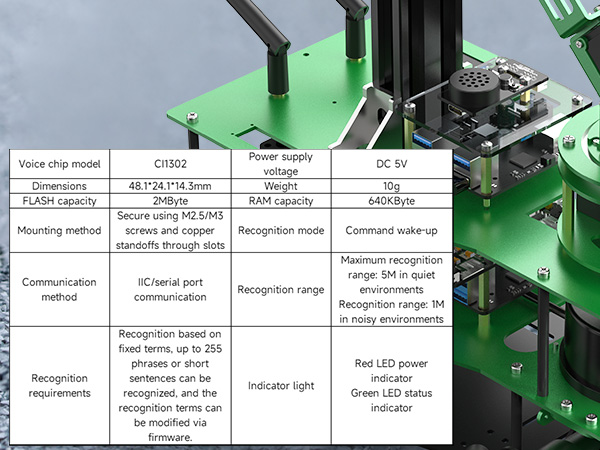

The AI voice interaction module integrates voice recognition and voice broadcasting. It not only integrates a microphone and speaker but also features a powerful neural network processor. It can be used with the ROSMASTER robot to perform voice interaction functions, making the robot even more intelligent.
It supports adding new command words through software, with a recognition rate of up to 99%, and supports both Chinese and English entries.

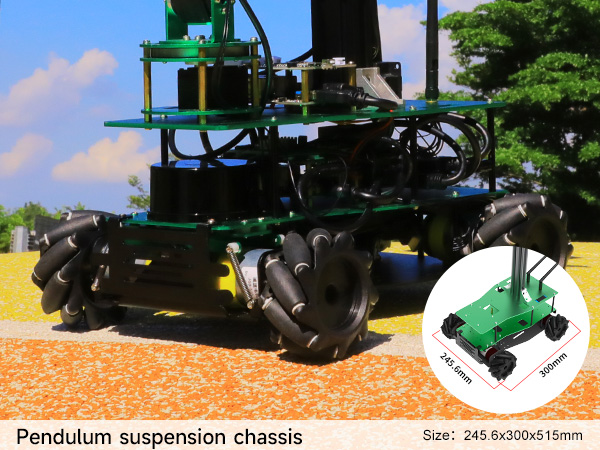

ROSMASTER X3 PLUS uses aluminum alloy chassis, adopts green oxidation sandblasting process, and is equipped with 4PCS Mecanum wheels and pendulum suspension chassis design, which can make the robot have the characteristics of compact structure, flexible movement, and powerful maneuverability. The pendulum suspension chassis can allow the robot to adapt to uneven ground, ensure that the four wheels touch the ground at the same time, and avoid wheel slippage affecting motor encoder.
