Yahboom Rosmaster X3 Plus Adulds ROS Programming Artificial Intelligence to Build Experimental Project Kit (with Nano)

Yahboom Rosmaster X3 Plus Adulds ROS Programming Artificial Intelligence to Build Experimental Project Kit (with Nano)

Bán tại: Mỹ

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

Nhập khẩu thương mại

49,087,487đ

Color

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu YAHBOOM là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm YAHBOOM ROSMASTER X3 PLUS ADULDS ROS PROGRAMMING ARTIFICIAL INTELLIGENCE TO BUILD EXPERIMENTAL PROJECT KIT (WITH NANO) là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Country of Origin	China
ASIN	B0CFL5GRJ7
Item model number	rosmaster x3 plus
Manufacturer recommended age	18 years and up
Best Sellers Rank	#14,071 in Single Board Computers (Computers & Accessories)
Manufacturer	Yahboom

Tính năng sản phẩm

Sản phẩm Yahboom Rosmaster X3 Plus Adulds ROS Programming Artificial Intelligence to Build Experimental Project Kit (with Nano) của thương hiệu Yahboom với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

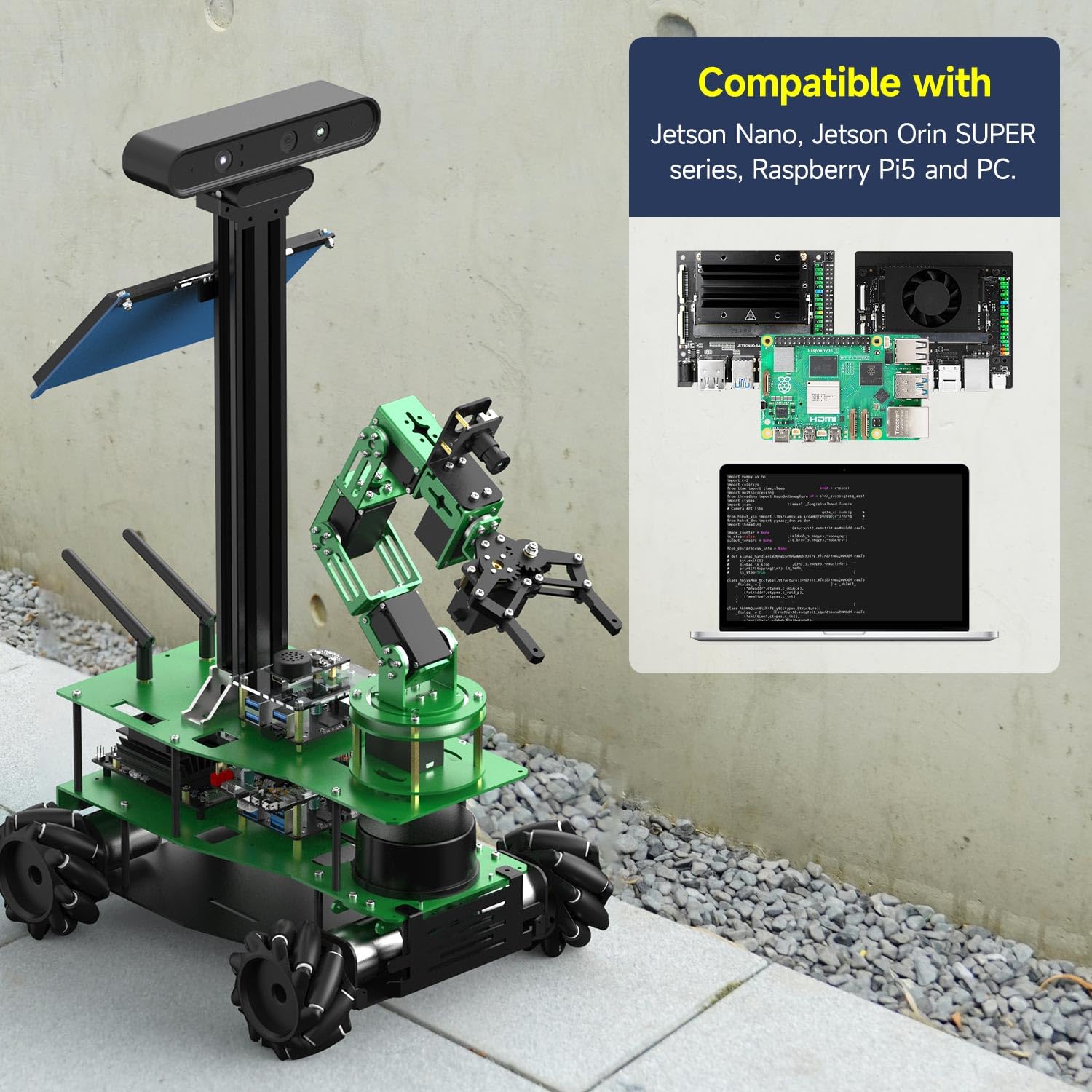

Compatible with Raspberry Pi 5-8GB, Jetson Orin series development boards

Note: Robot kit compatible with raspberry Pi 5

AI robot kit with arm for adult computer programming

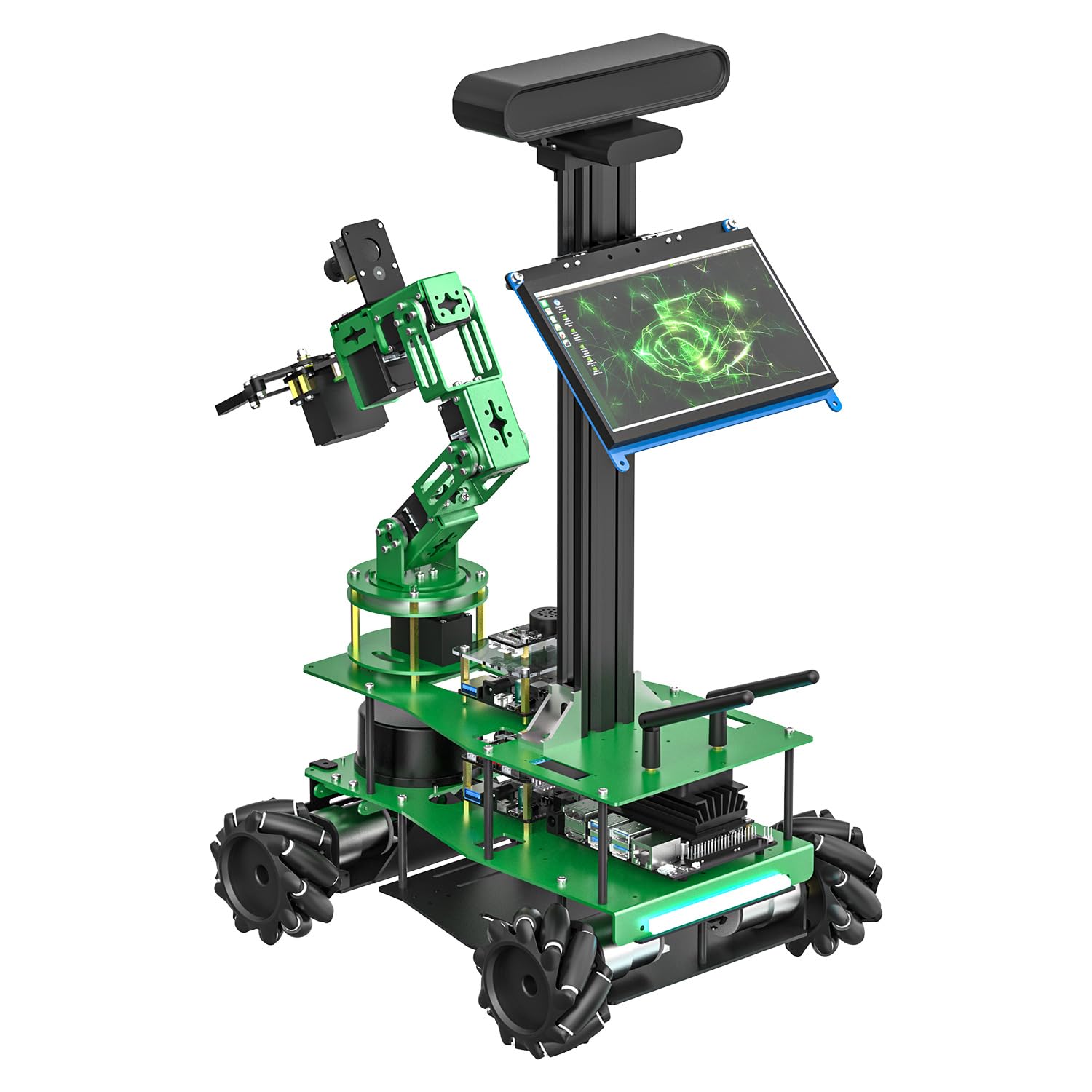

ROSMASTER X3 PLUS is an omni-directional robot developed based on the ROS robot operating system. It supports Jetson series boards and Raspberry Pi 5 board,Robot can realize applications such as mapping and navigation, Autopilot, human feature recognition, and movelt robotic arm simulation control.

Part of the Function Display

Note: Robot kit compatible with raspberry Pi 5

Rosmaster X3 Plus Robot Important Accessories Parameters

6DOF bus servo robotic arm

The robotic arm is composed of 6 serial bus servos with a repeat positioning accuracy of ±0.5mm. With the robotic arm as the central axis, it can grasp objects within a radius of 30cm. It can handle objects of less than 500g, and provides movelt simulation courses. Combined with voice interaction, it can complete voice-control handling, garbage sorting and other games.

Standard high-definition touch 7-inch screen

The standard 7-inch touch screen allows you to debug the robot anytime, anywhere. Through the touch screen, you can directly open ROS, install software, configure or connect to WiFi, which is as convenient as operating a computer.

Astra Pro Depth Camera

It can not only realize all Al visual functions of HD cameras, but also realize advanced functions such as depth image data processing and 3D navigation and mapping. With the high-angle bracket, it can be adjusted manually.

YDLIDAR 4ROS high performance lidar

It adopts TOF ranging method, can resist 70KLux~100Klux strong light irradiation, supports indoor and outdoor mapping and navigation, the measurement radius can reach 30m, the measurement blind area is only 5cm, the ranging error within 5 meters is only ±6cm, and the sampling frequency is 20000 times/s, scan frequency 5HZ~12HZ, support 512000bps communication rate.

Voice Interaction Module

Built-in speech recognition algorithm, users can control ROSMASTER by voice command.

Large size aluminum alloy chassis & Mecanum wheel pendulum suspension

ROSMASTER X3 PLUS uses aluminum alloy chassis, adopts green oxidation sandblasting process, and is equipped with 4PCS Mecanum wheels and pendulum suspension chassis design, which can make the robot have the characteristics of compact structure, flexible movement, and powerful maneuverability. The pendulum suspension chassis can allow the robot to adapt to uneven ground, ensure that the four wheels touch the ground at the same time, and avoid wheel slippage affecting motor encoder.

Expansion board, language module, motor and battery information

If you choose Shipping by Amazon,the SSD is 128GB,if you choose Shipping by Yahboom,the SSD is 256GB

Users need to have certain programming basic knowledge, not suitable for inexperienced users.

Mô tả

Thông tin chi tiết sản phẩm:

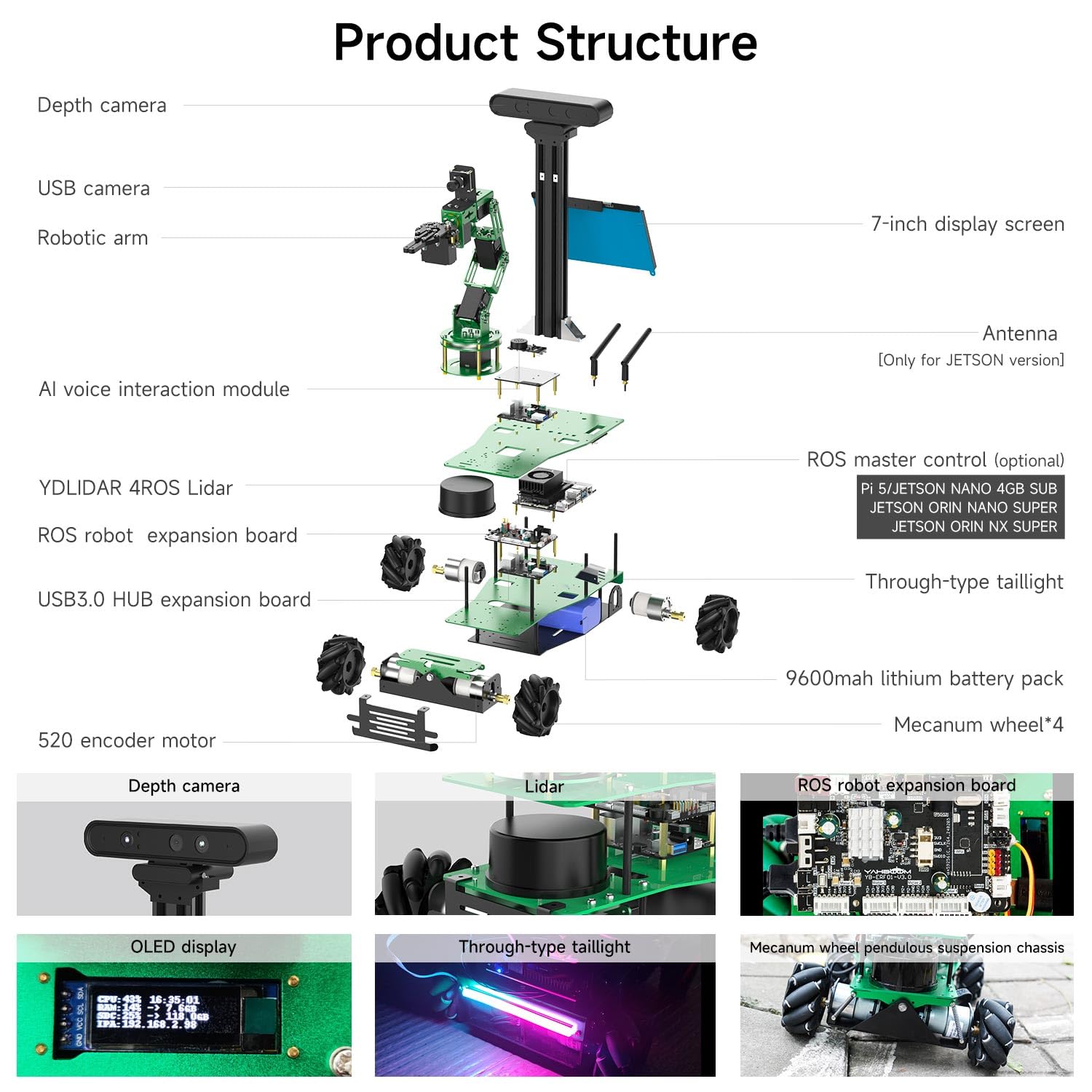

Flagship configuration: ORBBEC Astra Pro depth camera, high-definition touch adjustable 7-inch screen, 6-DOF robotic arm with camera AI camera, YDLIDAR 4ROS TOF ranging lidar, 80mm large-size Mecanum wheel, 520 Hall coding Geared motor, 9600MAH lithium battery pack, epoxy color road alloy body structure. All accessories will bring you the ultimate programming and control experience.

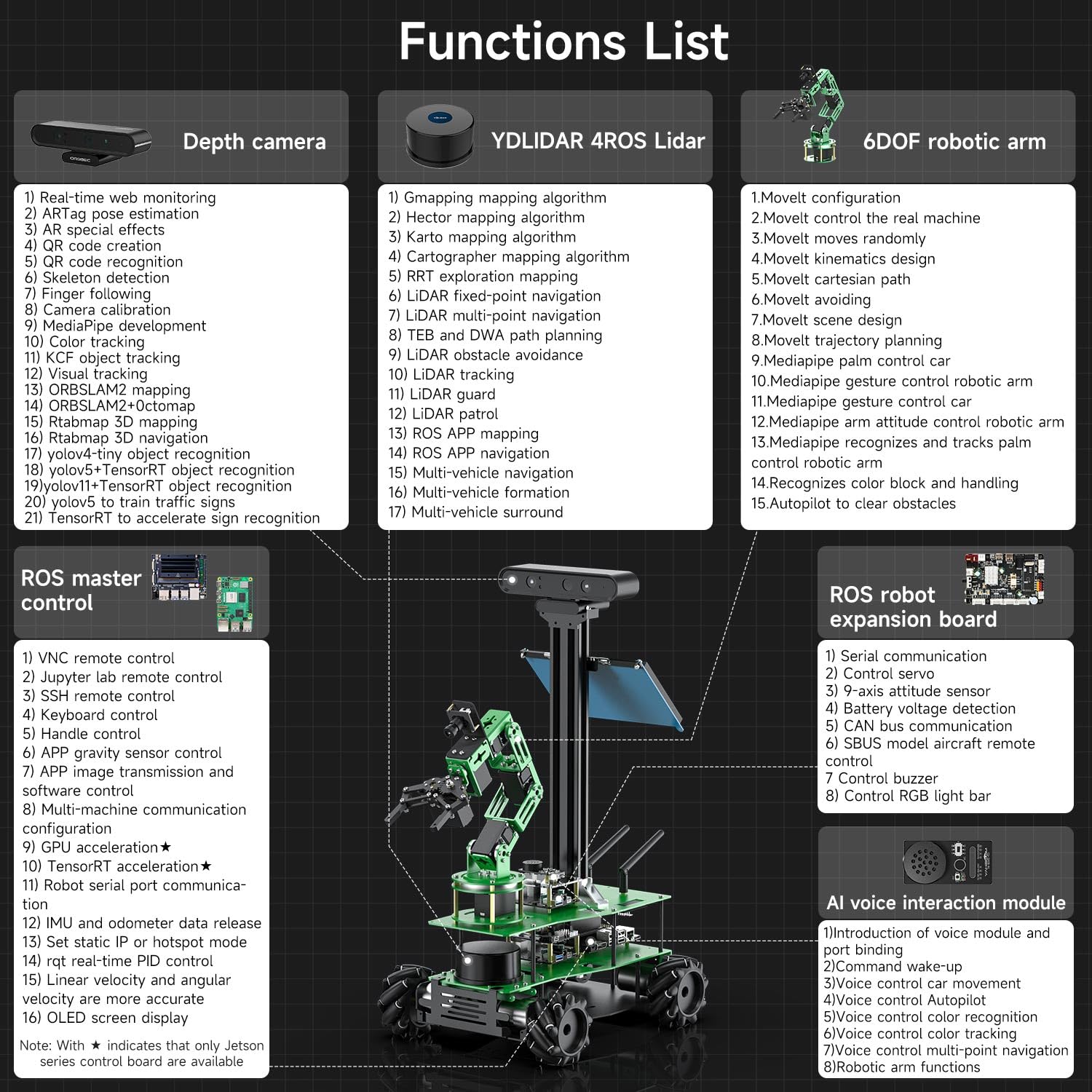

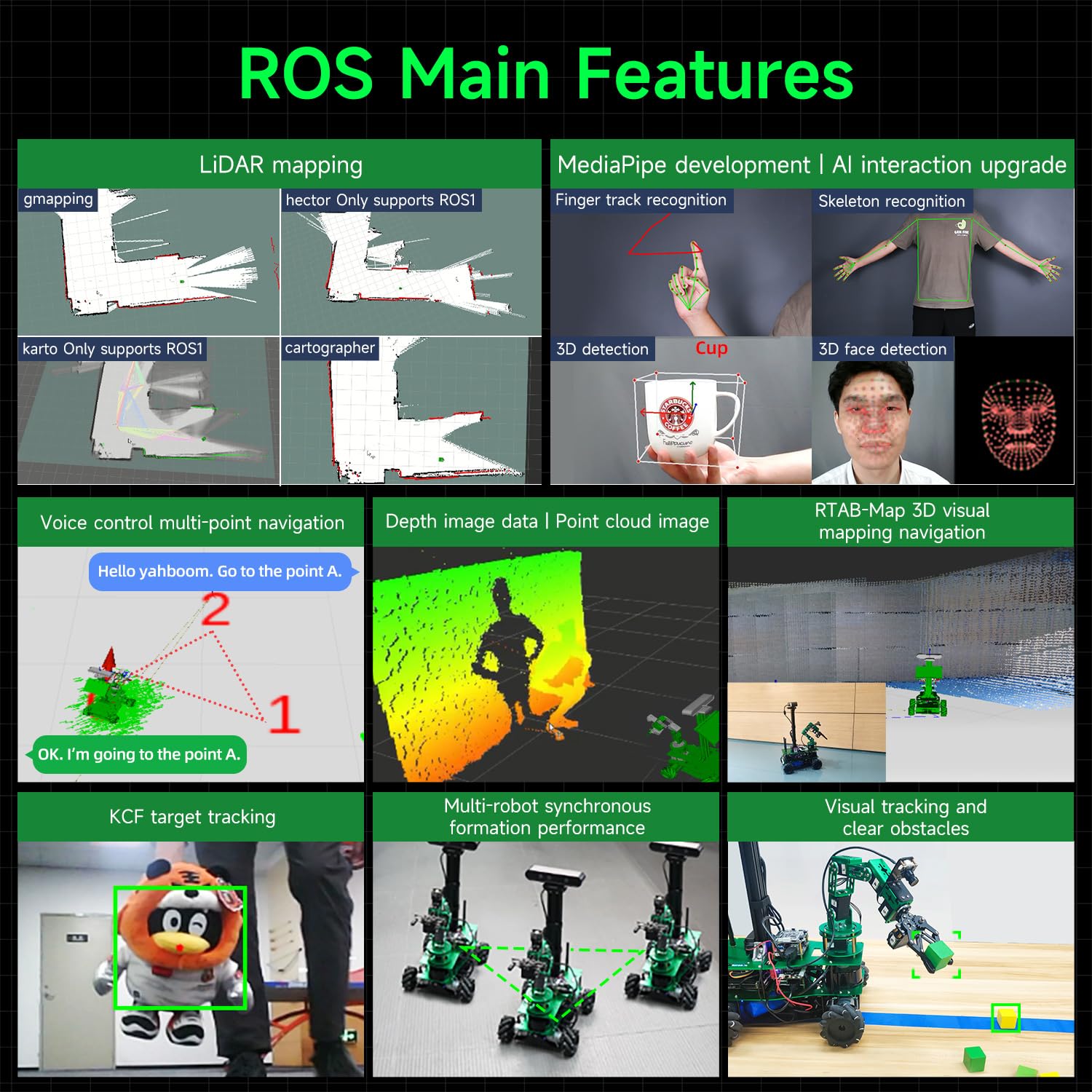

Exploring function and gameplay: For example, voice-controlled robot driving can also be combined with robotic arms for voice-controlled grabbing and other actions, supporting ORBSLAM2, Rtab-Map 3D, RRT exploration, gmapping, hector, karto, cartographer and other algorithms for mapping, voice, lidar , Rtab-Map 3D and other navigation methods, conventional obstacle avoidance, following, recognition, bone detection, etc. are all functions that can be quickly implemented
You may need to take some time to understand the functional gameplay involved in the Rosmaster X3 Plus, as the number is a bit high.Not suitable for novice programmers as it is a challenging challenge

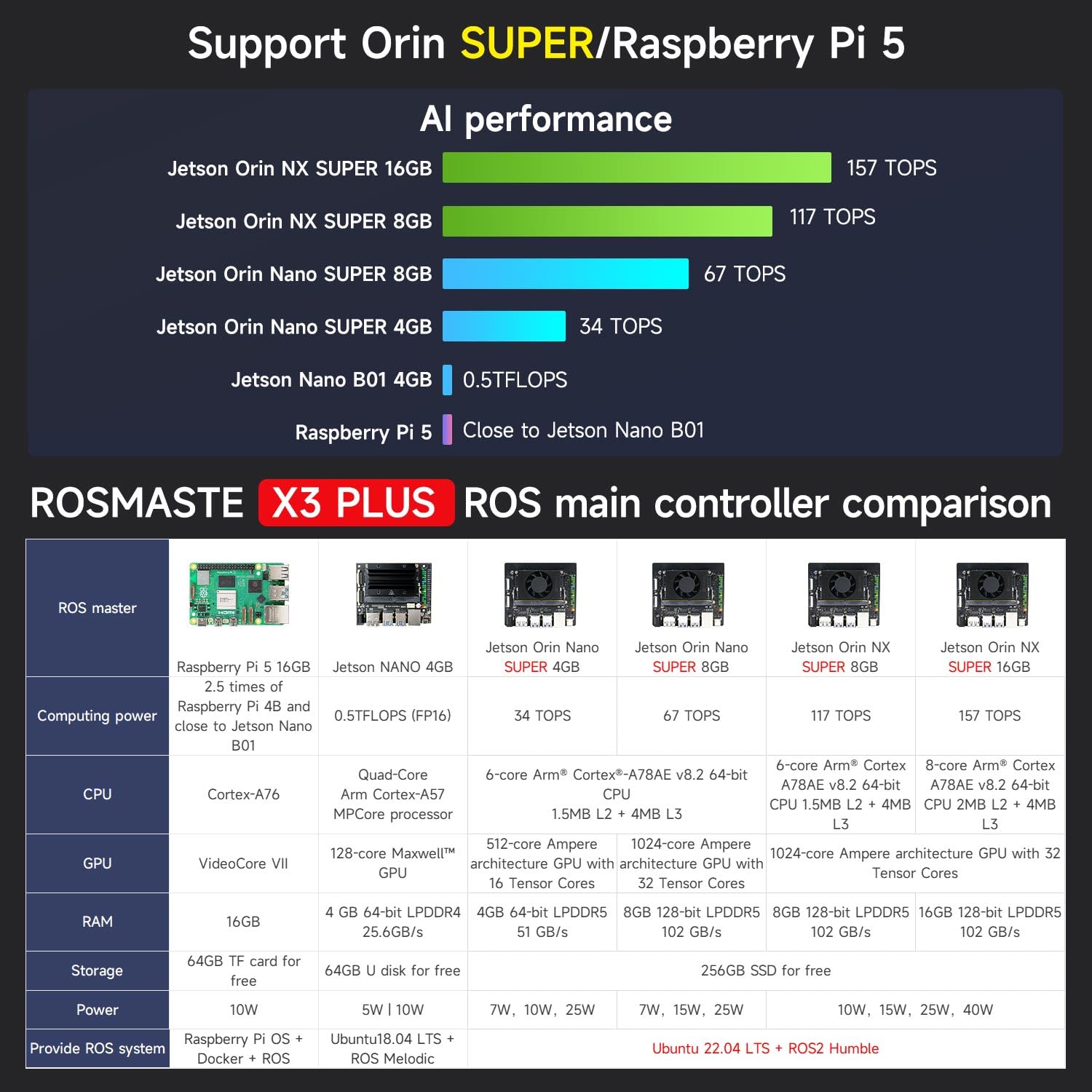

Rosmaster X3 Plus has 5 versions, the difference lies in the main control board, namely Raspberry Pi 5, Jetson nano, Jetson Orin Nano Super，Orin NX Super. There are a few differences, choose according to your needs. The main body of the robot car has been assembled, and the user can start programming and operating the robot as long as the installation of the construction order is completed.
Rosmaster X3 Plus is based on the ROS operating system. Through Python programming, it can learn robot arm Movelt simulation, mapping and navigation, STM32 underlying development, MaeiaPipe development, Cartesian path planning and various algorithms. Yahboom provides open source CV, and provides 124 video courses from shallow to deep (dual subtitles)
Cross-platform interconnection control, dual APP control, real-life first-person controller, Jupyter Lab programming control, ROS system control
