| Memory Speed | 133 MHz |
| Number of USB 2.0 Ports | 2 |
| Wireless Communication Standard | 802.11b |
| Processor Count | 2 |
| UPC | 790885235078 |
| Item Weight | 0.704 ounces |
| Product Dimensions | 0.92 x 0.7 x 0.23 inches |
| Item Dimensions LxWxH | 0.92 x 0.7 x 0.23 inches |
| Manufacturer | Waveshare |
| ASIN | B0C9Q183GL |
| Date First Available | June 29, 2023 |
Overview

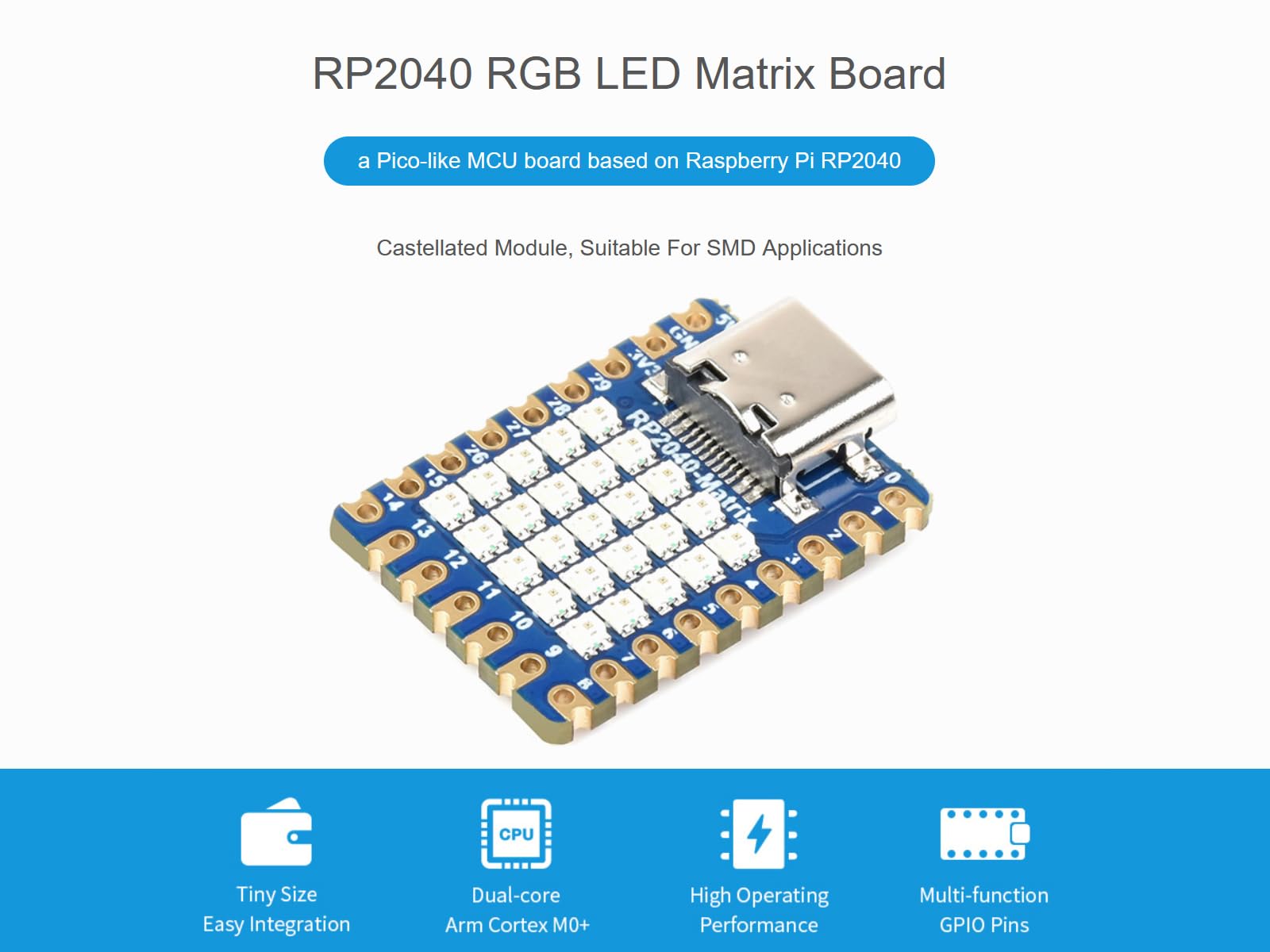

Waveshare RP2040-Matrix Development Board, a Pico-like MCU board based on Raspberry Pi RP2040 dual core processor, onboard 5×5 RGB LEDs are for colorful lighting displays or simple images, adapting 20 × multi-function GPIO pins in this mini board. Castellated module, suitable for SMD applications
Board specifications
--RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
--Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
--264KB of SRAM, and 2MB of on-board Flash memory

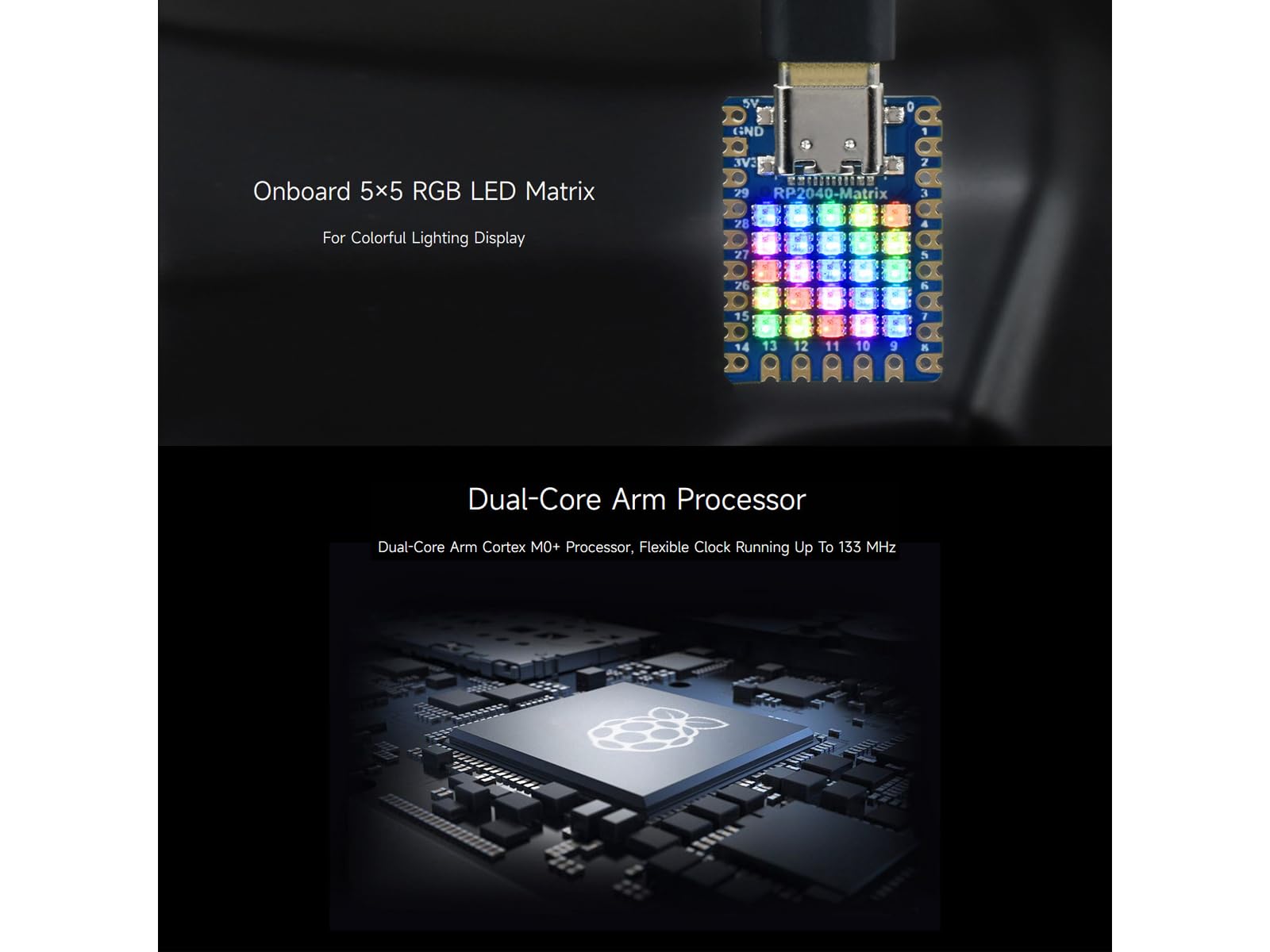

--Onboard 5 × 5 RGB LED matrix for colorful lighting display
--Castellated module allows soldering direct to carrier boards
--USB 1.1 with device and host support
--Low-power sleep and dormant modes
--Drag-and-drop programming using mass storage over USB
--20 × multi-function GPIO pins
--2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
--Accurate clock and timer on-chip
--Temperature sensor
--Accelerated floating-point libraries on-chip
--8 × Programmable I/O (PIO) state machines for custom peripheral support
Package Content
RP2040-Matrix x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
