| Package Dimensions | 4.33 x 4.33 x 0.39 inches |
| Item Weight | 0.352 ounces |
| Manufacturer | Waveshare |
| ASIN | B0BRBG71WS |
| Country of Origin | China |
| Item model number | 4096 Matrix 64x64-2 Pitch |
| Customer Reviews | 4.4 out of 5 stars 15Reviews |
| Best Sellers Rank | #5,694 in Single Board Computers (Computers & Accessories) |
| Date First Available | December 29, 2022 |

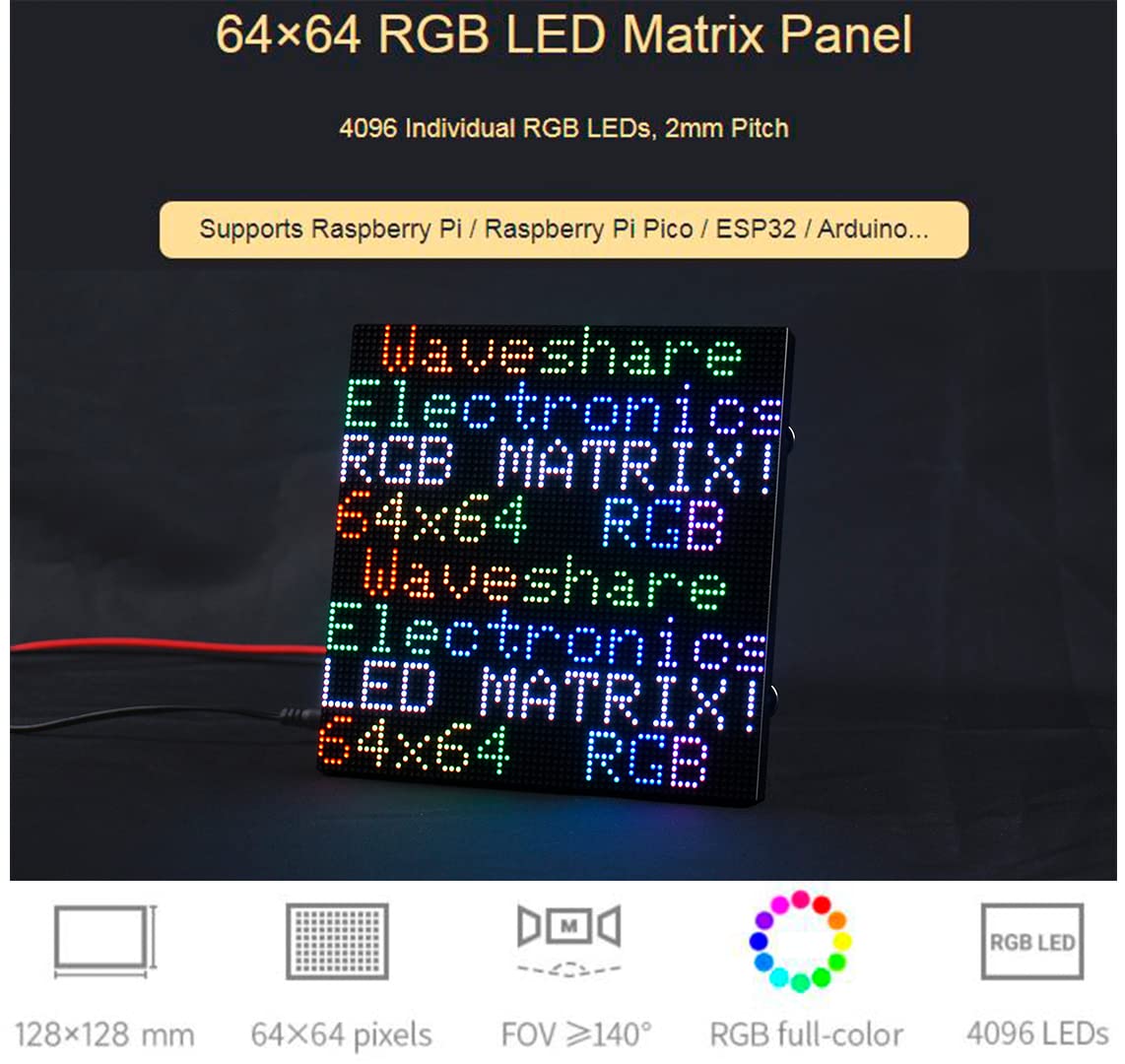

64×64 RGB LED Matrix Panel,4096 Individual RGB LEDs, 2mm Pitch. Compatible with Arduino/Raspberry Pi / Raspberry Pi Pico / ESP32
Features
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?
4096 individual RGB LEDs, full-color display, adjustable brightness
64×64 pixels, 2mm pitch, allows displaying text, colorful image, or animation
128×128mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

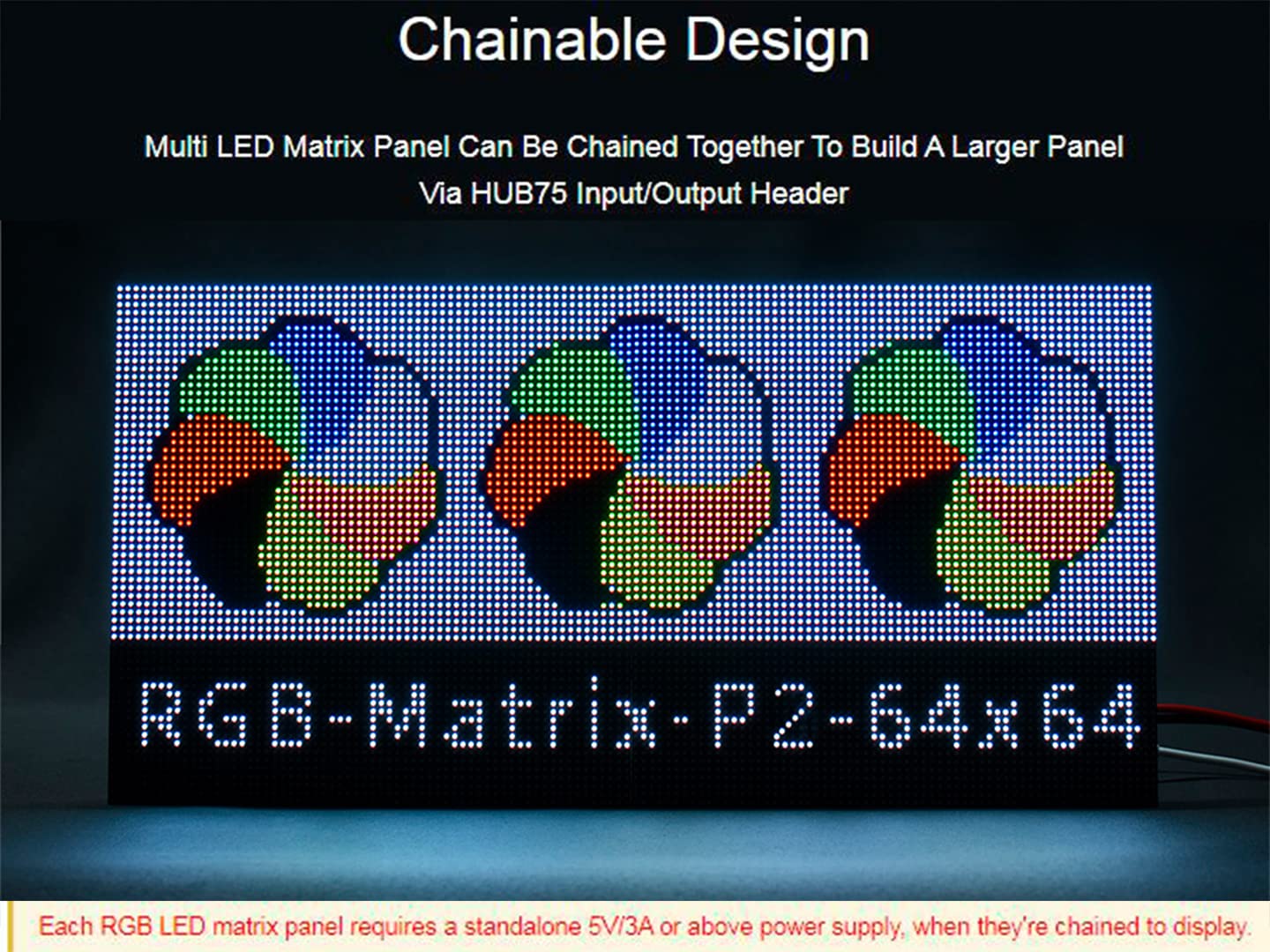

Chainable Design: Onboard two HUB75 header, one for controller data input, one for output, chain support.Multi LED Matrix Panel can be chained together to build A Larger Panel via HUB75 Input/Output Header.
Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)
Usage Scenarios: DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...
Specifications
DIMENSIONS--- 128mm × 128mm
PIXELS--- 64×64=4096 DOTS
PITCH--- 2mm
PIXEL FORM--- 1R1G1B
VIEWING ANGLE--- ≥140°
CONTROL TYPE--- synchronization
DRIVING--- 1/32 scan
HEADER--- HUB75
POWER SUPPLY--- 5V / 3A (VH4 header input)
POWER--- ≤15W
Online Tutorial: n9.cl/a2b98

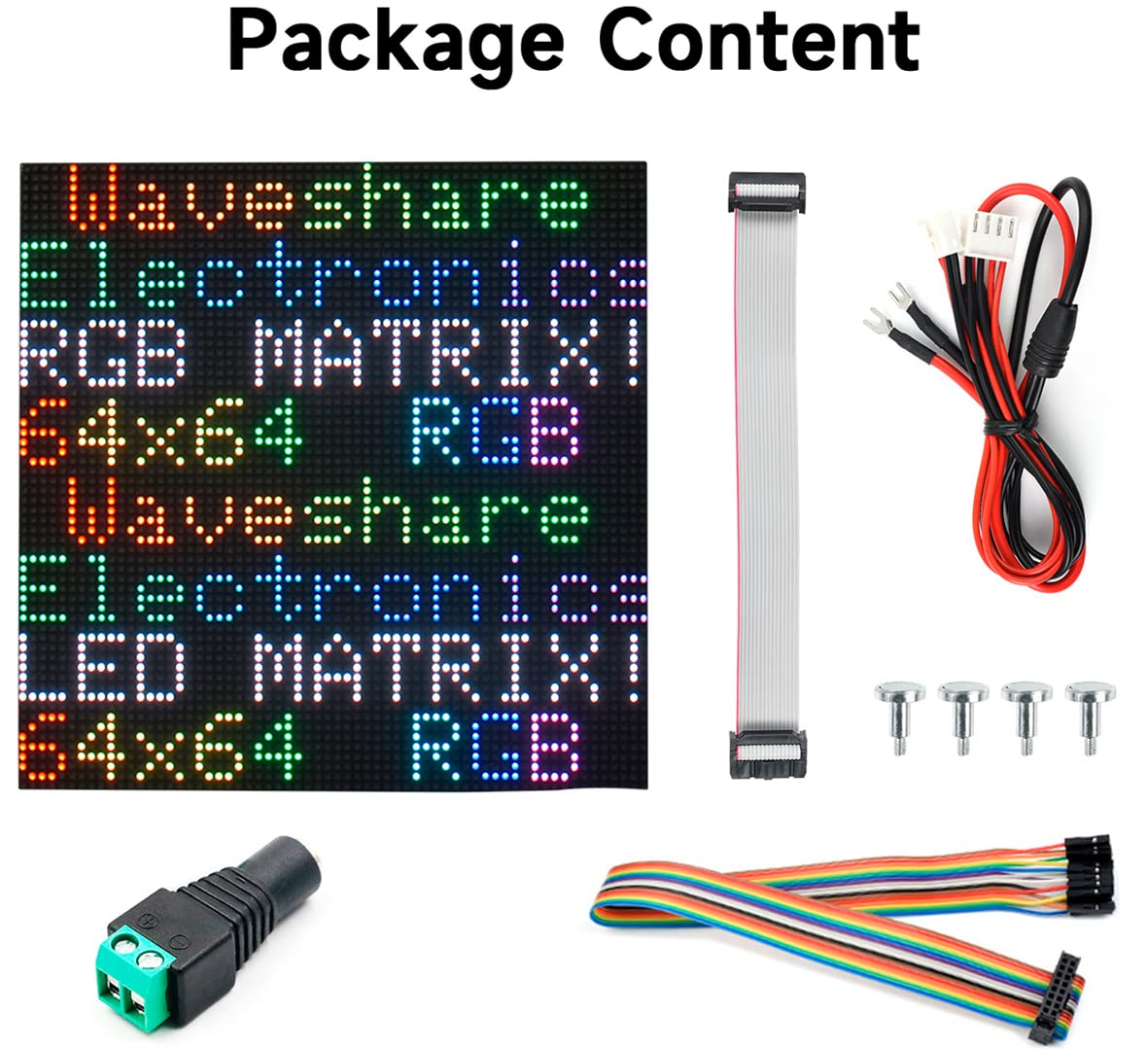

Package Content
RGB-Matrix-P2-64x64 LED matrix and accessories x1
Power supply terminal adapter x1
16P wire ~30cm x1
