Vikye USB Programmer, TL866II Plus Programmer USB EEPROM Flash BIOS Programmable Logic Circuits 8051 AVR MCU GAL PIC with 10 Adapter Automatically Identify The Operating System

Thương hiệu: Vikye

Vikye USB Programmer, TL866II Plus Programmer USB EEPROM Flash BIOS Programmable Logic Circuits 8051 AVR MCU GAL PIC with 10 Adapter Automatically Identify The Operating System

Bán tại: Mỹ

3.7

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

Nhập khẩu thương mại

2,905,222đ

Dự kiến giao hàng từ Mỹ về Việt Nam ngày 15-12-2025 - 21-12-2025

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu VIKYE là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm VIKYE USB PROGRAMMER, TL866II PLUS PROGRAMMER USB EEPROM FLASH BIOS PROGRAMMABLE LOGIC CIRCUITS 8051 AVR MCU GAL PIC WITH 10 ADAPTER AUTOMATICALLY IDENTIFY THE OPERATING SYSTEM là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Product Dimensions	3.94 x 2.36 x 1.18 inches
Item Weight	0.36 Kilograms
ASIN	B07QL1YRT7
Item model number	hwv5tgsy3n
Customer Reviews	4.3 out of 5 stars 41Reviews
Best Sellers Rank	#154,036 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #34 in Programmable Logic Circuits
Date First Available	April 11, 2019
Number of Ports	10
Item Package Quantity	1
Input Voltage	5 Volts
Power Plug Type	Type A - 2 pin (North American)
Unit Count	1.0 Count
UPC	749249521401
Manufacturer	Vikye

Tính năng sản phẩm

Sản phẩm Vikye USB Programmer, TL866II Plus Programmer USB EEPROM Flash BIOS Programmable Logic Circuits 8051 AVR MCU GAL PIC with 10 Adapter Automatically Identify The Operating System của thương hiệu Vikye với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

TL866II Plus Programmer USB EEPROM Flash BIOS Programmable Logic Circuits 8051 AVR MCU GAL PIC with 9 Adapter

Support simultaneously burn with 4 Programmers each computer.
The minimum volume and the lowest power consumption and do not feel any heat in process.
All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
Best internal 40 pin over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH.
Unique serial ICSP interface. Supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
Chip auto serial number is the most complete and practical.
Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.

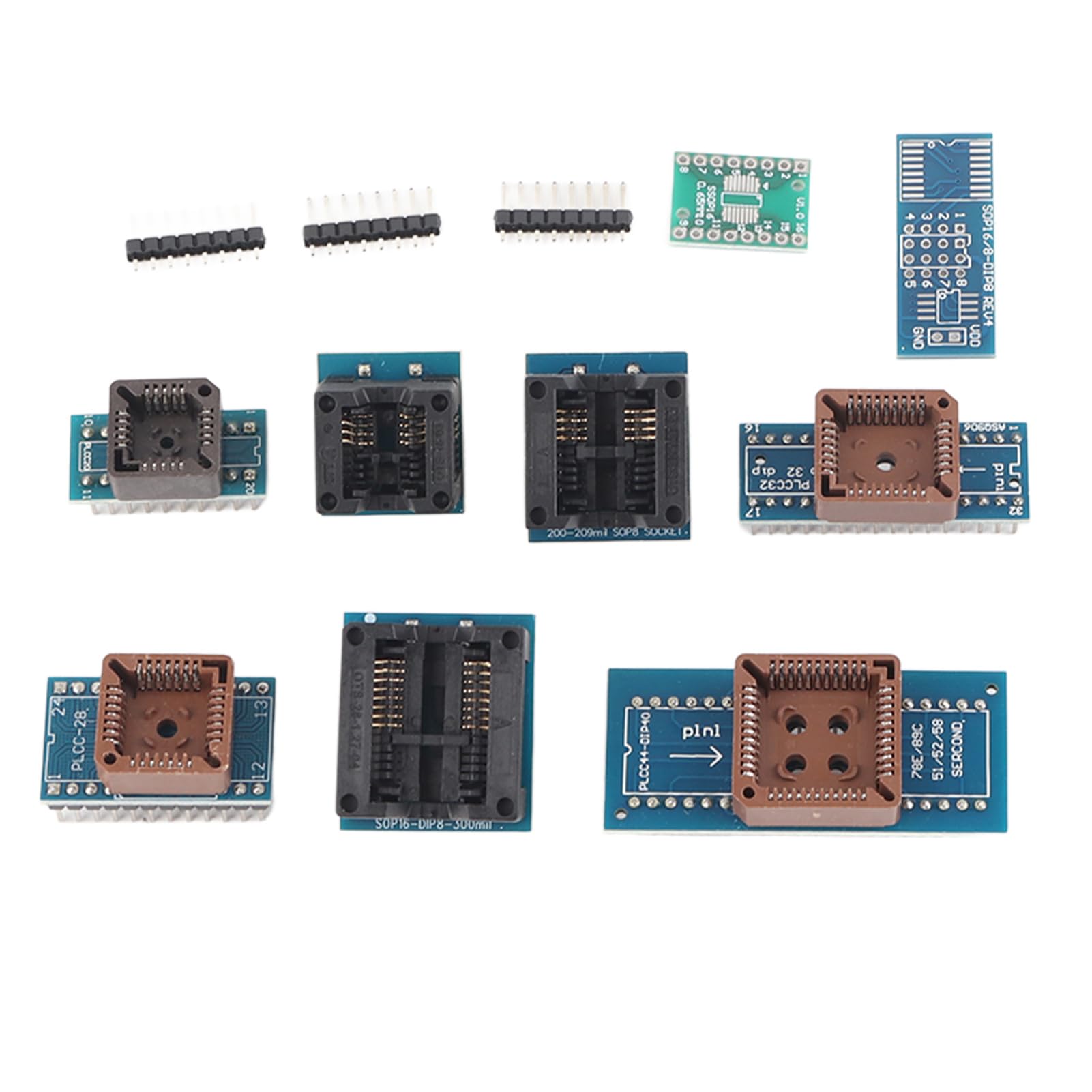

Package Included:1 x TL866III Programmer, 1 x Connect Cable, 9 x Adapters, 1 x Contact Pin, 1 x Test Clip

High Speed Programming
This programmer has Built-in MCU with high-performance and high-capacity USB interface at the communication speed of 12Mbps
Unique ultra-low power consumption
The whole programmer is equipped with the ultra-low power chips and it is furnished with electricity via USB Interface.
Easily portable performance
This is one of the smallest products in the world and the dimensions are 10CM*6CM*2.5CM (it is as small as a driving license). In addition, you don't need to carry with an external power supply because of its ultra-low power that makes it more portable.
Programmable programming power supply
VPP and VCC programming voltages are independently program-controlled: programmable VCC is from 1.8V to 6.5V; VPP is from 1.8V to 18V. The fluctuation of power supply is minor because of the multi-stage LC filter.
Best overvoltage, overcurrent protection
VCC, VPP power supply of the Programmer is furnished with the independent Grade 3 overcurrent protection and the protection of automatically cutting off power supply. Each pin of 40-pin programming socket has VPP overvoltage protection. It can effectively prevent from putting a chip in the wrong place or short circuit due to other reason. In this programming case, it can also stop VPP high voltage from coming back to the internal of the programmer and damaging the device. Really make sure that the programmer will not be damaged when there is any worst-case short circuit. At the same time, the programmed chip can be efficiently protected.
This programmer will cut off the programming power supply VPP and VCC within 100us and send to the application program when there is short circuit. The programmer and PC won't be reset when there is short circuit because of the multilevel overcurrent protection.
40PIN universal pin
It is the most versatile pin among 40PIN quasi-universal pins. You don't need to move or turn around the chip when programming, just congruously put the chip forward and the handle direction of the programmer is the PIN1 place. Its design accords with the common operating habit of user.
Upgrading Function
This programmer is equipped with upgrading Function of the built-in hardware firmware program that can make sure your programmer's firmware flash and application software can be timely updated. You can complete the upgrade by downloading the upgrading program through the manufacturer's website.
Second development function of chip serial number
This programmer has a variety of automatic numbering functions that are used commonly. You can get any serial number through DLL Dynamic Link Libraries by using the custom algorithm. In mass production, the function enables each chip to produce only one identifying information that can be encrypted by the custom algorithm. So you can effectively protect your rights as a customer.
54/74F/LS/HC CMOS4000 series IC functional tests
This is the first development programmer to test the common logic integrated circuit and this test can be located the errors of logic gate circuit, as well as test any possible input combinations of integrated circuit.
Programmer self-testing function
This programmer can test itself on each pin of VPP, VDD, GND and I/O information, at the same time it can run an inside short-circuit test on VPP, VCC current.

Mô tả

Thông tin chi tiết sản phẩm:

★【Feature】: Support simultaneously burn with 4 Programmers each computer. The minimum volume and the lowest power consumption and do not feel any heat in process. All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
★ 【Scope of Application】: Best internal 40 pin over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH.
★【Unique serial ICSP interface】: Supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
★ 【Test CMOS4000 74/54 series】: Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error. Chip auto serial number is the most complete and practical.
★ 【RC Calibration】: Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.

Xem thêm
