| Manufacturer | Arozk |
| Brand | Arozk |
| Model | TPMS19 |
| Item Weight | 0.64 ounces |
| Product Dimensions | 2.4 x 1.6 x 0.4 inches |
| Item model number | TPMS19 |
| Batteries | 1 CR2 batteries required. |
| Is Discontinued By Manufacturer | No |
| Manufacturer Part Number | Arozk20200101 |
| OEM Part Number | 8C2T-1A203-AB, 8C2Z-1A203-A, 8C2Z1A203A, 8C2Z1A203AB, TPMS19 |
| Special Features | TPMS19 Tire Pressure Monitor Sensor Activation Tool is Compatible with Ford/ Lincoln/ Mercury/ Mazda etc. It's a Super Simple, Faster, Mini TPMS Activation Tool, Inexpensive and Reliable, Quickly reset your tires in less than 2 minutes! |
| Voltage | 3 Volts |
1. New TPMS sensors installed, letting air out or adding air into the tire couldn’t make the system recognize new sensors.
2. Do tire rotation, didn’t have a quick and easy way to let ECU relearn new tire information.
3. When tire pressure indicator lights ON, after the maintenance performed, the tire pressure needs to be reset to turn off the TPMS light.
4. Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
5. Exchanging the winter tires or Summer tires.
Specifications:
OEM Part Number: 8C2Z-1A203-A, 8C2Z1A203A, 8C2T-1A203-AB, 8C2T1A203AB, TPMS19
Reset Sequence: Left front→Right front→Right rear→Left rear
Material: High quality ABS plastic
Battery Type: CR 3V (Included)
Batteries Life: Up to 5 years+

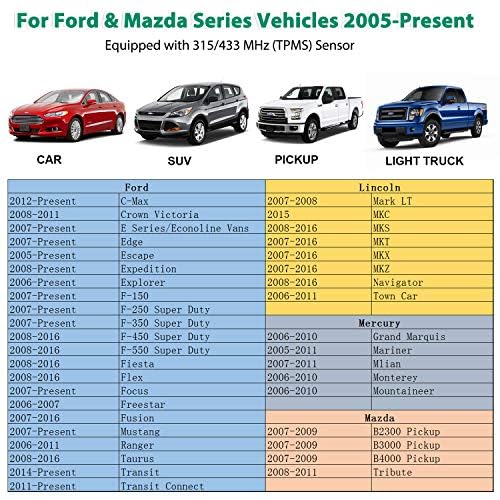

Fitment Vehicles: Customized for all Ford/ Lincoln/ Mercury & Mazda Series Vehicles 2005-2024 (NOT LIMITED TO THE FLLOWING MODELS)
2012-Present C-Max; 2008-Present Crown Victoria;
2007-Present E Series/Econoline Vans; 2011-Present Transit Connect;
2007-Present Edge; 2005-Present Escape;
2008-Present Expedition; 2006-Present Explorer;
2007-Present F-150; 2007-Present F-250 Super Duty;
2007-Present F-350 Super Duty; 2008-Present F-450 Super Duty;
2008-2016 F-550 Super Duty; 2008-2016 Fiesta;
2008-Present Flex; 2007-Present Focus; 2006-2007 Freestar;
2007-Present Fusion; 2007-Present Mustang;
2006-Present Ranger; 2008-Present Taurus; 2014-Present Transit;
2007-2010 Lincoln Mark LT
2015-Present Lincoln MKC
2008-Present Lincoln MKS
2007-Present6 Lincoln MKT
2007-Present Lincoln MKX
2007-Present Lincoln MKZ
2007-Present Lincoln Navigator
2006-2011 Lincoln Town Car
2006-2010 Mercury Grand Marquis
2005-2011 Mercury Mariner
2007-2011 Mercury Mlian
2006-Present Mercury Monterey
2006-2010 Mercury Mountaineer
2007-2010 Mazda B2300 Pickup
2007-2010 Mazda B3000 Pickup
2007-2010 Mazda B4000 Pickup
2008-2011 Mazda Tribute
1. Make the gear in P position.
2. Ignition switch to OFF, press and release the brake pedal.
3. Turn ignition switch from OFF position to RUN position 3 times and nd at RUN position.
4. Depress and release the brake pedal.
5. Ignition to OFF position.
6. Ignition goes from OFF position to RUN position 3 times and ends at RUN position.
7. Horn will ring once and TPMS indicator flashes, then learning mode has been entered successfully. If equipped, the message center will display the front left (LF) tire.
1. Set the car in TPMS learning mode. (car horn beep sound twice)
2. Start from the Front-Left wheel. Point antenna on correct position. Press & release power button. Succeed in reading the tire pressure sensor information when the horn bleeps once, then move to the next tire.
3. Read the pressure sensor information follow the Reset Sequence: Left front→Right front→Right rear→Left rear wheel.( Successfully read the the tire pressure sensor information when the horn beeps one time.)
4. After all sensors reseted, Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.
