| Package Dimensions | 8.9 x 5.79 x 2.36 inches |
| Item Weight | 11.4 ounces |
| Manufacturer | XYG-ST |
| ASIN | B07ML6F12Y |
| Customer Reviews | 4.2 out of 5 stars 13Reviews |
| Best Sellers Rank | #3,401 in Single Board Computers (Computers & Accessories) |
| Is Discontinued By Manufacturer | No |
| Date First Available | April 5, 2013 |
Description:

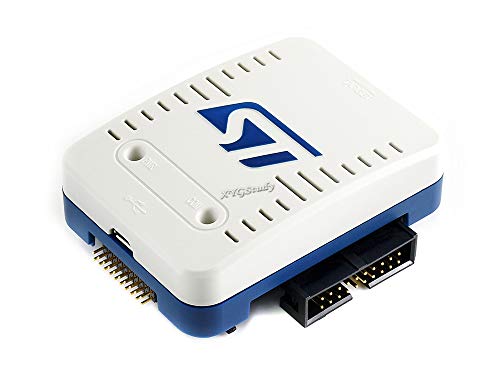

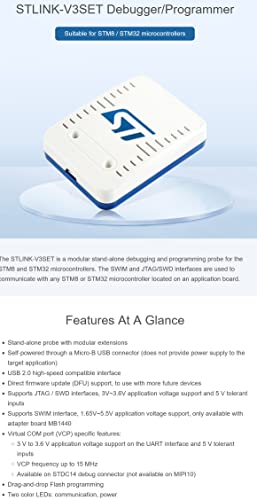

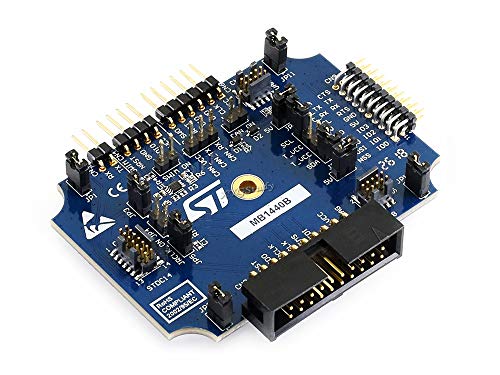

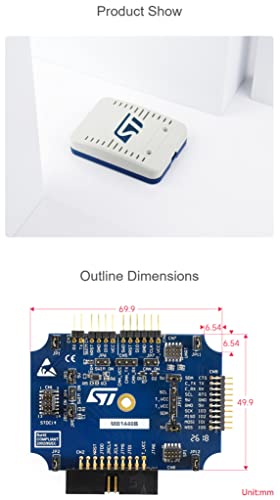

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board.
The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through bootloader.
The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board.

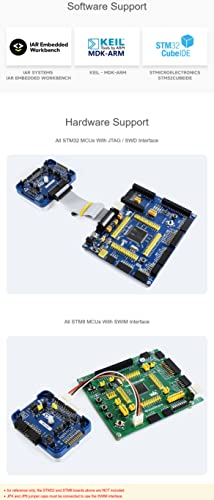

Supported Software
STM32CubeProgrammer
KEIL RVMDK
IAR EWARM
GCC-based IDEs
Supported Devices
All STM8 MCUs with SWIM interface
All STM32 MCUs with JTAG / SWD interface
Connect to PC
The STLINK-V3SET should be connected to the PC via a USB Micro-B cable.
* Before connecting, install/update the IDE/STM32CubeProgrammer to support the STLINK-V3SET (drivers)
* STLINK-V3SET adopts an STM32 F7 microcontroller, supports USB2.0 high speed communication
LED Status
COM LED is blinking RED: the first USB enumeration with the PC is taking place.
COM LED is RED: communication between STLINK-V3SET and the PC is established (end of enumeration).
COM LED is blinking GREEN/RED: data are being exchanged between the target and the PC.

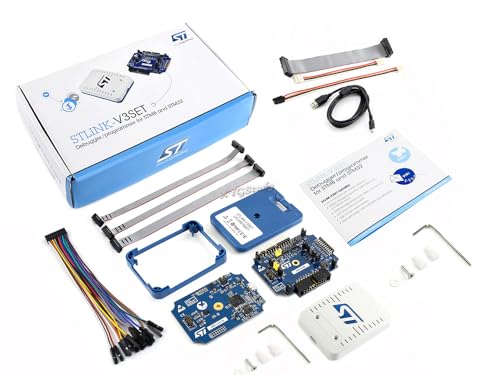

Package Contains
STLINK-V3SET x1
USB type A plug to micro B plug cable x1
20-pin JTAG/SWD flat ribbon (extra free) x1
SWIM dual 4-pin connectors cable (extra free) x1
SWIM 4-pin connector to separated pins cable (extra free) x1
