| ASIN | B0BXS4R3S3 |
| Date First Available | October 26, 2023 |
The SDG1000X can provide users with a variety of high fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.
Capable of outputting large signals at high frequencies. dual-channels, 20 Vpp amplitude can be guaranteed at up to 10 MHz.
With 0 dBm output, the THD (Total Harmonic Distortion) is less than 0.075%. Harmonics and spurs are less than -40 dBc throughout the entire bandwidth.
Up to 16 harmonics may be generated. Amplitude and phase of each harmonic can be set independently
Capable of combining the waveforms of 2 channels from internal, providing more flexible tools to generate complex waveforms.

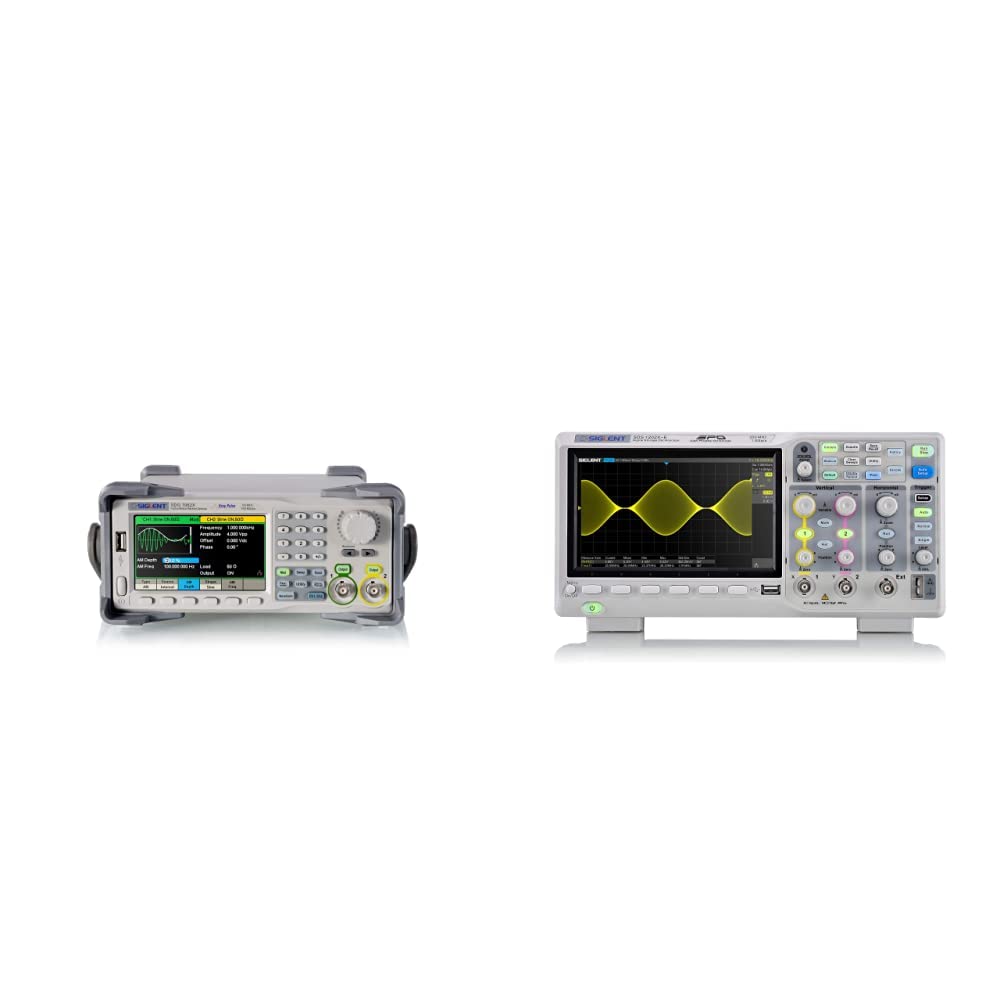

SIGLENT’s new SDS1000X-E Series Super Phosphor Oscilloscope is available in 100 and 200 MHz bandwidths and 2 or 4 analog channels.

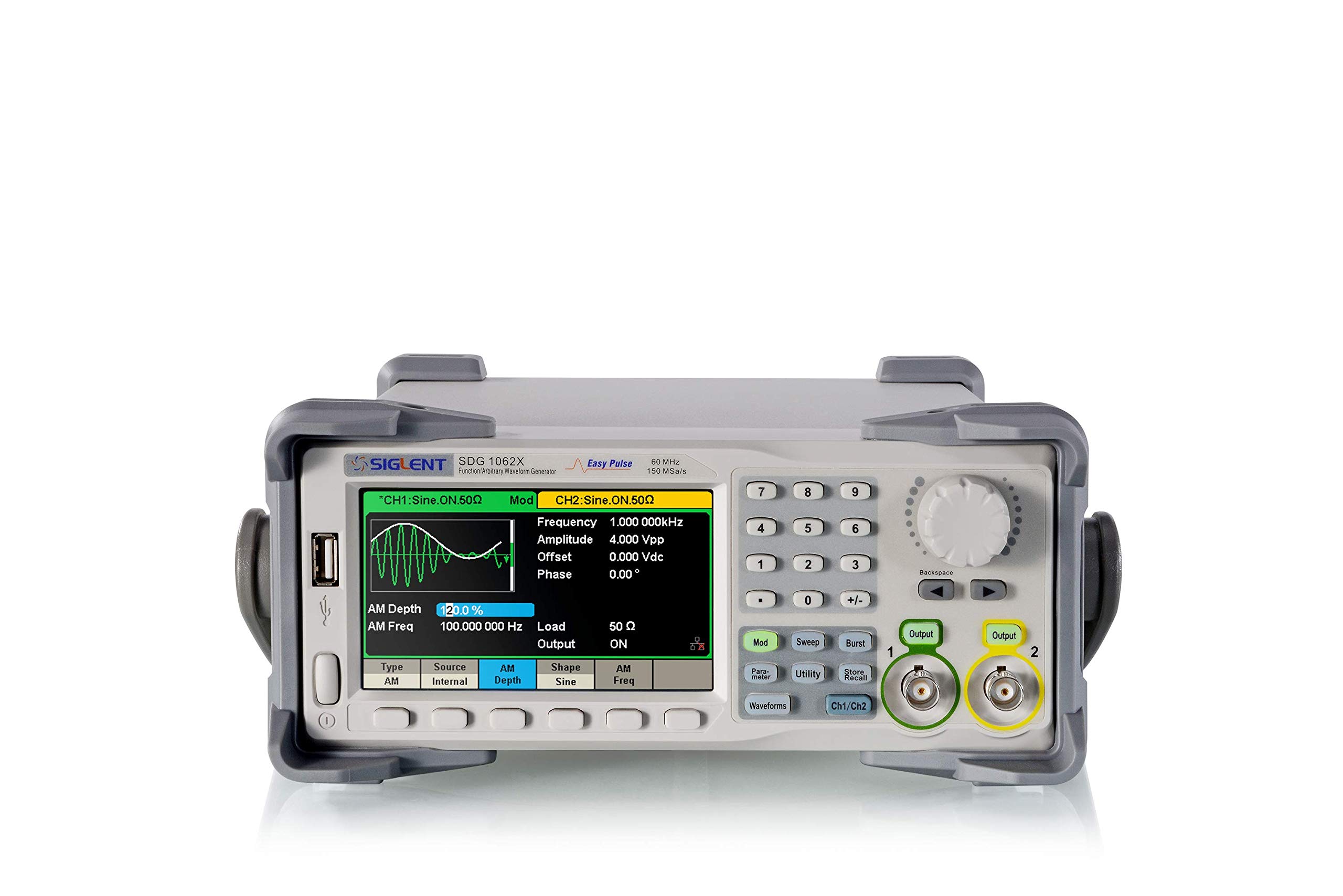

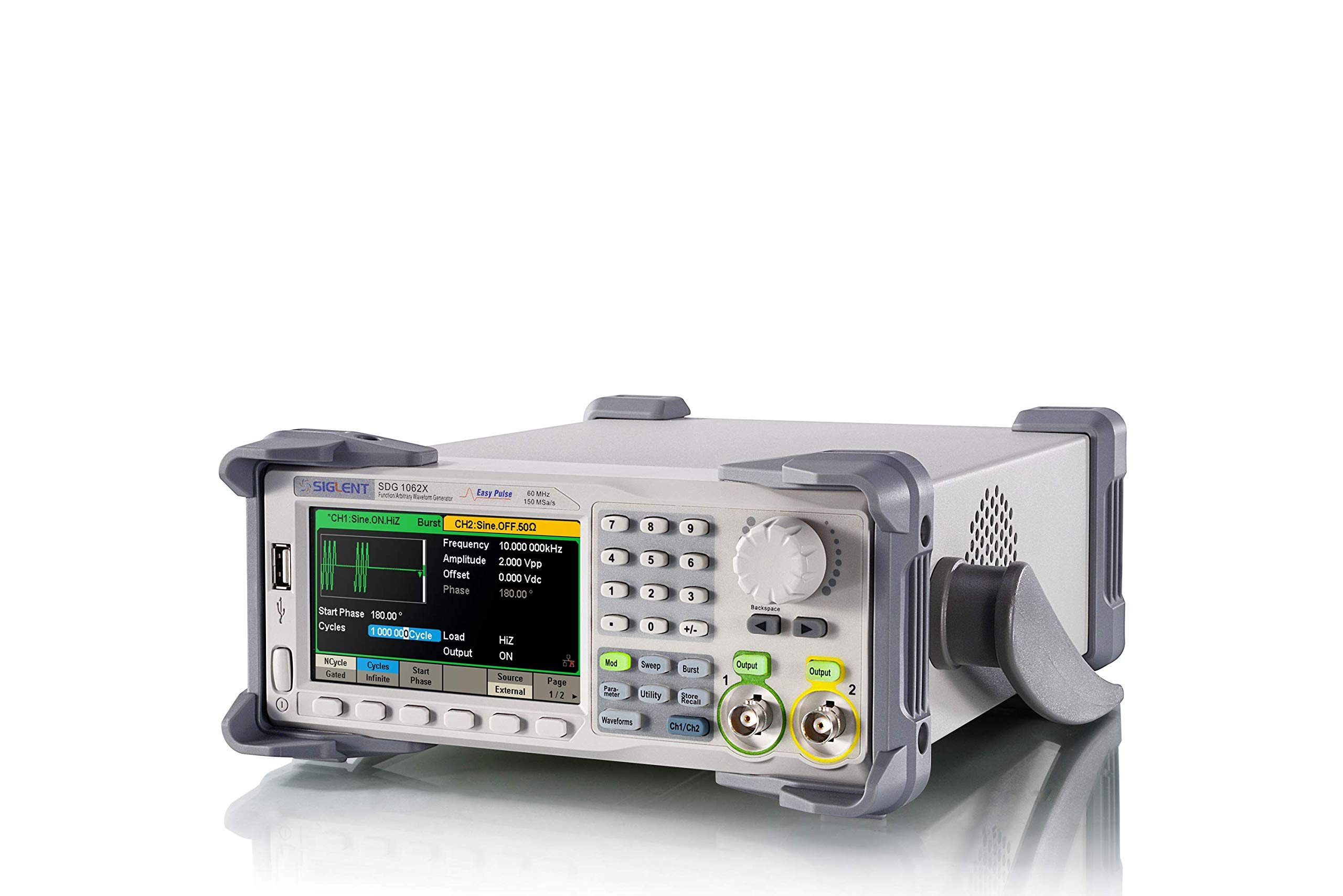

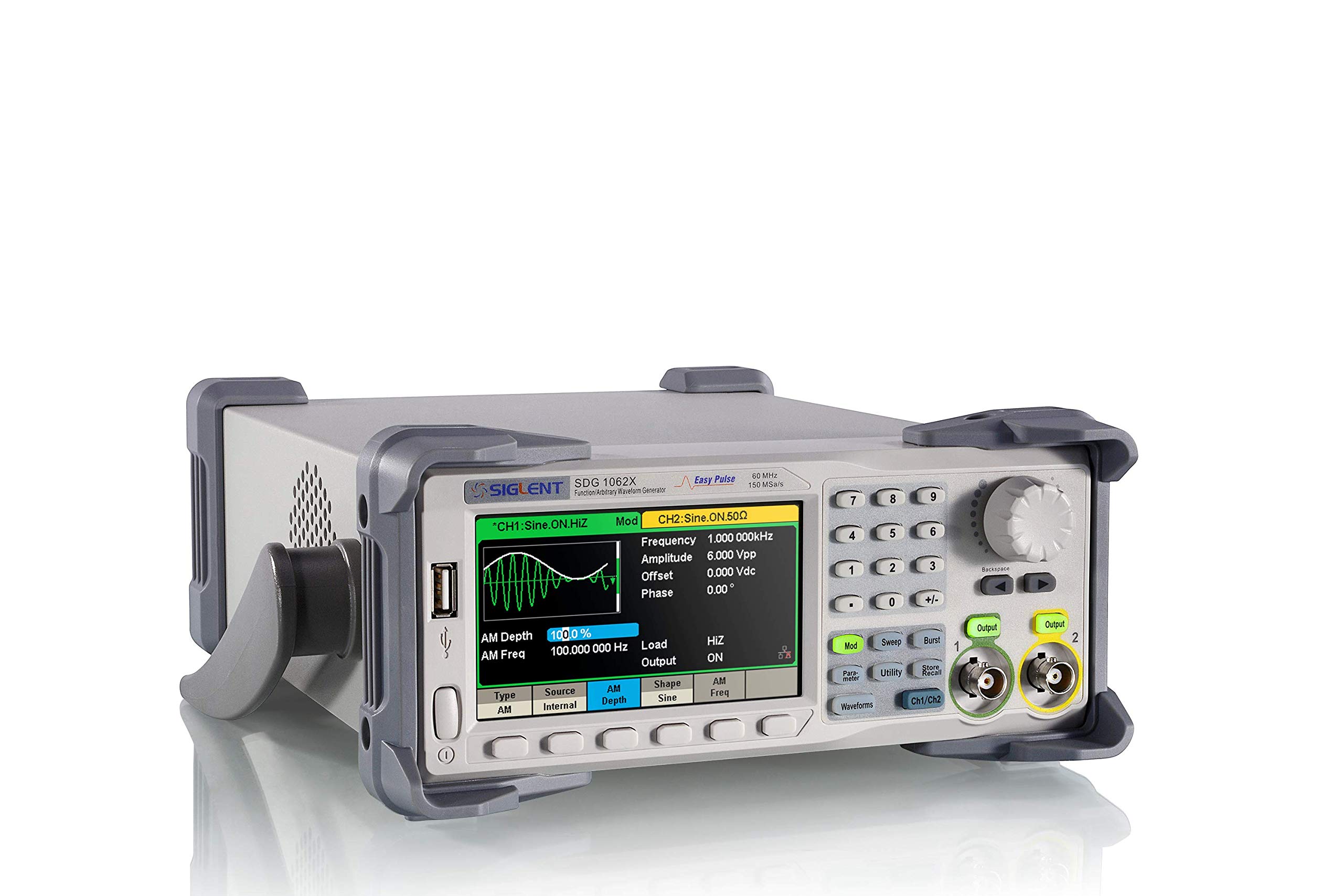

Siglent Technologies SDG1062X Series Dual-Channel Function/Arbitrary Waveform generators
SIGLENT’s SDG1000X is a series of dual-channel function/arbitrary waveform generators with specifications that include up to 60 MHz maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary EasyPulse & TrueArb technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse waveforms, and the special square generator is capable of generating square waveforms up to 60 MHz in frequency with low jitter. With these advantages, the SDG1000X can provide users with a variety of high fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.
Siglent Technologies SDS1202X-E 200 mhz Digital Oscilloscope 2 Channels, Grey
200Mhz, 1Gsa/s, The SDS1202X-E Series employs a new generation of Spo technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It has a minimum vertical input range of 500 UV/Div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400, 000 frames/sec (sequence mode). it also employs a 256-level intensity Grading display function and a color temperature display mode not found in other models in this Class. Siglent’s new oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Decoding is standard configuration including IIC, SPI, UART, can, LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1M points FFT math function that gives the sds1000x-e very high frequency resolution when observing signal Spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and high performance of the sds1000x-e Series cannot be matched else anywhere at this price.
