| Processor | 2.4E+2 |
| RAM | PSRAM |
| CPU Manufacturer | Xtensa |
| Wireless Communication Standard | Infrared |
| RAM Memory Technology | PSRAM |
| Processor Count | 2 |
| Product Dimensions | 1.97 x 1.57 x 1.18 inches |
| Item Weight | 0.634 ounces |
| Item Dimensions LxWxH | 1.97 x 1.57 x 1.18 inches |
| Processor Brand | Xtensa |
| Manufacturer | seeed studio |
| ASIN | B0BYSB66S5 |
| Date First Available | March 17, 2023 |

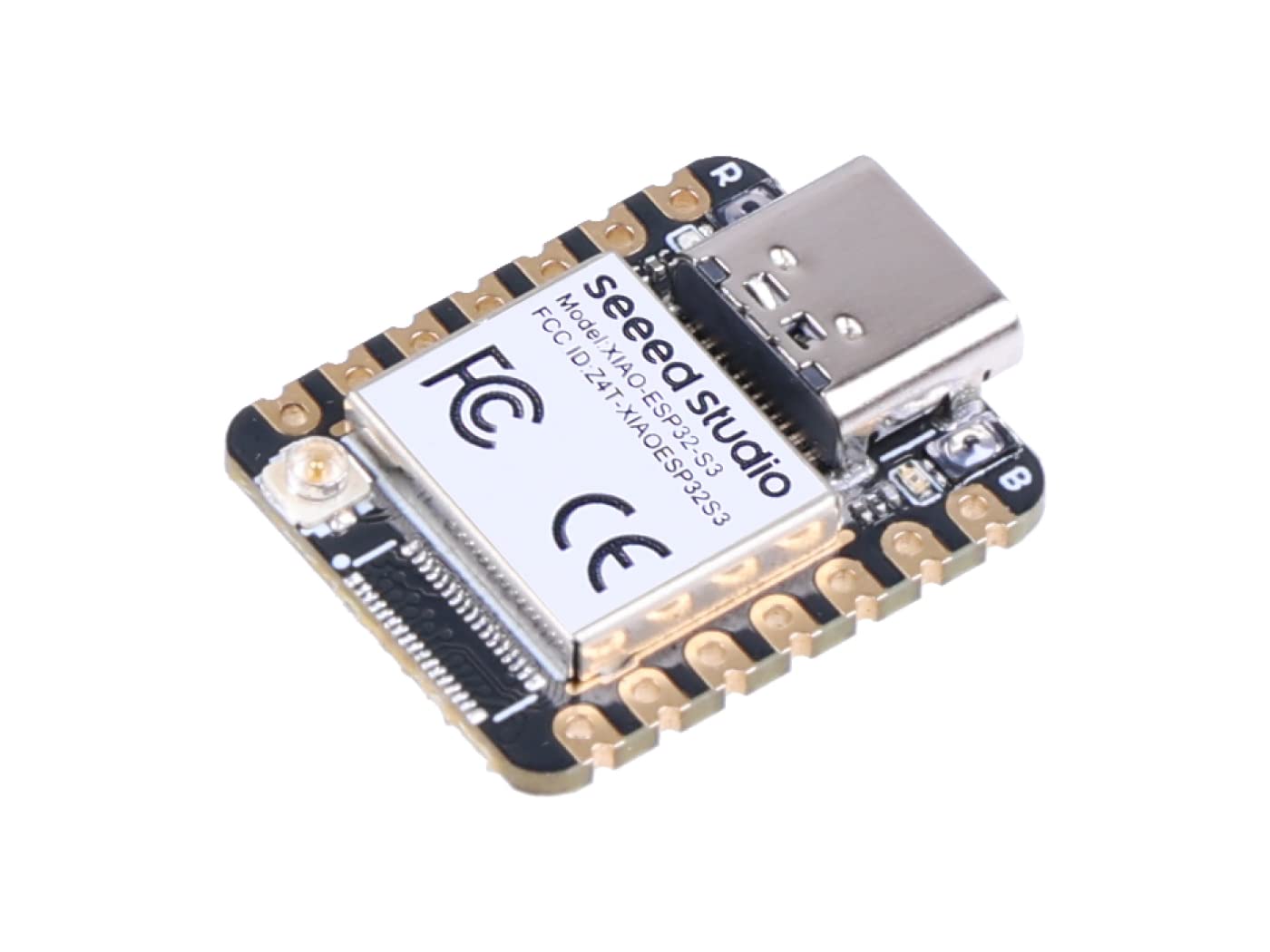

XIAO ESP32S3 is a high-performance board powered by Expressif ESP32-S3R8 chip. With support for 2.4GHz WiFi and low-power Bluetooth BLE 5.0 dual-mode wireless communication, this board is perfect for high-performance, low-power IoT applications.

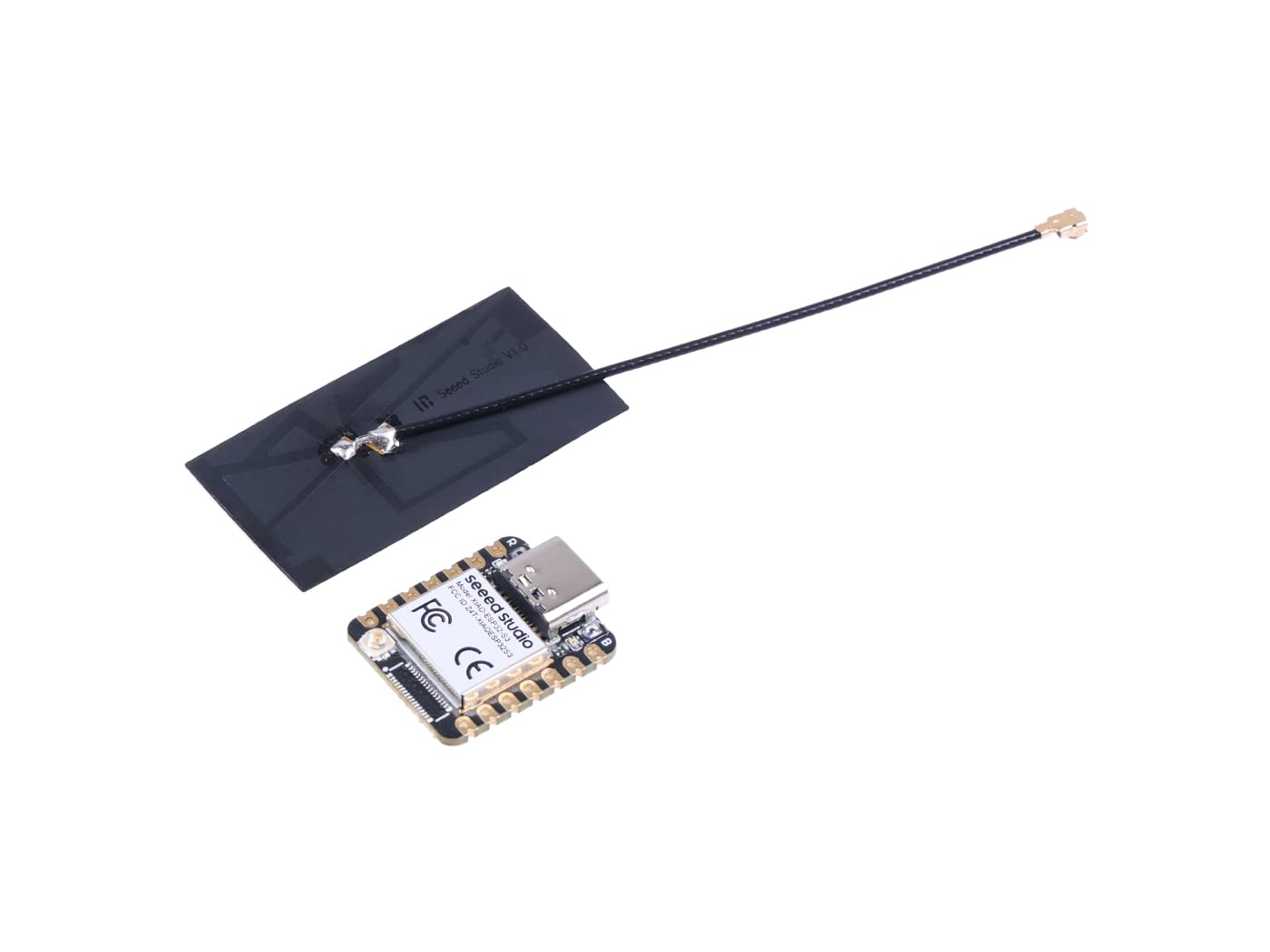

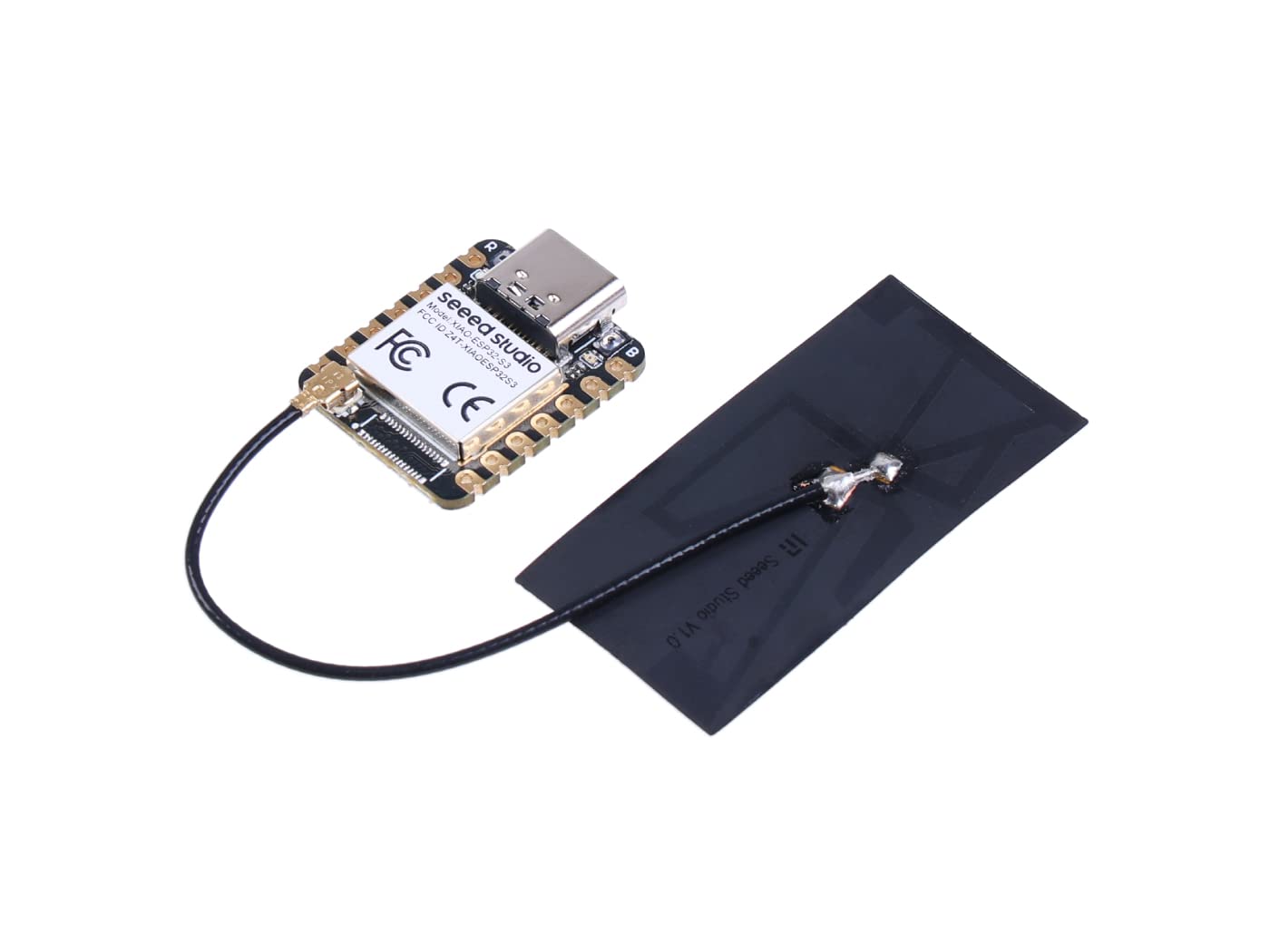

When connected with the U.FL antenna, the remote communication distance and reach up to 100m.
Equipped with a powerful Xtensa 32-bit LX7 dual-core processor running at up to 240MHz, 8MB PSRAM, and 8MB Flash, XIAO ESP32S3 is designed to handle multi demanding tasks with ease.
Additionally, XIAO ESP32S3 supports lithium battery charging management and allows for deep sleep mode with power consumption as low as 14μA. With 4 adjustable power modes, XIAO ESP32S3 can balance communication distance, data rate, and power consumption to meet the needs of various application scenarios.
At just 21 x 17.5mm, XIAO ESP32S3 is designed with the classic thumb-sized form factor, making it perfect for wearable devices. Its breadboard-friendly and surface-mount design makes it ideal for production, with all SMD components on a single-sided board for ease of mass production.
 XIAO ESP32S3 |  XIAO ESP32C3 |  XIAO SAMD21 |  XIAO RP2040 |  XIAO nRF52840 |  XIAO ESP32-C6 | |
|---|---|---|---|---|---|---|
| Customer Reviews | 666 | 666 | 725 | 240 | 173 | 666 |
| Price | — no data | $11.90 | — no data | — no data | — no data | $13.99 |
| Chip & Architecture | Expressif ESP32S3 (Dual-core Xtensa LX7 running up to 240 MHz) | Expressif ESP32C3 (RISC-V running up to 160 MHz) | Microchip SAMD21 （Cortex-M0+ running up to 48MHz） | Raspberry Pi RP2040 （Dual-core Cortex-M0+ running up to 133 MHz） | Nordic nRF52840 （Cortex-M4 running up to 64 MHz） | Expressif ESP32C6 （Two RISC-V processors high-performance one running up to 160 MHz low-power one running up to 20 MHz） |
| RAM | 8M PSRAM | 400 KB SRAM | 32 KB SRAM | 264 KB SRAM | 256 KB RAM | 512KB SRAM |
| Flash(chip) | 8MB Flash | 4MB | 256KB | / | 1MB | 4MB |
| Interface | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI | I2C/UART/SPI |
| PWM/Analog Pin | 11/9 | 11/4 | 11/11 | 11/4 | 11/6 | 11/7 |
| Onboard Button | Reset/Boot Button | Reset/Boot Button | / | Reset/Boot Button | Reset Button | Reset/Boot Button |
| Bluetooth | ✓ | ✓ | / | / | ✓ | ✓ |
| WIFI | ✓ | ✓ | / | / | / | ✓ |
| Programming Languages | Arduino | Arduino | Arduino, CircuitPython | Arduino, MicroPython, CircuitPython | Arduino, CircuitPython | Arduino, PlatformIO, MicroPython, CircuitPython, Zephyr |
| Baterry Charge IC | ✓ | ✓ | / | / | ✓ | ✓ |
