| Processor | 1.2E+2 core_m_family |
| Operating System | Arduino, MicroPython, ArduPy (user-defined) |
| CPU Manufacturer | Microchip |
| Wireless Communication Standard | Bluetooth |
| Compatible Devices | Raspberry Pi, other single-board computers |
| Processor Count | 1 |
| Total USB Ports | 1 |
| Product Dimensions | 2.83 x 2.24 x 0.47 inches |
| UPC | 886268725806 |
| Item model number | 102991299 |
| Item Weight | 3.2 ounces |
| Item Dimensions LxWxH | 2.83 x 2.24 x 0.47 inches |
| Color | Wio terminal |
| Processor Brand | Microchip |
| Manufacturer | seeed studio |
| ASIN | B087LNFZ2T |
| Date First Available | April 24, 2020 |
Many of you might have a quick question: what does the “Wio” of Wio Terminal ever mean?

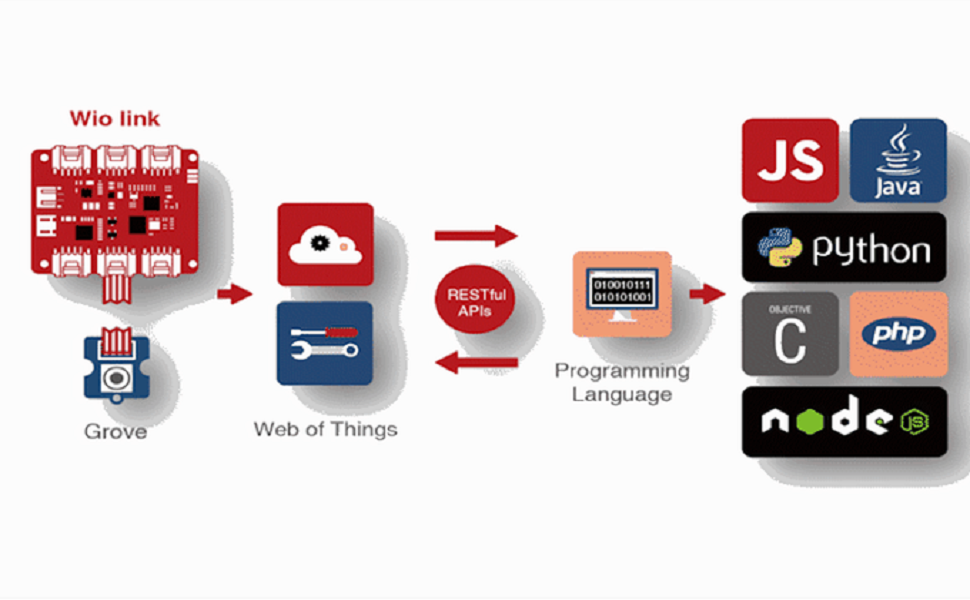

It is an abbreviation of “Wireless input and output”, a platform including hardware and software created by Seeed, aiming to simplify IoT development for makers. With the help of the Wio Family, even beginners can build his/her own IoT application within 5 minutes, no hardware programming, no breadboard, no jumper wires, no soldering.

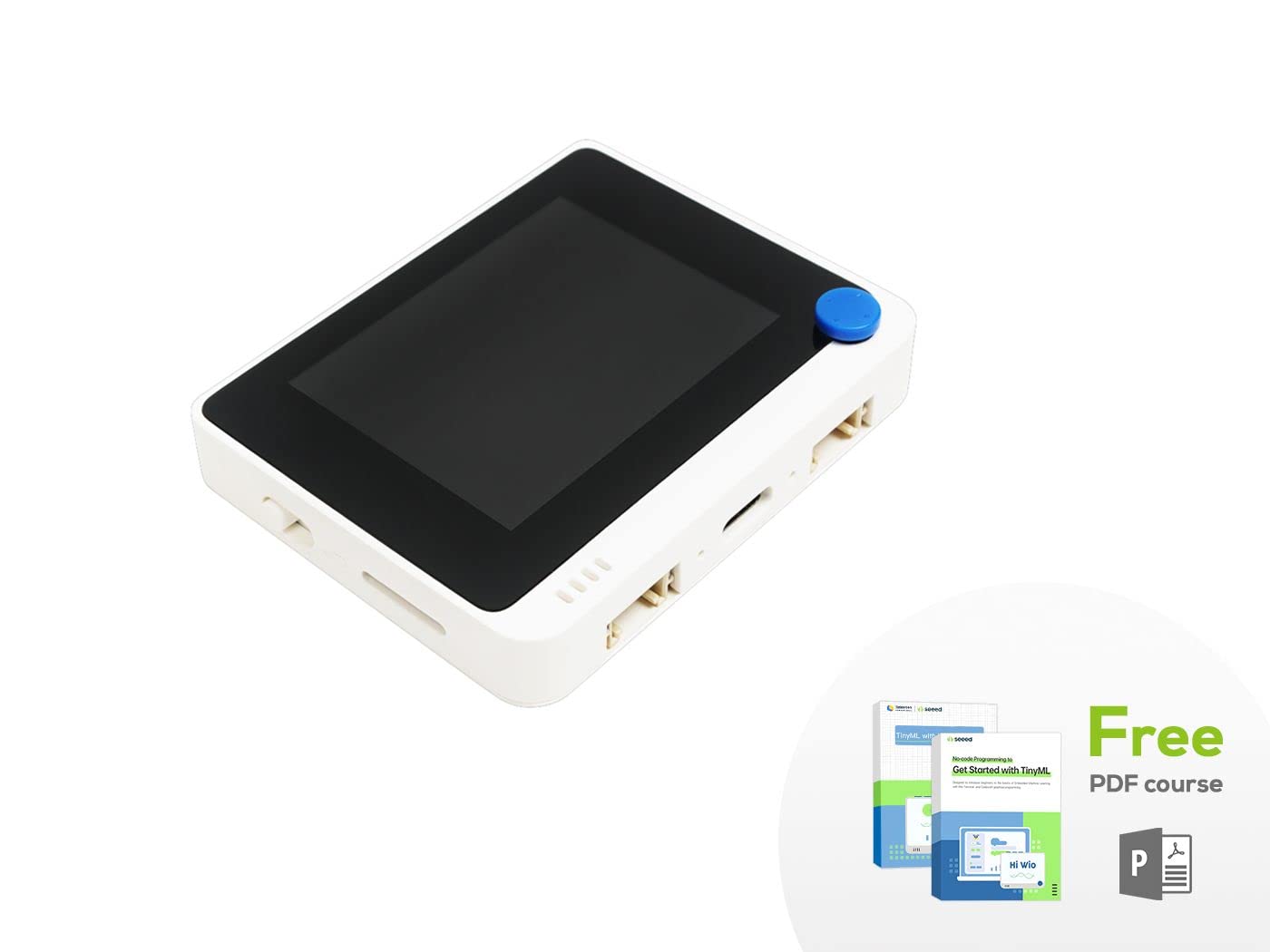

Wio Terminal is the newest member of the Wio family. You must have noticed that it is quite different from its elder brothers, not a single embedded functional module but a simple and tiny device with highly-integrated design, packing multiple functions in a 72 x 57 x 12mm tiny but stylish enclosure. Together with its reliable wireless connectivity, setting up an IoT project is simpler than ever.

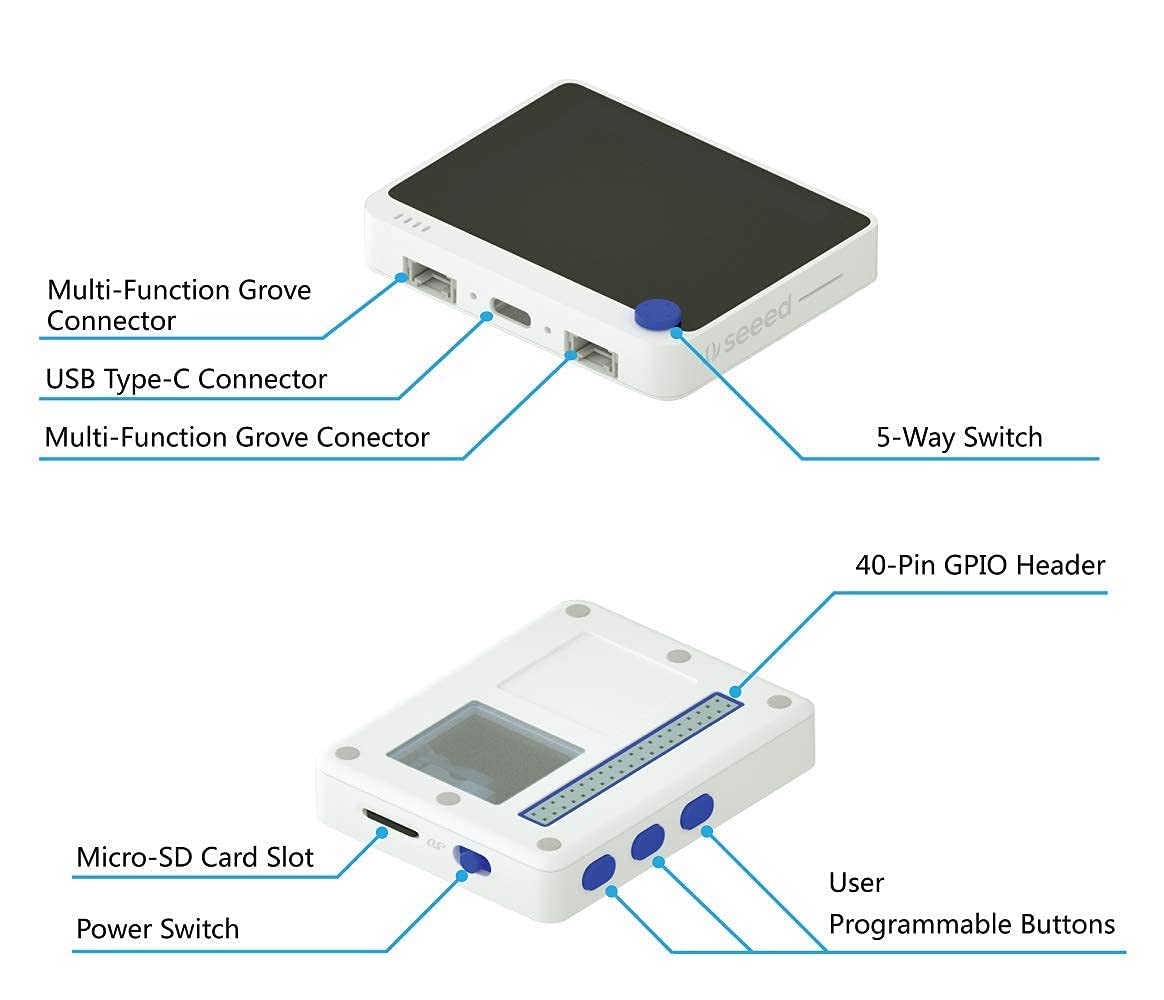

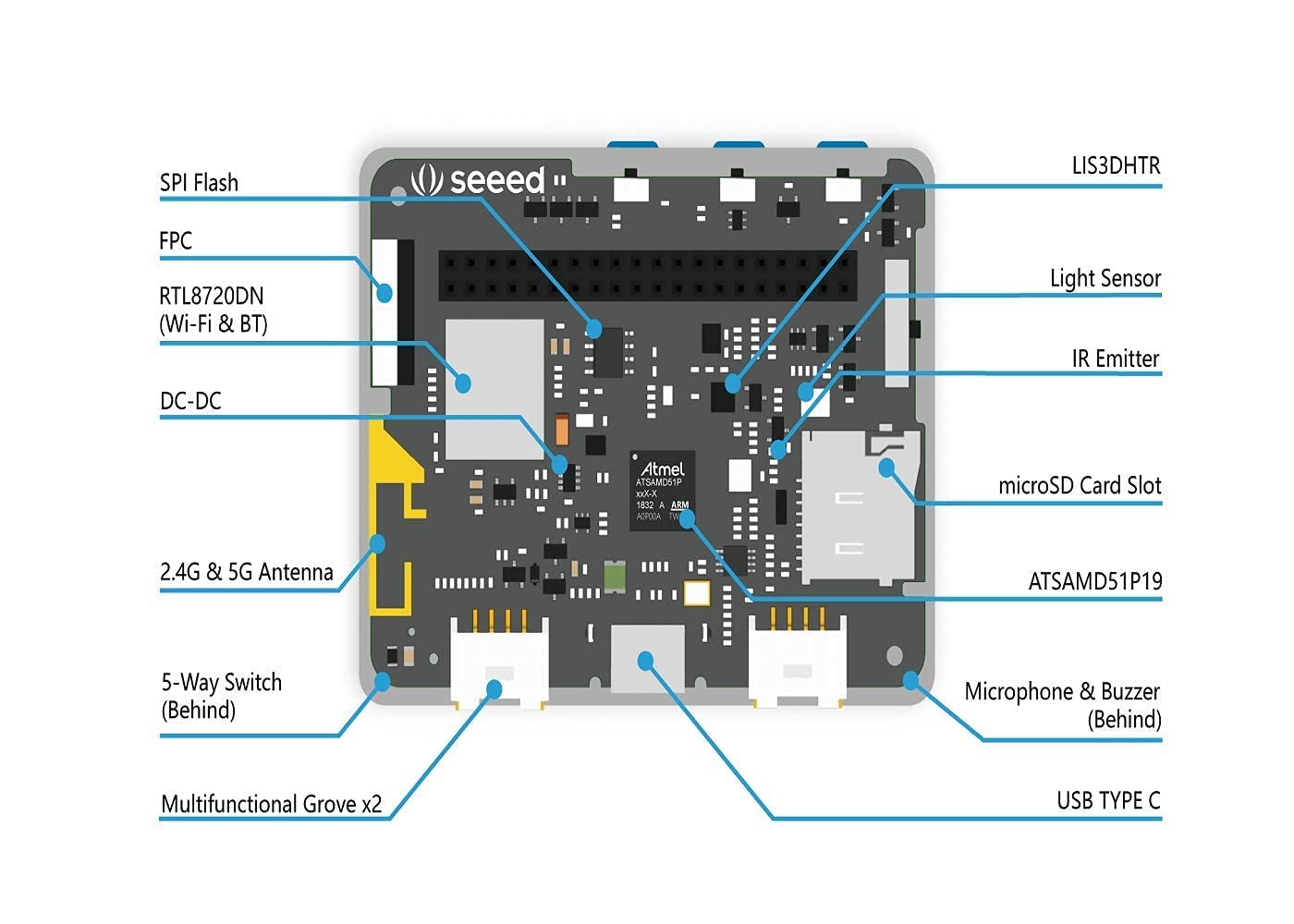

Highly Integrated Design
Powerful MCU - Microchip ATSAMD51P19
Reliable Wireless Connectivity

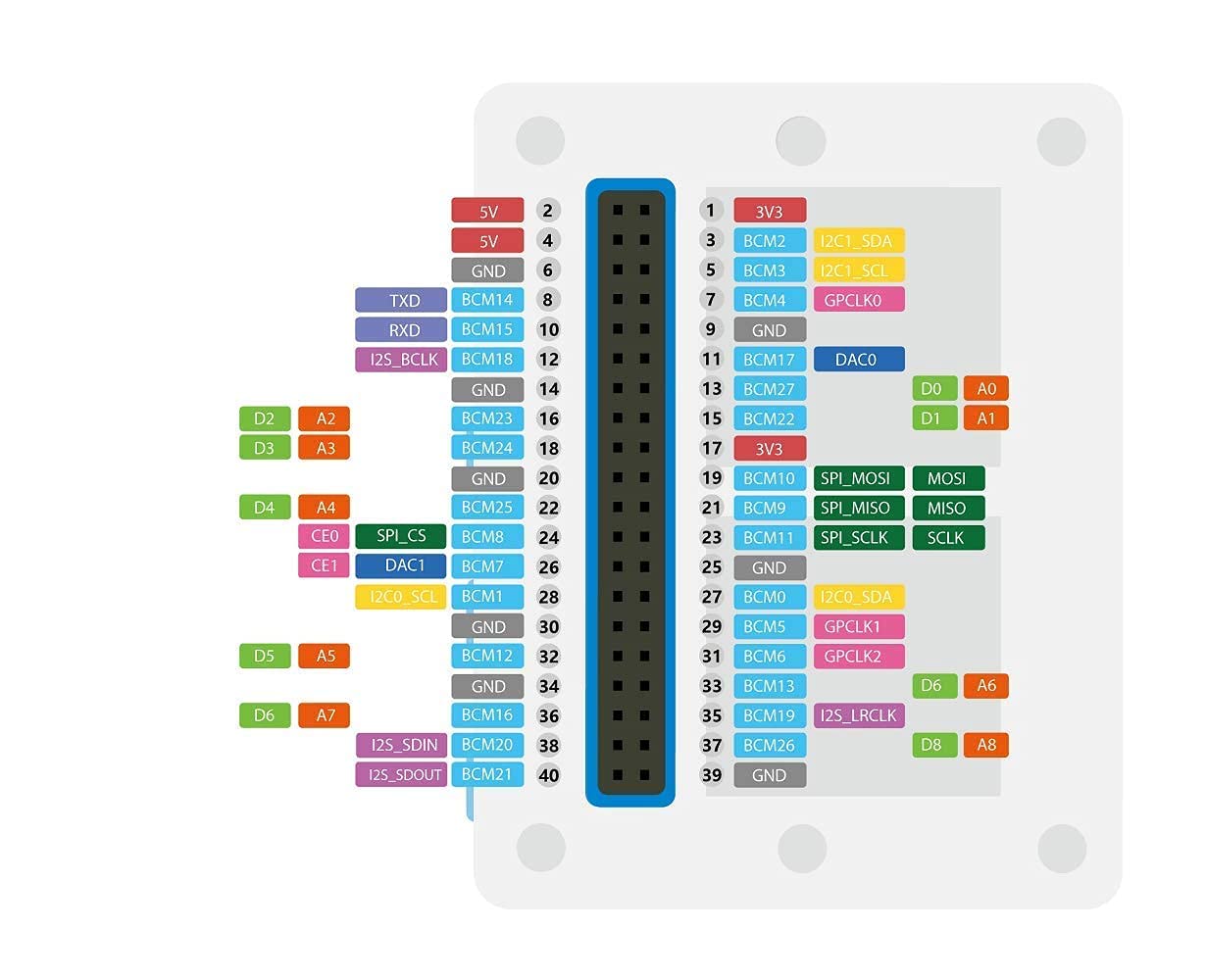

Wio Terminal can be connected to Raspberry Pi through the 40 pins GPIO header or its USB Type-C connector.
It is integrated with onboard IMU(LIS3DHTR), microphone, light sensor, infrared emitter(IR 940nm) and two multi-functional Grove ports, which allows Wio Terminal to collect and send environmental data to Raspberry Pi for further process and analysis (i.e, machine learning) without hassle setting of hardware or software.

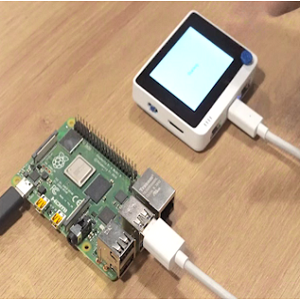

We will introduce a demo showing how to use Wio Terminal to read and display the system status of Raspberry Pi via USB serial. Please visit (seeedstudio.com/blog) for the demo.
In this demo, the 40 pin GPIO of Raspberry Pi is not taken and is available for use, which will be more convenient if there are any other Pi hats essential in your Raspberry Pi projects.

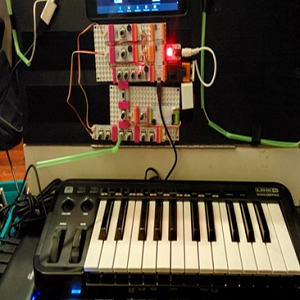

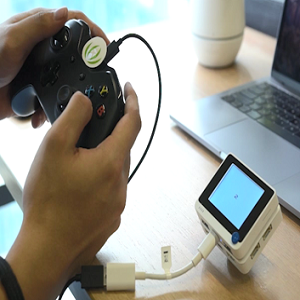

Accessible Devices(as USB-Host): Mouse, Keyboard, MIDI Devices, Xbox/PS Gaming Controllers, 3D Printers
Simulated Devices(as USB-Client): Mouse, Keyboard, MIDI Devices

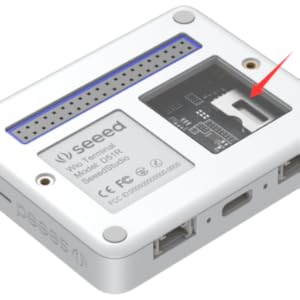

We prepared two mounting holes on the back of the Wio Terminal, so it can be fixed into any place you like, simply using a screwdriver!
Built-in Magnet and Mounting Hole for Easy Project Setup

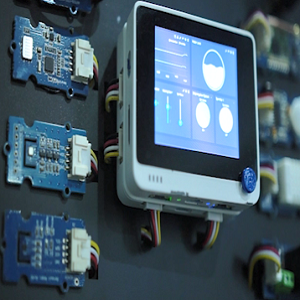

Four magnets are put into the enclosure. They are tiny but strong enough to attract metals. With the help of the built-in Magnets, you can easily attract your Wio Terminal to a blackboard or an iron door as a monitor or dashboard for your IoT project.

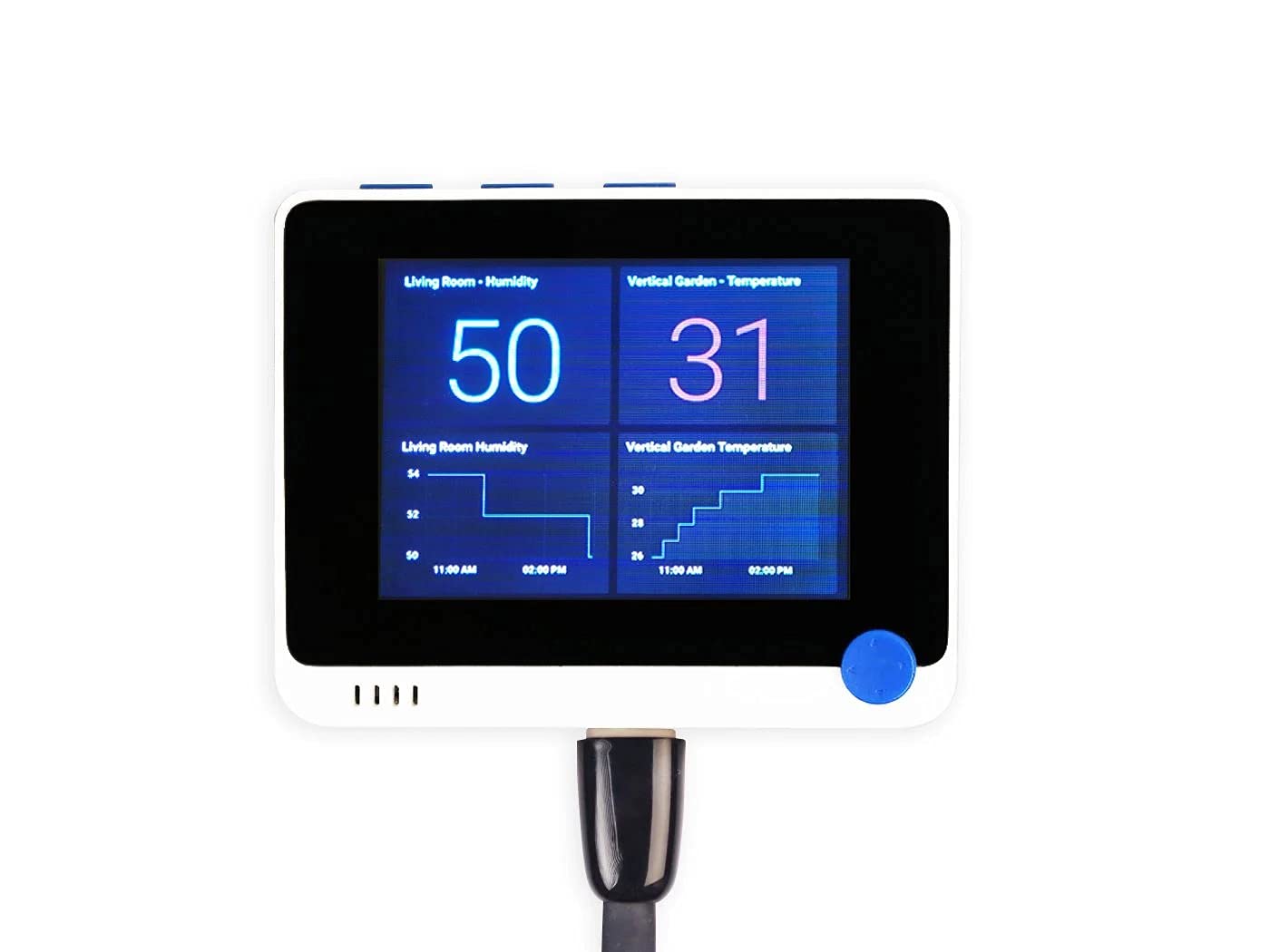

Imagine that you use Wio Terminal to make a smart home automation system: Decorate at your doorway, it displays the current temperature and humidity of your house, and open the air conditioners and lights automatically once you come back home. Your friends will consider it as some fancy new product you bought, not a DIY project!
With Wio Terminal:
Part List
