| Product Dimensions | 5.51 x 3.19 x 0.6 inches |
| Item Weight | 7 ounces |
| Manufacturer | Beijing STONE Technology Co.,LTD |
| ASIN | B07XB6K6HX |
| Item model number | WTVC050WT-01 |
| Best Sellers Rank | #9,023 in Single Board Computers (Computers & Accessories) #11,070 in Computer Monitors |
| Is Discontinued By Manufacturer | No |
| Date First Available | September 7, 2019 |
| Standing screen display size | 5 Inches |
| Aspect Ratio | 16:9 |
| Voltage | 5 Volts (AC) |
| Resolution | 800 x 480 Pixels |
| Image brightness | 350 cd/m² |

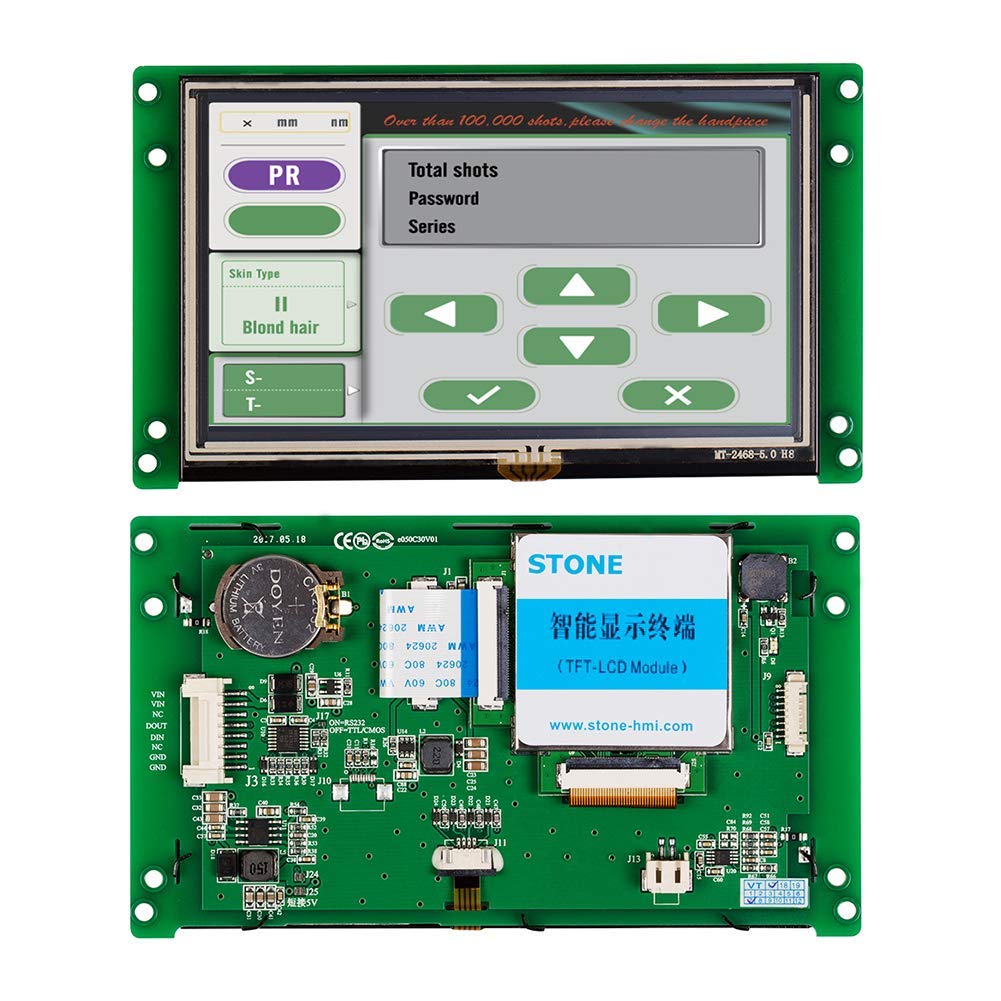

SCBRHMI products has been conceived as TFT monitor & Touch controller. It includes processor, control program, driver, flash memory, RS232/ TTL /USB, touchscreen, power supply etc，so it is a whole display system based on the powerful & easy operating system, which can be controlled by Any MCU. (Very suitable for your Arduino and Raspberry Pi projects.)

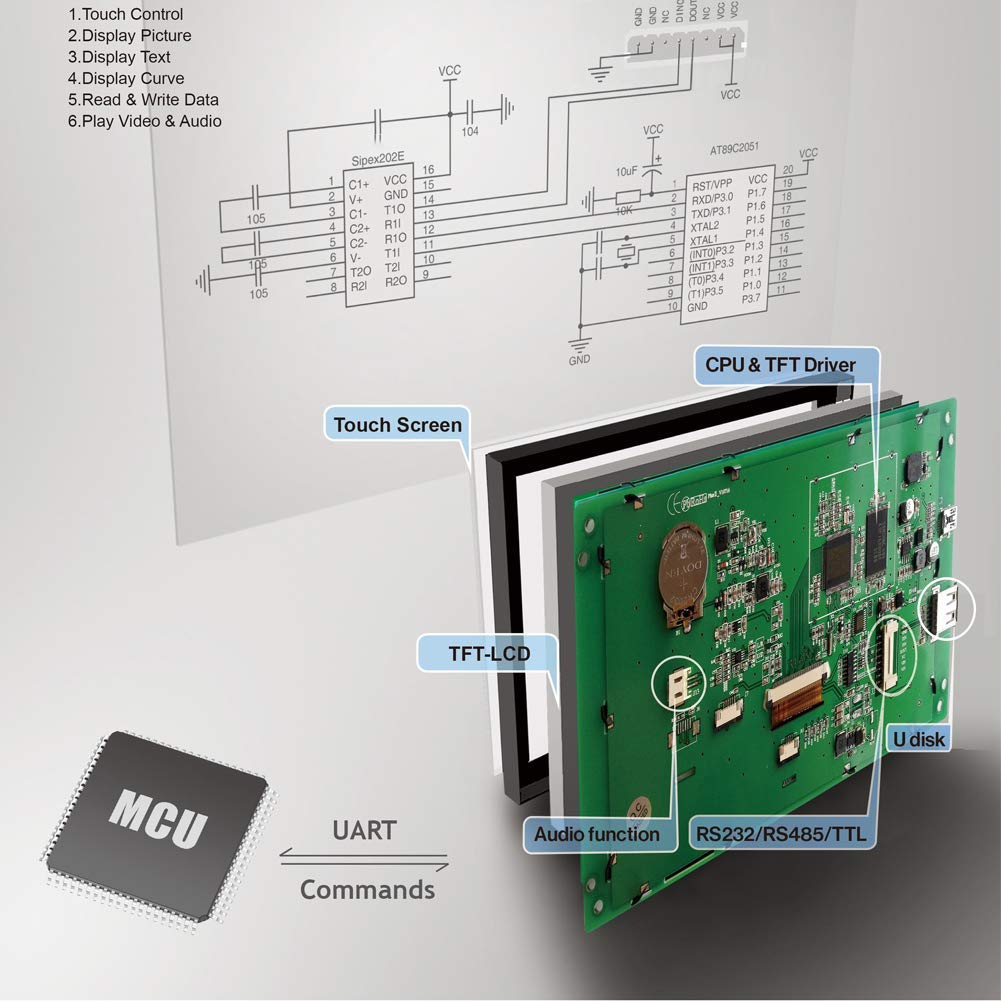

They can be used to perform all basic functions, such as text display, image display, curve display as well as touch function, Video & Audio function etc. It has GUI design software to offer an easy way to create an intuitive and superb touch user interface even for beginners, the User Interface can be more abundant and various. And the 128M flash memory can store your data, configuration files, image file, font file, video file and audio file etc.
-Fully compatible with RS232/TTL UART Interface & USB port.
-Medical grade electromagnetic interference
-You can also design your new project file for Intelligent tft lcd screen on Windows system PC or MacOS PC

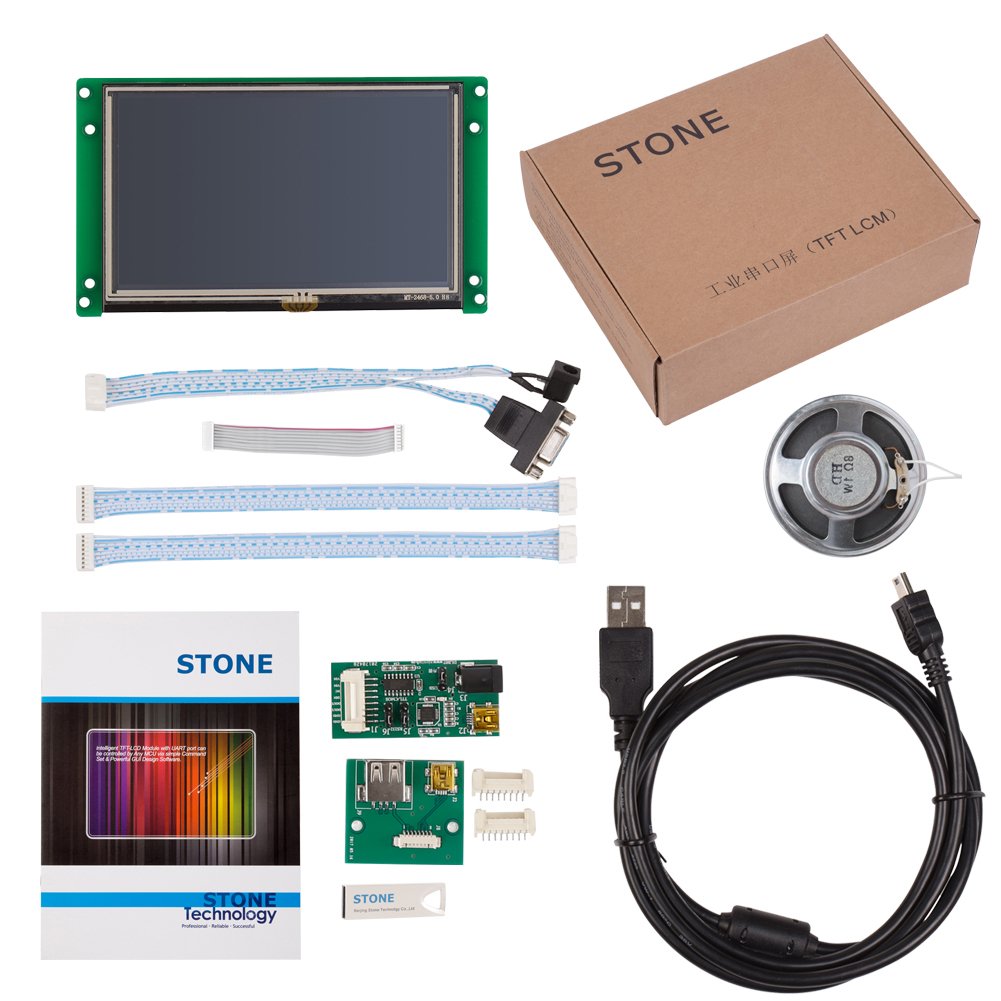

Your purchase includes
-1 x Resistance Touch Control Panel (3.5-15 Inch Available),
-1 x double 8-pin connect cable,
-1 x 8-pin Socket,
-1 x type A USB cable,
-1 x converter USB⇌RS232/TTL.
All products’ technical information can be found in the included USB disk.

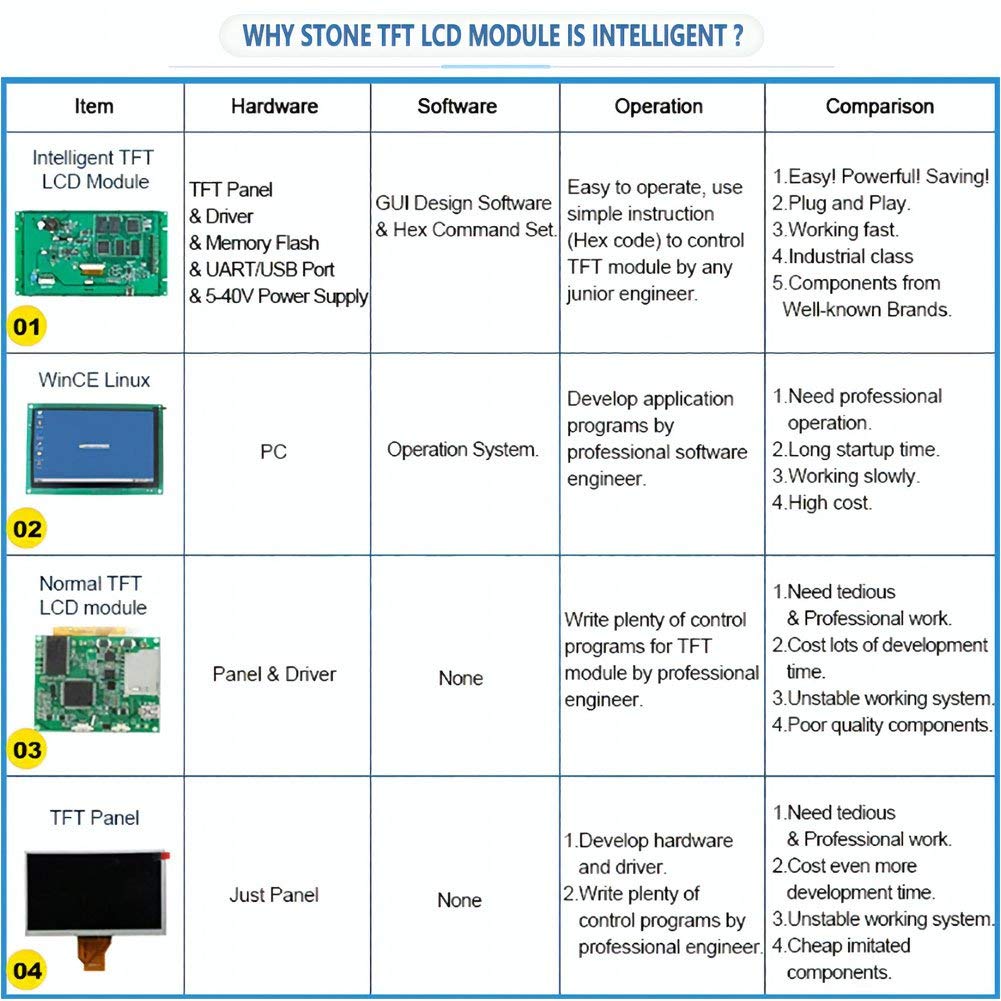

-Our HMI TFT LCD module is a whole display system that comes with no-cost GUI design software(STONE Designer).
-This offers an easy way to create an intuitive, superb touch user interface even for beginners.
-This will reduce 90% of your development time and cost. It makes designing a GUI a piece of cake.

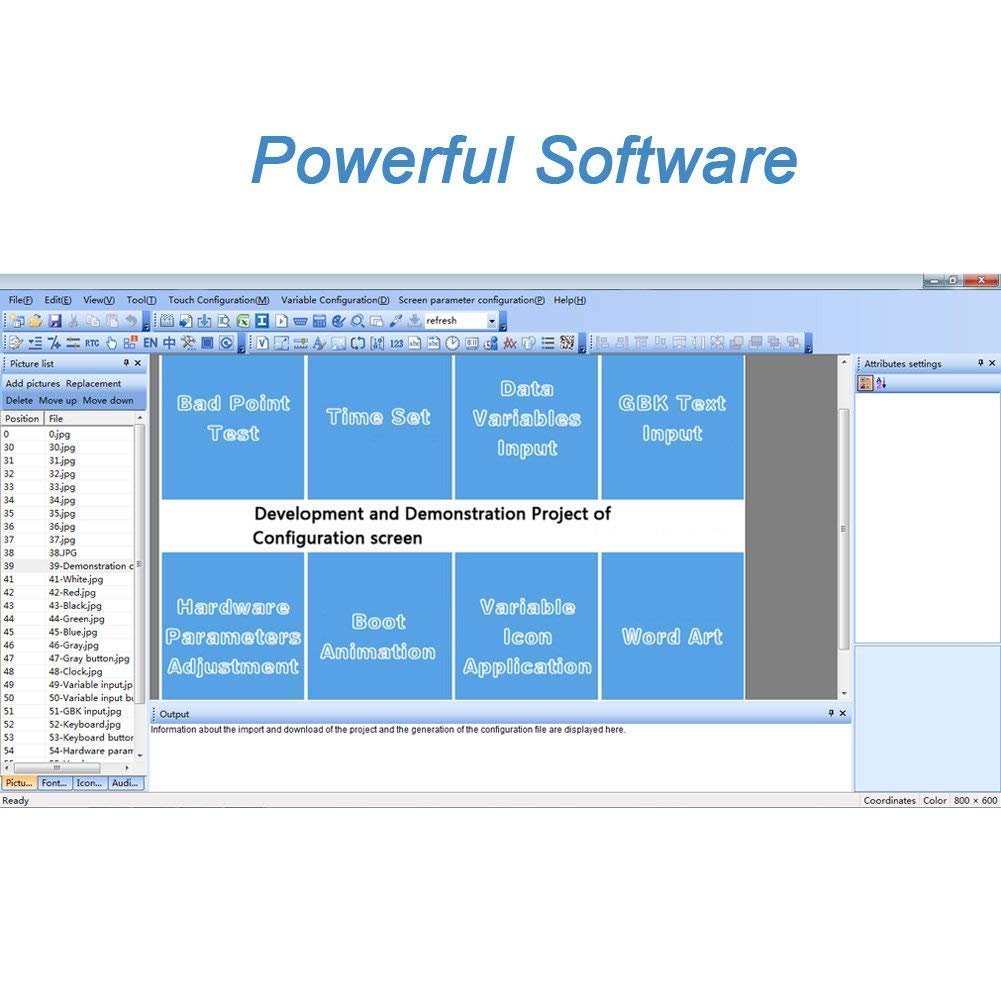

1. Build a GUI project by STONE designer GUI editor with png/jpg/bmp/svg/gif image files.
2. Connect with customer’s MCU through RS232,TTL directly. Plug and play.
3. Write a simple program for MCU to control the TFT-LCD Module via Command Set.
(JSON code to TFT-LCD Module and HEX Code to Customer’s MCU ).
That’s all.
 | | | | |
|---|---|---|---|---|
| STWI043WT-01 | STWI050WT-01 | STWI080WT-01 | STWI101WT-01 | |
| Customer Reviews | 2 | 15 | 1 | 2 |
| Price | $76.00 | — | $138.00 | $158.00 |
| Size | 4.3 inch | 5 inch | 8 inch | 10.1 inch |
| Series | Industry Series | Industry Series | Industry Series | Industry Series |
| Resolution | 480*272 | 800*480 | 800*600 | 1024*600 |
| CPU | Cortex A8/1G Hz | Cortex A8/1G Hz | Cortex A8/1G Hz | Cortex A8/1G Hz |
| Flash Memory | 256M | 256M | 256M | 256M |
| Brightness cd/m2 | 500 | 350 | 300 | 400 |
| Interface | RS232/RS422/RS485/TTL | RS232/RS422/RS485/TTL | RS232/RS422/RS485/TTL | RS232/RS422/RS485/TTL |
| Voltage | DC 5-28V | DC 5-28V | DC 5-28V | DC 5-28V |
| Work Temperature | -30℃ to +80℃ | -30℃ to +80℃ | -30℃ to +80℃ | -30℃ to +80℃ |
