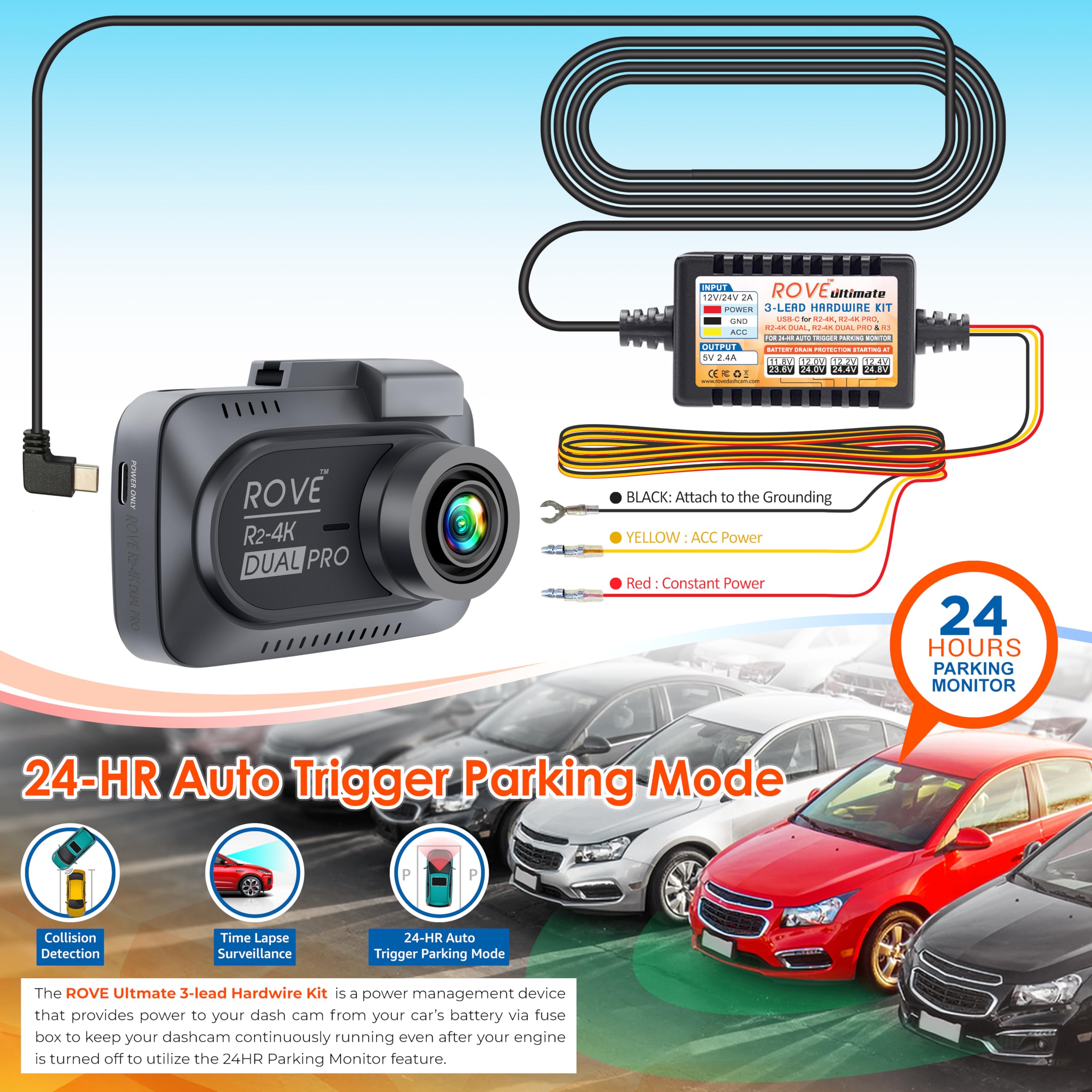

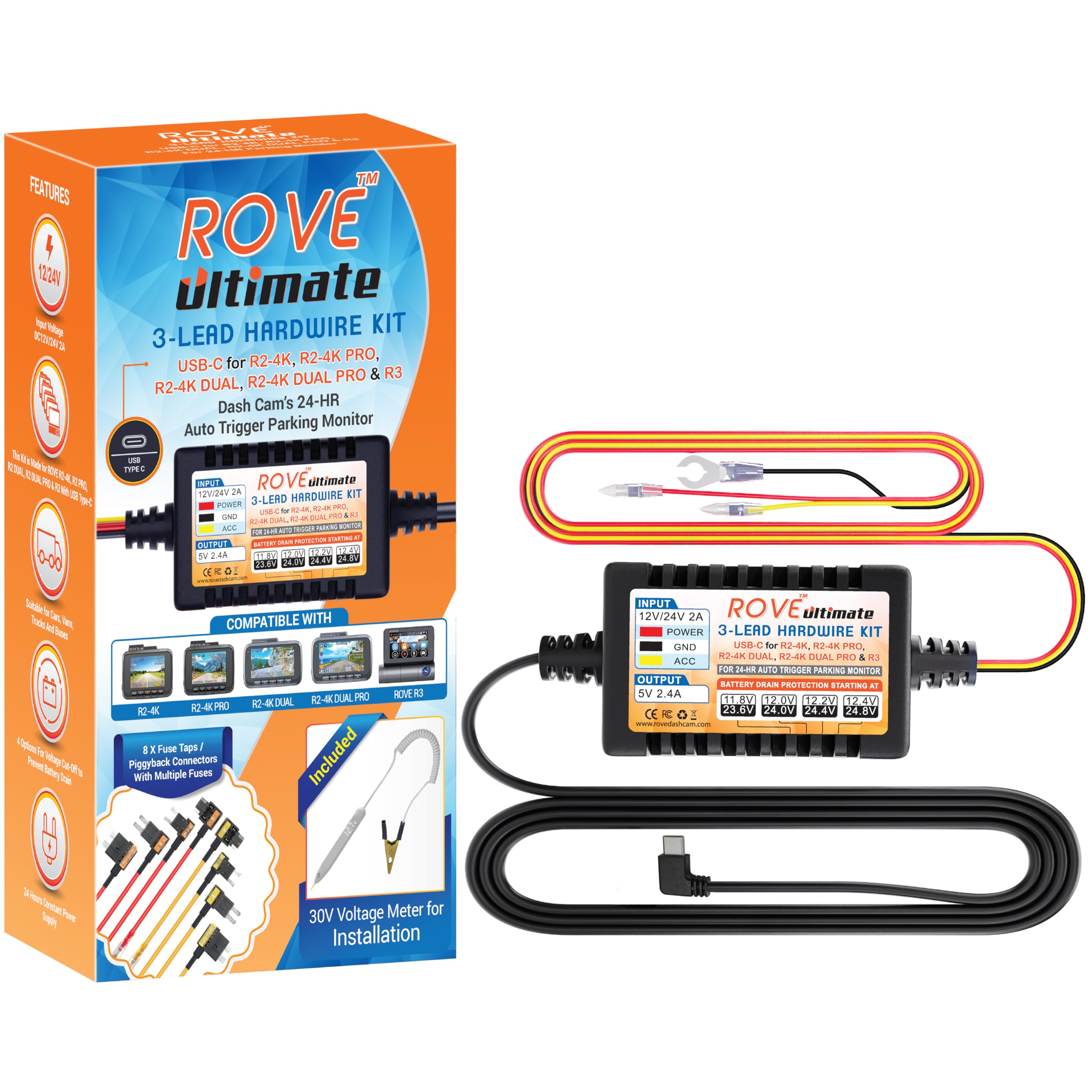

ROVE Ultimate 3-lead Hardwire Kit - USB Type-C is a power management device that provides power to your R2-4K(with USB-C Port Only), R2-4K PRO, R2-4K DUAL & R3 dash cam models, and most other dash cams with a USB Type-C connector from your car's battery via fuse box to keep your device continuously running even after your car's engine is turned OFF to utilize the 24-HR Parking Monitor feature.
The ROVE Ultimate 3-Lead Hard Wire Kit With USB Type-C is Specially designed for:
The best place to put the dash cam is where you can easily use it. That means the camera view is unobstructed, you can easily remove it when needed, and it is discreetly placed. The key to mounting a dash cam is placing it where the ROVE R2-4K / R2-4K PRO / R2-4K DUAL / or R3 have a clear view and it doesn’t block your view.

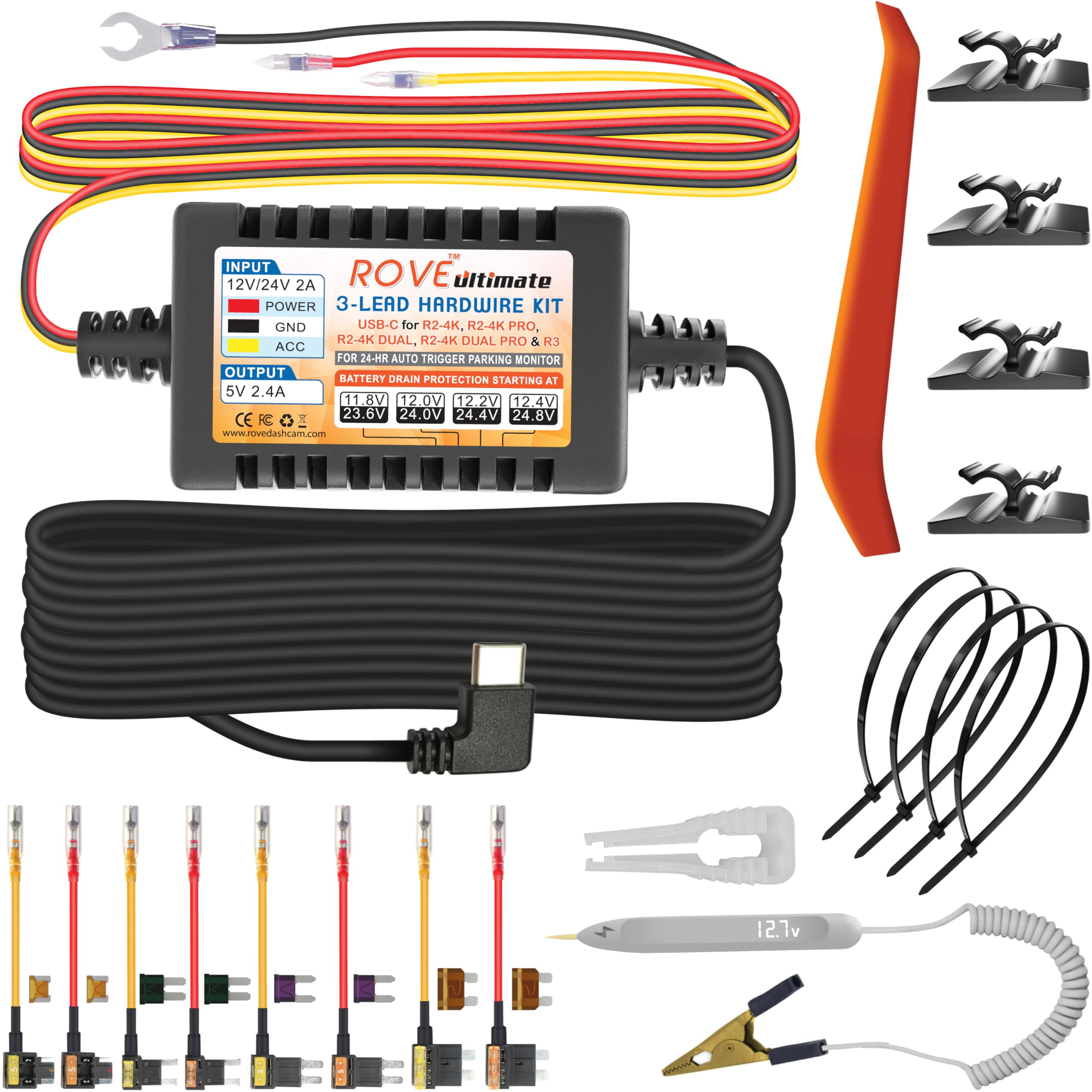

Locate your vehicle's fuse box using your Fuse Box Diagram. This information can usually be found in your vehicle’s Owner’s User Manual or from your manufacturer’s website. You can access the fuse box simply by lifting a tab or pulling a panel with your fingers, Or some may require the included trim tool.
You will need to find two fuse slots to be used in this step.
1. If you are using the previously identified
fuse slot that has an existing fuse in it, then
insert that existing fuse into the lower empty
slot of the Add-A-Fuse with correct orientation.
(See BLUE Arrow in the above image)
2. However, if your previously identified slot is empty and there is no existing fuse in it, then
you can just install the Add-A-Fuse directly
without needing to install 2nd fuse into the
empty slot of an Add-A-Fuse tap.
YELLOW: Now turn your car keys to ACC position. Now touch the voltmeter to the aluminium end of the YELLOW Add-A-Fuse to check the voltage. Your voltmeter should read the incoming voltage. It is getting power through the ACC fuse slot.
RED: Turn OFF the car. Now touch the voltmeter to end of RED Add-A-Fuse. Your voltmeter should read the incoming voltage. If YES, then great job. It is getting power through the always hot fuse slot.
Connect the BLACK Wire to the Grounding Screw or Bolt. We recommend that you choose the metal Chassis Grounding Screw, or it may cause your dash cam to not function properly and restart/reboot when power does not flow properly.
LOW VOLTAGE PROTECTION
The ROVE Ultimate 3-Lead Hard Wire Kit - USB Type-C will monitor your voltage status and cut off the power to the dashcam if the voltage drops below the configured value. This minimum voltage cut-off is 11.8VDC for a 12VDC battery and 23.6VDC for a 24VDC battery. This protects the vehicle’s battery. And reserves enough power so you can start your car for the next time. You have four different configuration choices that you can select when you want the power to be disconnected to the dash cam when the battery’s voltage reaches a certain level.
OVER CURRENT/SURGE PROTECTION
The ROVE Ultimate 3-Lead Hard Wire Kit - USB Type-C can detect abnormal over-voltage status and cut off power to prevent any damage to your dashcam. Additionally, the ROVE Hardwire Kit has a built-in extra fuse box (2A) to have extra protection.
