| Item Weight | 8.6 pounds |
| Product Dimensions | 17.2 x 24 x 5 inches |
| Country of Origin | China |
| ASIN | B0763TM6RT |
| Item model number | StudioLive 16R |
| Customer Reviews | 4.6 out of 5 stars 81Reviews |
| Best Sellers Rank | #21,029 in Musical Instruments (See Top 100 in Musical Instruments) #50 in Unpowered Recording Mixers |
| Is Discontinued By Manufacturer | No |
| Date First Available | October 2, 2017 |
| Color Name | Black |
| Connector Type | 18-input |
| Hardware Interface | USB, Secure Digital Card |
| Size | StudioLive 16R (18 Input - 16 Mic Pres) |
| Power Source | Corded Electric |
| Audio Input | USB |
| Manufacturer | Presonus |
| UPC | 673454005961 673454005817 673454005848 673454005855 |
| Global Trade Identification Number | 00673454005817 |

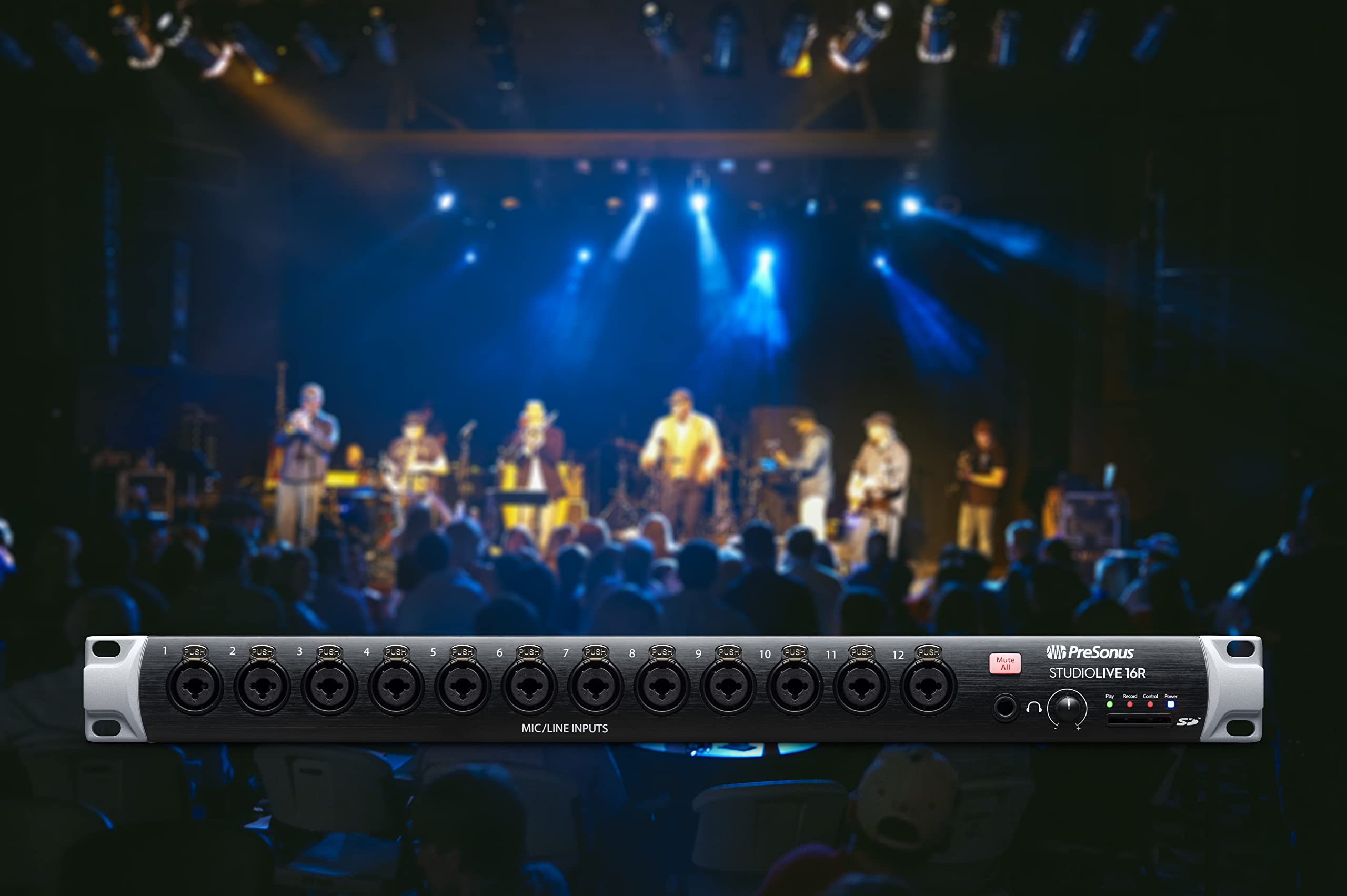

PreSonus’ 16-channel Series III StudioLive 16R is both a versatile AVB stage box for StudioLive Series III consoles and the most powerful rack mixer in its class. It can operate as a simple stage box or as a combined stage box/monitor mixer, including remote control of the preamps and phantom power from the Series III console. As with Series III consoles, it’s fully recallable and features a plug-in-style signal-processing workflow with vintage-style EQ and compression options on every channel; 6 FlexMixes that can be Aux, Subgroup, or Matrix mixes; 6-band fully parametric EQ on all mix outputs; and built-in AVB networking. In addition to 18x18 USB and 32x32 AVB recording interfaces, the StudioLive 16R features an onboard stereo SD recorder.
StudioLive 16R: 18-input, 16-channel Series III stage box and rack mixer
The StudioLive 16R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 16R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake—and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 16R’s preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 16R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class—all packed into just one rackspace. (1U).
When we say the StudioLive 16R is by far the most powerful rackmount digital mixer in its class, that’s no idle claim. The result of ten years of R&D, third-gen StudioLive Series III rack mixers are fully recallable, including remote-controlled XMAX preamps. Yet despite their extensive features, StudioLive Series III rack mixers actually improve upon PreSonus’ legendary ease of use while letting you customize their workflow and operations in software to fit the way you work. The coveted StudioLive sound is better than ever, including third-generation Fat Channel processing, re-engineered from the ground up, and vintage-style EQs and compressors. Add built-in AVB networking, multitrack recording via USB and AVB, stereo SD Card recording, and a complete suite of software; You have a mixing and recording powerhouse that’s equally formidable as a stagebox/monitor mixer, as a rackmount front-of-house mixer controlled from a touchscreen computer or tablet, and as the heart of your studio.
With StudioLive Series III, we’ve upped the ante and given you more flexibility when working with scenes and presets. Mixer scenes now include Scene Safe. Similarly, we’ve expanded the concept of Fat Channel presets so that presets have, for practical purposes, become like scenes for individual channels, not only saving input and Fat Channel settings but also aux send and bus assignments. Of course you can also use preset filters to choose what you want to recall.
Don’t you hate it when you’re setting up for a show and find you have an unused subgroup—but you’re short one monitor mix? That’s not a problem anymore, thanks to 16 FlexMixes that can be individually designated as aux, subgroup, or matrix mixes. These 16 FlexMixes are in addition to the 4 fixed subgroups giving you a total of 20 mix buses, not counting the main mix and solo buses. We also provided 24 Filter DCAs so you can more easily and flexibly control groups of channels. These are only a few of the many ways you can customize your StudioLive Series III rack mixer exactly to your needs and workflow.
StudioLive Series III rack mixers boast the same third-generation Fat Channel processing found in StudioLive Series III consoles. Delivering digital precision with the heart and soul of analog, the Series III Fat Channel implements a plug-in-style workflow that features vintage-style EQ and compression options on every channel, from classic tube limiters to passive EQs. In addition to channel processing, all StudioLive Series III mixers offer 6-band, fully parametric EQ on all mix outputs. Enjoy extensive, studio-style processing when recording, mixing monitors, or even running the front-of-house system.
Networking isn’t the future of professional audio systems; it’s here now. StudioLive 16R Series III rack mixers come equipped with an AVB Ethernet connection that enables you to network multiple StudioLive Series III mixers and compatible computers and stream up to 32 channels of audio to and from a Mac or Windows PC. You also get 18x18 recording via USB 2.0, giving you a choice of computer recording methods. Each channel can independently access its analog input or its dedicated digital return from your computer. Alternatively, quickly and easily record the main mix—or any other stereo mix—to the built-in SD Card recorder. Upload a show for fans, give the band a reference recording, and more, no computer required. You can even simultaneously multitrack record to your laptop via USB or AVB and record in stereo to SD.

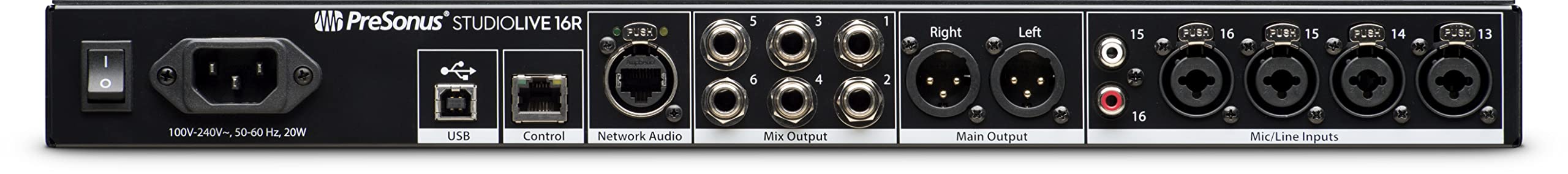

We kept the StudioLive Series III rack mixers’ front and rear panels clean and simple, yet they have all the connections you need. All 16 channel inputs on the StudioLive 16R use locking combo jacks to accept microphone- or line-level signals. You also get a pair of unbalanced RCA jacks as additional inputs for Channels 15 and 16 for easy connectivity to smartphones, media players, and other consumer audio sources. In addition to main L/R outputs and headphone jack, you get six FlexMix outputs that can each be independently configured as subgroups, monitor outputs, or matrix outputs. The result is a versatile set of connections that provide the access you need in a compact, 1U package.
Connect a StudioLive Series III rack mixer, and you’ll instantly hear details and an open high end you’d expect to find only in an expensive studio console. We built our reputation designing great-sounding analog circuits, including our famous XMAX solid-state, Class A preamps, and we put all of that experience into designing StudioLive Series III consoles and rack mixers. We didn’t cut corners on components, and we just say 'No!' to noisy, crosstalk-y ribbon cables. As a result, StudioLive Series III mixers deliver the high-end audio quality you need to preserve your hard-earned reputation for producing great-sounding mixes and recordings.
