Product Dimensions | 5.51 x 1.18 x 5.51 inches |
Item Weight | 3 pounds |
ASIN | B0CK113JH2 |
Item model number | PH-F140D30_DRGB_PWM_WT01_3P |
Customer Reviews | 4.4 out of 5 stars 9Reviews |
Date First Available | September 28, 2023 |
Noise Level | 29.5 dB |
Material | Polybutylene Terephthalate |
Maximum Rotational Speed | 1800 RPM |
UPC | 886523002994 |
Manufacturer | Phanteks |
Number of Items | 1 |

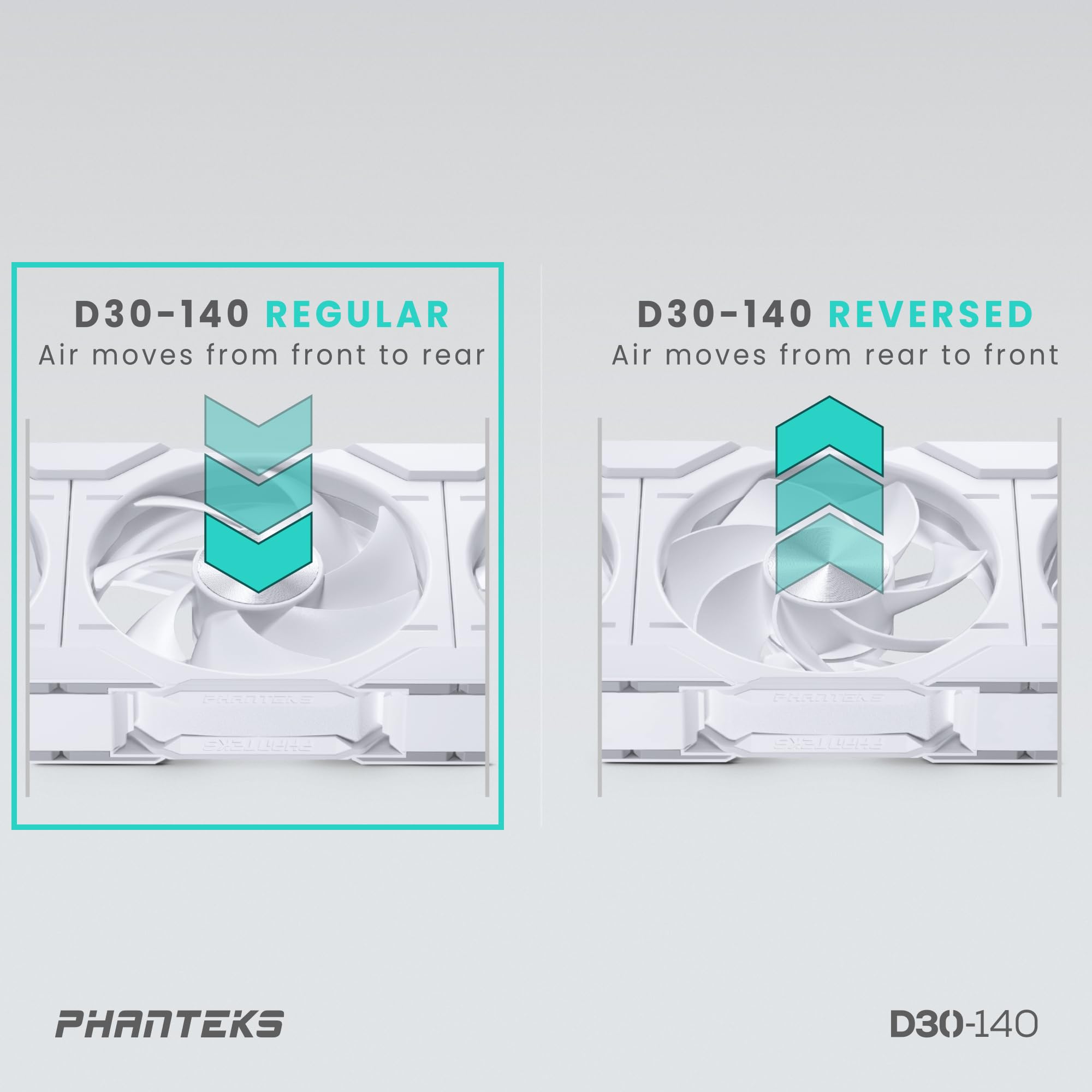

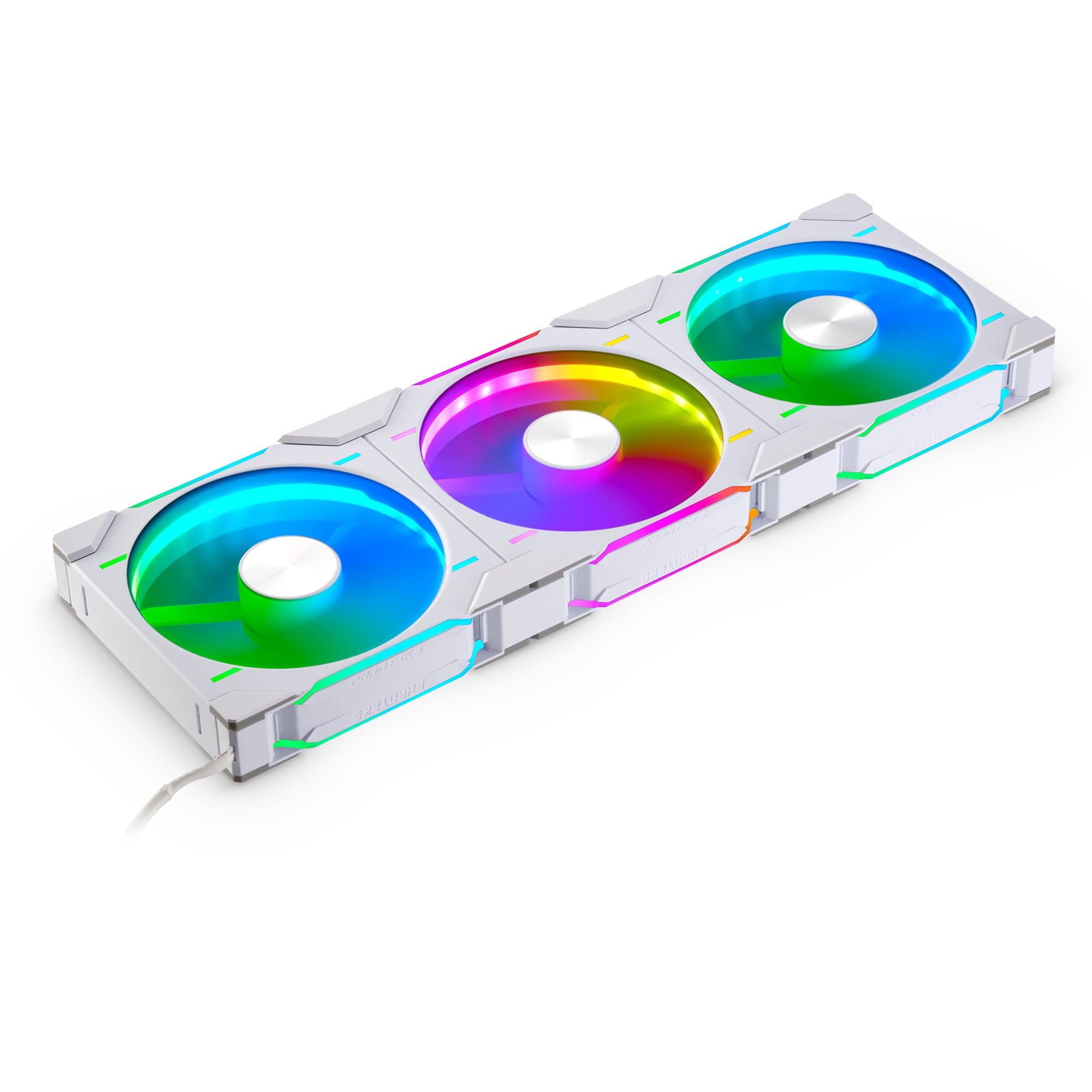

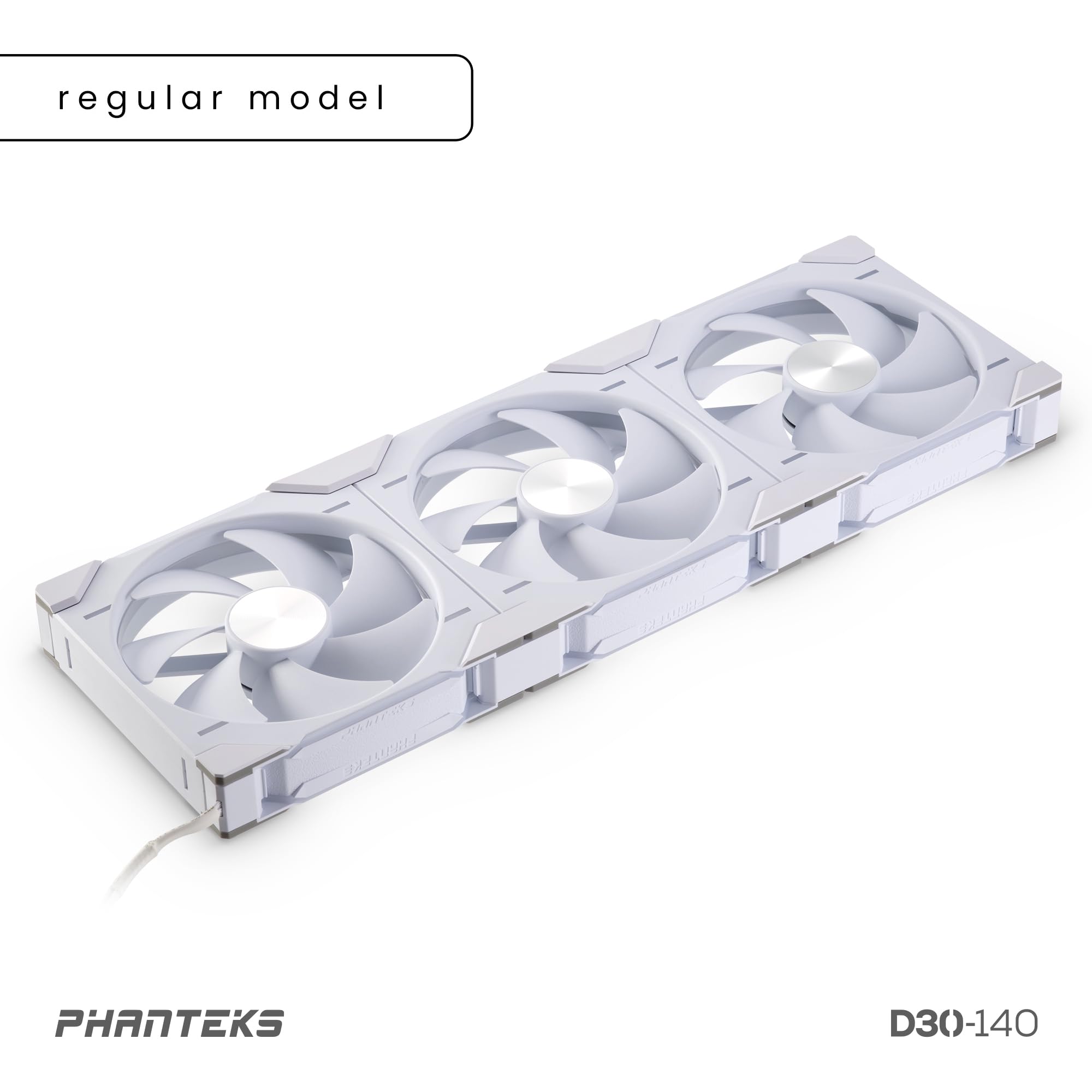

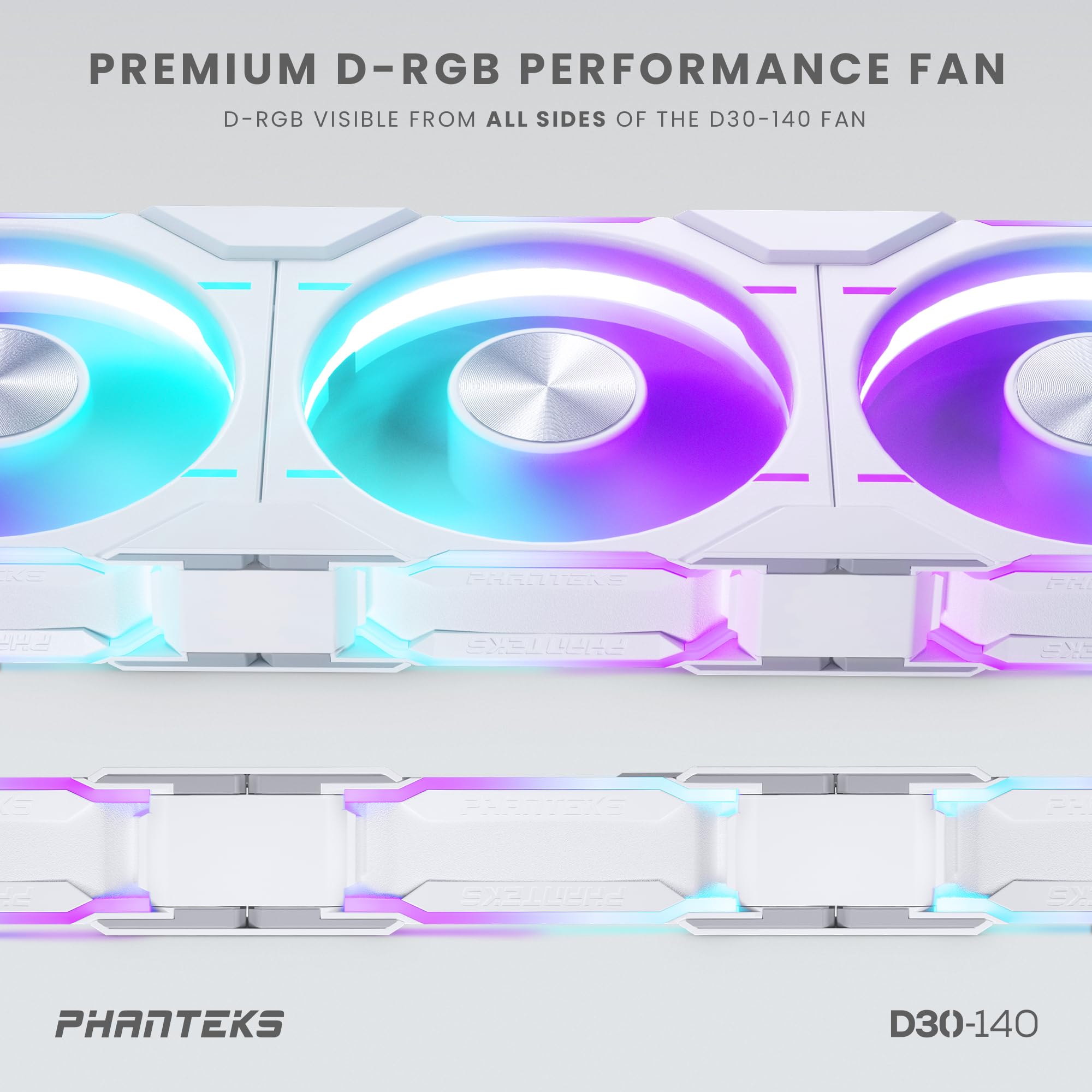

The D30-140 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-140 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system. Type: Case Fan. Wind Direction: Regular. Materials: PBT (Polybutylene terephthalate). Fan Size: 140 x 140 x 30 mm. Bearing Type: FDB (Fluid Dynamic Bearing). Blade Geometry: Seven Blades Design- White Matte. Rated Voltage: FAN: 12V LED: 5V. Operating Voltage Range: 5~13.2V.PWM: Yes. Rated Current (Ampere): 0.15A LED:0.45A(Max). Locked Current: Polarity Protection. Power Consumption: less than or equal 1.8W. Speed: 250-1800 plus minus 10% RPM. Max. Airflow: 71.93 CFM. Max. Air Pressure: 3.32 mm H2O. Noise Level: 29.5 dB(A). Fan Connector: 4-Pin PWM. Fan Cable Length: 700 mm / 27.56 in. D-RGB Connector: 3-Pin JST Daisy-chain. D-RGB Cable Length: 600+100 mm / 23.62+3.94 in. LED Number: 30 (D-RGB). LED Rated Voltage DC: 5V (+5V/D/GND). LED Rated Current Max: 0.45A. MTBF (Life Expectance): 50,000hrs at 40 degree C. Weight: 990 g (3pcs) / 2.18 lbs. Scope of Delivery: 3x PH-F140D30_DRGB_PWM_BK01, 12x Fan Screw, 12x UNC 6-32 Radiator Screw 36mm, 12x M4 Radiator Screw 36mm, 2x Corner Clip Cable, 6x Corner Clip, 2x Bridge Clip, 2xg Bridge Clip Connector, 8x Screw Cover Corner (4L, 4R), 4x Screw Cover.
