OKN WiFi 6E AX5400 PCIe WiFi Card for Desktop PC (Intel AX210) Bluetooth 5.3, WPA3, 802.11AXE Tri Band Wireless Adapter with MU-MIMO, OFDMA, Ultra-Low Latency, Supports Windows 11, 10 (64bit)

Thương hiệu: OKN

OKN WiFi 6E AX5400 PCIe WiFi Card for Desktop PC (Intel AX210) Bluetooth 5.3, WPA3, 802.11AXE Tri Band Wireless Adapter with MU-MIMO, OFDMA, Ultra-Low Latency, Supports Windows 11, 10 (64bit)

Bán tại: Mỹ

4.5

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

Nhập khẩu thương mại

1,437,176đ | GIẢM 39%

984,797đ

Size

WiFi 6E AX5400 PC Card

WiFi 7 BE9300 PC Card-Newer Model

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu OKN là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm OKN WIFI 6E AX5400 PCIE WIFI CARD FOR DESKTOP PC (INTEL AX210) BLUETOOTH 5.3, WPA3, 802.11AXE TRI BAND WIRELESS ADAPTER WITH MU-MIMO, OFDMA, ULTRA-LOW LATENCY, SUPPORTS WINDOWS 11, 10 (64BIT) là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Product Dimensions	4.72 x 3.15 x 0.79 inches
Item Weight	90 Grams
ASIN	B07X462KRK
Item model number	PCE-AX210
Customer Reviews	4.5 out of 5 stars 2,404Reviews
Best Sellers Rank	#11 in Internal Computer Networking Cards
Date First Available	August 29, 2019
Data Transfer Rate	5400 Megabits Per Second
Manufacturer	UFON

Tính năng sản phẩm

Sản phẩm OKN WiFi 6E AX5400 PCIe WiFi Card for Desktop PC (Intel AX210) Bluetooth 5.3, WPA3, 802.11AXE Tri Band Wireless Adapter with MU-MIMO, OFDMA, Ultra-Low Latency, Supports Windows 11, 10 (64bit) của thương hiệu OKN với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

11AX WiFi Card Better Coverage | 2.4Gbps Faster Speed | Bluetooth 5.3 | 802.11ax Tri band 2x2 160MHz | Extended Battery Life

WiFi 6E PCIe Card | 1024QAM | OFDMA | MU-MIMO | 5dBi High Gain Antennas

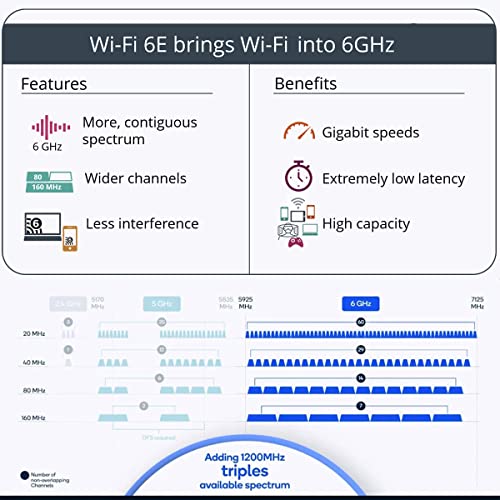

WiFi 6E Makes a Difference: WiFi 6E offers up to 1,200 MHz of additional spectrum for 6 GHz WiFi
160MHz Channels: WiFi 6E allows for 7 additional 160 MHz channels.
OFDMA: More Speed and Greater Stability 4x Longer OFDM Symbol
1024-QAM: Pack More Data with 1024-QAM 25% faster than 256-QAM
Compatible: Beyond the Boundaries of WiFi 6

Tri Band 11AX WiFi Card For Desktop PC

WiFi 6E offers up to 1,200 MHz of additional spectrum for 6GHz WiFi

PCIe WiFi card with three bands WiFi offer stronger anti-interference ability, more stable wireless network signal and faster transmission speed.

*Please note that to utilize 6GHz band, the user must have Windows 11 or upgrade to Windows 10 Dev version

Ultra-Responsive Gaming with Lower Latency Coming with this pcie wifi adapter

Wireless connection brings more convenience and simplicity

BT 5.3 is compatible with bt 5.2,4.2, 4.1, 4.0...
Compared with bt 4.2, the power consumption is lower, which effectively improves the battery life of bt devices
Higher throughput, easy to provide high quality sound, enjoy lossless sound quality
Low latency, support for the latest VR devices, perfect gaming experience
4x range over BT4.2 with the same power
2X transmit speed for faster transmissions thereby reducing the overall power
Adds new enhanced data broadcasting, seamless services. Simpler pairing for BT devices

Higher Speed

The New-Gen Intel Wi-Fi 6E AX210 reduced latency and improved reliability unlocks your Wi-Fi 6E router’s full potential

Win11

Compatibility

Support Windows10/11 64-bit

*Driver CD comes with the package, while if a CD ROM is not convenient for you, you can get the driver download link from the manual or the Intel official website by searching "AX210". It is recommended to download the driver first and then install the network card.

Packing List

1x OKN AX210 WiFi 6E PCI Express Card
2x High Gain Antenna
1x Low Profile Bracket
1x BT USB Cable
1x Resource CD, Quick Installation Guide

Anti-oxidant Coating for PCIE

The PCIe gold finger is protected by an anti-oxidation coating to prevent damage to the gold plating during transportation and storage, resulting in poor contact.

Quick Installation

1st. Turn off your computer and remove the case panel.
2nd. Locate an available PCIe slot and carefully insert the adapter.
3rd. Connect the antenna to the adapter.
4th. Replace the case panel, plug in the power cable and turn on your computer.

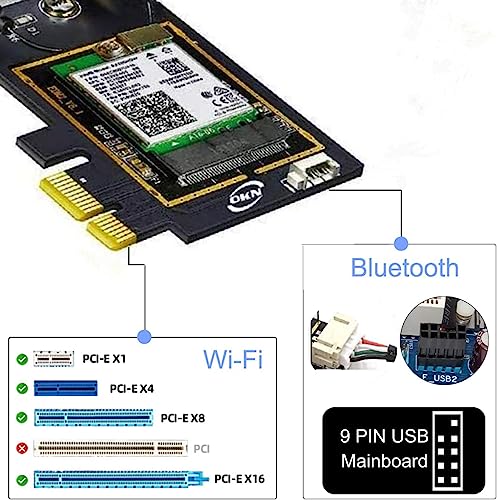

Please connect the USB 9-pin cable（Black） that comes with the package to the USB 9-pin interface on the Motherboard after the installation of step b above，the White end connects to the pcie adapter socket. Then install the Bluetooth driver.

The Bluetooth works fine, but there is no wifi？

1. First check whether the device wifi is recognized by the computer in the device manager. If the network controller with a yellow exclamation mark appears, install the wifi driver. If the driver is installed, the yellow warning is still displayed. Please right-click, click Update, and select the driver file path to manually update.
2. Check whether there is an M.2 hard disk on the motherboard, which may cause a hardware function conflict. M.2 hardware in parallel channel needs to be unplugged.
3. Check if the antennas connection is fastened.
4. Please turn off the built-in wifi function when using on a desktop PC.
5. For some AMD motherboard PC, you may need to set the PCIe speed to Gen3 (Auto, Gen 1, Gen 2 and Gen 3).
6. You can try different things by swapping out different pcie slots (pcie×4,×16 is available).

Please Note： The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the wifi speed.

	WiFi 6E PCIe Card AX210	AX210 With 5dBi Antenna	AX210 Module	AX210 WiFi Module

Customer Reviews	631	1,108	887	2,608
Price	$29.98	$29.98	$24.28	$28.99
Interface	PCIe	M.2 NGFF	M.2 NGFF	M.2 NGFF
Wireless	11AX WiFi 6E	11AX WiFi 6E	11AX WiFi 6E	11AX WiFi 6E
Max Speed	2400Mbps @ 6G + 2400Mbps @ 5G + 574Mbps @ 2.4G	2400Mbps @ 6G + 2400Mbps @ 5G + 574Mbps @ 2.4G	2400Mbps @ 6G + 2400Mbps @ 5G + 574Mbps @ 2.4G	2400Mbps @ 6G + 2400Mbps @ 5G + 574Mbps @ 2.4G
High Gain Antenna	5dBi	5dBi with 30cm Extension Cable	Not attached	Not attached
Dual Band	6GHz / 5GHz / 2.4GHz	6GHz / 5GHz / 2.4GHz	6GHz / 5GHz / 2.4GHz	6GHz / 5GHz / 2.4GHz
Online Gaming	✓	✓	✓	✓
8K HD Video Streaming	✓	✓	✓	✓
MU-MIMO	Up & Down	Up & Down	Up & Down	Up & Down
Supported operating systems	Windows 10/11 64-bit	Windows 10/11 64-bit	Windows 10/11 64-bit	Windows 10/11 64-bit

Mô tả

Thông tin chi tiết sản phẩm:

【Ultrafast WiFi 6 & WiFi 6E Support 6GHz】The PCIE WiFi 6E Card Built-in AX210 chipset provides the latest 802.11ax standard technology. Target Wake Time, delivers from 80MHz to 160MHz higher peak data rates,boosts your overall speeds up to 5400 Mbps(574Mbps @2.4GHz + 2400Mbps @5GHz +2400Mbps @6GHz) and up to 4X capacity improvement in dense or congested environments comparing to 802.11ac. Heartily enjoy 8K movies, large file transfer and smart home devices with fewer dropped connections.
【The ALL-New 6GHz Band】The ALL-New 6GHz solves WiFi spectrum shortage by providing contiguous spectrum blocks, including 7×160MHz channels, 14×80MHz,which refuses signal congestion in high demand environments. Wider channel and faster data throughput fully satisfys high-bandwidth applications such as unified communications, cloud computing, augmented and virtual reality, and telepresence as well as lower latency connectivity. More choices to unlock your WiFi6E router’s full potential.
【The New-Gen Bluetooth 5.3】BT 5.3 is coming with AX210. Based on Bluetooth 5.2( 4x Range , 2x Transmit Speed over BT 4.2), it has larger capacity, higher speed, extremely low latency and stronger battery life.The powerful energy and continuous workflow can be an ideal home choice with game controllers，BT TWS earplugs, earphones, keyboards,etc., which can bring many devices connection and more demands convenience for your Desktop PC ultimate setup.
【OFDMA & MU-MIMO For Minimizing Lag】 The WiFi 6E Adapter with OFDMA,MU-MIMO support greater network flexibility, faster downloads, sharing and backup, as well as ultra-low latency, lower power consumption. 160 MHz large bandwidth double throughput greatly improves signal gain when multiple users are served at the same time. Minimized Lag for your PC on busy network for your ultra-responsive real-time gaming or an immersive VR experience.
【Broader Connection】Reduced dead zones for the best reception—Two 5dBi external multi-directional antennas for optimal signal reception focus on more reliable signal strength, greatly increase network coverage for a smoother online experience further away.
【Compatibility And Install Driver Tips:】Support Windows 10/11 64-bit OS. Compatible with all PCIe standard. Standard and Low-Profile Brackets to adapt to your different computer sizes. Download the driver from the intel web by searching "AX210". If you have any questions, please feel free to contact us via amazon message for technical support.【Please note】To utilize 6GHz Wi-Fi, the user might use Windows 11 or upgrade to Windows 10 Dev version.
