| Manufacturer | OBDRescource |
| Brand | OBDResource |
| Item Weight | 2.08 ounces |
| Package Dimensions | 3.66 x 2.44 x 1.46 inches |
| Item model number | OBD327 |
| Is Discontinued By Manufacturer | No |
| Manufacturer Part Number | OBD327 |

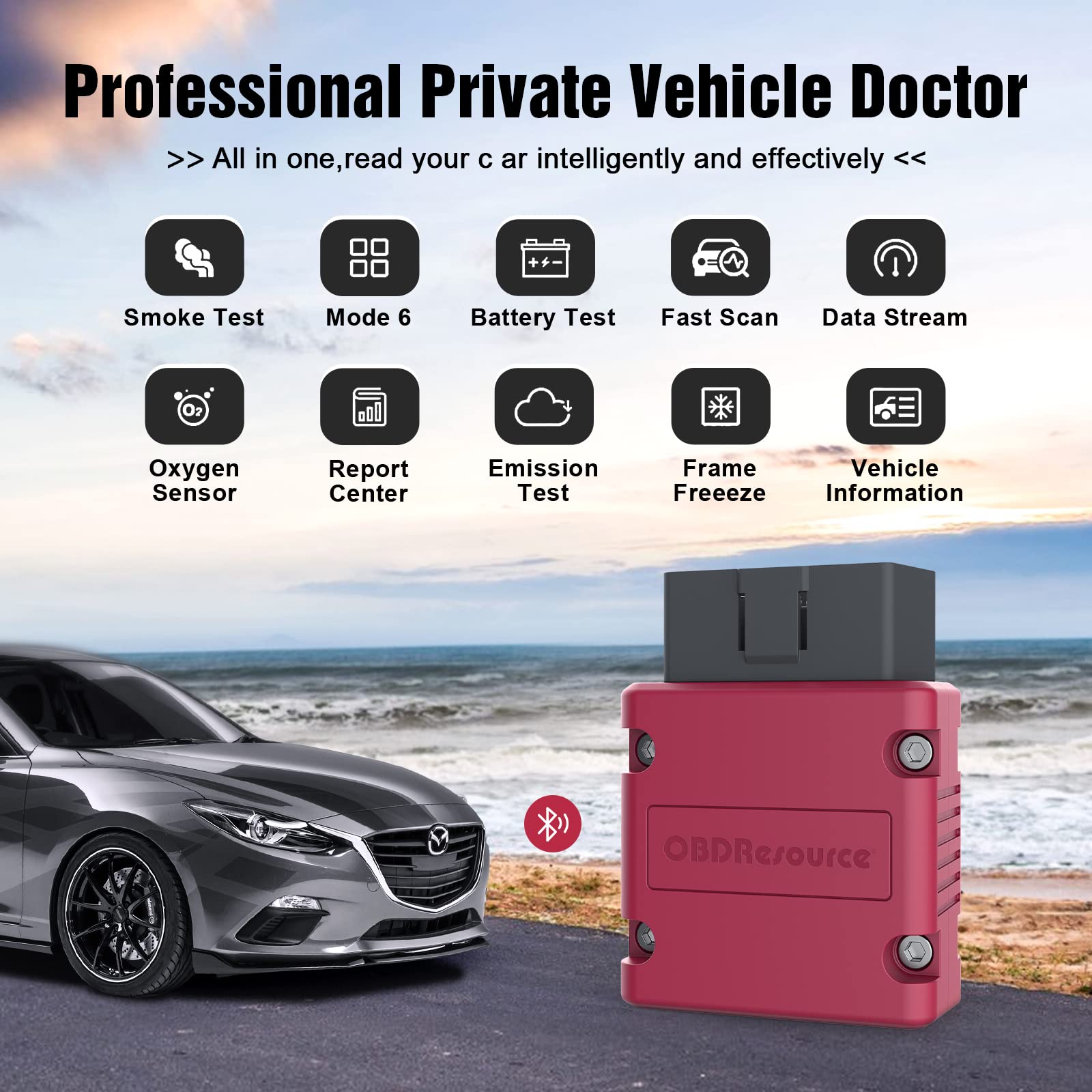

| Special Features | -MIL Status: MIL is essentially an emission warning light. If the light comes on, it means the OBDII system has detected an emissions-related problem.-Live Data: DIY diversified PID display method.- Repair Reports: Generate a comprehensive report for the DTC, containing the definition, possible causes.-Quick Scan: Quickly scan the vehicle and analyse vehicle status.-Vehicle Info: Check the make, years, VIN Code and other detail information of your Vehicle., -Read and Clear Codes: Read and clear engine codes.- Freeze Frame: Freeze Frame data is a snapshot of the vehicle when the Freeze Frame code was stored.-Mode 6: Advanced test results for on-board diagnostic system monitors.-O2 Sensor: Check the vehicle O2 sensor values.-Battery Test: Show battery voltage and comment battery status.-Smog Check: Indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing. |
- Read and Clear Codes: Read and clear engine codes. Stored Pending and Permanent for all makes.
- Freeze Frame: Freeze Frame data is a snapshot of the vehicle when the Freeze Frame code was stored.
- Mode 6: Advanced test results (like misfire counts) for on-board diagnostic system monitors.
- Battery Test: Show battery voltage and comment battery status.
- Live Data: DIY diversified PID display method(Graphic display, Dashboard display and Digital display). iOS supports 4 parameters comparison and Android supports 2.
- Repair Reports: Generate a comprehensive report for the DTC, containing the definition, possible causes, saving you time and money.
- Quick Scan: Quickly scan the vehicle and analyse vehicle status.
- Vehicle Info: Check the make, years, VIN Code and other detail information of your Vehicle

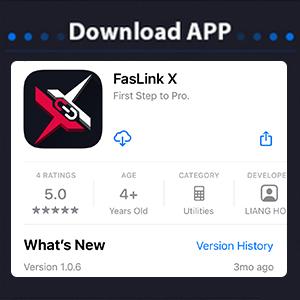

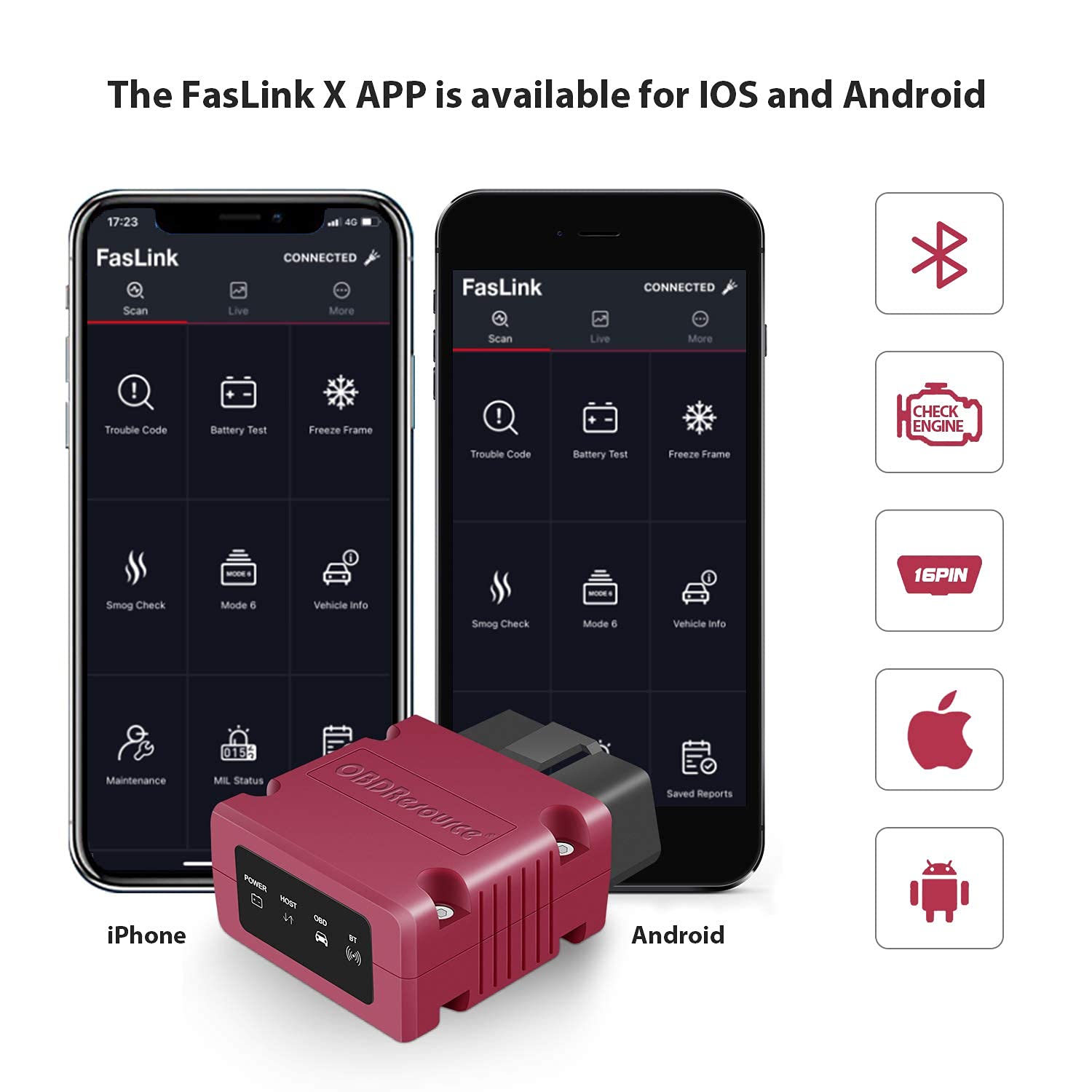

The OBD2 Scanner, paired with the free FasLink X App (iOS or Android), gives you a complete vehicle repair solution. No other scan tool or code reader offers this level of insight into how to fix your vehicle.
Supported software: FasLink X, Torque
Supported operating systems: Android, iOS
Supports all standard OBD2 protocols:
1. SAE_J1850(PWM,VPW)
2. ISO_9141-2
3. ISO_14230-4(KWP, KWP-FAST)
4. ISO_15765-4(CAN,CAN-B,CAN-C,CAN-D)
5. SAE_J1939(CAN)
|
|
|
|---|---|---|
How to use1. Download and install the Faslink X APP from Google Store or APP Store; 2. Plug the device into the 16-pin Connectorrun; 3. Run the Faslink X app and tap CONNNECT. | Diagnose Your Car Even Far AwayThis OBD2 scanner Bluetooth 4.0 has a strong stability on connectivity and the connection distance can reach up to 20-50 meter(when no barrier), which is more convenient for you to diagnose outside your car. | Support Almost All VehiclesCompatible with all 1996 and newer model cars, SUVs, and light trucks sold in the US, Europe, and Asia. Note: Cannot work on hybrid and electric cars. |
