| Product Dimensions | 1.34 x 0.67 x 0.47 inches |
| Item Weight | 0.529 ounces |
| ASIN | B07G3Z5W8C |
| Item model number | NO10600MOS |
| Customer Reviews | 4.5 out of 5 stars 4Reviews |
| Best Sellers Rank | #252,527 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #54 in 3D Printer Interface & Driver Modules |
| Is Discontinued By Manufacturer | No |
| Date First Available | August 2, 2018 |
| Country of Origin | USA |
| Item Package Quantity | 1 |
| Input Voltage | 60 Volts |
| Current Rating | 10 Amps |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Nominal Power | 600 Watts |
| UPC | 667797752156 |
| Manufacturer | NOYITO |
Features:
The module supports high level trigger, low level trigger, switch control, PWM control;
It adopts imported dual MOS parallel active output, low internal resistance, strong current and strong power. The continuous current is 10A, 600W at room temperature, which is suitable for most equipments;
Easy to control high power equipment.
NOTE:
At the same time, there is only one signal to control the module, and two or more signals cannot be used to control the module;
Product parameters:
Working voltage: DC 4V - 60V;
Working temperature: -40- + 85 ° C;
Size: 3.4 * 1.7 * 1.2cm (LWH).
High Level trigger voltage range:
DC3.0V-24V, the trigger signal is at 3.0V-24V, and the MOS transistor is turned on;
Less than 0.6V, that is, 0V-0.6V, the MOS tube is turned off;
The signal voltage cannot be 0.6V-3.0V, because the MOS tube is not fully open, the high power output will burn MOS;
Low Level trigger voltage range:
DC 0V-0.6V, the trigger signal is at 0V-0.6V, and the MOS tube is turned on;
Above 3.0V, the MOS tube is turned off;
The signal voltage cannot be 0.6V-3.0V, because the MOS tube is not completely open, and the high power output will burn the MOS.

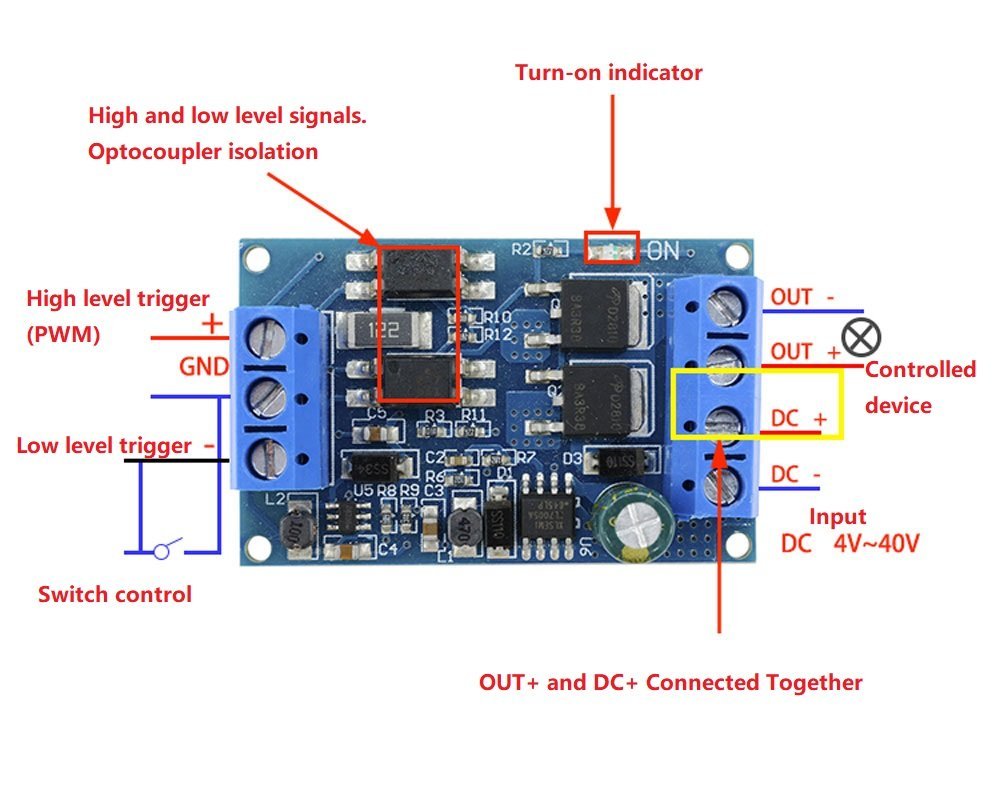

Trigger source:
High level trigger (DC3.0V - 24V), low level trigger (DC 0.0V-0.6V), switch control, can be connected to MCU IO port, PLC interface, DC power supply and other PWM signals, the range is 0 - 2.5KHZ.
Output capacity:
DC 4V - 60V, continuous current 10A, room temperature, power 600W! The current can reach 15A under auxiliary cooling conditions.
Package Included:

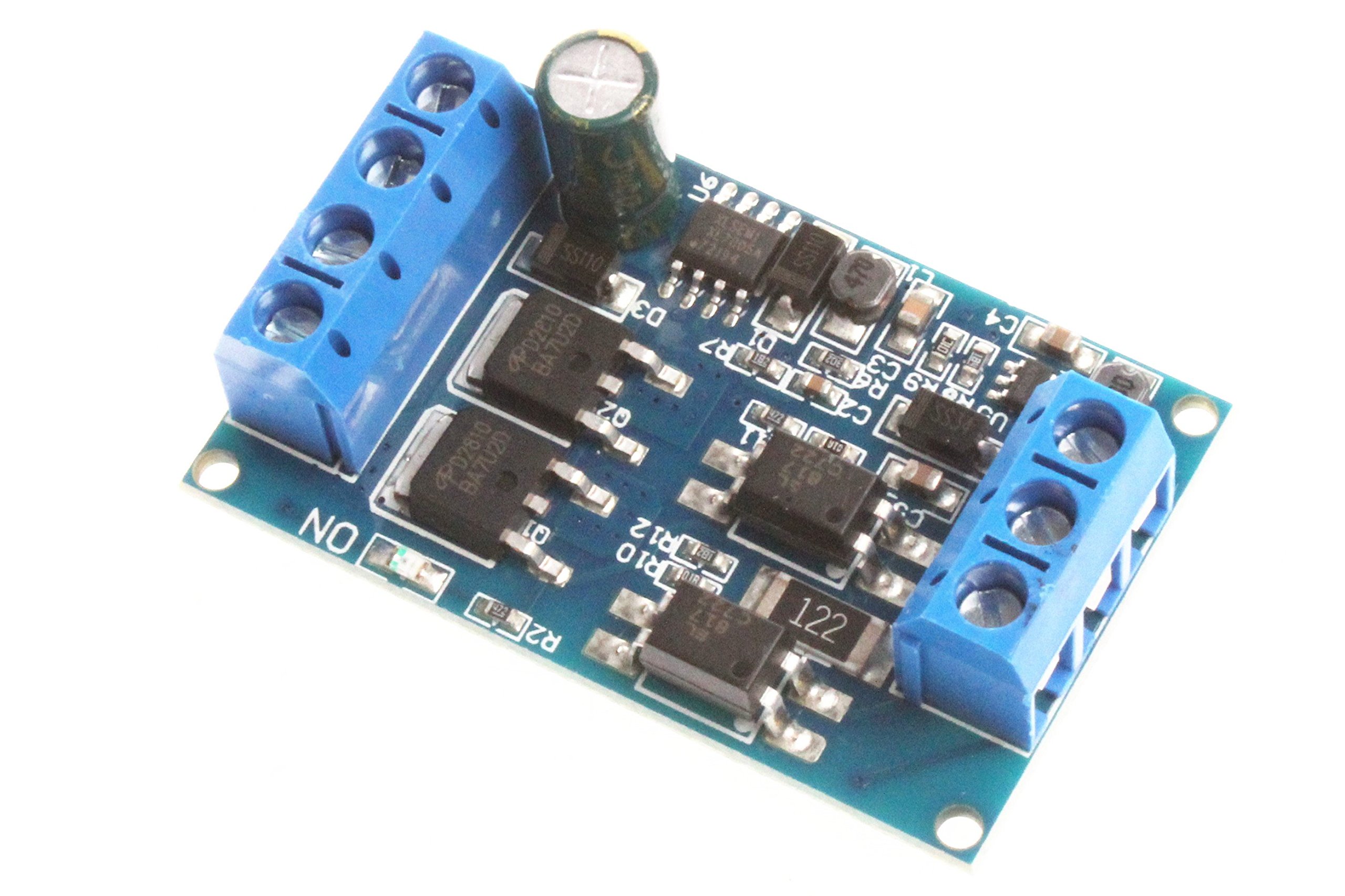

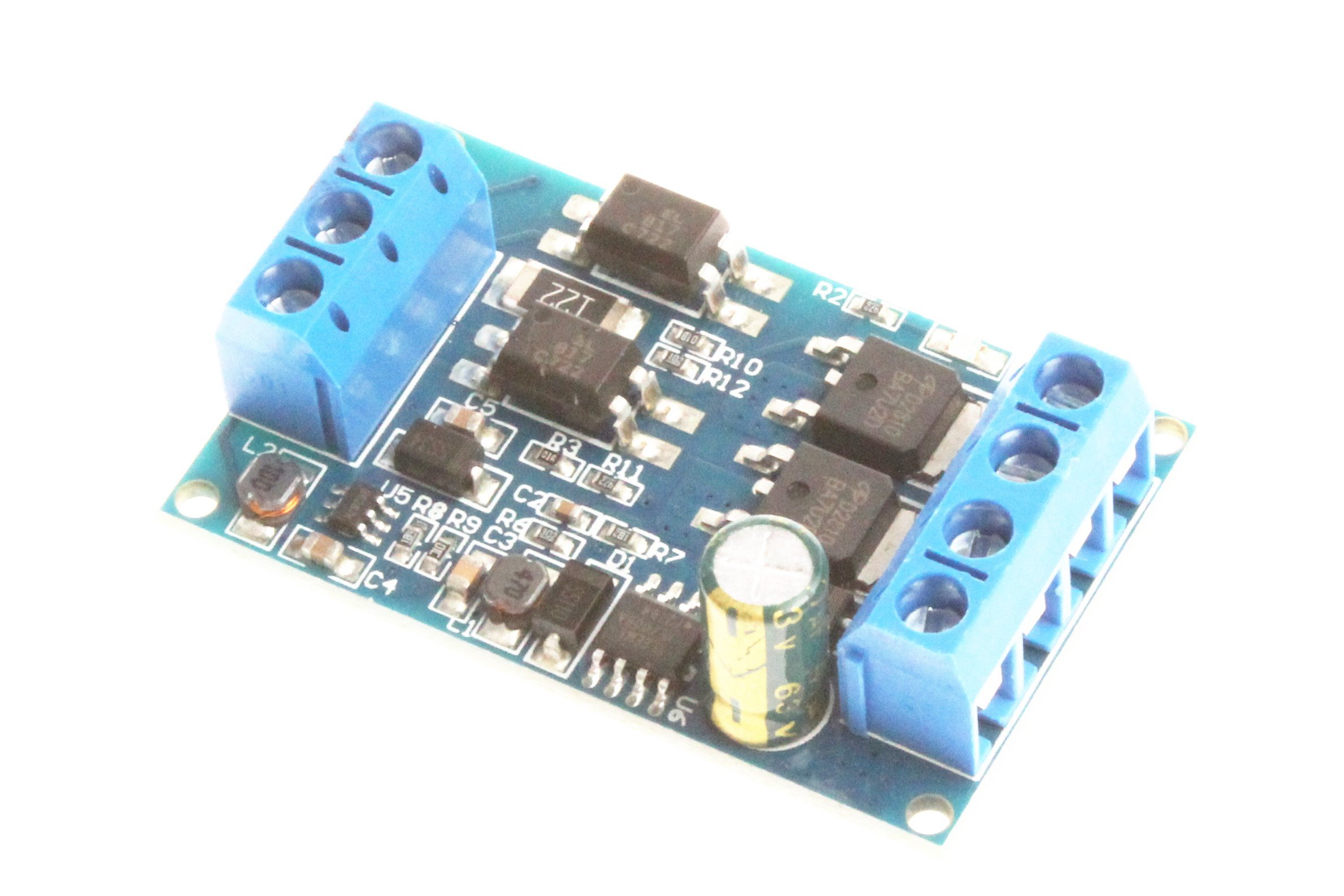

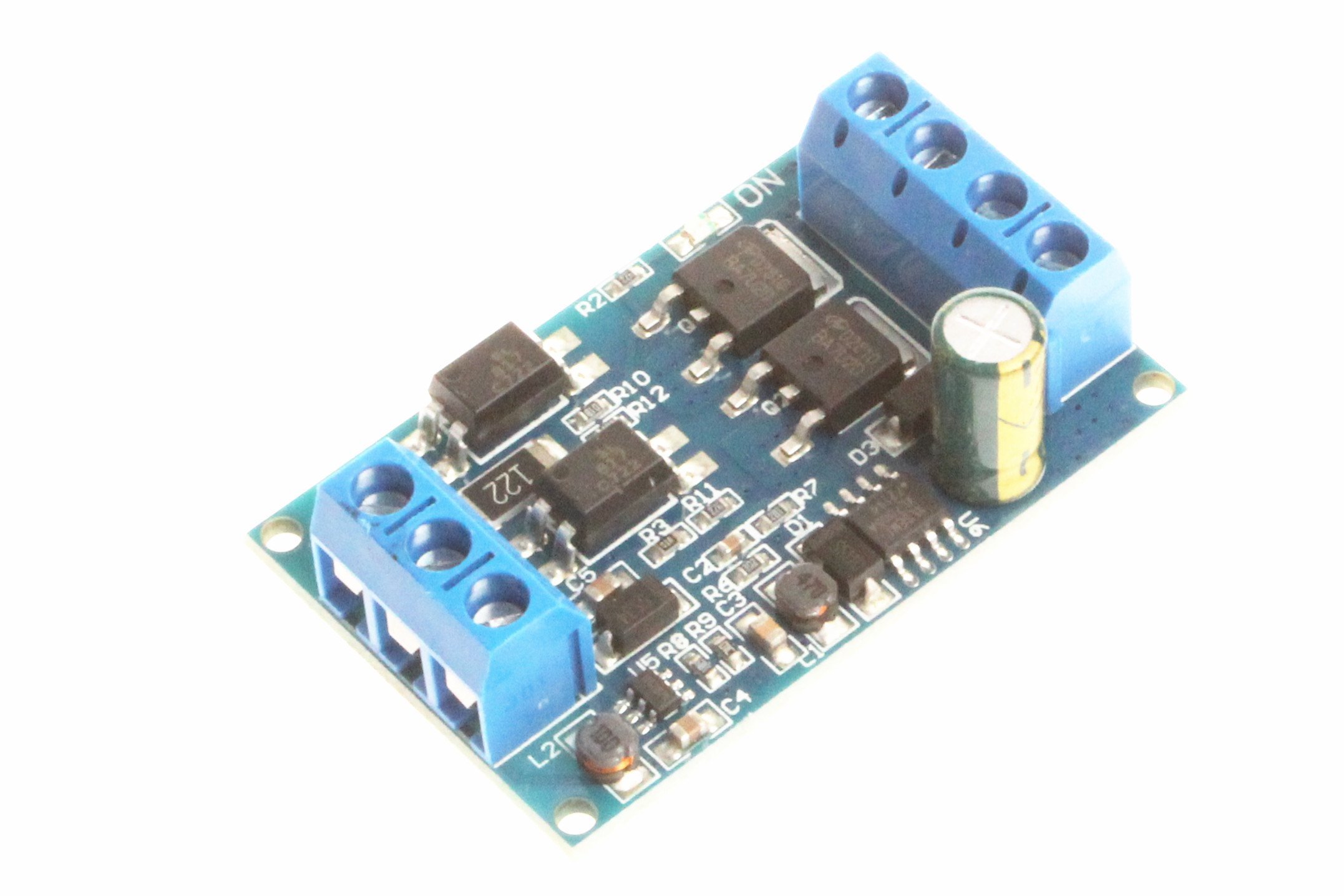

1pcs NOYITO 10A 600W High Power MOS Trigger Switch Driver Module
