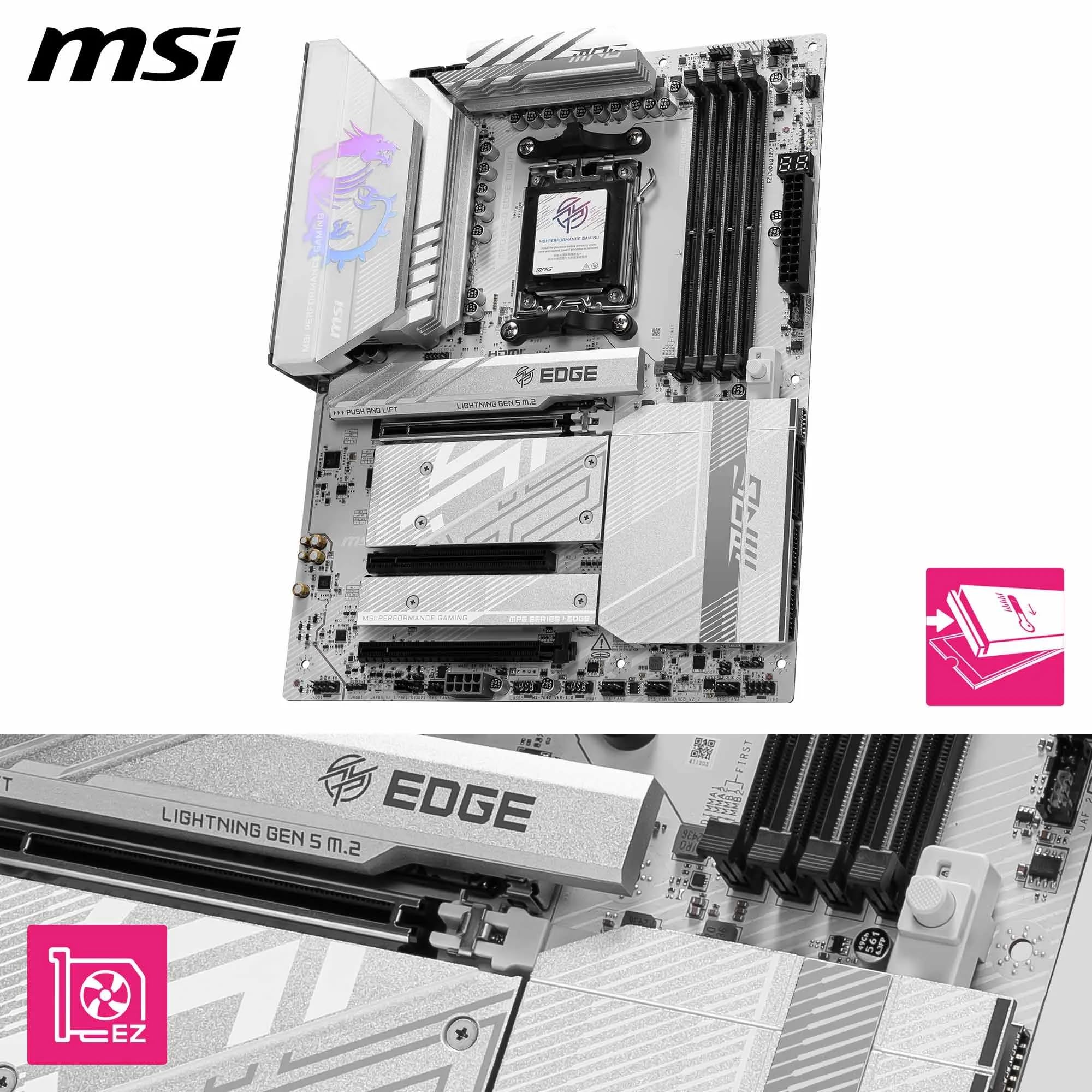

MSI MPG B850 Edge TI WiFi Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-80A SPS VRM, DDR5 Memory Boost (8400+MT/s OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors

The MPG B850 EDGE TI WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

• Form Factor: ATX
• Socket Type: AM5
• Chipset: AMD B850

Ultra Power - 14 Duet Rail Power System with 80A Smart Power Stage

With exclusive Core Boost technology and EZ OC Tuning functions, the MPG B850 EDGE TI WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

• Digital PWM IC
• 14 Duet Rail Power System (80A / SPS)
• 2 Phase SOC Power
• 1 Phase MISC Power

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8400+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.

EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8400+ MT/s, supports AMD EXPO.

Fortified PCIe 5.0 x16 Slot

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.

• 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor II** and EZ PCIe Release)
• 1 x PCIe 4.0/3.0 x16 slot*
• 1 x PCIe 3.0 x1 slot

*Supports x16x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

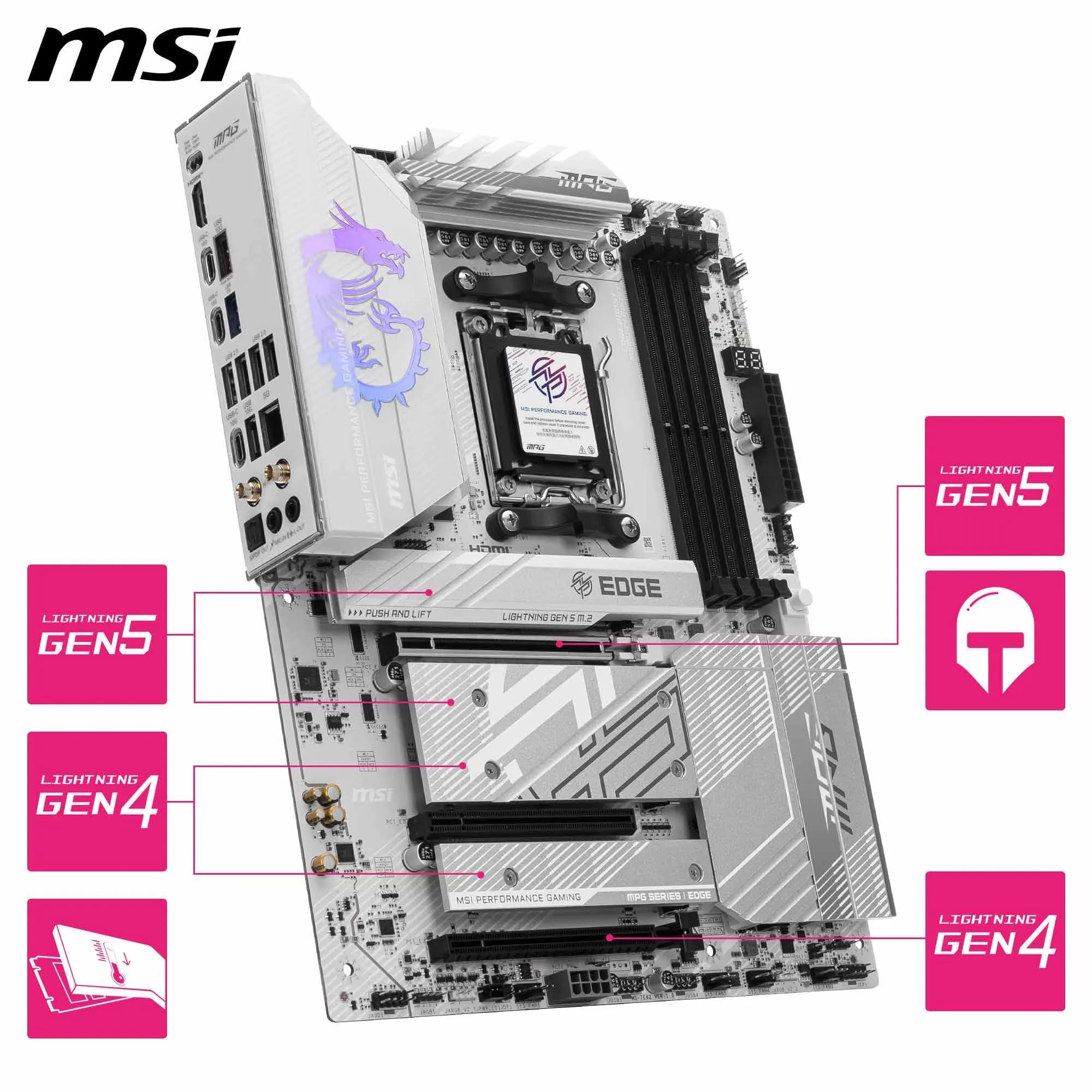

Gen5 M.2 Connector

The MPG B850 EDGE TI WIFI motherboard features MSI's M.2 slots:

• 2 x Gen5 x4 128Gbps slots (1 with double-sided M.2 Shield Frozr)
• 1 x Gen4 x4 64Gbps slot (with M.2 Shield Frozr)
• 1 x Gen4 x2 32Gbps slot (with M.2 Shield Frozr)

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

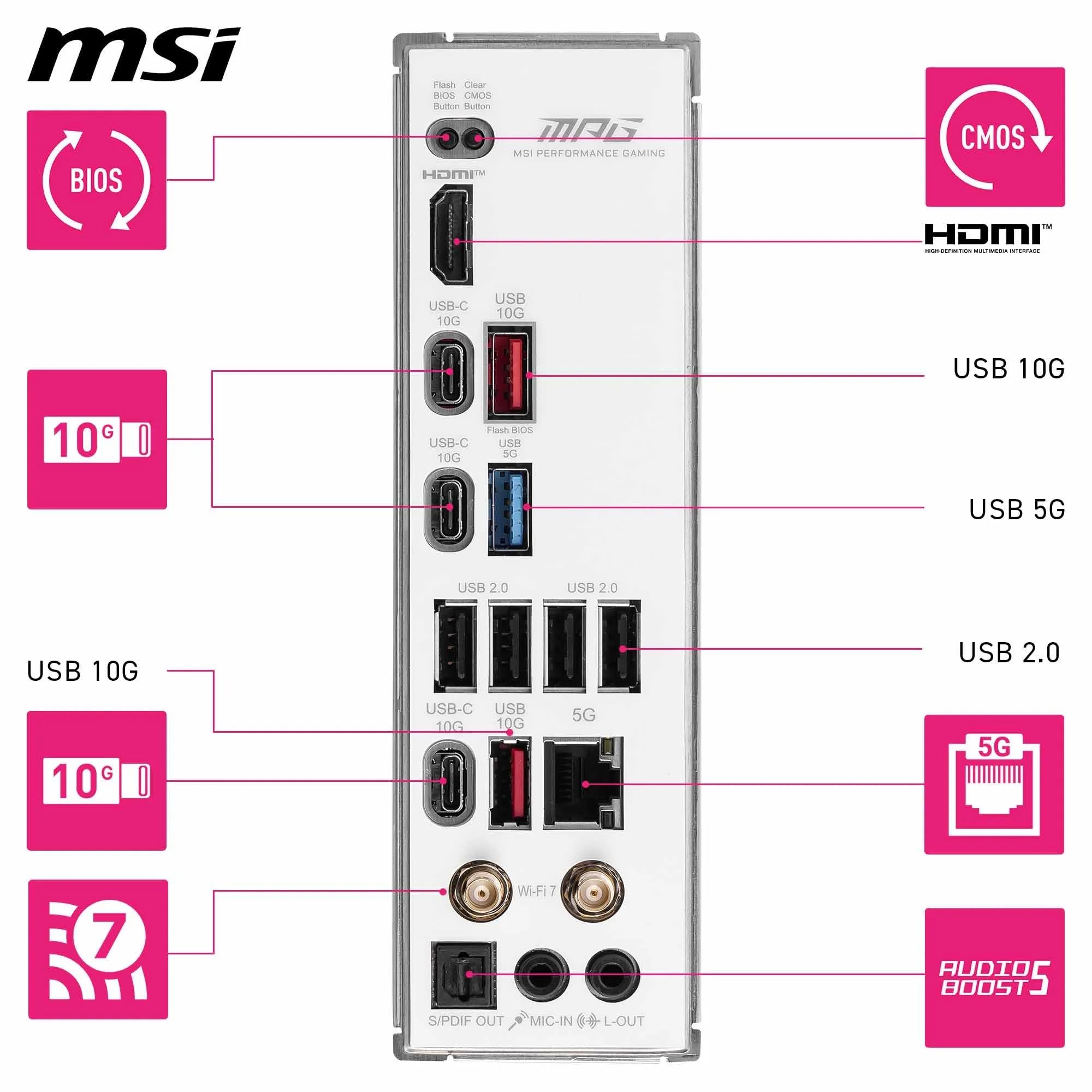

High-speed Connectivity

5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.

Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

USB 20Gbps Front Type-C: Connect to devices and transfer files at high bandwidth rates.
