| Standing screen display size | 2 Inches |
| Max Screen Resolution | FHD |
| Video Capture Format | 1080p |
| Screen Size | 2 Inches |
| Connectivity Technology | Infrared |
| Color | Black |
| Special Feature | Infrared, Night Vision |
| Camcorder type | Webcam |
| Included Components | Raspberry Pi 4B IR Camera Module |
| Minimum Focal Length | 3.6 Millimeters |
| Lens Type | Wide Angle, Fisheye |
| Photo Sensor Size | 1/4 inch |
| Effective Still Resolution | 5 MP |
| Compatible Devices | Raspberry Pi 5, 4B, 3B+, 3B, 2B+, 2B, B, Zero, and Zero W |
| Recommended Uses For Product | Night vision recording, time-lapse photography, security surveillance, and robotics projects |
| Viewing Angle | 75 Degrees |
| Has Image Stabilization | No |
| Image Stabilization | false |
| Form Factor | camera module |
| Item Weight | 1.12 ounces |
| Are Batteries Included | No |
| Shooting Modes | Manual, Automatic |
| Operating System | [Predicted] Proprietary firmware or embedded operating system |
| Digital Zoom | 4 x |
| Image Aspect Ratio | 16:9 |
| Display Resolution Maximum | FHD |
| Minimum Aperture | 1.8 Millimeters |
| Supported Image Format | JPEG |
| Compatible Processors | Raspberry Pi processors |
| Focus Type | Manual Focus |
| Upper Temperature Rating | 5E+1 Degrees Celsius |
| White balance settings | Auto |
| Supported File Format | JPEG |
| Zoom Type | Digital |
| Exposure Control Type | [MO] |
| Wireless Communication Standard | 802.11abg |
| Style | Compact |
| Flash Memory Bus Interface Type | SD |
| Manufacturer | MakerFocus |
| UPC | 190033867463 |
| Item model number | 190033867463 |
| Hardware Platform | PC |
| Product Dimensions | 0.79 x 3.9 x 2.8 inches |
| Item Dimensions LxWxH | 0.79 x 3.9 x 2.8 inches |
| ASIN | B07BK1QZ2L |
| Is Discontinued By Manufacturer | No |
| Date First Available | March 19, 2018 |
Description:
Our IR-CUT Night Vision Camera plugs directly into the CSI connector on the Raspberry-Pi, and features two high intensity Infrared LED spotlights for night time recording
Features:
Built-in IR-CUT automatic switching filter, manual settings are not required

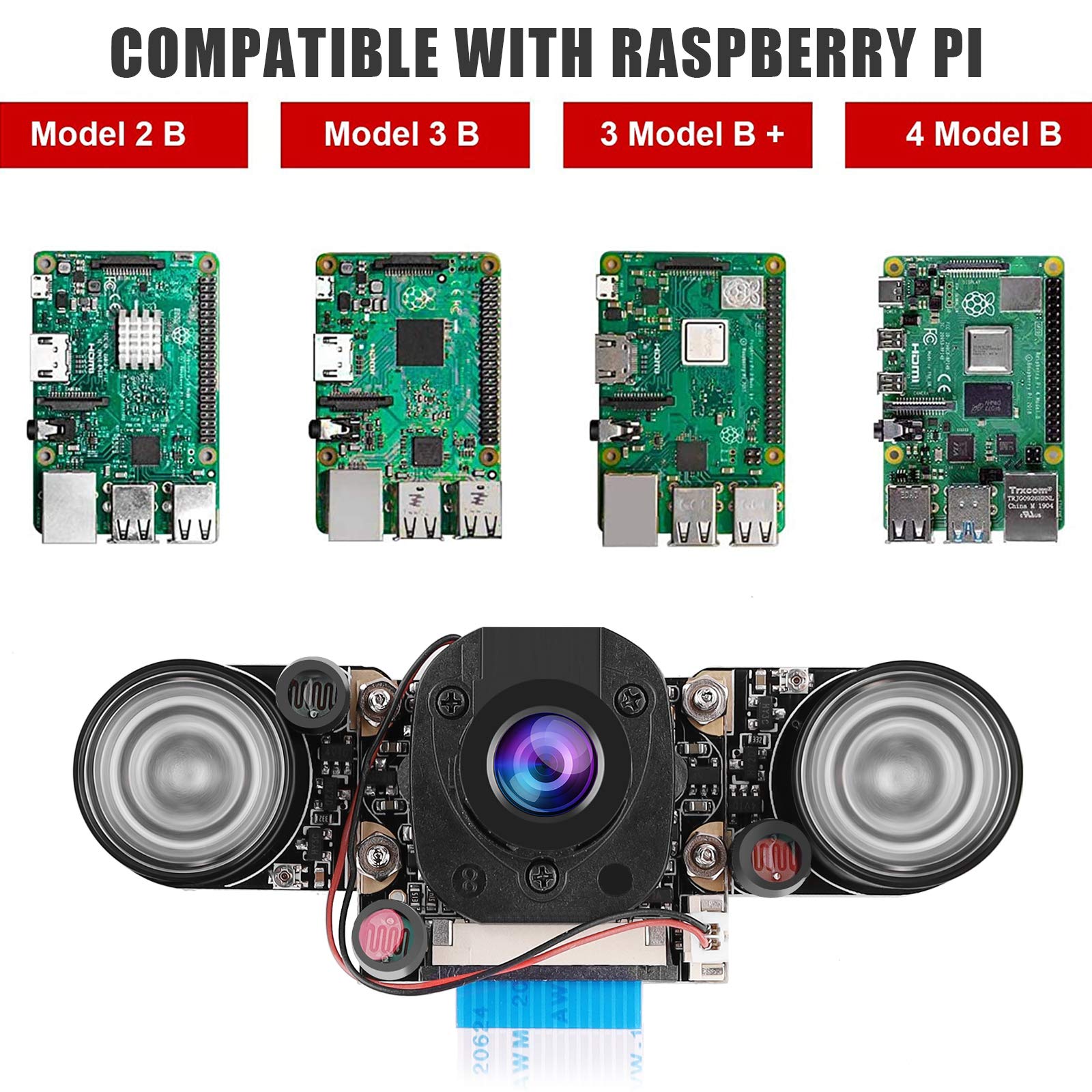

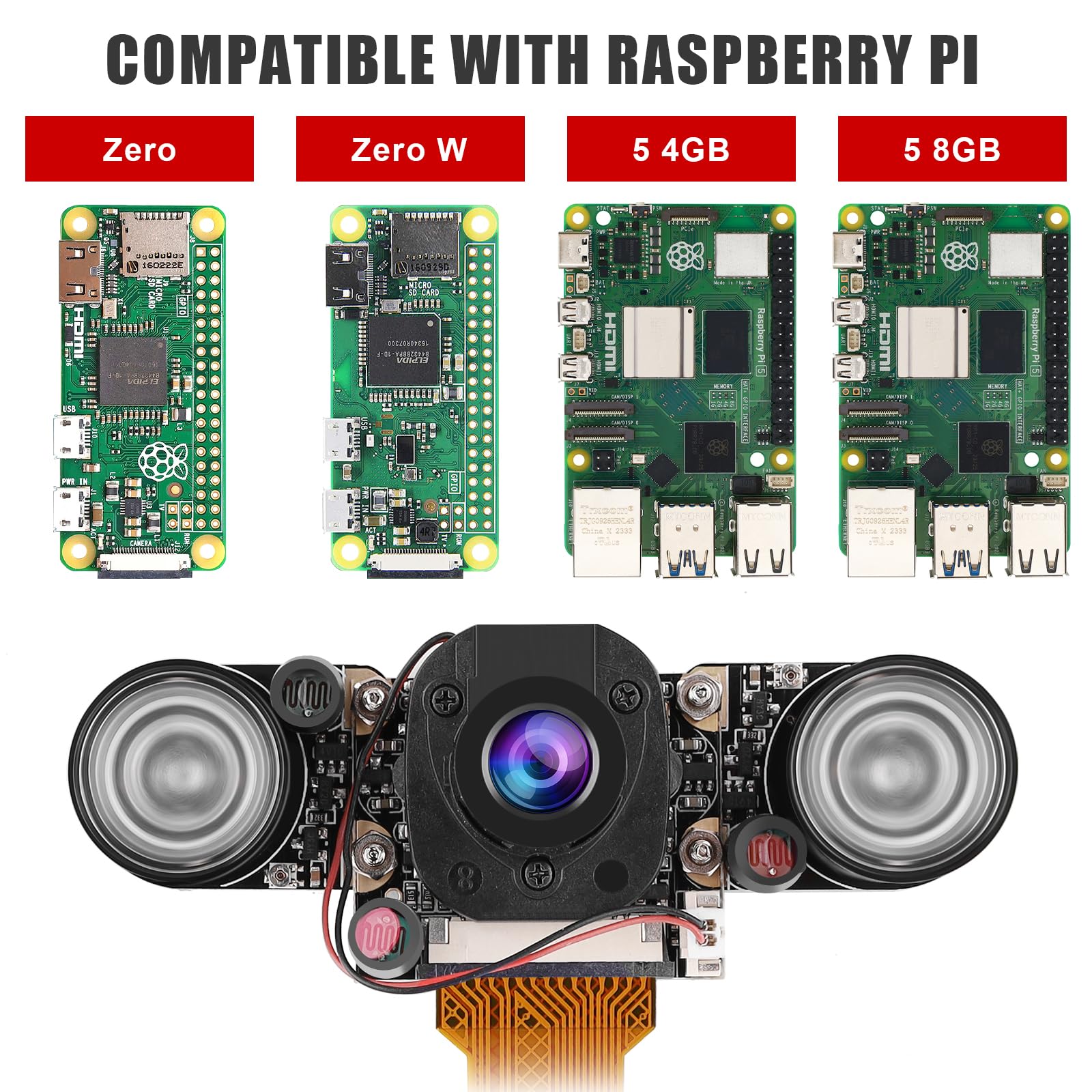

Compatible with all version of Raspberry Pi
Pixels: 5 Megapixels
Photosensitive Chip: OV5647
Focal Length: 3.6 mm
Aperture (F) : 1.8
FOV (Diagonal): 75 degree
Sensor optimum resolution: 1080P

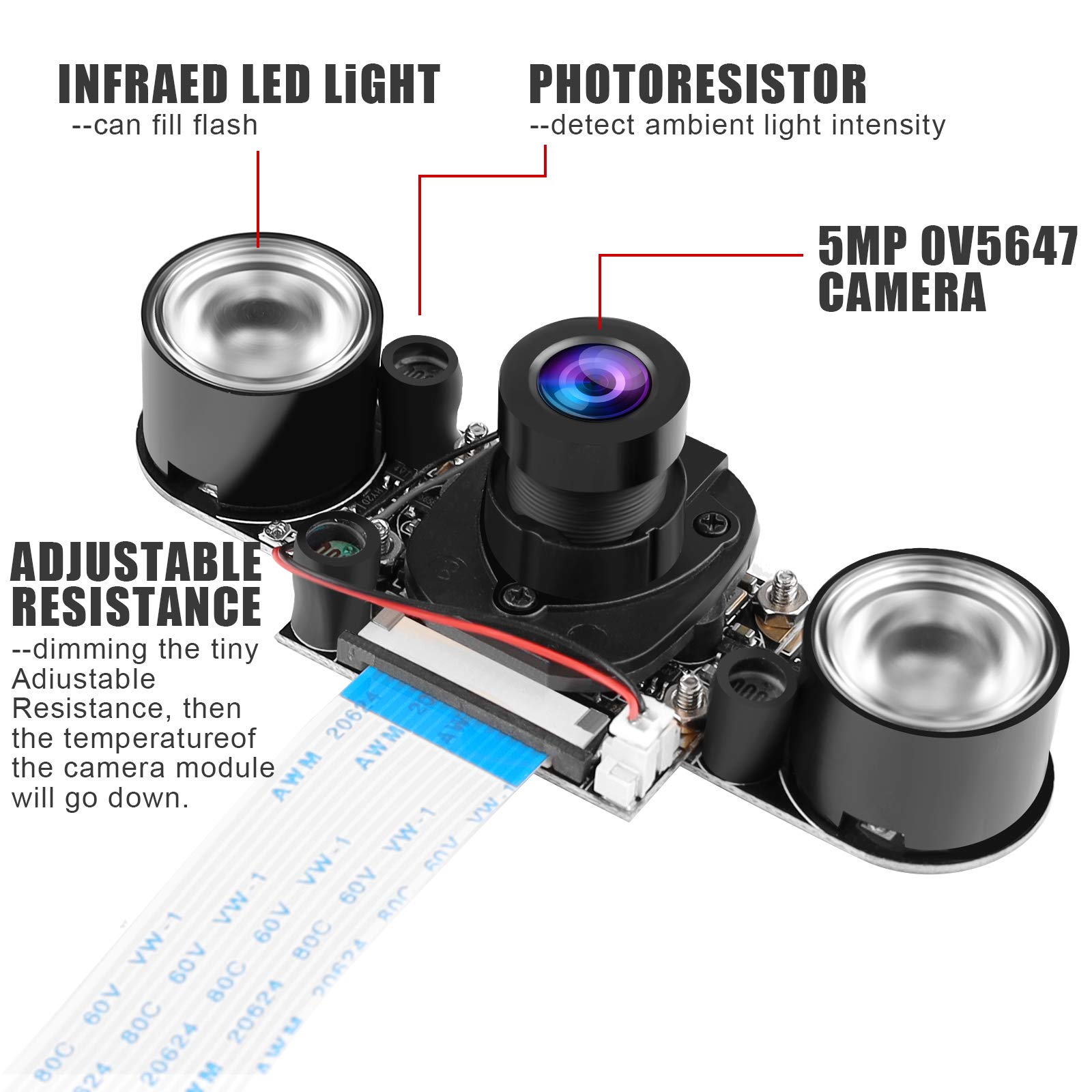

Size: 1.42 inches x 1.04 inches x 0.94 inches
Infrared Light: can fill flash
Photoresistor: to detect ambient light intensity
Adjustable Resistance: adjust the ambient light intensity threshold of the infrared light automatically. Dimming it, then the temperature of Pi Board will go down
4 Screw Holes: used for fixing and provides 3.3V power output
Package Content:
1 * 75 Degree 5MP OV5647 Camera board
2 * LED Lights
1 * 15cm FFC Cable(White) for RPI 4B/3B+/2B
1 * 15cm FFC Cable(Yellow) for RPi 5/Zero and Zero W
4 * Screws and Nuts

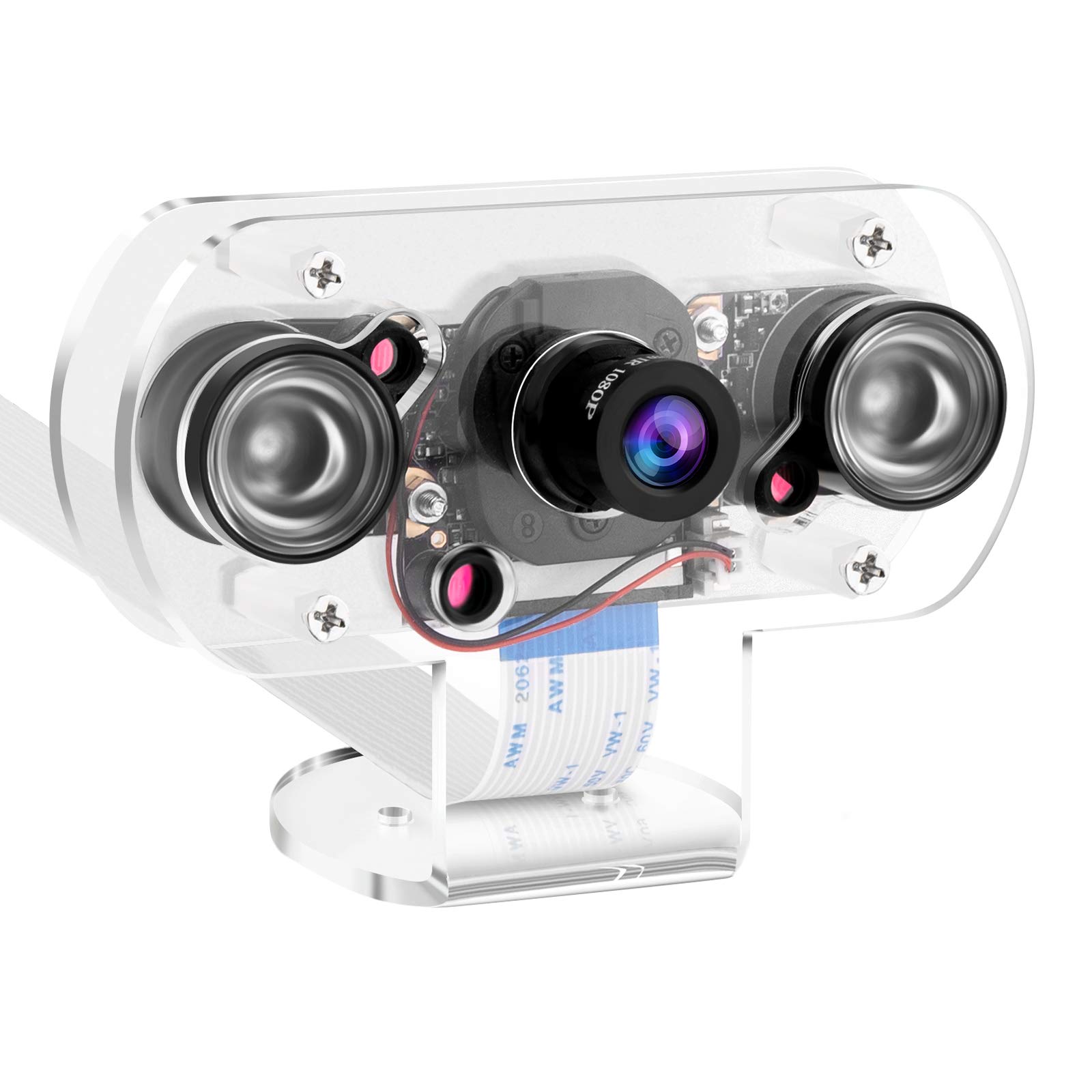

1 * Acrylic Holder
