| Product Dimensions | 2.16 x 1.38 x 0.47 inches |
| Item Weight | 0.46 Ounces |
| ASIN | B09Z29TK7J |
| Country of Origin | China |
| Item model number | HX711 |
| Customer Reviews | 3.4 out of 5 stars 20Reviews |
| Date First Available | April 28, 2022 |
| Weigh Scale Type | Counter Scale |
| Measurement Type | weight |
| Manufacturer | EC Buying |
| Unit Count | 1.0 Count |
Load cell display instrument, used for various weighing display occasions. 24-bit A/D high-precision weight value, the module can transmit the weighing value under the condition of displaying the weight value simultaneously, the sensor analog signal can maintain communication with the host computer such asa computer or PLC, which fully meets the requirements of automatic control. Used for weighing indicator, process controller
Table, tensile testing machine, and suitable fanotherher weighing, mechanical stretest,s test and other measurement occasions.
1. Small size, engineers can carry it around, support Micro Android interface for power supply

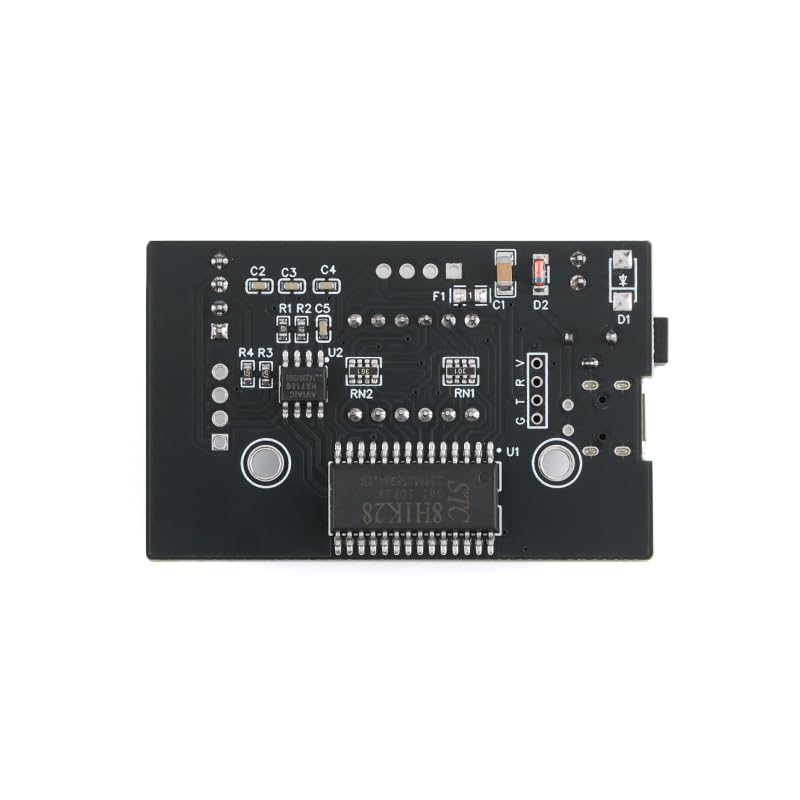

2. Can be built-in HX711 chip for easy on-site debugging
3. The data is sent regularly, or when the weight changes
4. Measurement signal range: ±19mV
5. Temperature coefficient: ≤100ppm/℃
6. A/D conversion rate: 6.25～100Hz
7. Comprehensive protection functions: multiple protections such as anti-reverse connection, anti-overvoltage, instantaneusingression, etc.
8. Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
It has the functions of analog-to-digital conversion, digital calibration, tare, zero setting, anti-sh,ake and so on.
Strong anti-interference ability, strong versatility, small temperature drift, high linearity
The characteristic parameters are stored non-volatilely, and the parameters are still saved after the power is turned off;

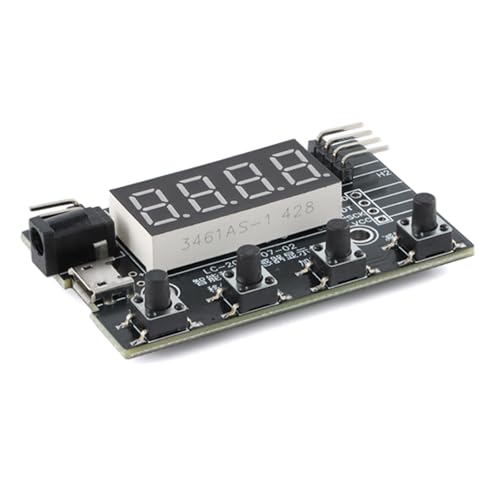

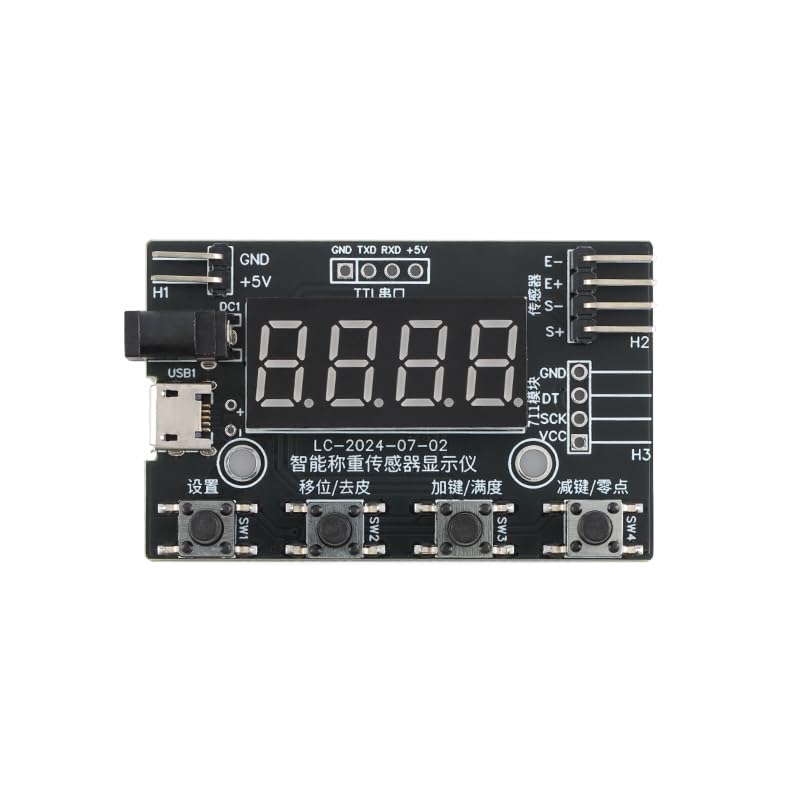

Display: 4 digital tubes (decimal point can be set, automatic displacement)

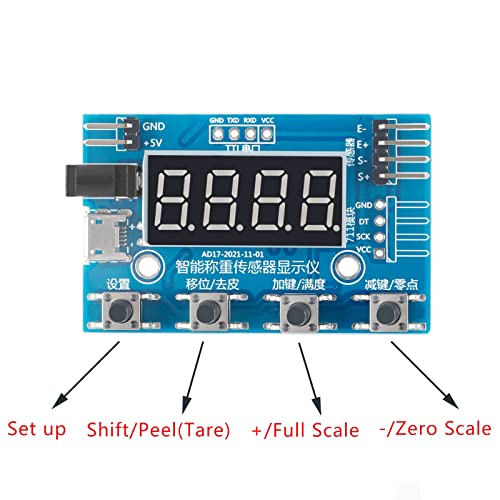

Keyboard: 4 keys
Power supply: 5VDC, all copper high-resistance socket 3.5-1.3, power cord power supply DC3.5mm

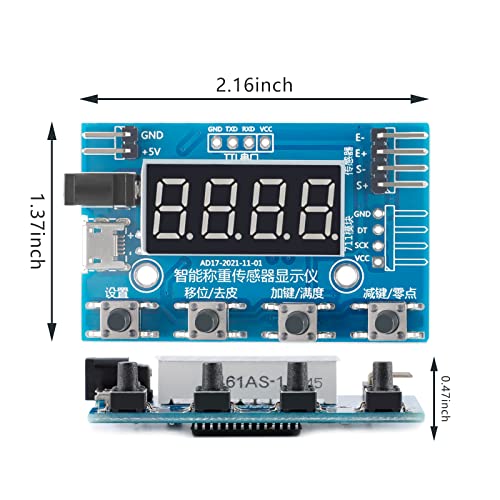

Size: 55×35×12 (L×W×D mm)
A/D module acquisition speed: 0-100 times/second optional (default 30)
Sensor quantity: 4 350Ω load cells
