| Package Dimensions | 6.06 x 3.39 x 0.63 inches |
| Item Weight | 2.39 ounces |
| Department | unisex-baby |
| Manufacturer | HiLetgo |
| ASIN | B077LSG5P2 |
| Item model number | 3-01-0015 |
| Customer Reviews | 4.6 out of 5 stars 464Reviews |
| Is Discontinued By Manufacturer | No |
| Date First Available | November 19, 2017 |
| Color | Gray |
| Connector Gender | Male-to-Male |
| Data Transfer Rate | 24 Megabits Per Second |
| Shape | Round |
| Unit Count | 1 Count |
| Connectivity Technology | USB |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Number of Items | 1 |
| Package Type | Standard Packaging |

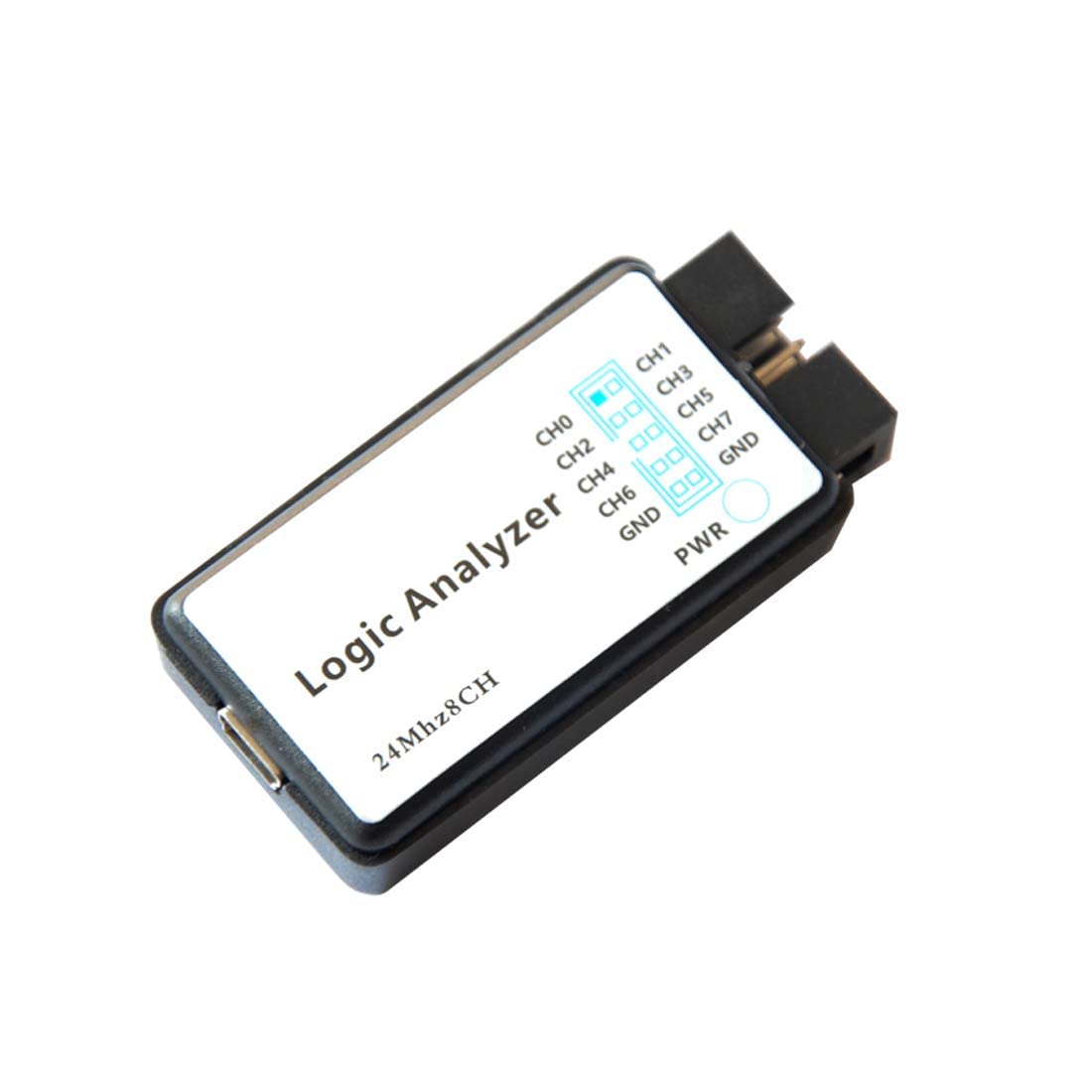

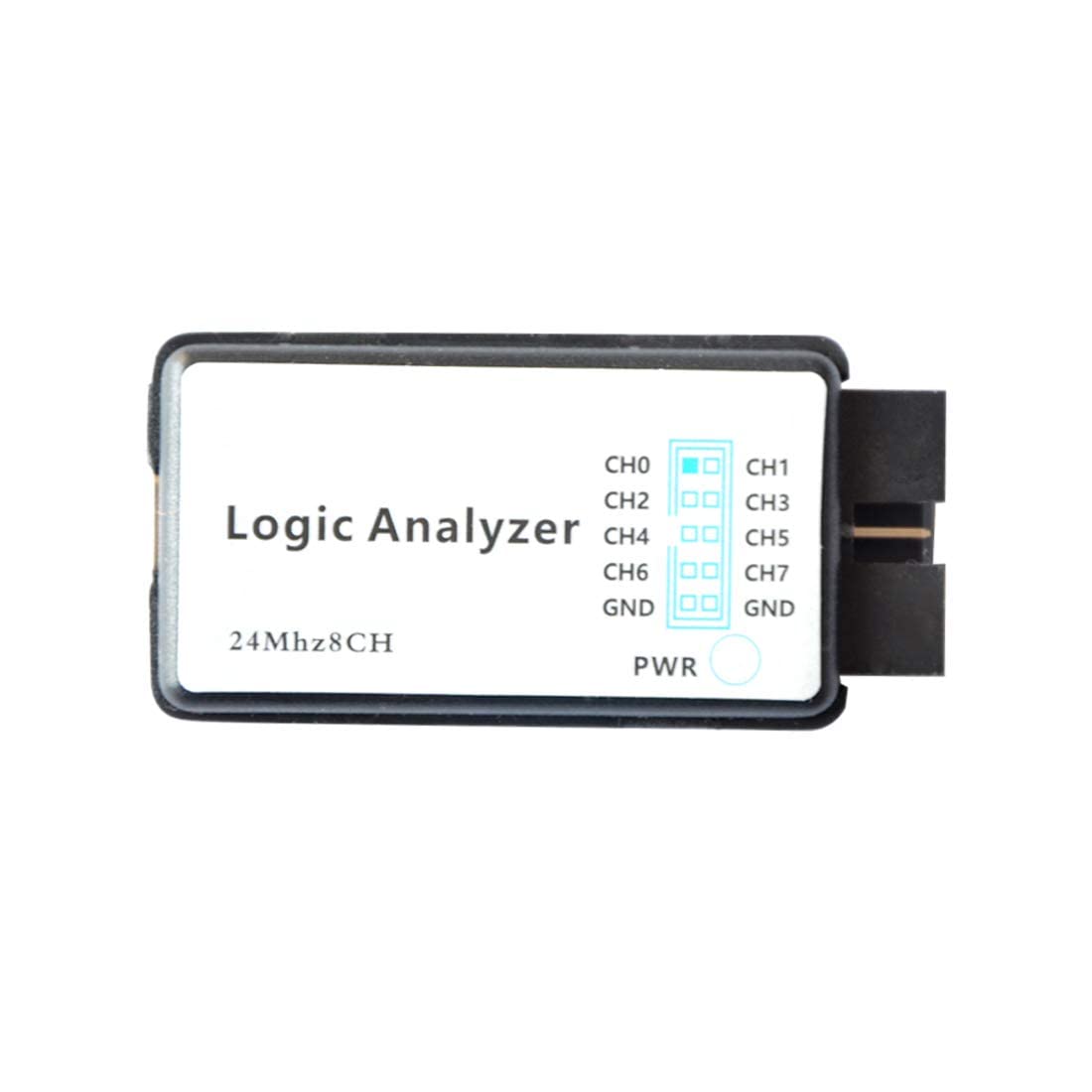

HiLetgo USB Logic Analyzer Device With USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug
Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;
8-channel;
Voltage range:
Input voltage range: -0.5V to 5.25V
Input Low Voltage: -0.5V to 0.8V
Input High Voltage: 2.0V to 5.25V
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystal: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).

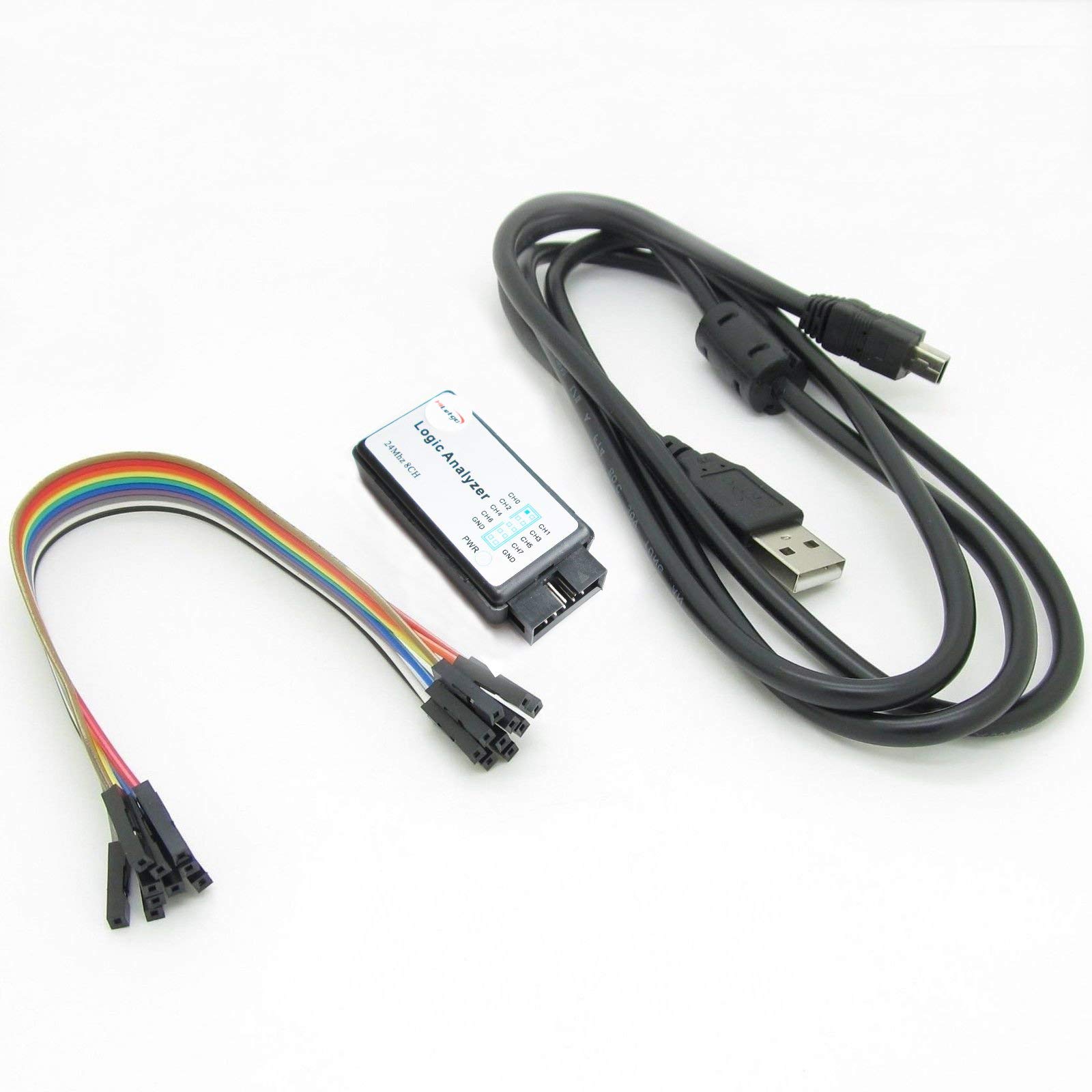

Packing Included:
1 * Logic Analyser
1 * USB Cable
1 * Dupont Cable
