| Manufacturer | HiLetgo |
| Brand | HiLetgo |
| Item Weight | 0.634 ounces |
| Product Dimensions | 3 x 0.3 x 2 inches |
| Item model number | 3-01-0082 |
| Is Discontinued By Manufacturer | No |
| Color | Green |
| Size | Small |
| Manufacturer Part Number | 3-01-0082 |
HiLetgo 315Mhz RF Transmitter and Receiver Module link kit for Arduino/ARM/MCU/Raspberry pi

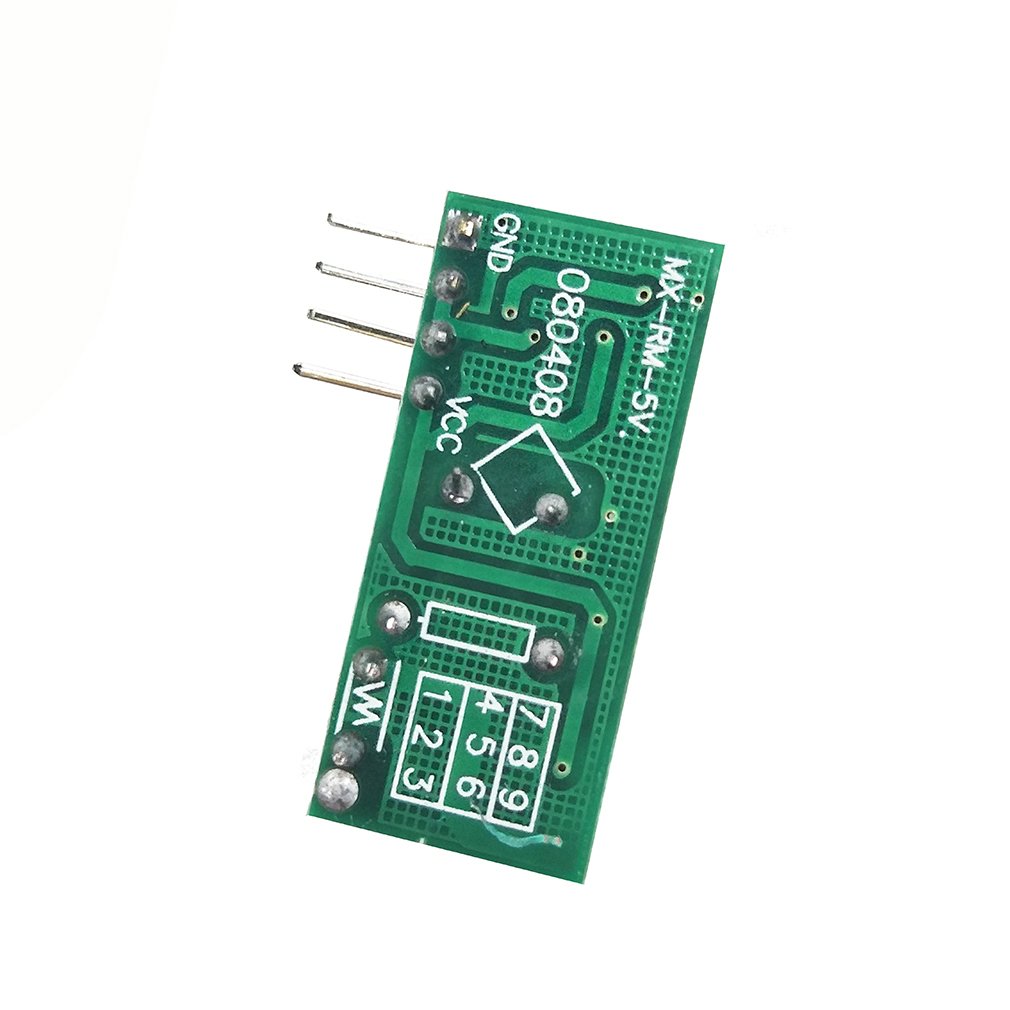

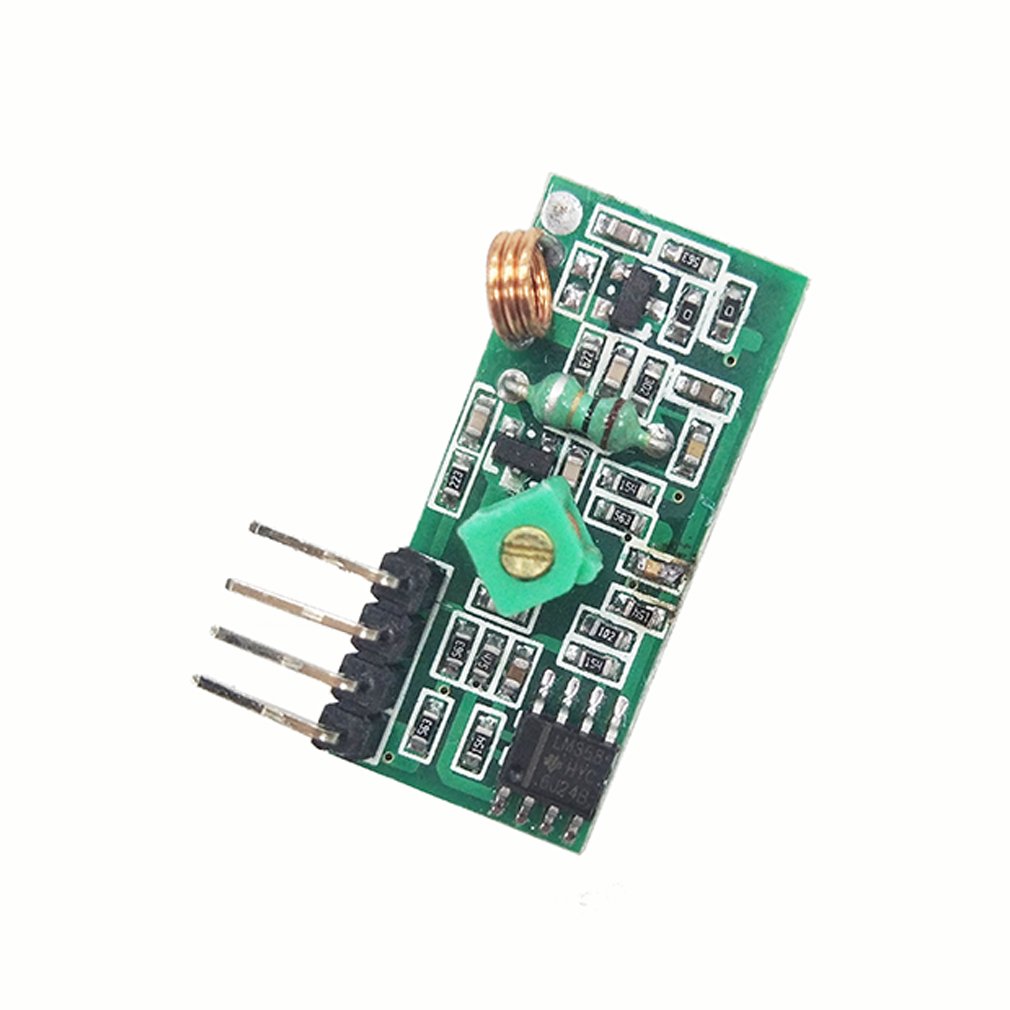

Receiver module parameters:
1.Product Model: MX-05V
2.Operating voltage: DC5V
3.Quiescent Current: 4MA
4.Receiving frequency: 315Mhz
5.Receiver sensitivity:-105DB
6.Size: 30 * 14 * 7mm
7.External antenna: 32CM single core wire, wound into a spiral

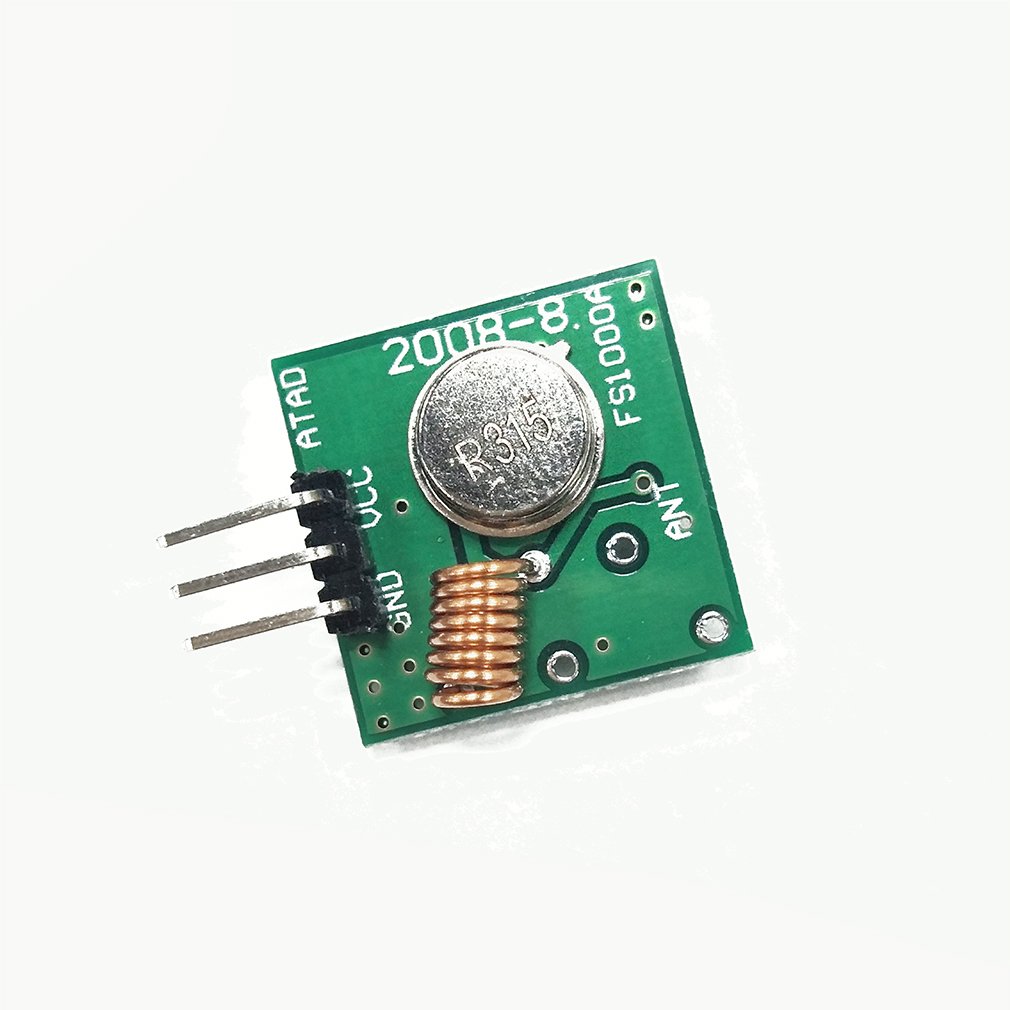

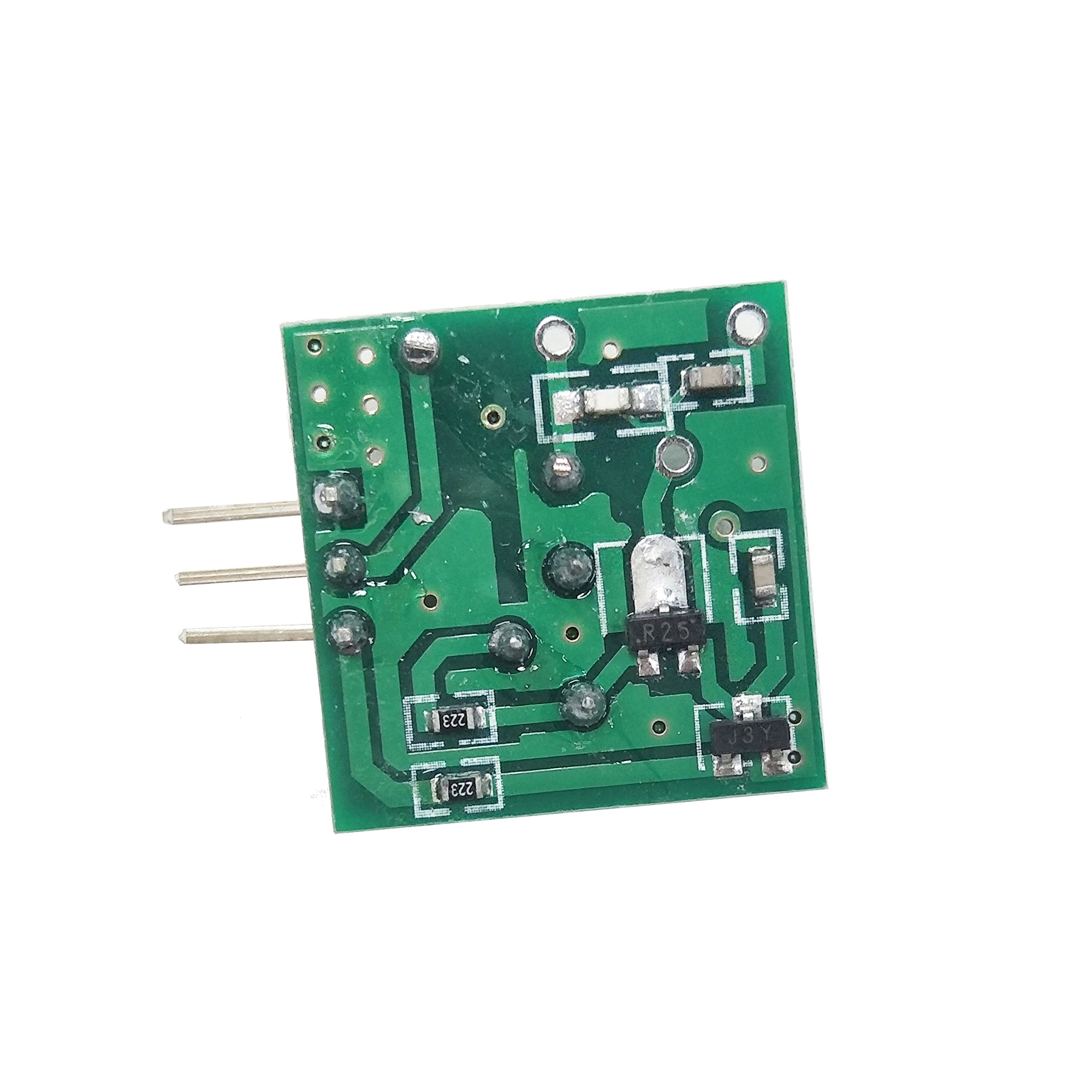

Technical parameters of the transmitter head
1.Product Model: MX-FS-03V
2.Launch distance :20-200 meters (different voltage, different results)
3.Operating voltage :3.5-12V
4.Dimensions: 19 * 19mm
5.Operating mode: AM
6.Transfer rate: 4KB / S
7.Transmitting power: 10mW
8.Transmitting frequency:315Mhz
9.An external antenna: 25cm ordinary multi-core or single-core line

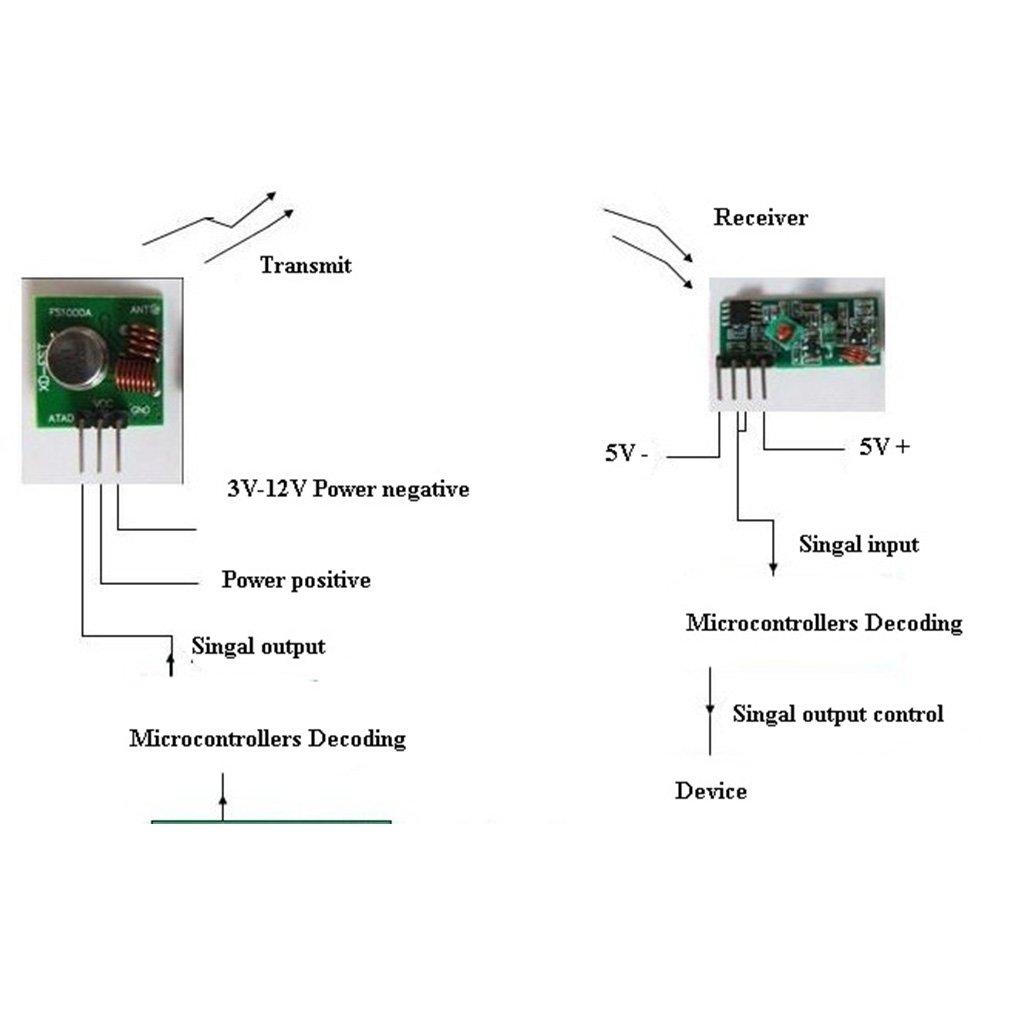

10.Pinout from left → right: (DATA; VCC; GND)
Package Included:
1 x Receiver module
1 x Transmitter Module
