| Item Weight | 1.23 pounds |
| Manufacturer | Vikye |
| ASIN | B07TTBWVBR |
| Date First Available | July 2, 2019 |
Specification:
Material: Plastic
Weight: 695g/24.5oz

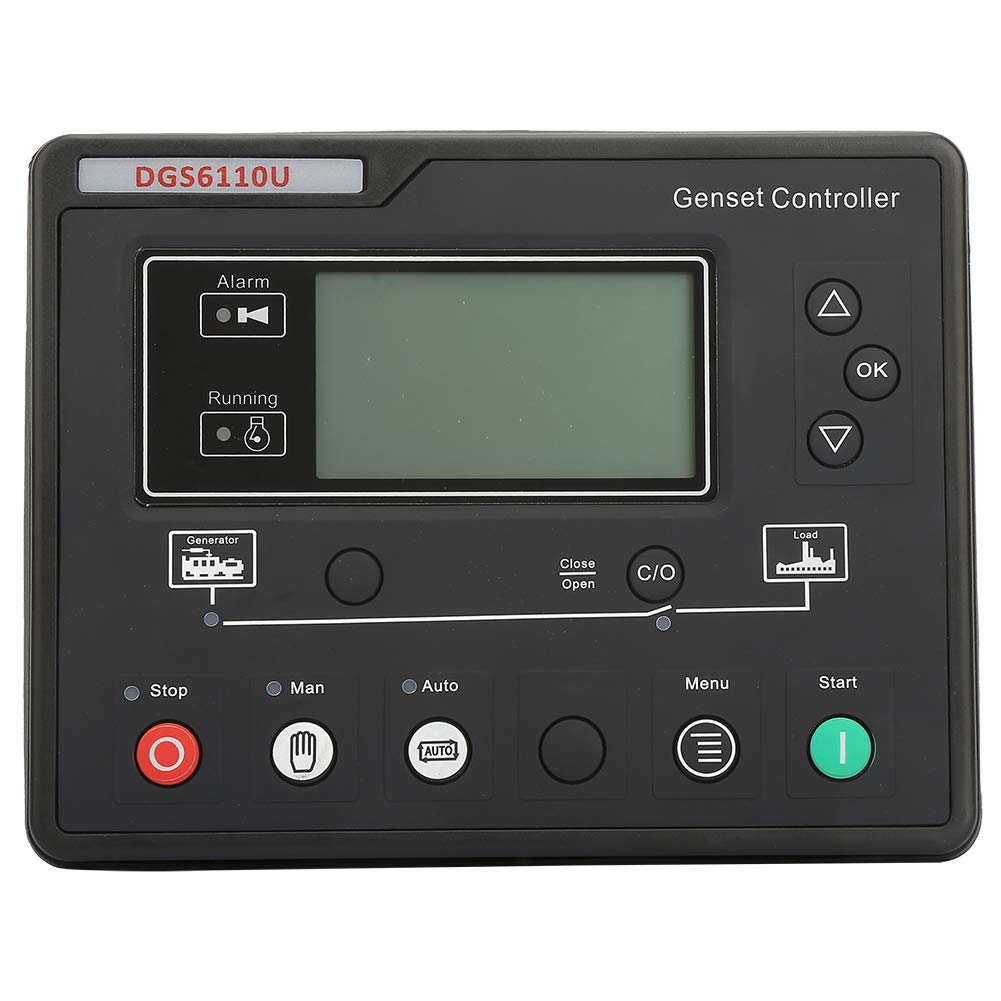

Model: DGS6110U
Normal delay of mains voltage: (0-3600)s
Abnormal delay of mains voltage: (0-3600)s
Low voltage value: (30-620)V
Threshold of high mains voltage: (30-620)V
Switching interval: (0-99.9)s
Startup delay: (0-3600)s
Stop delay: (0-3600)s
Starting times: (1-10) times
Preheating time: (0-300)s
Starting time: (3-60)s
Starting interval: (3-60)s
Safe running time: (1-60)s
Boot idle time: (0-3600)s
High-speed warm-up time: (0-3600)s
High-speed cooling time: (0-3600)s
Idle time: (0-3600)s
Downtime: (0-120)s
Waiting stop delay: (0-120)s
Switch closing delay: (0-10)s
Engine teeth: (10-300)pcs
Abnormal generation delay: (0-20.0)s
Threshold of generating overvoltage shutdown: (30-620)V
Power generation under voltage shutdown threshold: (30-620)V
Under speed stop threshold: (0-6000)RPM
Overspeed stop threshold: (0-6000)RPM
Under frequency stop threshold: (0-75.0)Hz
Overfrequency stop threshold: (0-75.0)Hz
High temperature shutdown threshold: (80-140)C
Low oil pressure stop value: (0-400)kPa
Fuel level too low threshold: (0-100)%
Speed loss delay: (0-20.0)s
Charging failure threshold: (0-30)V
Battery overvoltage threshold: (12-40)V
Battery undervoltage threshold: (4-30)V
Key function description:
Stop/reset key:
Press this button for more than 3s in the shutdown mode to test whether
the panel indicator is normal (test light). Press this button again to
stop the machine quickly.

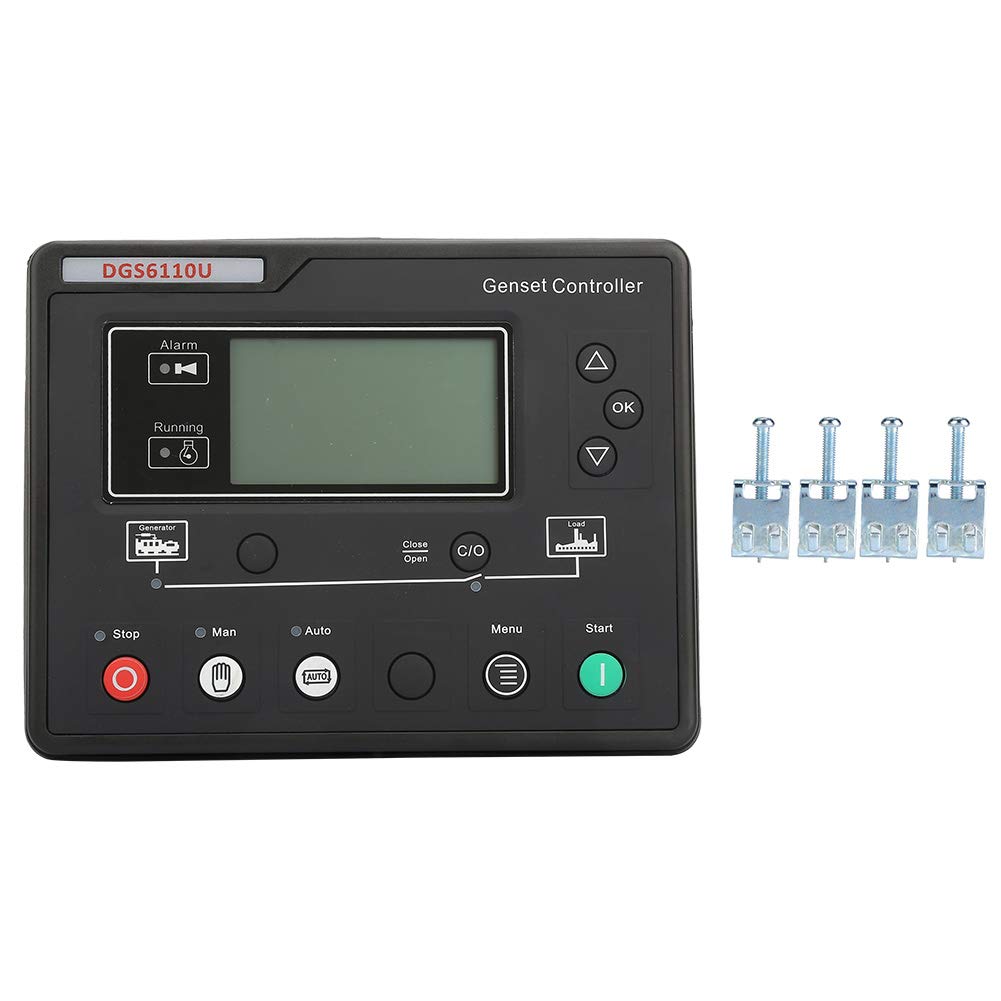

Package List:
1 x Generator Controller
1 x Black Gasket

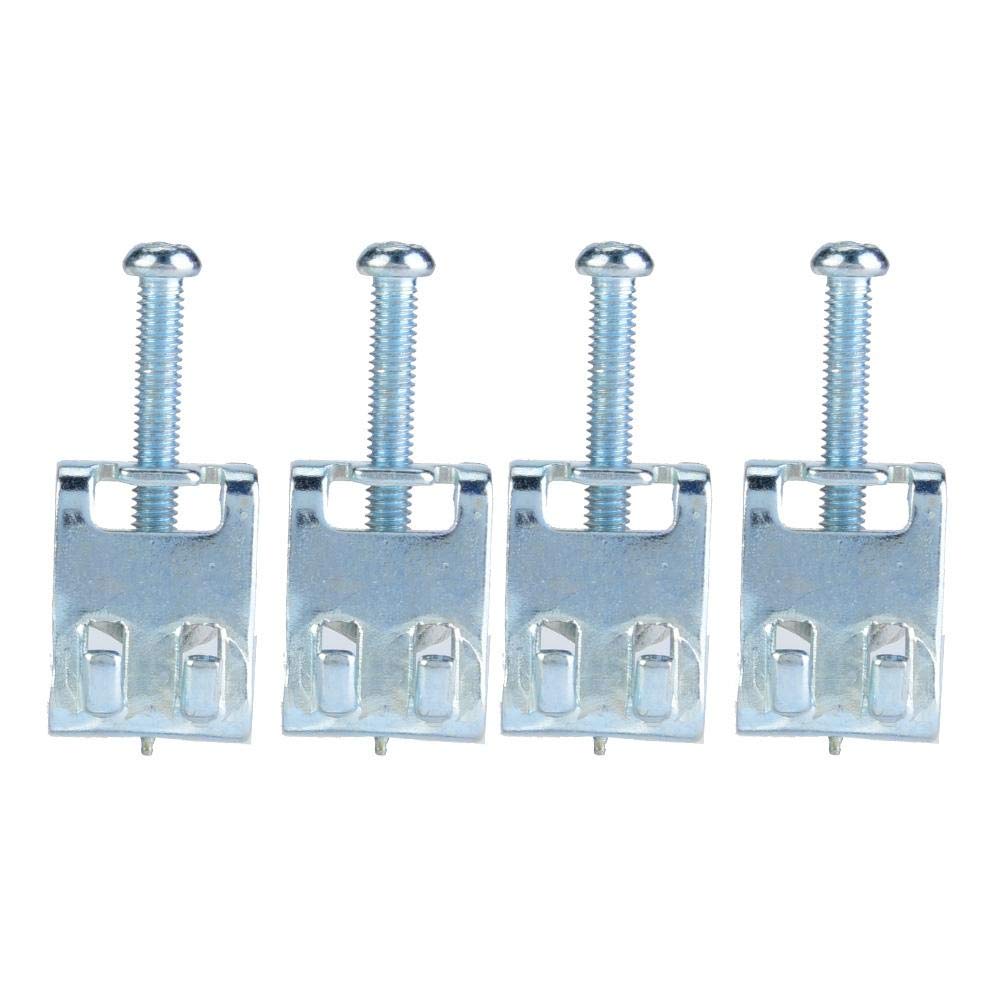

4 x Set Screws
