| Item Weight | 3.98 ounces |
| Product Dimensions | 3.15"L x 1.22"W x 0.28"H |
| Item Dimensions LxWxH | 3.15 x 1.22 x 0.28 inches |
| Processor Brand | STMicroelectronics |
| Voltage | 5 Volts |
| Manufacturer | GeeekPi |
| ASIN | B07S7PJYM6 |
| Date First Available | May 26, 2019 |
| UPC | 703501205768 |
The LCD1602 is an industrial character LCD that can display 16x2 or 32 characters at the same time.
The principle of the LCD1602 liquid crystal display is to use the physical characteristics of the liquid crystal to control the display area by voltage, that is, the graphic can be displayed.

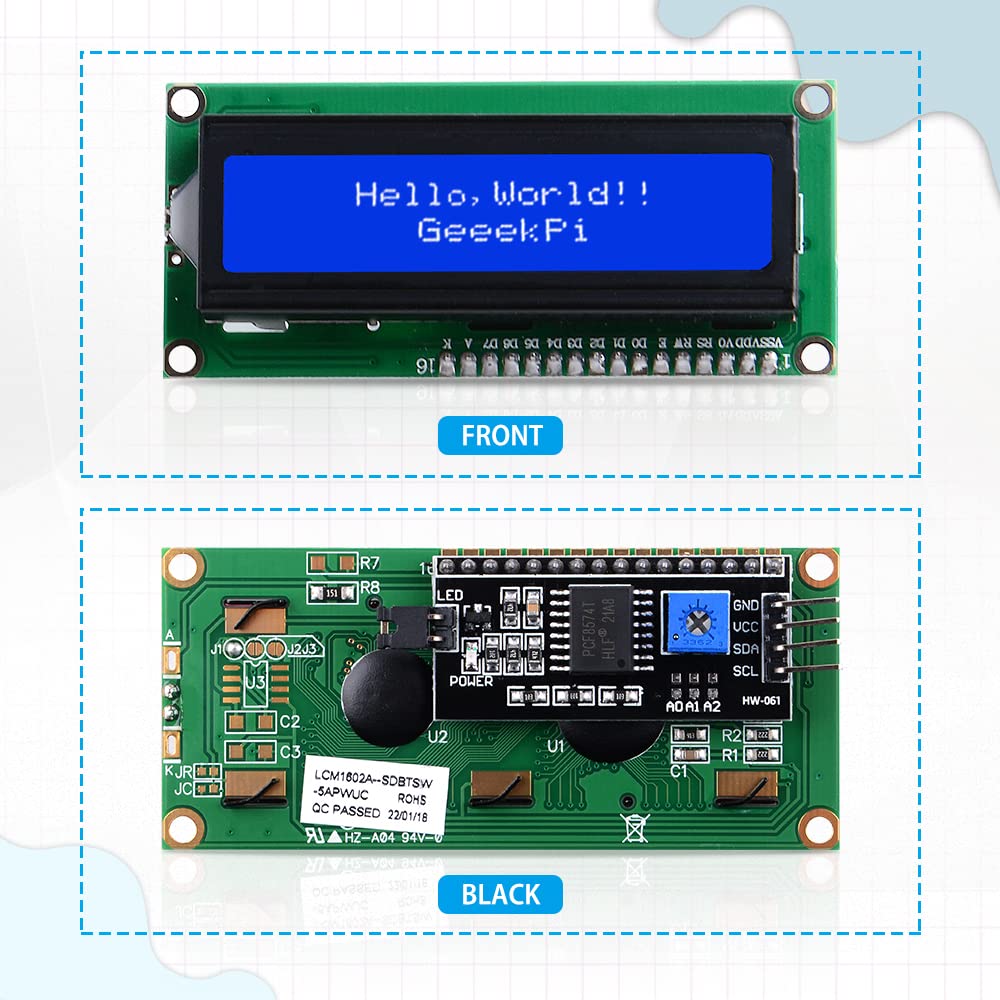

The 1602 uses a standard 16-pin interface, and our display module is a module that provides I2C functionality.
I2C uses only two bidirectional open-drain lines, Serial Data Line (SDA) and Serial Clock Line (SCL),pulled up with resistors. Typical voltages used are +5 V or +3.3 V although systems with other voltages are permitted. It can be operated as long as it supports the I2C development board.
For example, the common Ar-duino, raspberry pi, Stm32 and so on.
Features: Easy to use; Less I/O ports are occupied; Support IIC Protocol; The I2C LCD1602 library is easy to get; With a potentiometer used to adjust backlight and contrast; Blue backlight; Power supply: 5v; I2C address is: 0x27.

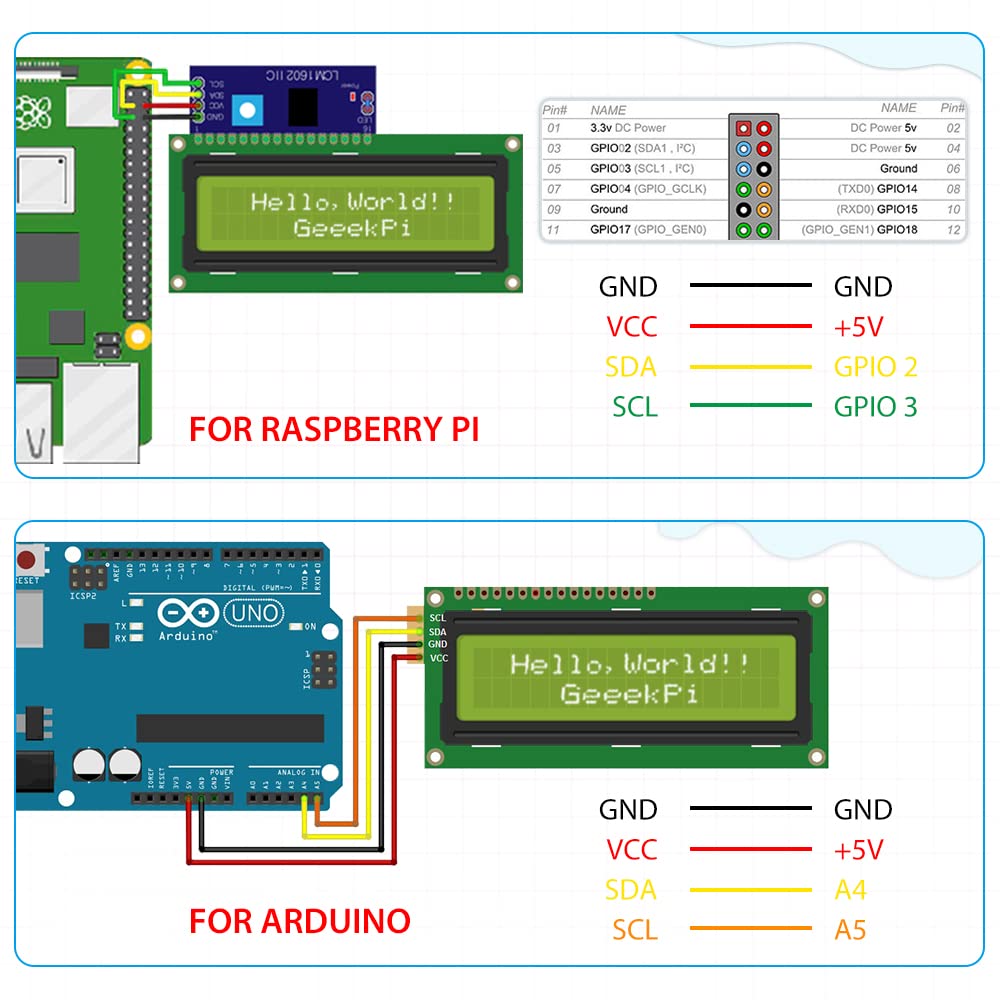

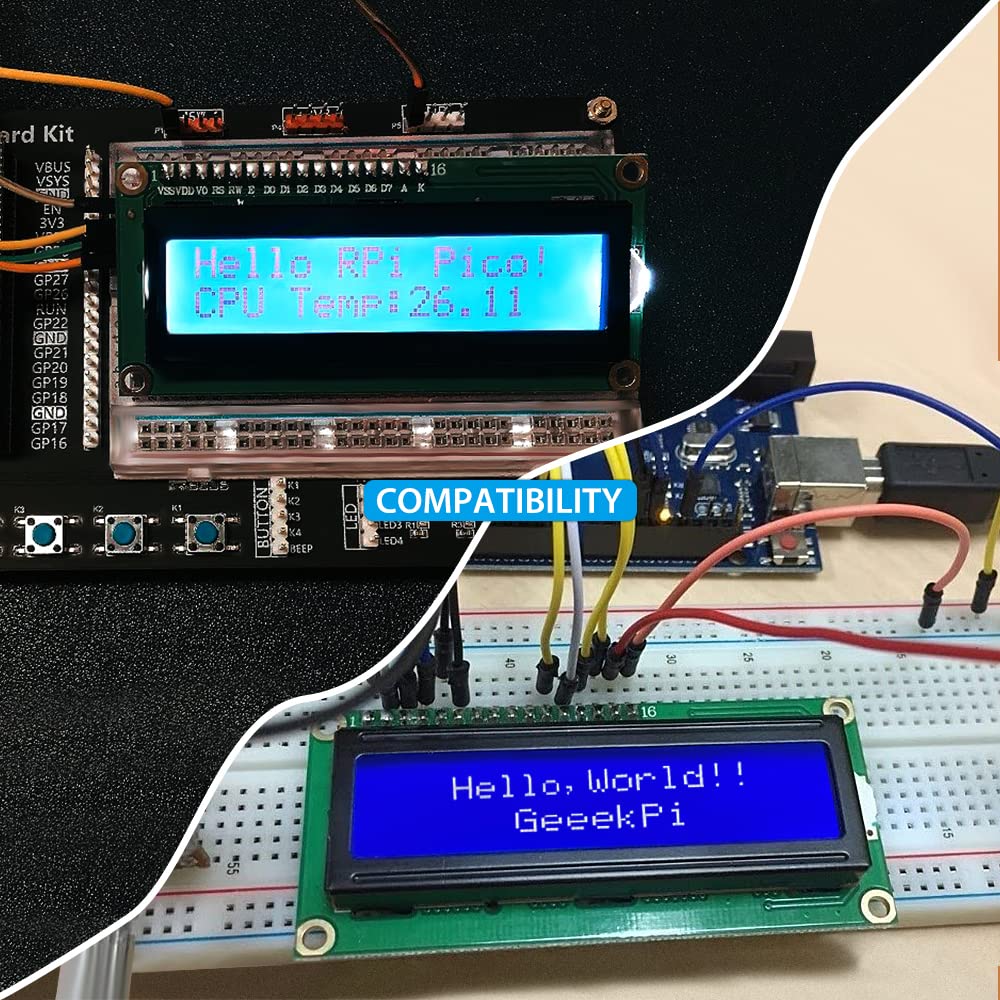

Used for connecting Ar-duino and Raspberry pi and it can be used to display real time clock, temperature, humidity etc.

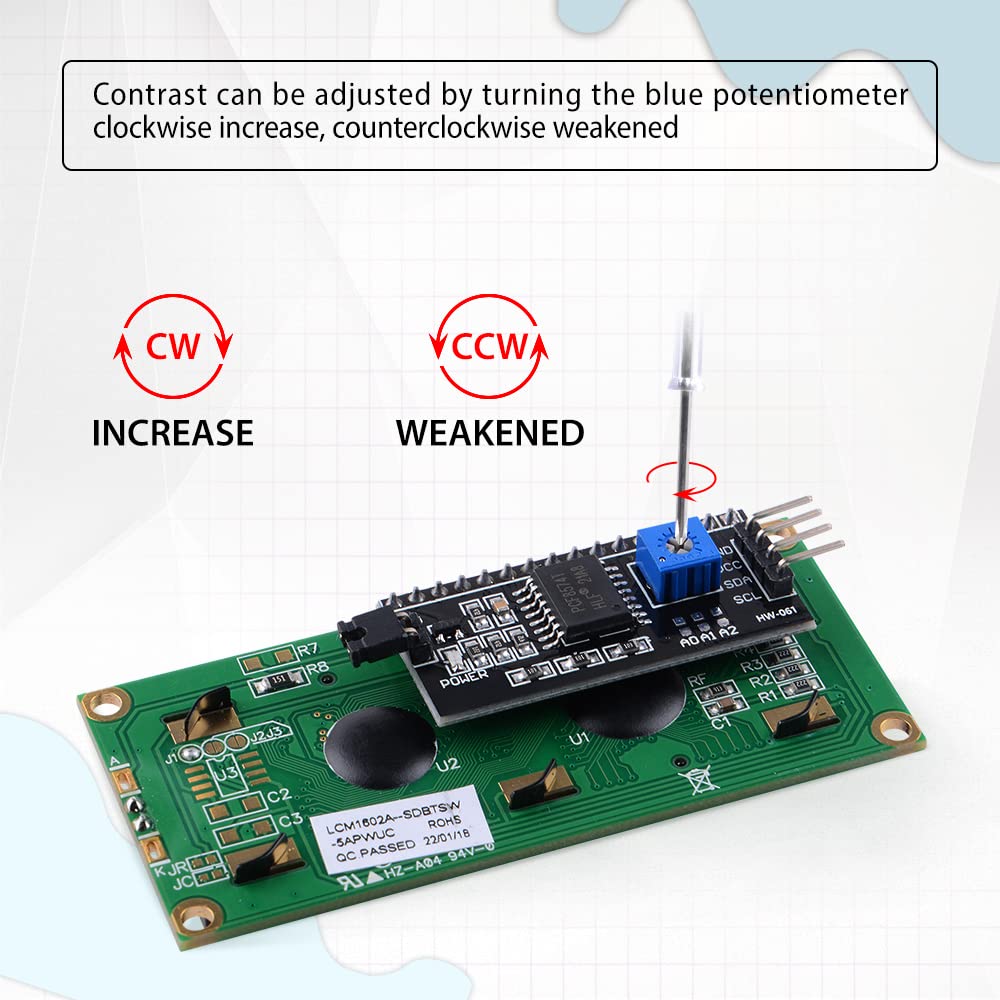

(A potentiometer is also necessary to adjust the contrast. Working Voltage: Only 5V )
You can display the digital information or English sentense on the LCD screen by using Arduino, Raspberry Pi or other MCU which supports i2c protocol.
To get more information, please check our wiki wiki.52pi.com/index.php?title=Z-0234
0x27 for PCF8574T chip; 0x3F for PCF8574AT chip; please check which chip you have on i2c interface.
(Before you upload the code to the control board, please download the LiquidCrystal_I2C library)
To get more information, please check our wiki wiki.52pi.com/index.php?title=Z-0234

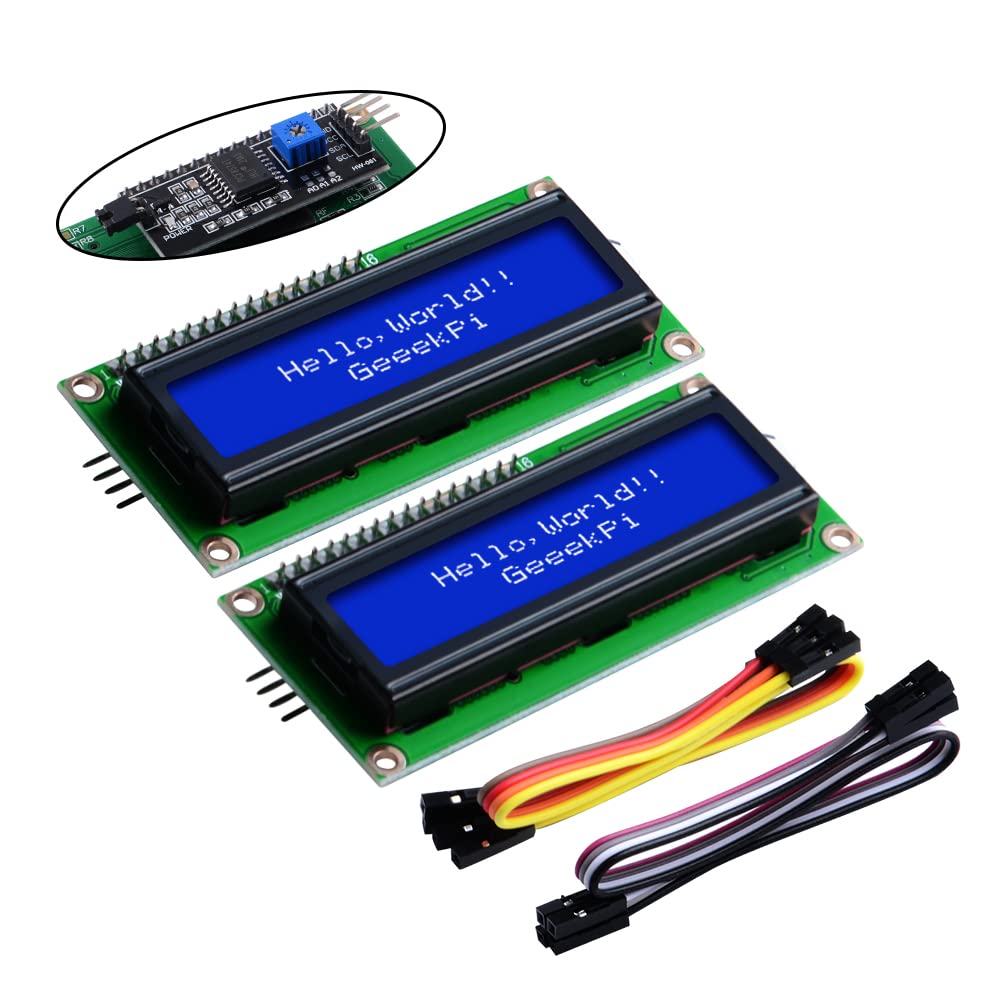

2 x LCD 1602 Module, 8 x Jumper Wires
 2PCS LCD 1602 Module |  4PCS LCD 1602 Module |  1PCS LCD 2004 Module |  2PCS LCD 2004 Module |  4PCS LCD 2004 Module | |
|---|---|---|---|---|---|
| Customer Reviews | 430 | — | 124 | 155 | 17 |
| Price | $9.99 | — no data | $9.99 | $14.99 | $24.99 |
| Type | 2PCS LCD 1602 Module | 4PCS LCD 1602 Module | 1PCS LCD 2004 Module | 2PCS LCD 2004 Module | 4PCS LCD 2004 Module |
