| Processor | 48 MHz |
| Included Components | Control Board V5 |
| Operating System | Embedded |
| CPU Manufacturer | Renesas |
| Wireless Communication Standard | Bluetooth |
| Compatible Devices | Blue Rev4 WIFI board |
| Processor Count | 1 |
| Item model number | FNK0096A |
| Item Weight | 2.61 ounces |
| Product Dimensions | 2.1 x 2.71 x 2.1 inches |
| Item Dimensions LxWxH | 2.1 x 2.71 x 2.1 inches |
| Color | V5 (Rev4) WiFi |
| Processor Brand | Renesas |
| Manufacturer | Freenove |
| ASIN | B0D479M512 |
| Country of Origin | China |
| Date First Available | May 15, 2024 |
Purchase Options:
V5 WiFi has onboard ESP32-S3 module and 12x8 red LED matrix, V5 Mini does not.
This option includes the V5 WiFi board.
Overview:
This latest upgraded board is armed with a powerful 32-bit microcontroller and an ESP32-S3 for wireless connectivity.
Brace yourself for increased processing power, expanded memory, on-board 12x8 LED matrix, and other on-board peripherals.
We provide free technical support to help you with any questions and problems.

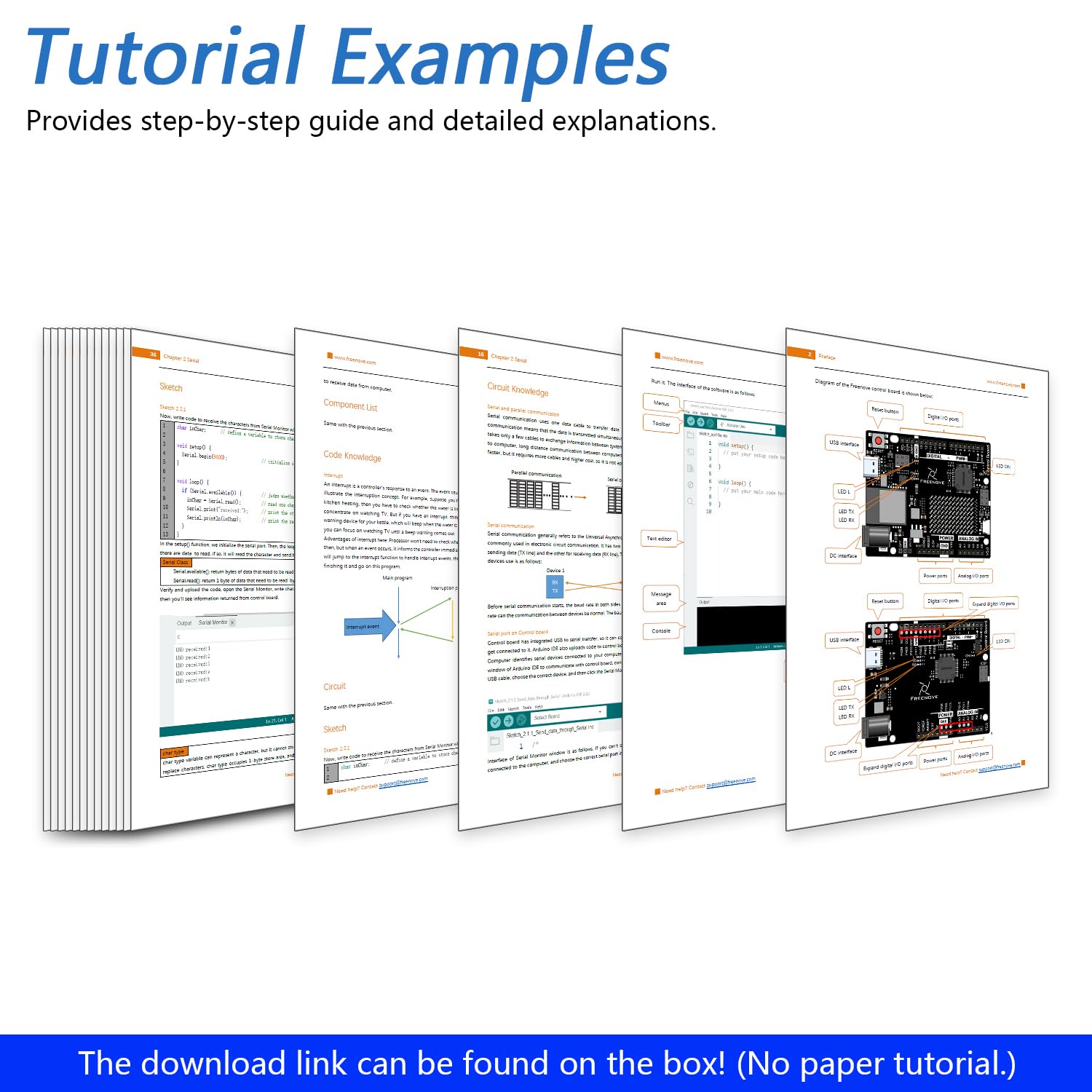

Tutorial and Code:
Comes with detailed tutorial and complete code. (Download needed, no paper tutorial.)

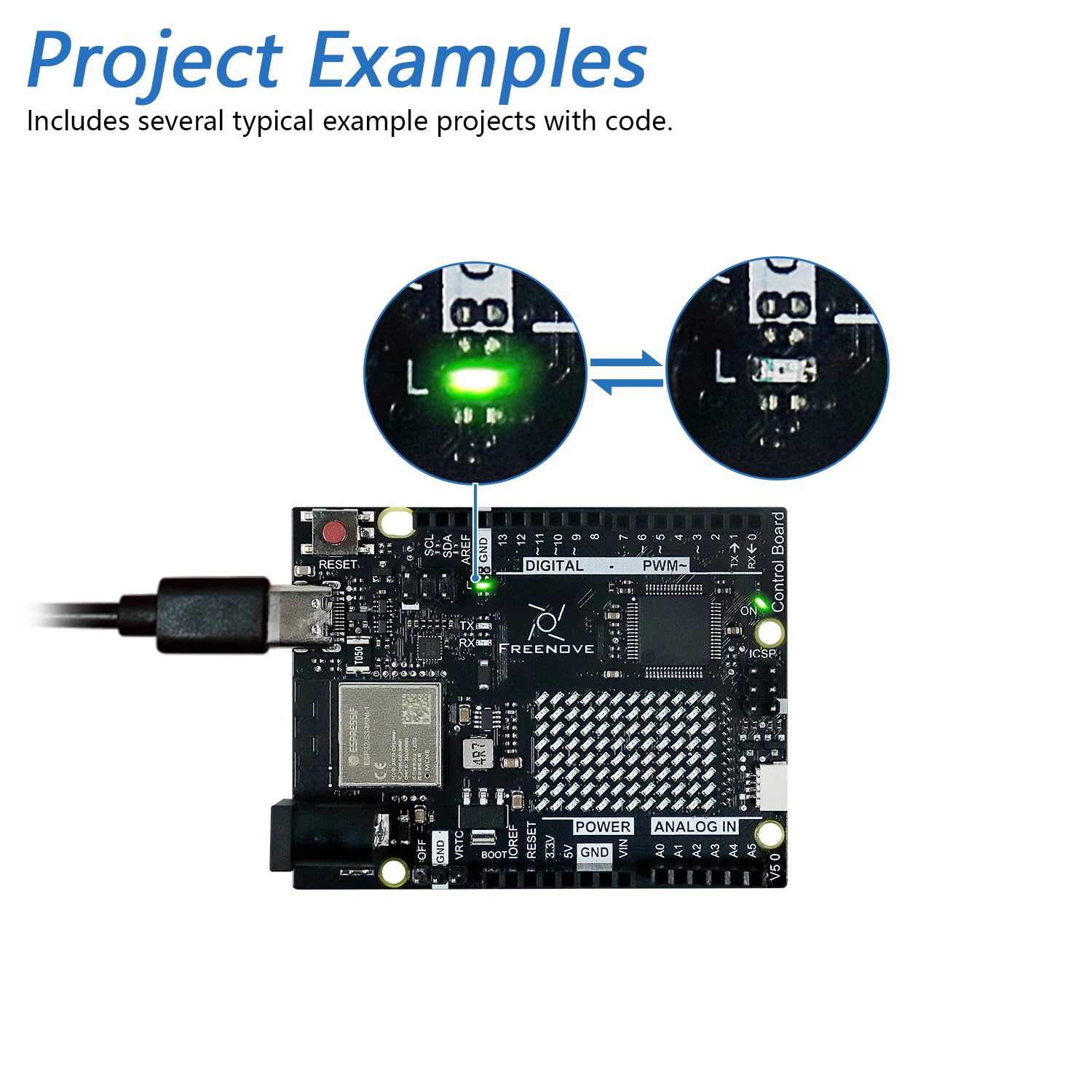

Including several typical projects with code and explanations.
The download link can be found on the product box.

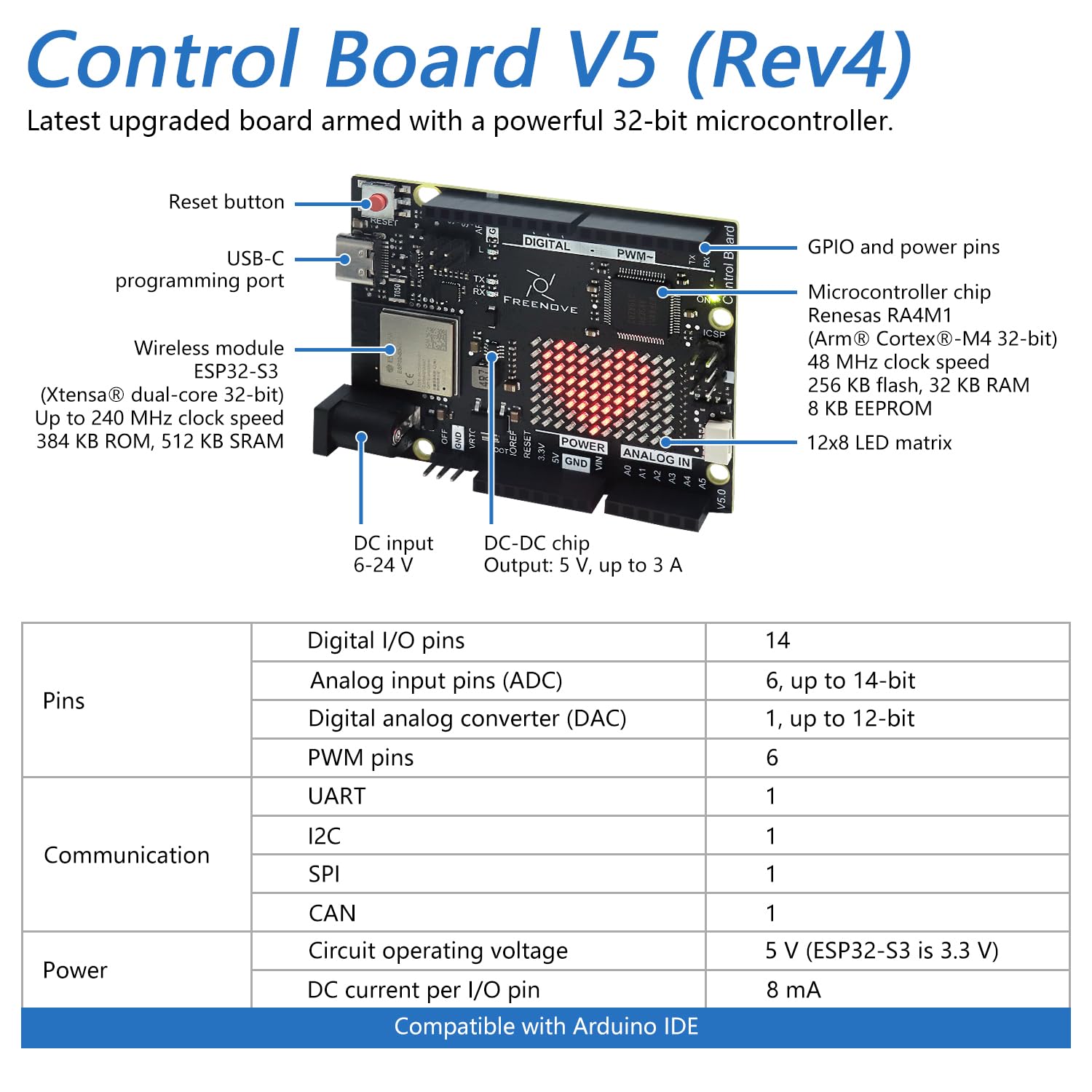

Technical Specifications:
Microcontroller:
Renesas RA4M1 (Arm Cortex-M4)
Pins:
Digital I/O Pins: 14
Analog input pins: 6
DAC: 1
PWM pins: 6
Communication：
UART: 1
I2C: 1
SPI: 1
CAN: 1
Power:
Circuit operating voltage: 5 V (ESP32-S3 is 3.3 V)
Input voltage (VIN): 6-24 V
DC Current per I/O Pin: 8 mA
Clock speed:
Main core: 48 MHz
ESP32-S3: up to 240 MHz
Memory:
Main core: 256 kB Flash, 32 kB RAM
ESP32-S3: 384 kB ROM, 512 kB SRAM
Dimensions:
Width: 68.85 mm
Length: 53.34 mm

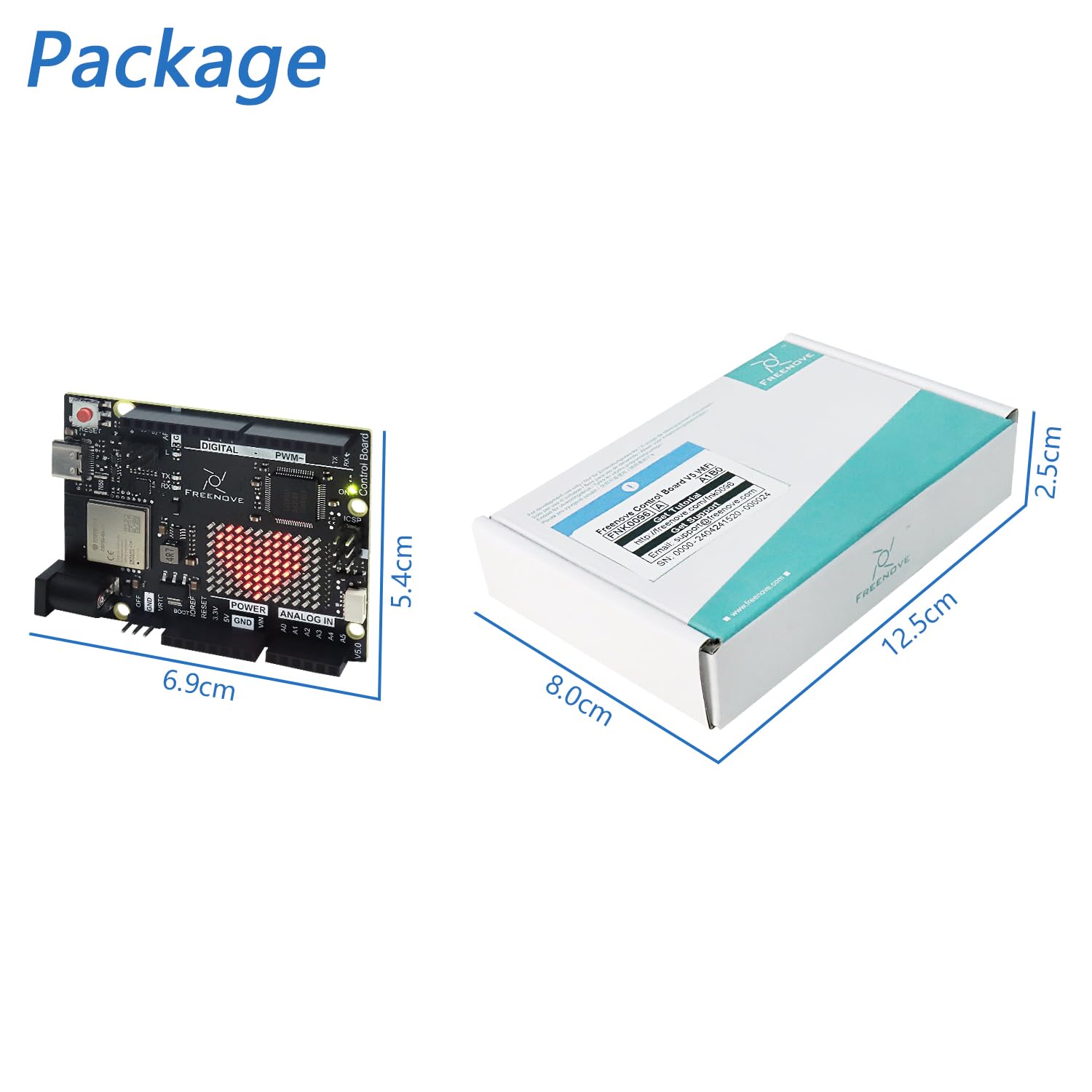

Package Includes:
1 x Freenove control board V5 (Rev4) WiFi
1 x USB A to C cable
