| Standing screen display size | 1.43 Inches |
| Processor | 2 GHz celeron |
| RAM | 8 GB DDR4 |
| Hard Drive | 128 GB SSD |
| Graphics Coprocessor | Intel UHD Graphics 600 |
| Chipset Brand | Intel |
| Card Description | Intel uhd graphics 600 |
| Number of USB 3.0 Ports | 2 |
| Brand | VNOPN |
| Series | F12 |
| Item model number | F12 |
| Hardware Platform | PC, Linux |
| Operating System | Pf-sense |
| Item Weight | 2.99 pounds |
| Product Dimensions | 5.28 x 5 x 1.46 inches |
| Item Dimensions LxWxH | 5.28 x 5 x 1.46 inches |
| Color | Black |
| Processor Brand | Intel |
| Number of Processors | 4 |
| Computer Memory Type | DDR4 SDRAM |
| Hard Drive Interface | Solid State |
| Power Source | DC |
| Batteries | 1 CR2032 batteries required. |
PROS:
+ Intel i225 NIC---It adopts Intel i225 chip and 4x Intel 2.5GbE NIC ports to improve your network throughput and stability
+ Compatible with Diverse OS---Supports a range of popular open source firewall software
+ Completely Silent---It uses fanless design to give you a quiet office space and support 24/7 hours running
+ Full Aluminum Case---It doesn't have moving parts, which increases it’s durability in less than ideal environments

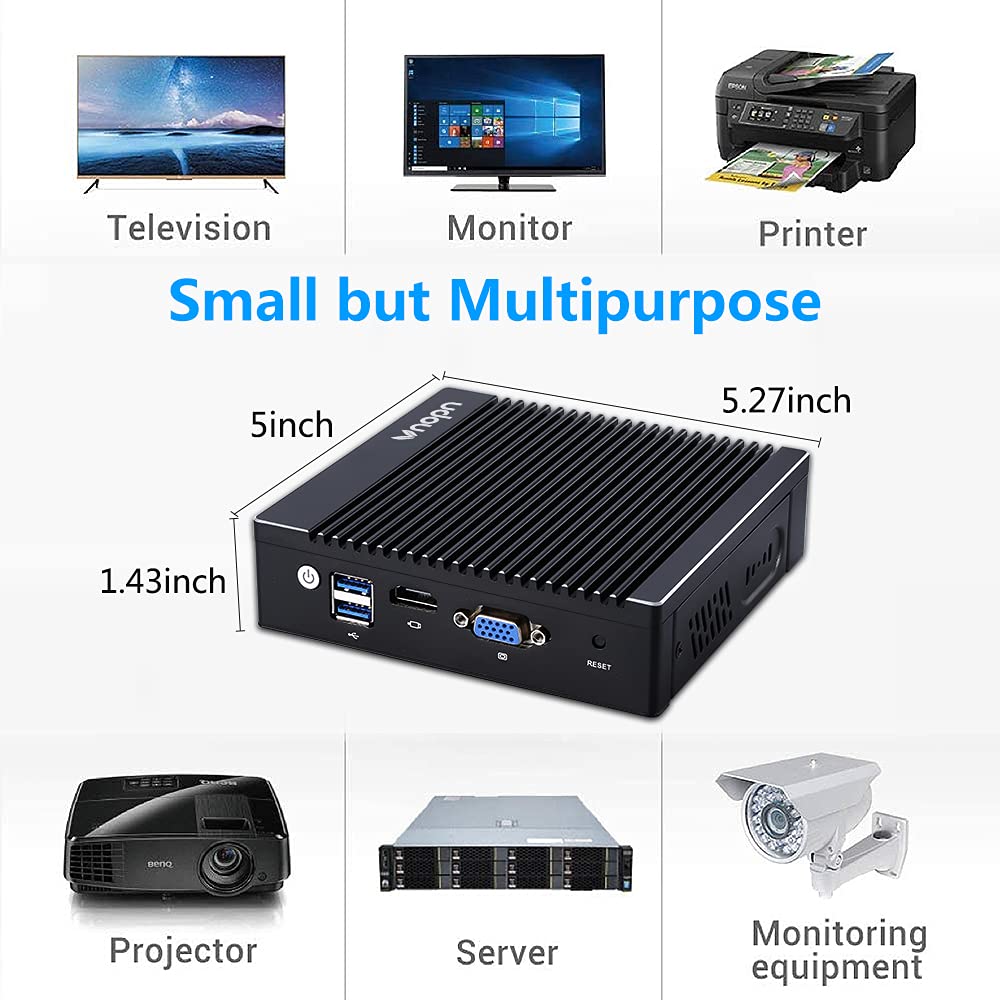

+ Save Space---Small body size, only 5.27 x 5 x 1.43 inch, and it has a VESA bracket, which can be mounted behind the monitor
+ 10W TDP---Low power consumption to greatly save energy
CONS:
- Only 1x SODIMM Slot---The max ram it supports is only 16GB
- Warmish Case---Due to the fanless design, the whole case is a big heat sink, which conducts heat to the case when it's running
- Reinstall the system---Because it has been installed a system by default, if you need to use it with windows 10 or other firewall system as a firewall/soft router, you need to reinstall the system yourself. It's an ideal device for experienced users/hobbyists but may be a little tricky for beginners
Please Note that this micro firewall appliance comes with Intel i225 NIC, it's not compatible with Sophos/Untangle/IPCop/WIN7
NOTE: To reinstall the OS from USB, please hold the "DEL" key down immediately after power-up to enter BIOS mode, then modify boot device.
For more steps of reinstalling the system, please refer to this pdf document "Installation Manual" under product details.
For more questions, please refer to the FAQ page of our VNOPN Store, or leave a message directly to the seller for more help.

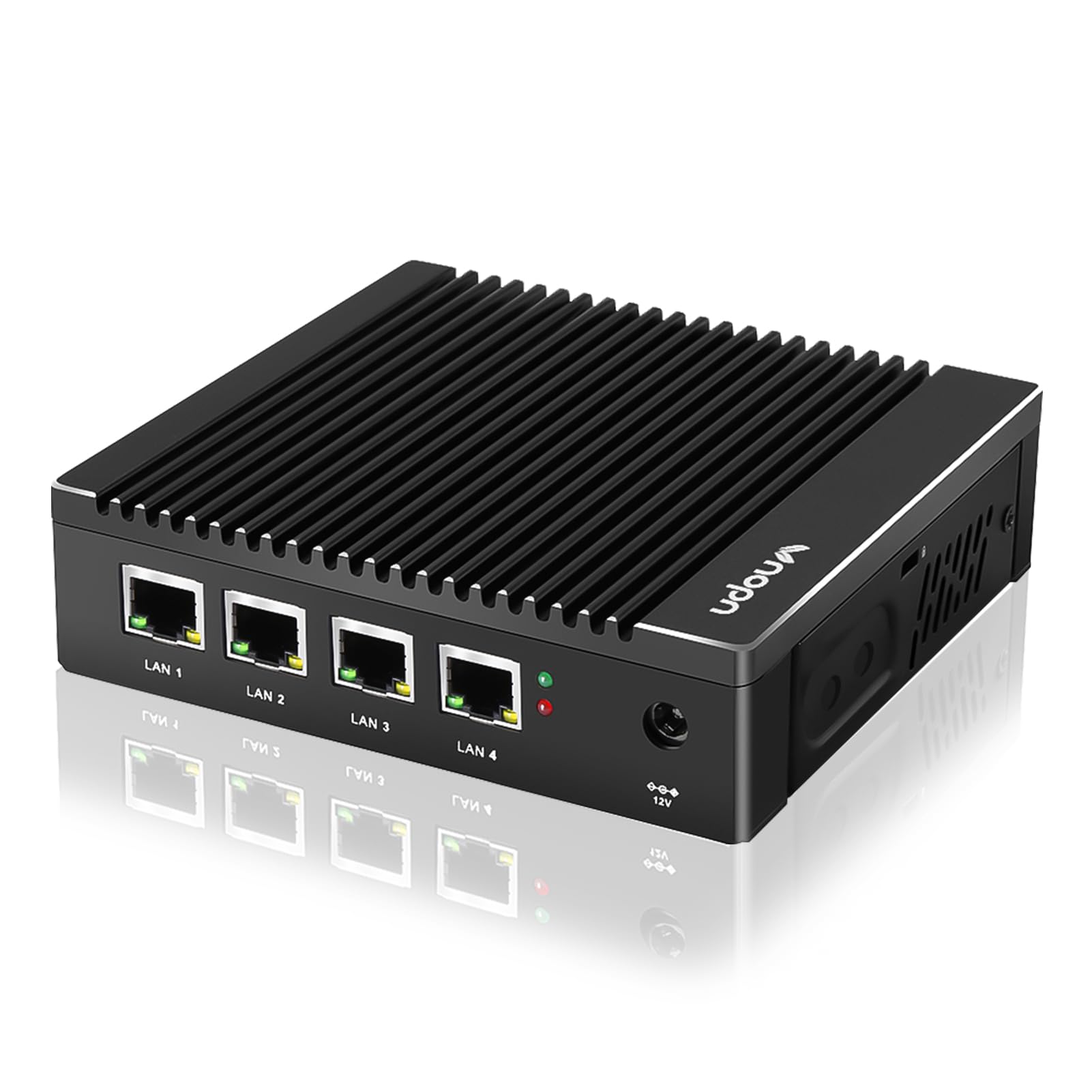

This compact pc has 4x Intel 2.5Gigabit LAN ports, you can configure it as a firewall, LAN router, VPN appliance, intelligent gateway(Internet), edge computing terminal, etc.
You can re-install this fanless mini pc with windows 10 pro and connect the monitor, keyboard & mouse to it, then power on, and it will work as a mini desktop computer.
There is one slot on the motherboard for SIM card or mini pcie WiFi module.
If you use 3G/4G, it will can't use WiFi, you can only use one of WiFi and 3G/4G.
(NOTE: WiFi or 3G/4G module is not included, it needs extra cost. WiFi module must be USB Channel communication)

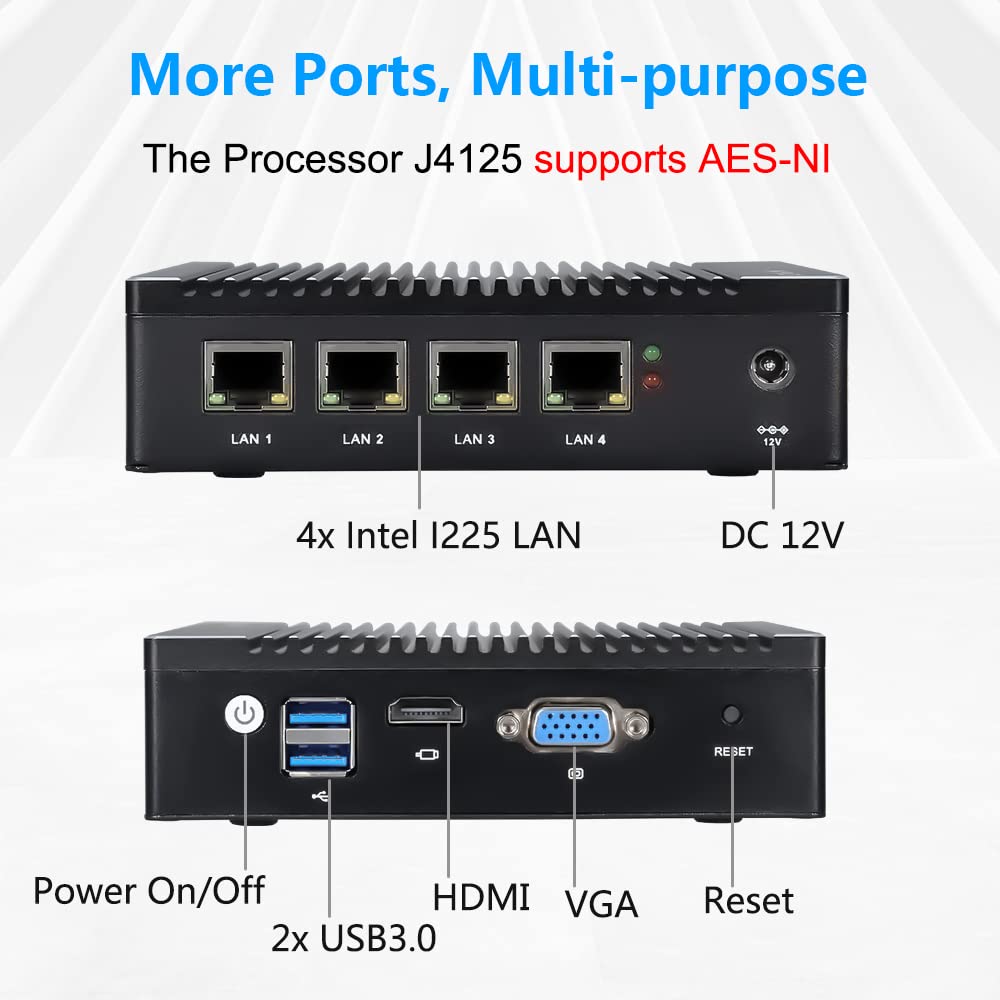

This 4 lan mini pc has rich I/O ports: 1x HDMI, 1x VGA, 2x USB3.0, 4x RJ45 LAN, 1x Reset.
It adopts Intel I225 chip, supports 4x 2.5GbE network. Low-power hardware, but stable and high speed, good compatibility, and wider network application fields.
Intel Ethernet chip i225v support speeds up to 2.5 GbE networking,but this is a new NIC and some operation systems does not have 2.5G NIC driver for it yet,it can work at 1G only if the 2.5G driver of the system installed is not available.For example, with Pf-sense system has 1G NIC driver only and ubuntu 22.04 has both 1G and 2.5G NIC drivers available.So the device would work at 1G if the system installed is with Pf-sense.
This small computer comes with fanless passive cooling design and aluminum case to make it heat dissipation faster, quiet and 0 noise when working, supports 24/7 hours running.
Fanless enclosed housing design makes it suitable for harsh industrial applications.
(1) Vnopn Mini PC; (2) Packing Box; (3) US Power Supply;
(4) User Manual; (5) Back Mount Bracket & Screws
This smalll computer has been installed with a system, if you need, you can re-install it with windows 10, linux ubuntu and a variety of popular open-source firewall software on this device, it's compatible with pf-sense and also compatible with opnsense/dd-wrt/FreeBSD/ClearOS/CentOS/OpenVPN, etc.
Q1: What should I do when this fanless mini PC doesn't boot up?
A1: 1. Check whether the memory is connected properly and re-plug it; 2. Use other memory in good condition to test.
Q2: What should I do when there is no display via HDMI/VGA port of this firewall appliance?
A2: 1. Confirm that the monitor and cables are in good condition; 2. Discharge the BIOS and check again. Steps: Open the back cover, take off the button battery on the motherboard, wait a few minutes, and put it back; 3. Use good RAM to test.
Q3: What should I do when I cannot enter the BIOS interface of this firewall pc?
A3: 1. Press and hold the "reset" key on the side of the device to reset and check again; 2. Discharge the BIOS and check again. Steps: Open the back cover, take off the button battery on the motherboard, wait a few minutes, and put it back.
Q4: What should I do when I install the system but I get the following error: " can’t find '/boot/entropy' " and " can’t find '/boot/hostid' "?
A4: 1. Turn off the power and restart to enter the BIOS again, change the settings to: Advanced > CSM Configuration > Boot option filter > UEFI only; 2. If it still can't be resolved, please replace a USB disk to re-create a bootable USB drive.
Q5: What should I do when I set the BIOS of this J4125 4 LAN Mini PC to turn off auto-power-on, but it doesn't work?
A5: There is a jumper cap behind the power button, please switch the position of the jumper cap connection as shown in the figure on FQA page.
Q6:How to install this L-shaped back mount?
A6: Please refer to the installation steps shown on our store FAQ page.
