| Package Dimensions | 5.91 x 5.31 x 1.06 inches |
| Item Weight | 1.41 ounces |
| ASIN | B0CBX8D23Z |
| Item model number | power-converters 05 |
| Customer Reviews | 3.9 out of 5 stars 6Reviews |
| Best Sellers Rank | #175,389 in Industrial & Scientific (See Top 100 in Industrial & Scientific) #145 in Motor Speed Controllers |
| Date First Available | July 15, 2023 |
| Manufacturer | Eagles |
| Country of Origin | China |

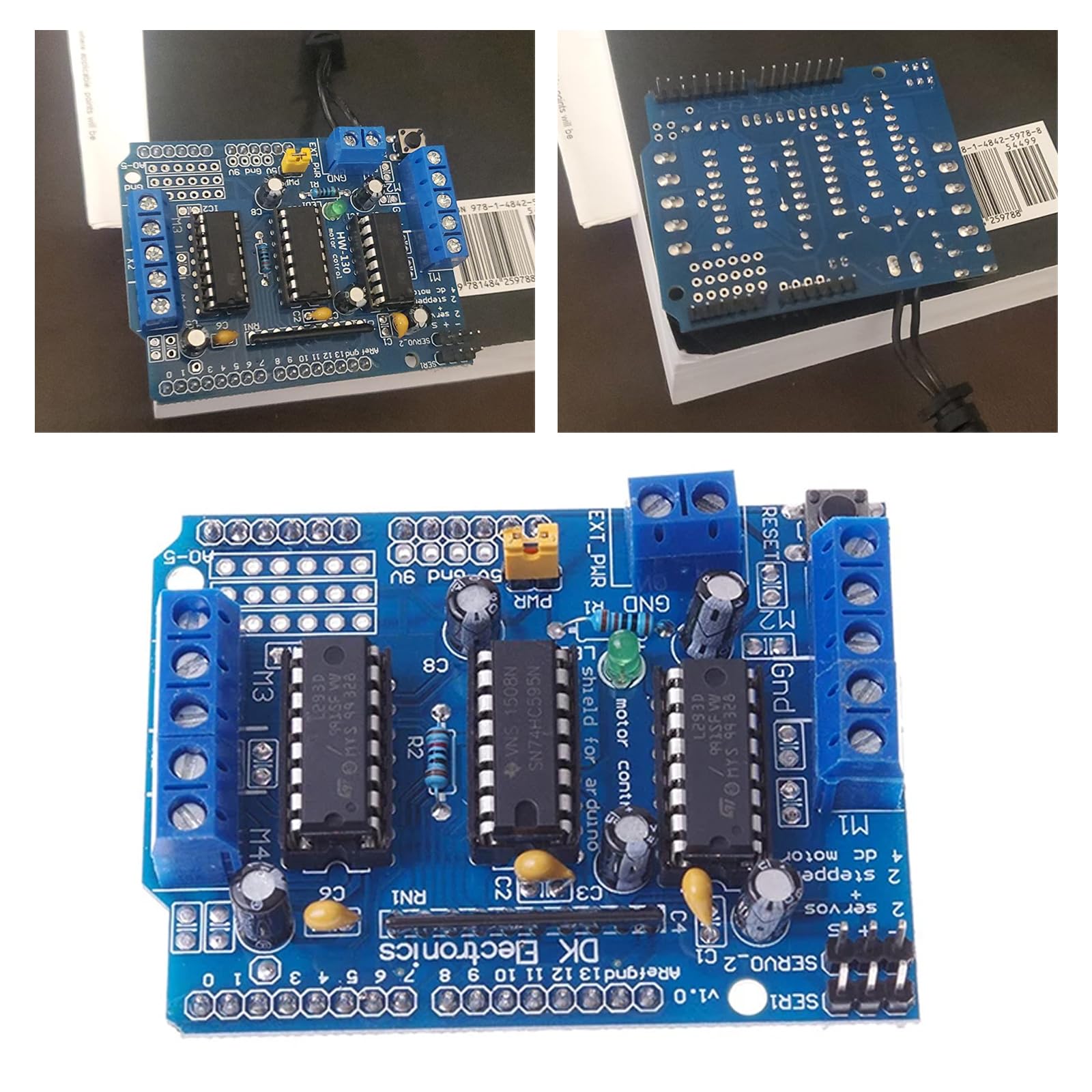

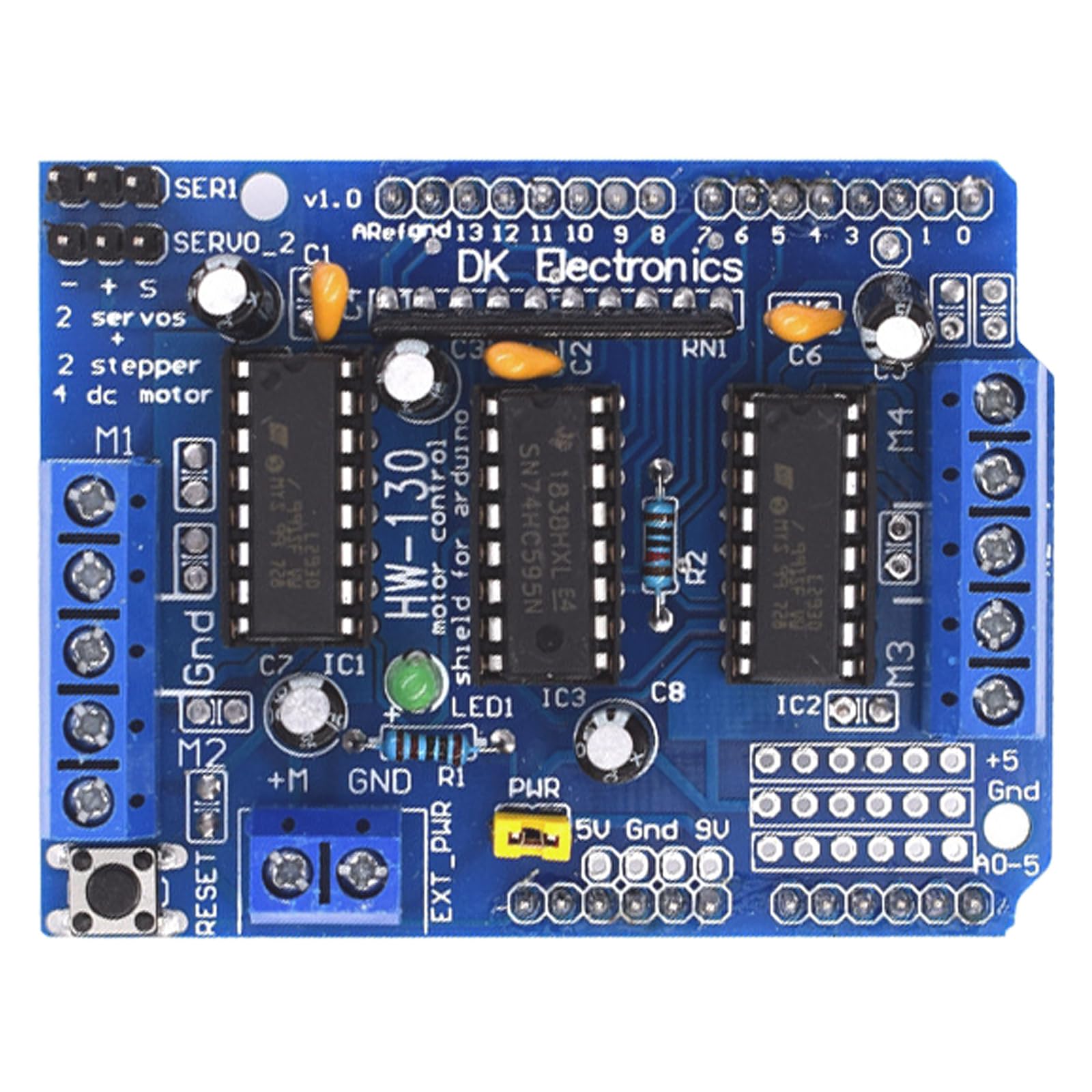

Eagles L293D Motor Drive Expansion Shield for Arduino Duemilanove Mega R3 AVR ATMEL...1 PCS
Features:
1. to 4 bidirectional DC motors and 4 PWM speed controllers (approximately 0.5% resolution)
2. Up to 2 stepper motor forward and reverse control, single / double step control, staggered or micro-step and rotation angle control
3. 4-way H-bridge: The L293D chip provides 0.6A (peak 1.2A) current per bridge with thermal shutdown protection, 4.5V to 36V
4. The pull-down resistor ensures that the motor remains stopped at power-up

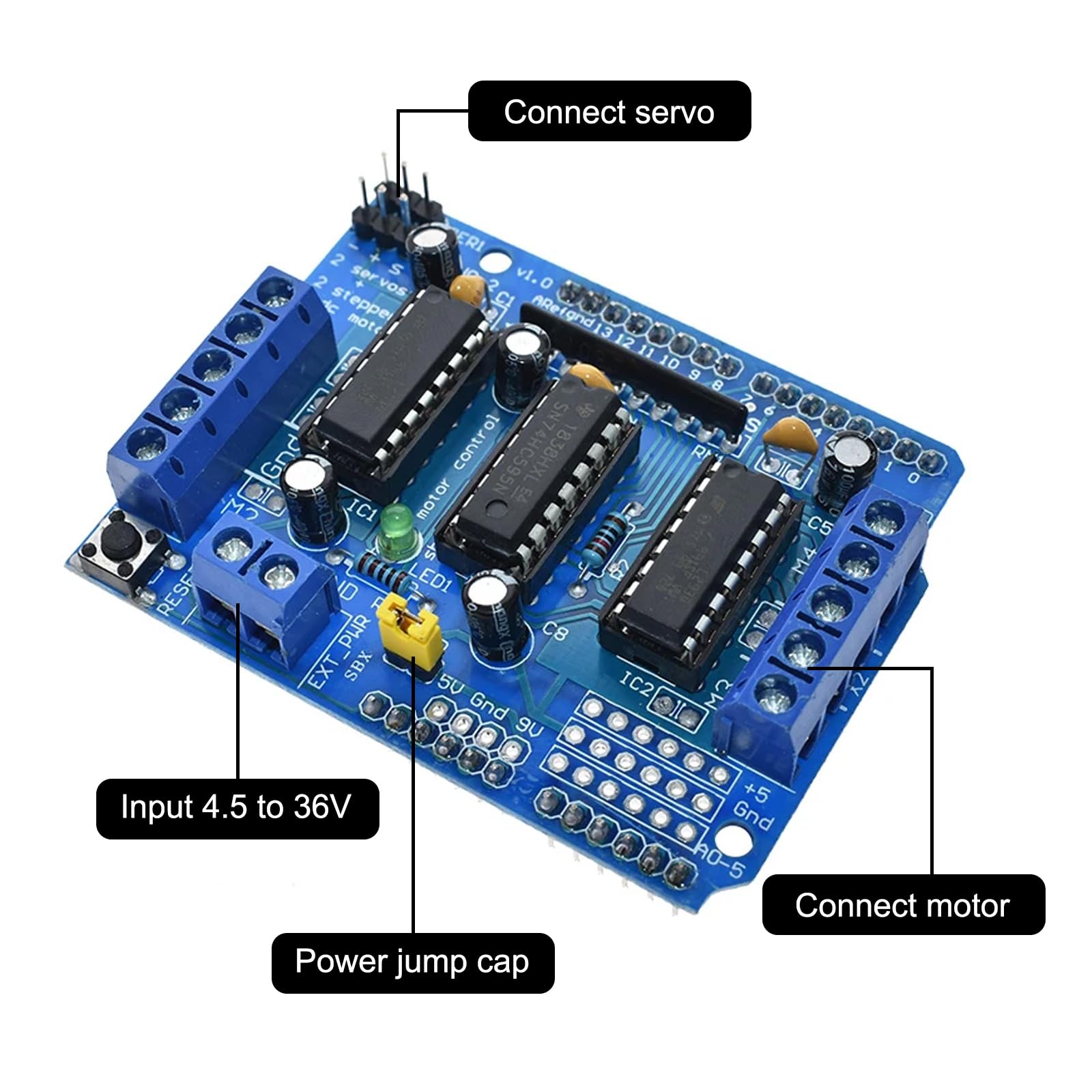

5. Large terminal blocks make wiring easier (10-22AWG) and power
6. With reset button
7. 2 large terminal external power terminals, to ensure logic and motor drive power separation
8. Download Easy to use software library for rapid project development
Description:

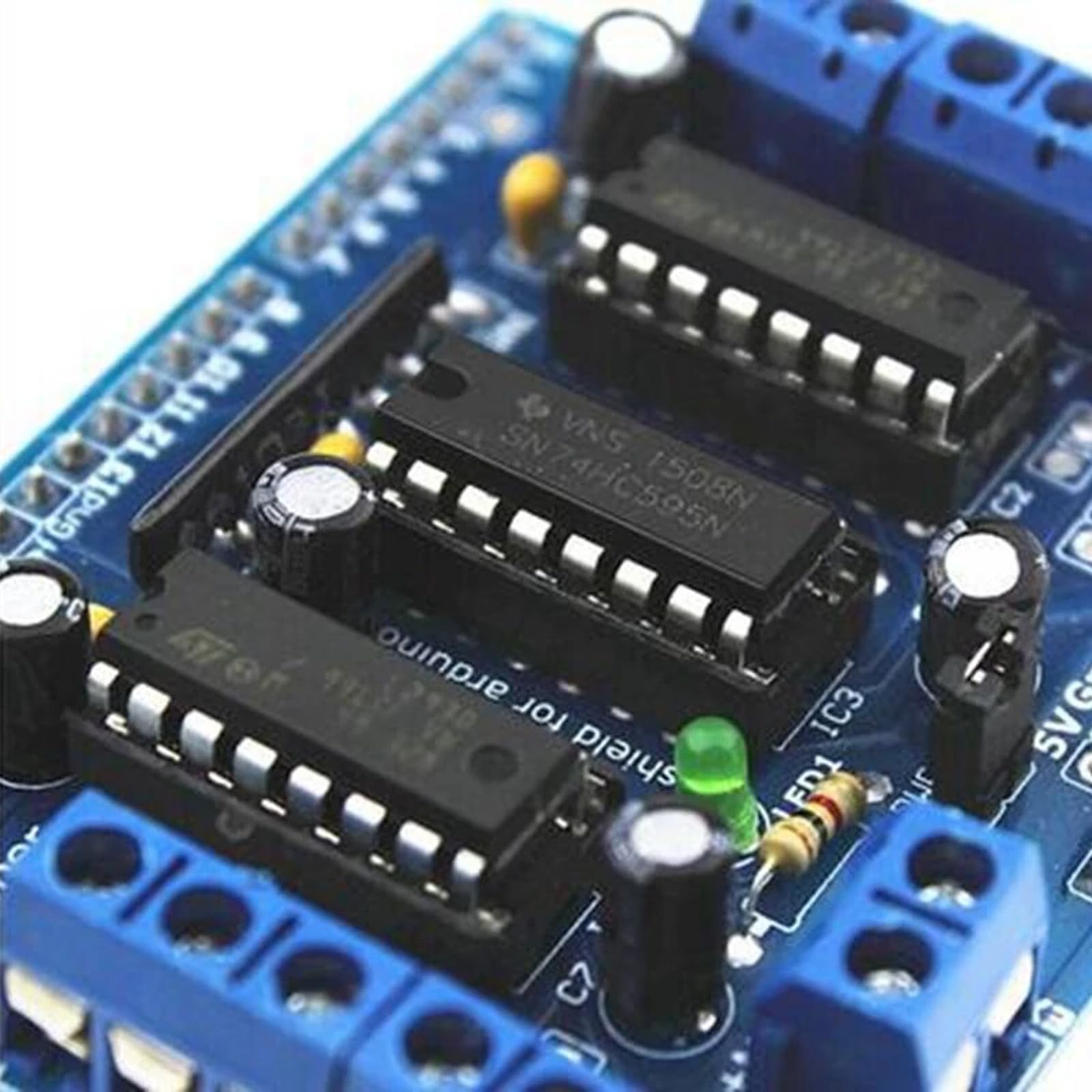

L293D is a monolithic integrated, high voltage, high current, 4-channel driver. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
Scope of application: Arduino beginners, Arduino experimental equipment platform, Arduino interactive electronics, Arduino robots and so on.
Features: multi-functional, easy to operate, with a powerful driver library support and feature updates.
Disadvantages: I/O occupies more in the case of driving four-way motors at the same time (relative to the version of Arduino I/O less), small power.
Can drive 4 DC motors or 2 stepper motors at the same time can also drive 2 servos, support the new Arduino UNO, Arduino Mega 2560, NOT compatible with Arduino Uno R4 WIFI
You can match like this:
Drive 4 DC motors and 2 servos.
Drive 2 DC motors and 1 stepper motor and 2 servos.
Drive 2 stepper motors and 2 servos.
Package Included:
1*L293D Motor Driver Shield
