| Package Dimensions | 4.61 x 2.76 x 0.91 inches |
| Item Weight | 0.704 ounces |
| Manufacturer | Wishiot |
| ASIN | B07V68443F |
| Item model number | LS1201X5 |
| Customer Reviews | 4.6 out of 5 stars 61Reviews |
| Best Sellers Rank | #1,123 in Single Board Computers (Computers & Accessories) |
| Date First Available | July 14, 2019 |
Description:
The DS3231 is a high precision Real Time Clock Module which can maintain hours, minutes and seconds, as well as, day, month and year information.
The module can work on either 3.3 or 5V. You can use a typical C-R-2032 3V b-a-t-t-ery to power this RTC module, kindly note that the b-a-t-teries is not included in this listing!
Specification:
Operating voltage: 3.3-5V
Clock chip: high-precision clock chip DS3231
Clock Accuracy range: 0-40 ℃, the accuracy is 2ppm, the error is about 1 minute for a year
With 2 Calendar alarm clocks
Programmable square-wave output
Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
The chip itself is with temperature sensor whose accuracy is around ± 3 ℃
Memory chips: AT24C32 (storage capacity 32K)
IIC bus interface, the transmission speed of 400KHz @ working voltage of 5V
Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57

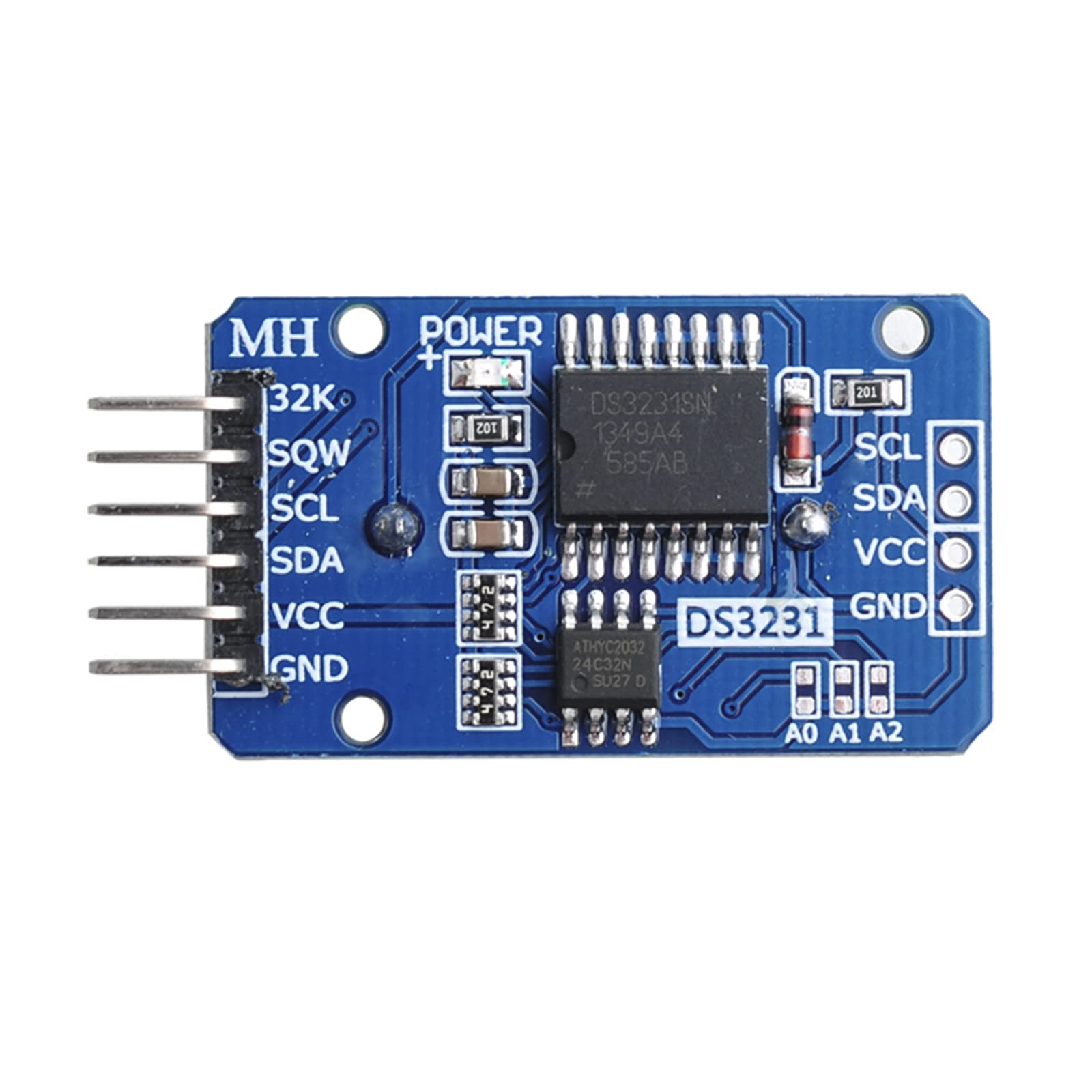

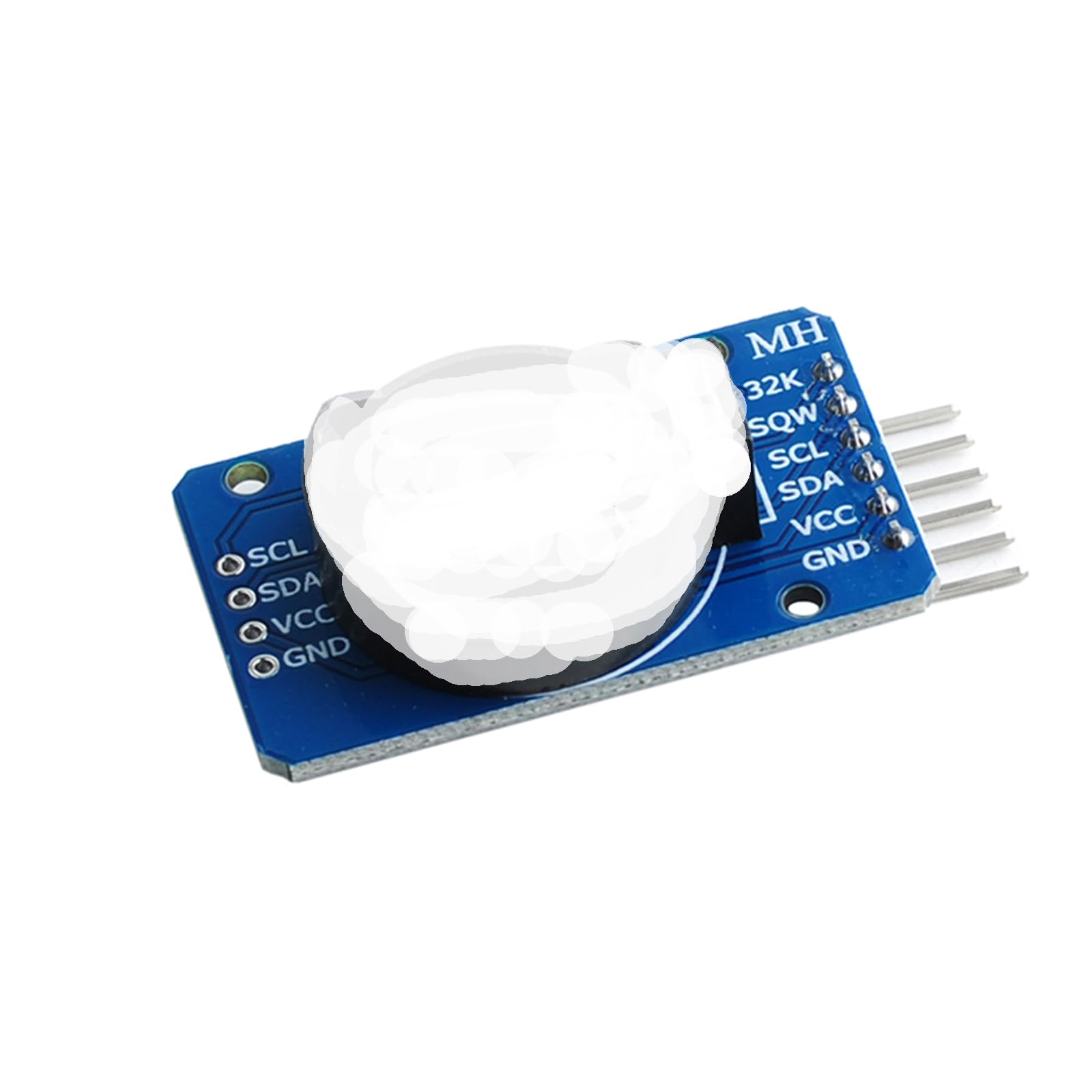

Pin Description:
32KHz：32KHz output
SQW：Active LOW Interrupt or Square wave output
SCL：Serial Clock Input
SDA：Serial Data I/O
VCC：DC Power Pin
GND：Ground

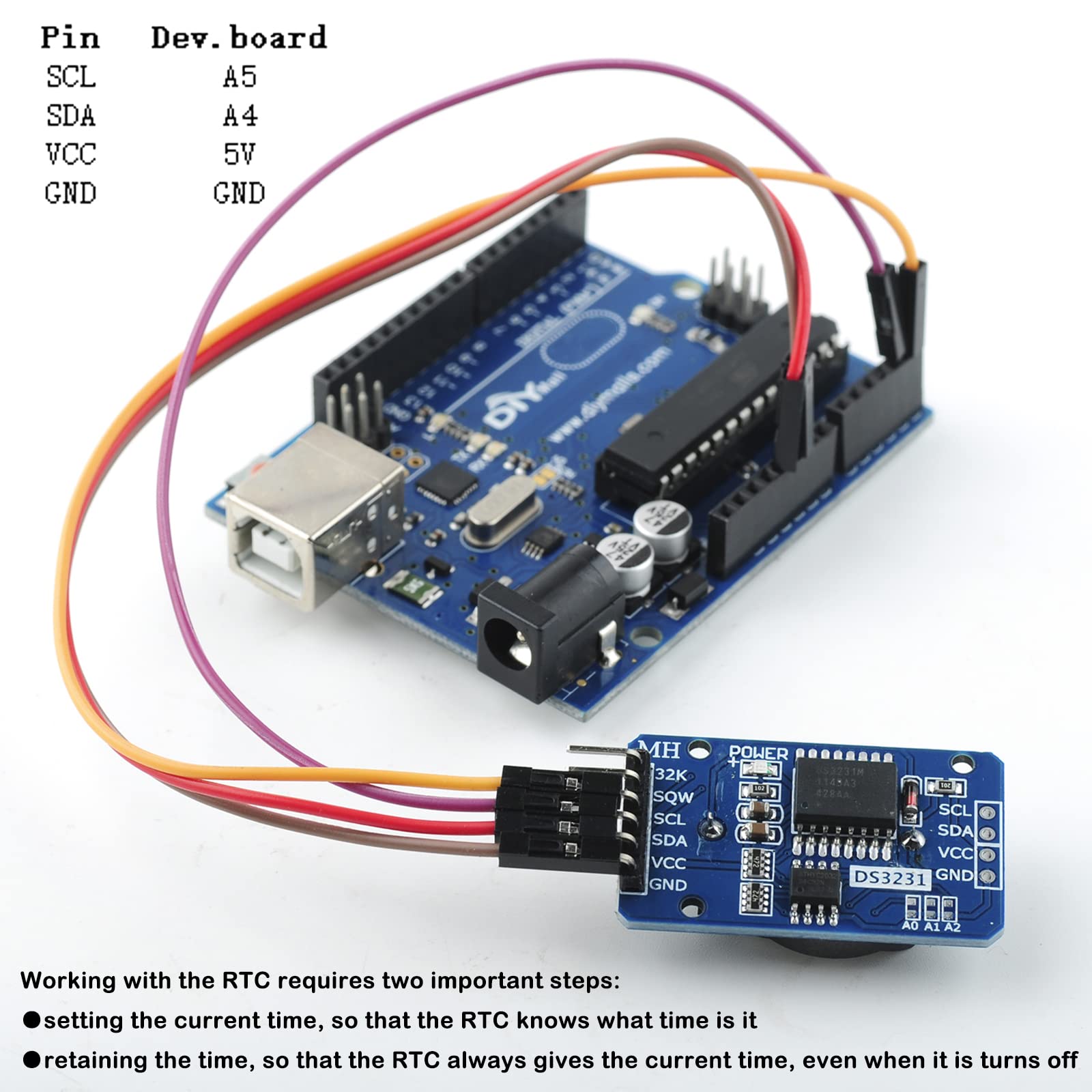

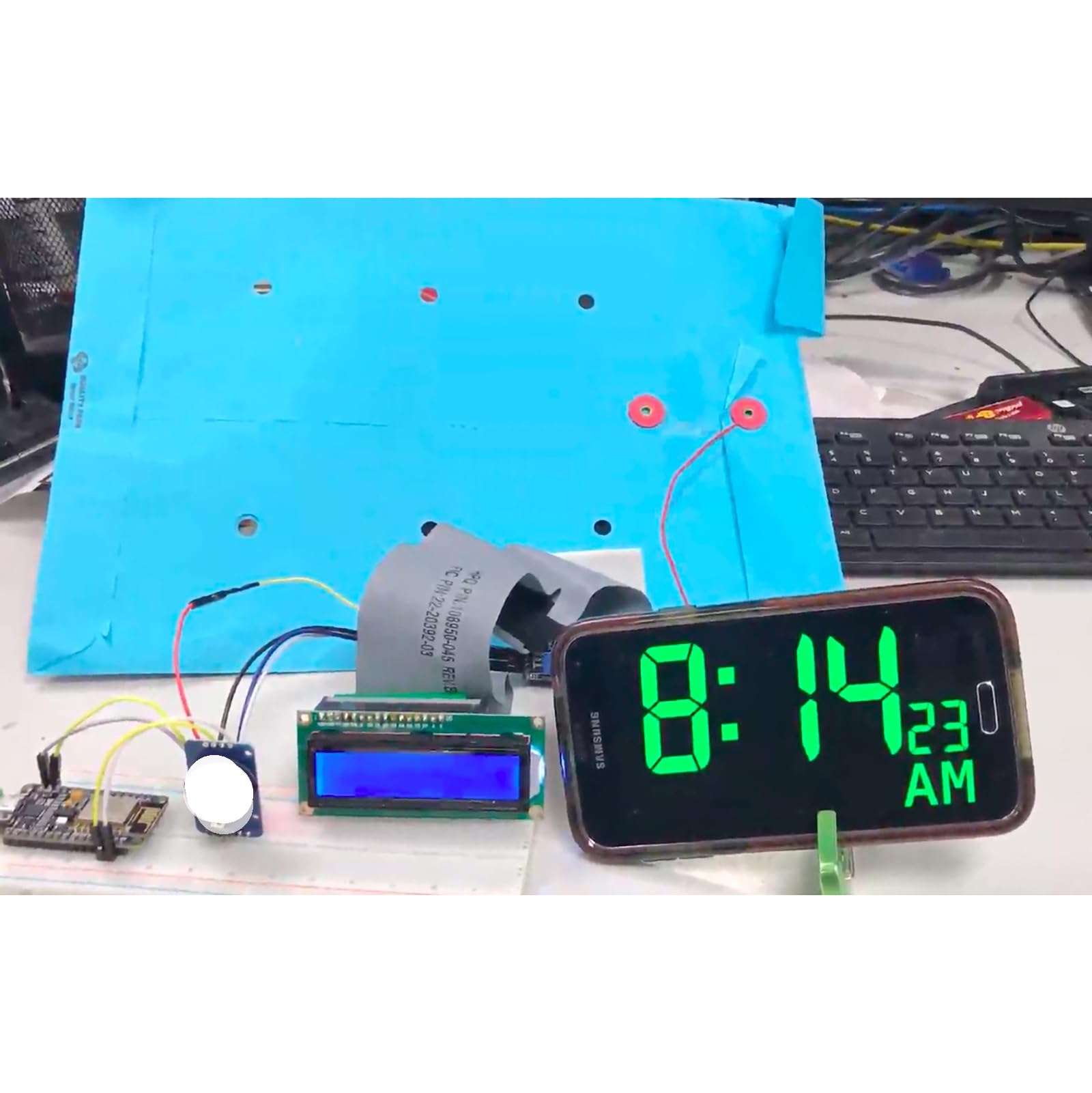

Connection schematics ( Wiring with Arduino for example, see attached picture):
SCL → A5
SDA → A4
VCC → 5V
GND → GND
If you use other board with this RTC module, you need check and change their SCL and SDA pins.
Nano: SDA→A4, SCL→A5
MEGA: SDA→20, SCL→21
Leonardo: SDA→20, SCL→21
Note: Working with the RTC requires two important steps:
1, Setting the current time, so that the RTC knows what time it is.
2, Retaining the time, so that the RTC module always gives the correct time, even when it is turned off.
Package Includes:
5 X DS3231 RTC Clock Module (Ba-ttery is NOT included)
