DIYmalls Nextion 7 inch HMI Display Resistive Touch Screen 5V TFT LCD 800x480 for Arduino ESP32 Development Board (NX8048T070)

Thương hiệu: DIYmalls

DIYmalls Nextion 7 inch HMI Display Resistive Touch Screen 5V TFT LCD 800x480 for Arduino ESP32 Development Board (NX8048T070)

Bán tại: Mỹ

4.3

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

Nhập khẩu thương mại

3,484,173đ

Style

Dự kiến giao hàng từ Mỹ về Việt Nam ngày 08-12-2025 - 14-12-2025

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu DIYMALLS là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm DIYMALLS NEXTION 7 INCH HMI DISPLAY RESISTIVE TOUCH SCREEN 5V TFT LCD 800X480 FOR ARDUINO ESP32 DEVELOPMENT BOARD (NX8048T070) là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Package Dimensions	7.99 x 4.96 x 1.46 inches
Item Weight	12 ounces
Manufacturer	DIYmalls
ASIN	B0B9GRBWV7
Item model number	NX8048T070
Best Sellers Rank	#409,990 in Electronics (See Top 100 in Electronics) #53 in LCD Touch Panels #8,364 in Computer Monitors
Date First Available	August 12, 2022
Standing screen display size	7 Inches
Aspect Ratio	1.66:1
Voltage	5 Volts (DC)
Resolution	800x480
Image brightness	230 nit

Tính năng sản phẩm

Sản phẩm DIYmalls Nextion 7 inch HMI Display Resistive Touch Screen 5V TFT LCD 800x480 for Arduino ESP32 Development Board (NX8048T070) của thương hiệu DIYmalls với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

-Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, or appliance.

-Nextion includes a software(Nextion editor) and hardware part(TFT board, using only one serial port to communicate).

-Nextion editor has many components to enrich interface design, such as button, text, progress bar, slider, instrument panel etc.

-You can develop HMI GUI project via Nextion Editor software, easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

Nextion Editor Software

-Easy-to-Use Nextion HMI software

-ASCII text based instructions over serial

-Assignable attribute value components at runtime

-Drag-and-Drop components for GUI design and interaction

-User Event Code pane for GUI interaction and peripheral MCU communication

(Note: If your HMI project was developed via 0.53 or prior version Nextion Editor, we recommend you to use the LTS version for project maintenance as the latest version is not fully compatible with your exsisting source code and GUI desgin.)

Questions & Answers

Q1: Can Nextion display be used with other MCU?

A: Nextion works with many MCUs, but we only offer Library for arduino and Linux. You need to develop Lib for other MCUs, and all instructions must strictly follow Nextion Instruction Set

Q2: How to upload the designed project?

A: USB to TTL module, and SD card.

Q3: Can Nextion read file in SD card?

A: No, SD card is only used to upload TFT project file.

Q4: My project is successfully made in Nextion Editor. How to get the TFT file?

A: Choose HMI file in Nextion Editor -Click "Compile" and it'll show "Compile Successful!" in the bottom of software -Choose "File","TFT file output" -Click "Output" and save TFT file.

Q5: Can I output the TFT file in Nextion screen?

A: No

Q6: I want to update my project. Why the TFT file can not be revised?

A: The file in Nextion Editor is HMI, and the output one is TFT. You should edit the HMI file in software.

Q7: Why Nextion Editor shows "Can not open this file (Your HMI file is made by low version Editor)?

A: The project is made in old version of Nextion Editor. You need to download the newest version.

Q8: The Nextion display "Model does not match" "File Infor ERROR!". How to solve it?

A: The TFT file was made in another model number, you need to reselect right model number in Nextion Editor.

Q9: How to upload a project via SD card?

A: Prepare a SD card ( FAT32 format and less than 32GB) -Copy TFT file from PC to SD card (ensure only one TFT file in it) -Insert SD card into Nextion card slot -Power on Nextion -File uploaded automatically and displays "Update Successed!" after completed -Power off Nextion -Remove SD card -Power on and project will show on Nextion.


	Nextion 2.4 Enanced	Nextion 2.8 Basic	Nextion 3.2 Basic	Nextion 4.3 Intelligent	Nextion 5 Intelligent	Nextion 7 Intelligent w/Enclosure

Customer Reviews	7	2	—	5	4	3
Model	NX3224K024	NX3224T028	NX4024T032	NX4827P043-011C-Y	NX8048P050-011C	NX8048P070-011C-Y
Size	2.4 inch	2.8 inch	3.2 inch	4.3 inch	5.0 inch	7.0 inch
Resolution	320*240	320*240	400*240	480*272	800*480	800*480
Touch Panel	RTP	RTP	RTP	CTP	CTP	CTP
Recommend Power	DC 5V 500mA	DC 5V 500mA	DC 5V 500mA	DC 5V 1A	DC 5V 1A	DC 5V 2A


	USB to TTL	Nextion IO Adapter	Nextion GPIO Expansion	400 Breadboard	2.4" ESP32 Touchscreen

Customer Reviews	37	27	7	12	16
Package List	1x cp2102 usb to ttl w/cable	1x io adapter	2x gpio expansion board	1 set breadboard w/accessories	1pcs ESP32-2432S024C

Mô tả

Thông tin chi tiết sản phẩm:

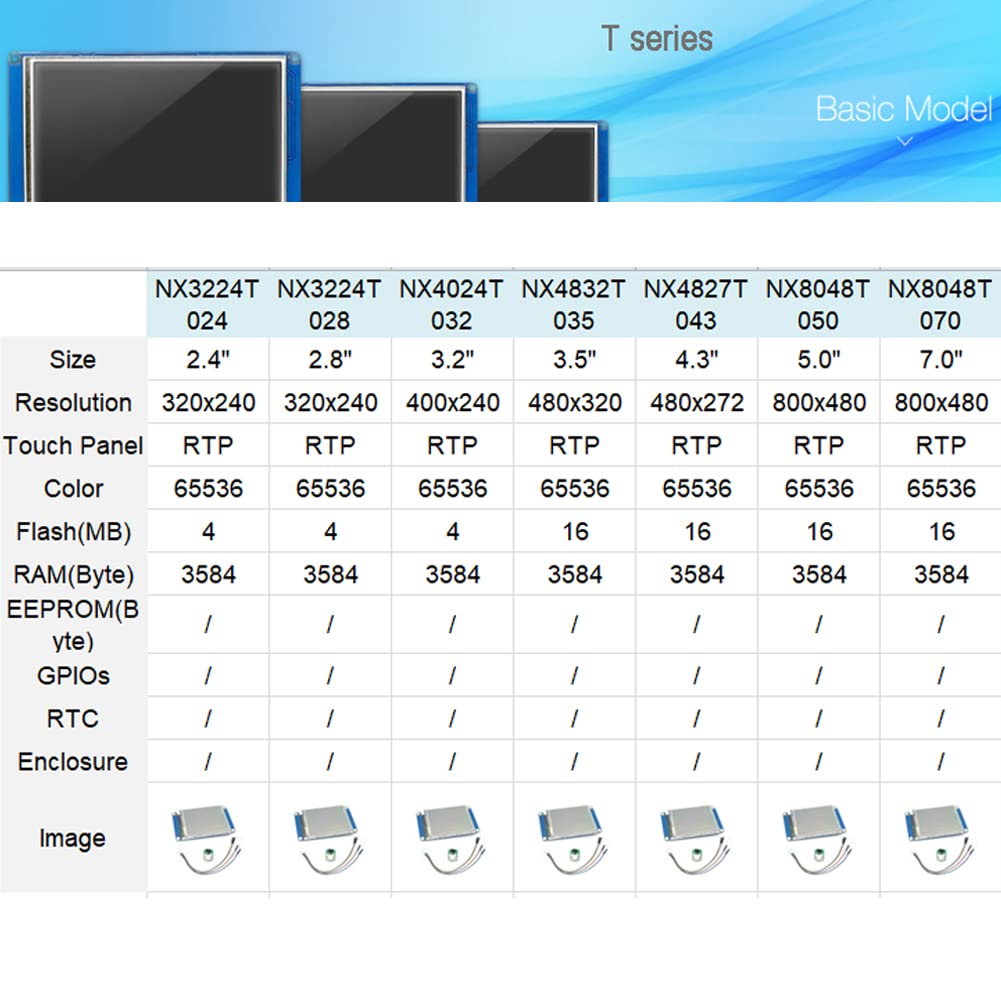

-As a member of Nextion basic series, NX8048T070 is a powerful 7.0 inch HMI: a 7.0" TFT TFT 800x480 resistive touch screen display, 16M Flash, 2KByte RAM, 65k colors.
-Nextion 7.0 display is a 5V device, but many development boards are 3.3V. It won't make the display power up.

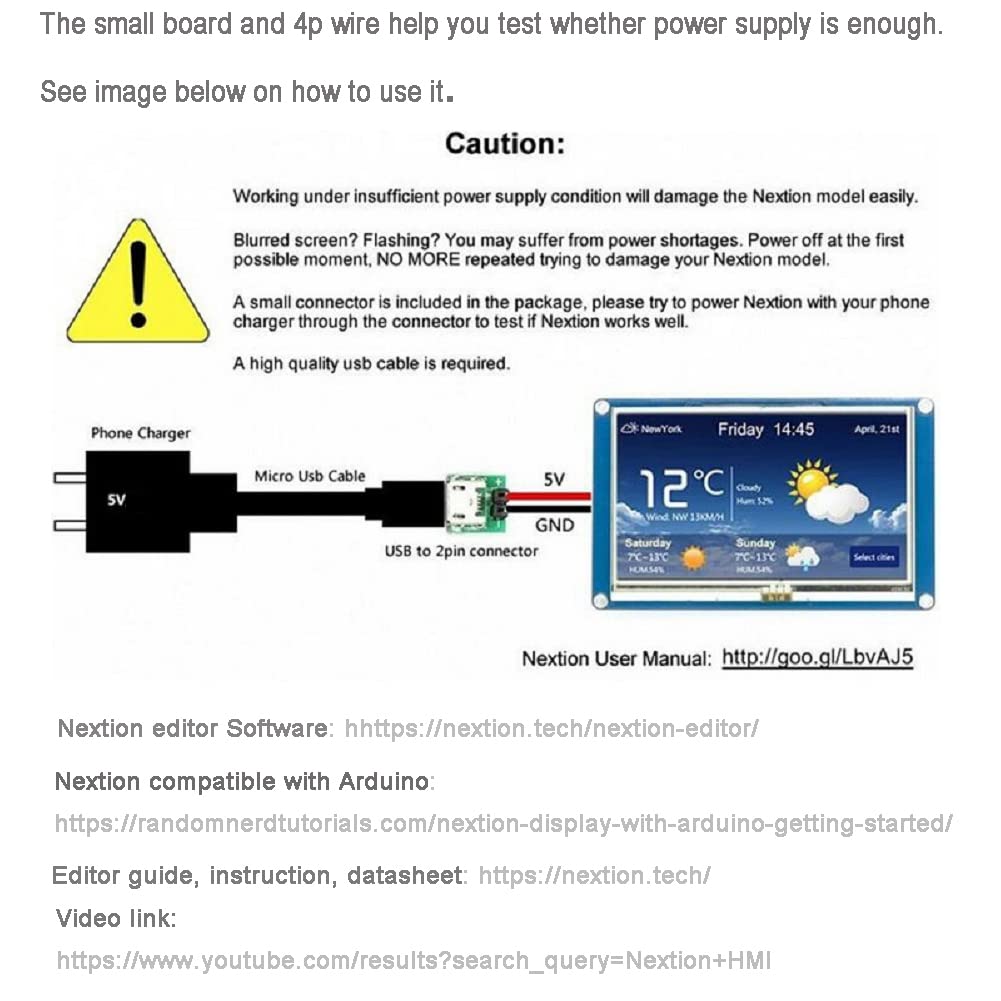

-To ensure Nextion basic 7 inch display work as expected, it's recommended to supply power via power adapter, not usb to ttl or boards.
-Uploading TFT file via sd card is faster than the usb to ttl, but pls ensure card: FAT32 format, only one tft file(no folder), and no more than 32GB.
-If your HMI project was developed via 0.53 or prior version Nextion Editor, we recommend you to use the LTS version for project maintenance as the latest version is not fully compatible with your exsisting source code and GUI desgin.
