| Memory Speed | 2133 MHz |
| Wireless Type | 802.11b |
| Brand | GeeekPi |
| Item Weight | 2.05 pounds |
| Product Dimensions | 14.17 x 10.24 x 2.48 inches |
| Item Dimensions LxWxH | 14.17 x 10.24 x 2.48 inches |
| Number of Processors | 1 |
| Manufacturer | GeeekPi |
| ASIN | B0B9H8ZM9Z |
| Country of Origin | China |
| Date First Available | August 12, 2022 |
Description:
DeskPi Super6C is the Raspberry Pi cluster board a standard size mini-ITX board to be put in a case with up to 6 RPI CM4 Compute Modules.
Features:

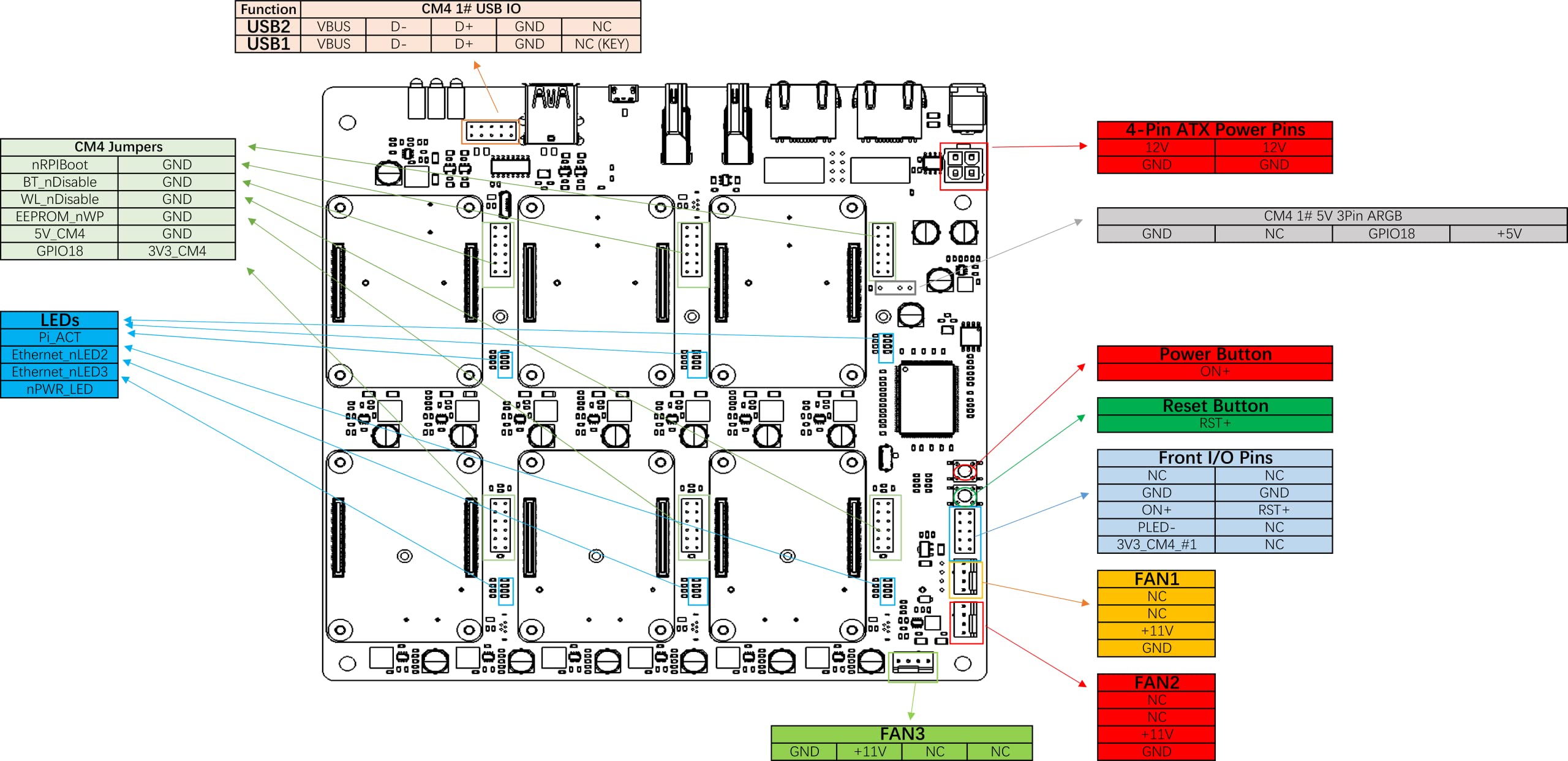

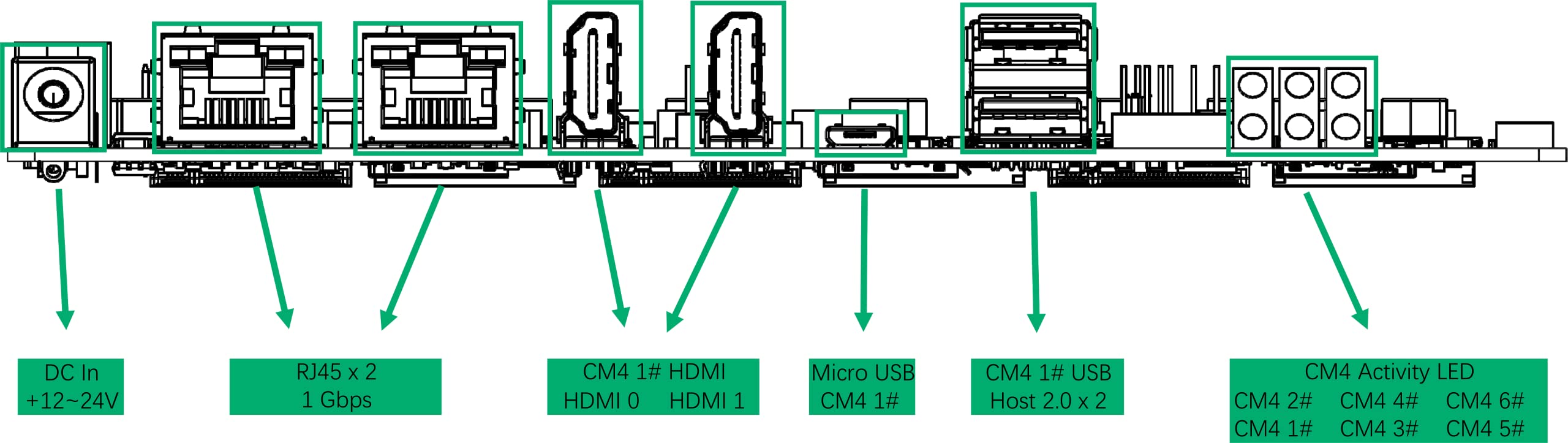

6 RPI CM4 supported 1 Gbps RJ45 x2
Onboard ON/OFF and Reset button
PC Case front panel header
12V FAN Header x3
DC 19v~24V or ATX 12V
Mini ITX Case supported

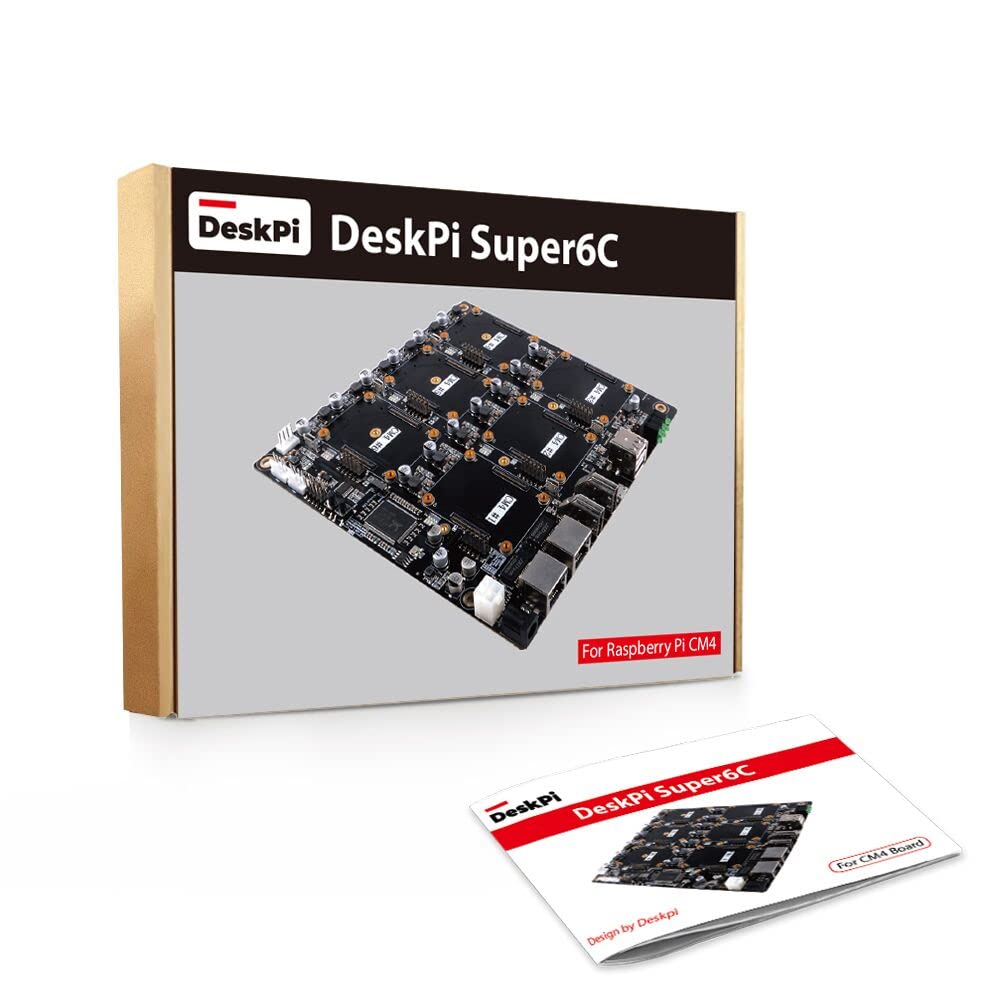

Package Includes:
1pcs Raspberry Pi CM4 Cluster Mini-ITX board.
1pcs 89.87W Power supply.
Note: Raspberry Pi CM4 board are not included
FAQ:
What can I do with DeskPi Super6C?
Home server (homelab) and cloud apps hosting.
Learn Kubernetes, Docker Swarm, Serverless, Microservices on bare metal
Cloud-native apps testing environment
Learn concepts of distributed Machine Learning apps
Prototype and learn cluster applications, parallel computing, and distributed computing concepts
Host K8S, K3S, Minecraft, Plex, Owncloud, Nextcloud, Seafile, Minio, Tensorflow
Which Raspberry Pi models are compatible ?
DeskPi Super6C supports all Raspberry Pi CM4 with and without eMMC.
Does DeskPi Super6C include compute modules ?
No, the product only have cluster motherboard and power adapter.
From where DeskPi Super6C boots OS ?
You can boot the OS either from eMMC, SD Card or netboot.
Does each node get its own IP address?
Yes
How the compute modelues communicate with each other ?
The nodes interconnected with the onboard 1 Gbps switch. And, each node has 1Gbps speed.
Do all the slots need to be filled in ?
The cluster works with any amount of nodes. You can start with a couple of nodes and scale when needed.
