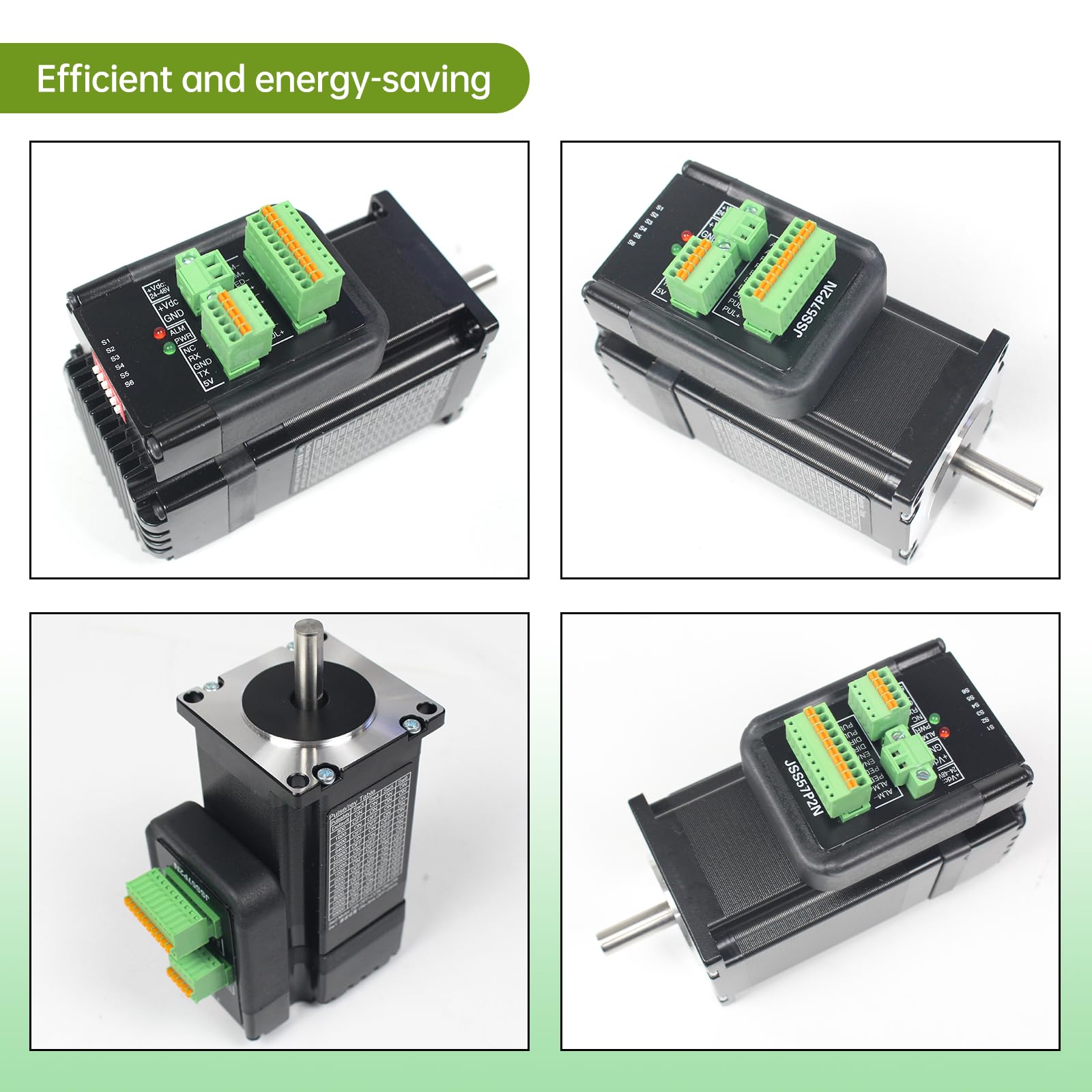

CNCTOPBAOS JSS57P2N Nema23 2N.m Closed Loop Stepper Motor Integrated Digital Hybrid Servo Drive System 24-48V DC RS232 with 1000 Encoder line for Robots,Cutting,Marking,CNC Router Engraving Machine

Package include

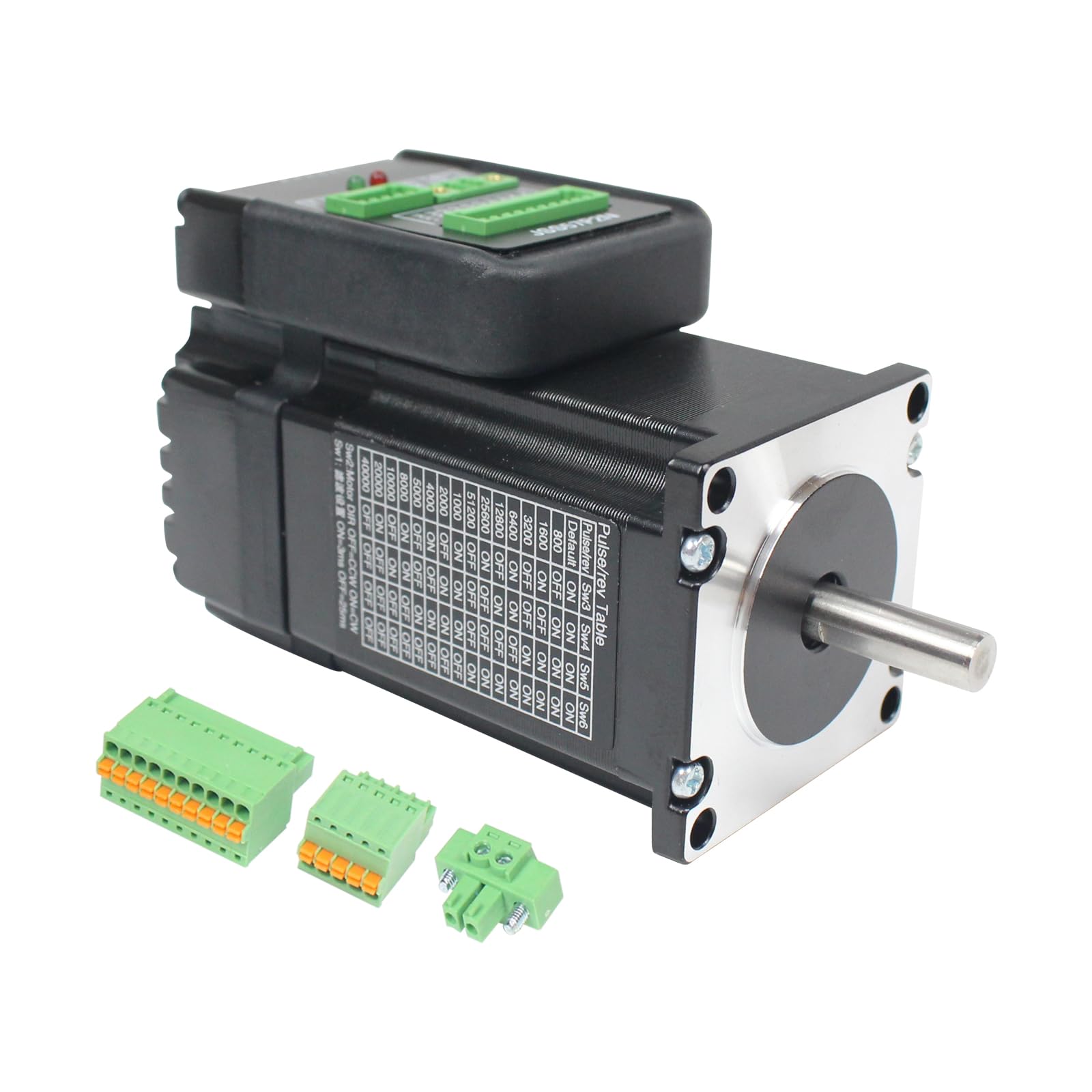

1 x JSS57P2N Integrated Closed loop Stepper Motor

Pdf. user manual (If you have not received the user manual at Amazon Message Center from us,please message us)

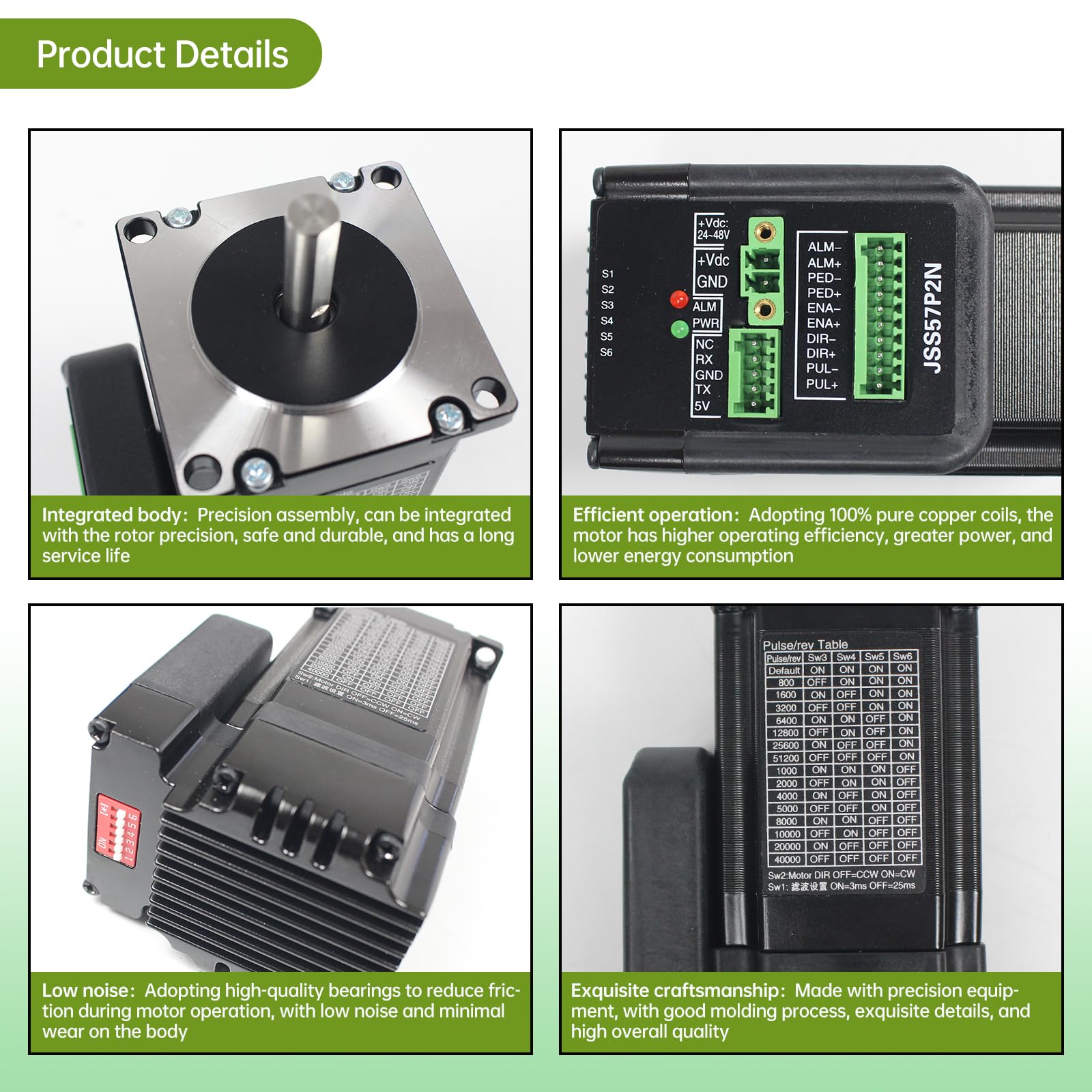

Control signal port

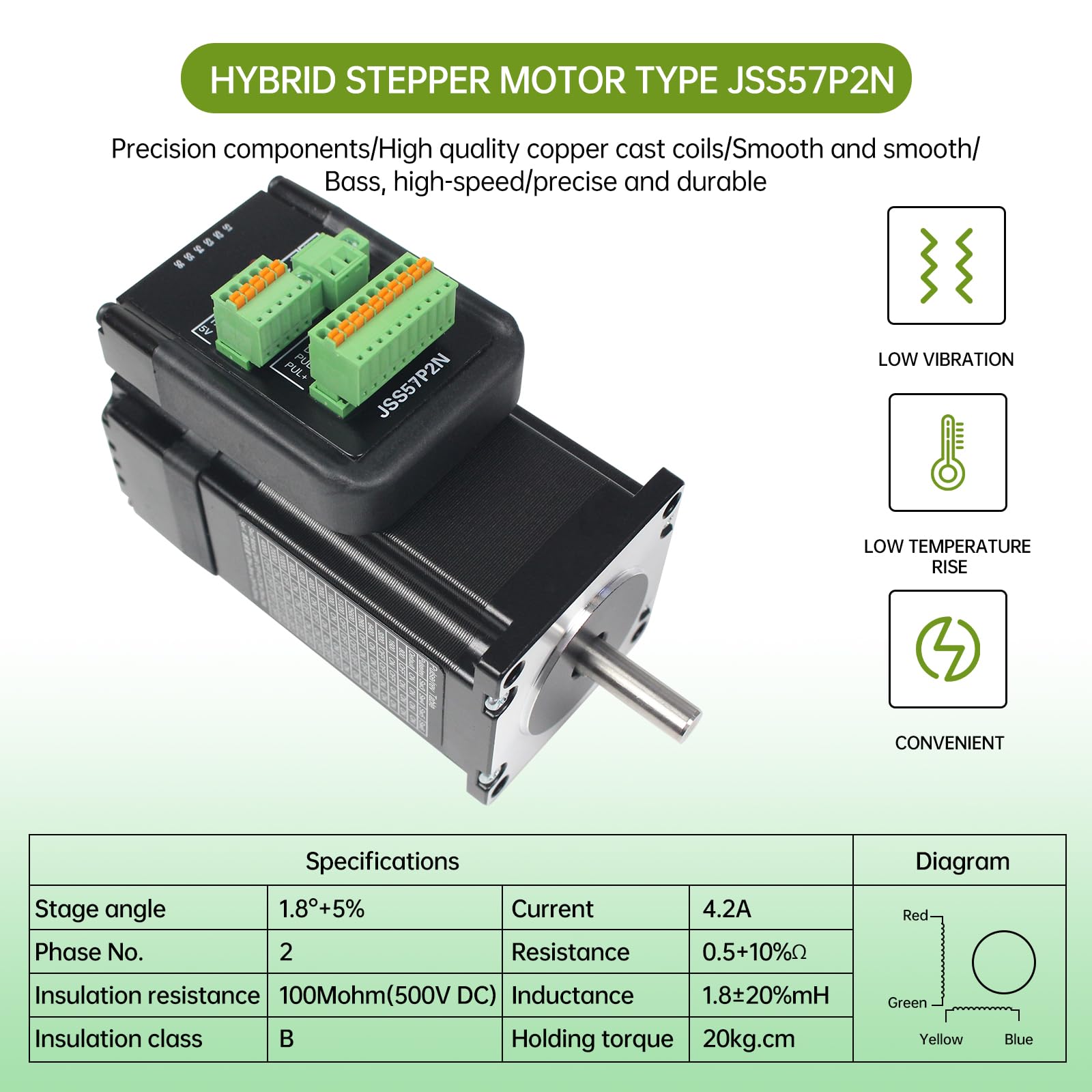

Characteristics

• Adopt advanced 32-bit motor control dedicated DSP chip and vector closed-loop control technology;
• The default work is in closed loop mode, no loss of step, and it also supports working in open loop mode.
• Increase the output torque and running speed of the motor
• The current level is intelligently adjusted according to the load, reducing the temperature rise of the motor, locking the current, and adjusting the closed-loop peak current.
• Adapt to various mechanical load conditions (including low-rigidity loads such as pulleys and pulleys) without adjusting the gain parameters;
• The position command smoothing filter can be set, the motor runs smoother, the vibration is lighter, and the acceleration and deceleration dynamic performance is improved.
• Zero-speed static capability without vibration after positioning；
• Support single and double pulse input, pulse response frequency up to 200KHZ；
• Support 15 fixed subdivisions, and support software to set any subdivision (200~65535)；
• Support modbus RTU protocol on RS232, position and speed control controlled by communication；
• Support monitoring of motor operating conditions, including speed, position deviation, bus voltage, operating current, etc.
• Voltage range: DC+24V~48V；
• With overcurrent, overvoltage, positional tolerance and other protection；

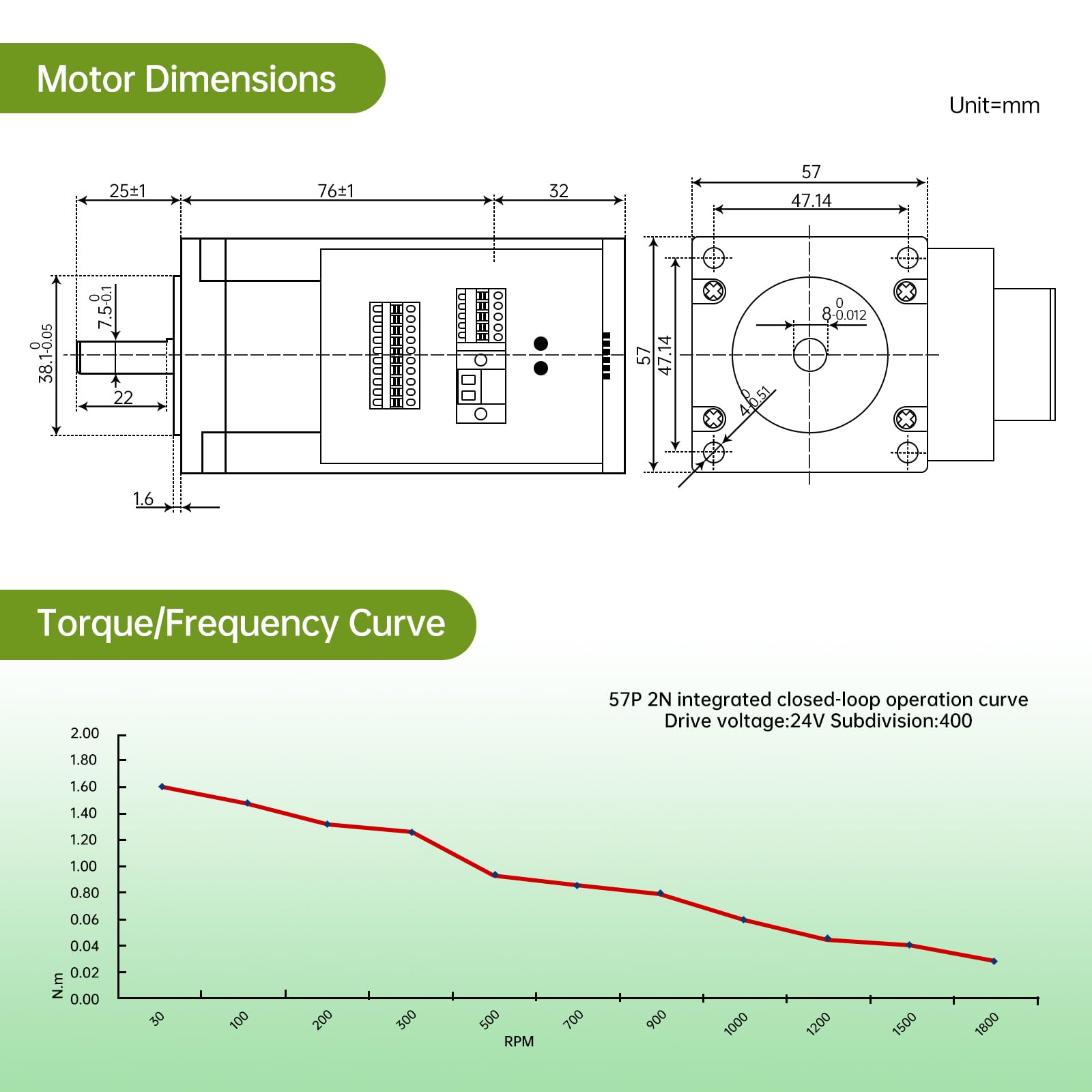

Product description

Overview

JSS57 is a new motor-driven integrated hybrid servo drive system with communication function. Using a new generation of 32-bit DSP control technology and closed-loop control technology, it can prevent out-of-step and ensure the accuracy of the product;High-speed torque attenuation is much lower than traditional open-loop drive, which can greatly improve the high-speed performance and torque of stepper motor. Load-based current control technology can effectively reduce motor temperature rise and extend motor life. Built-in position and alarm output Signal, convenient for monitoring and control of the host computer.

Typical application

Suitable for all kinds of small and medium-sized automation equipment and instruments, such as industrial robots, textile machinery, special industrial sewing machines, wire stripping machines, marking machines, cutting machines, phototypesetting, plotters, CNC machine tools, engraving machines, automatic assembly equipment, etc. Excellent application in devices where users expect low noise and high speed.

DIP switch setting

DIP switch setting

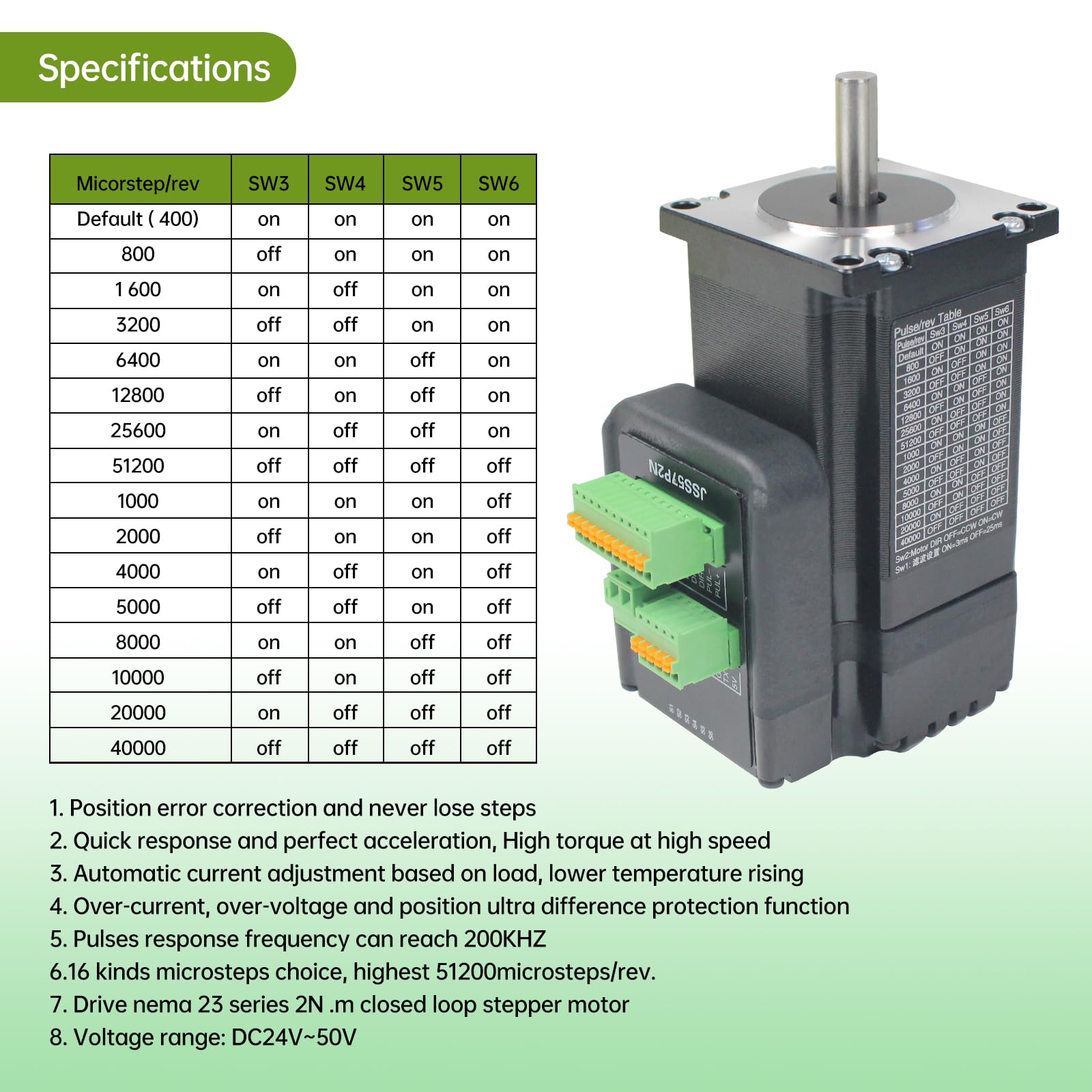

• JSS57 uses a six-digit dial switch to set the filter time, motor rotation direction and subdivision accuracy.
• SW1, filter time setting. The default on=3ms, off=25ms, the larger the filtering time, the smoother the motor runs and the lower the noise. Moreover, in the on state, the filtering time can be flexibly set by the upper computer software setting.
• SW2, motor rotation direction setting. On=CW,off=CCW.
• SW3、SW4、SW5、SW6：Subdivision setting

Typical wiring diagram
