| Manufacturer | Autel |
| Brand | Autel |
| Item Weight | 4.36 pounds |
| Product Dimensions | 3 x 2 x 5 inches |
| Manufacturer Part Number | TS508WF-JM03 |
| Special Features | program mx sensor, read clear tpms codes, tpms diagnostic, obd relearn, sationary relearn |

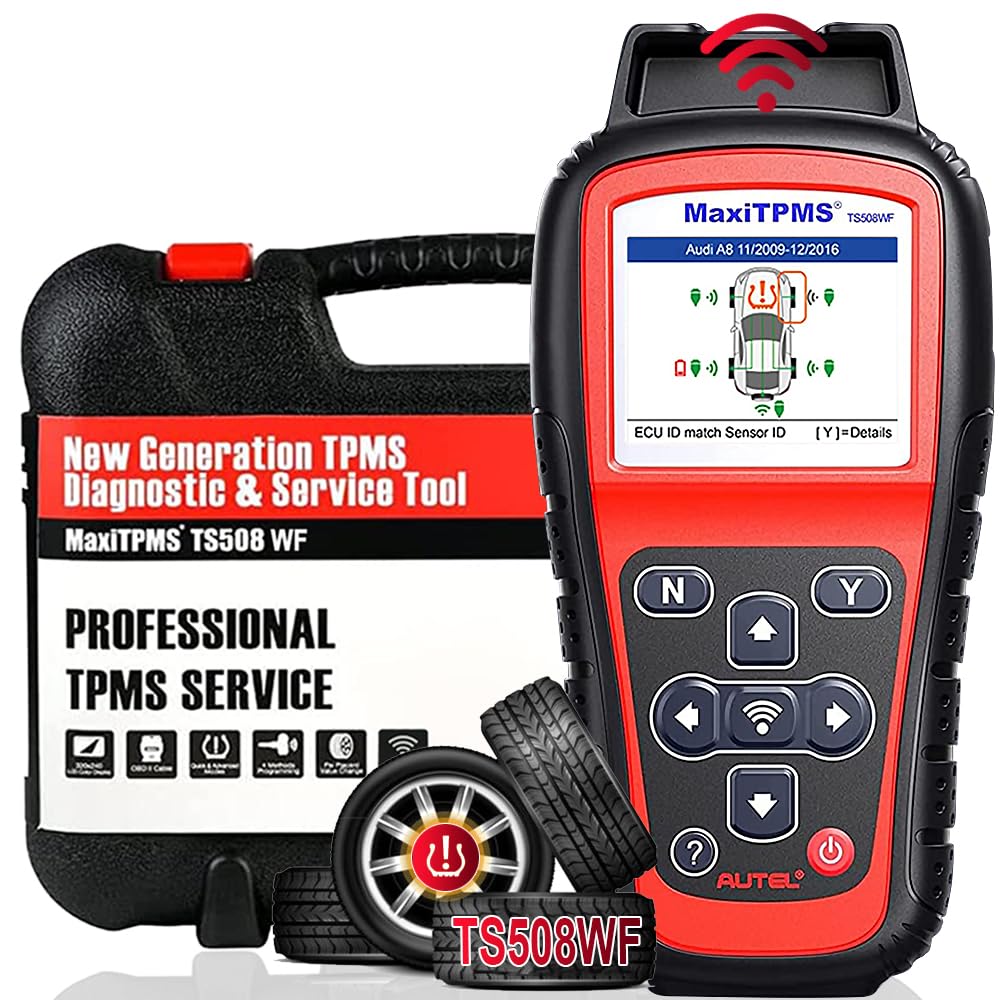

The TS508WF is a TPMS service tool. It is Autel’s first non-tablet tool providing Wi-Fi software updates. It features Quick and Advance modes of TPMS service and a TPMS status screen. It can read/activate/relearn all known sensors, has 4 methods of MX-Sensor programming, and performs placard value resets on supported vehicles. The TS508WF displays on-tool MX-Sensor relearn procedures including OBDII and can do key fob signal tests.
Autel MaxiTPMS TS508WF is an upgraded version of TS501, TS408 and TS401.

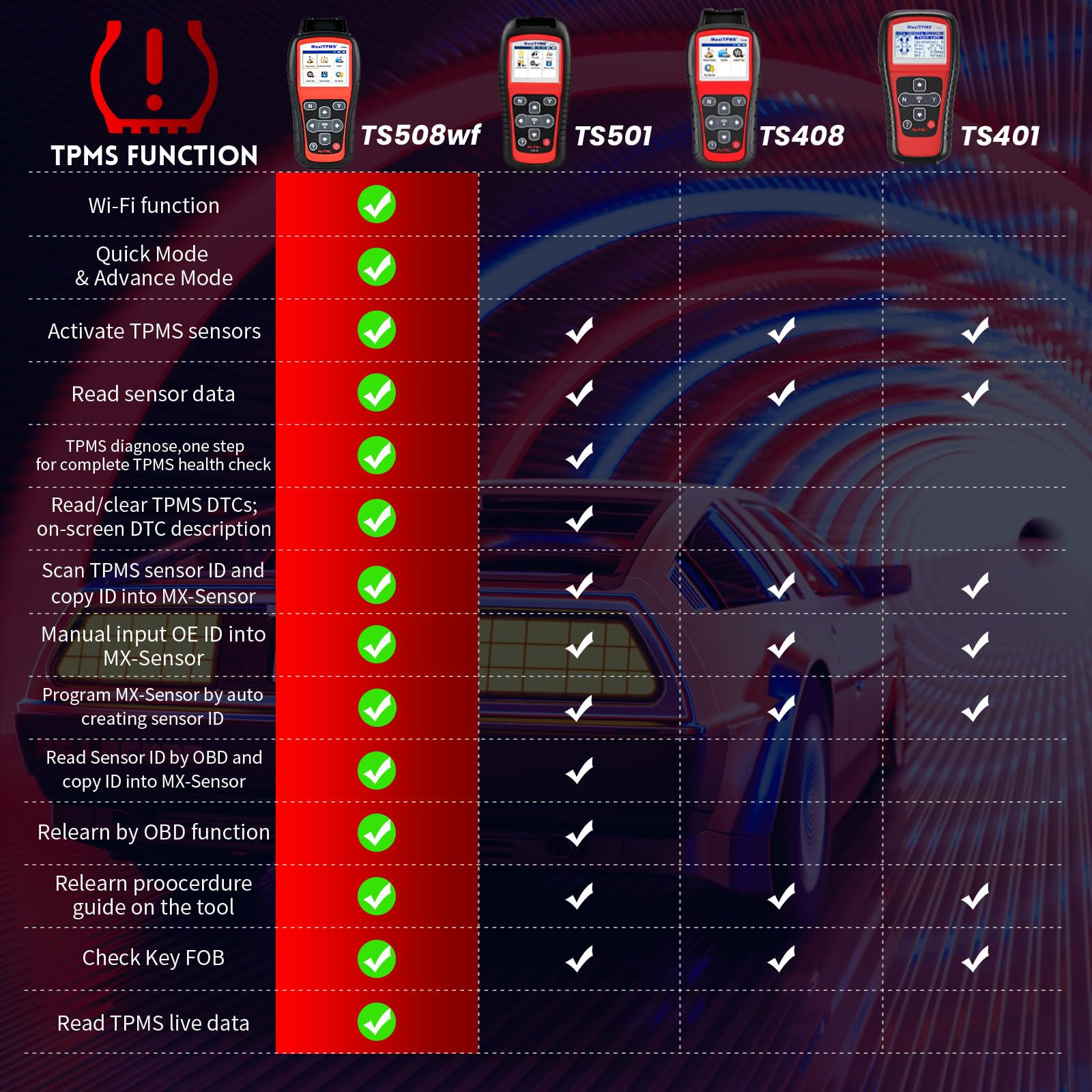

Comparing with TS501, TS508WF has added Quick & Advanced Modes for faster and smarter TPMS repairs, added Tire Type/Pressure Selection for added TPMS services.
Comparing with TS408, TS401, TS508WF has added TPMS diagnose capability to read and clear TPMS DTCs, added OBD2 connector to enable users to program sensors by “Copy by OBD” and relearn sensors via “OBD Relearn”.
NOTE:
AUTEL MAXITPMS TS508WF can only program Autel MX sensors. If you are in trouble with the TS508WF, or do not know how to use it properly, please con-tact u s. For some professional questions, we can schedule a specialist from Autel Technology Support to call you. Remember: there is no single tool which fits all models of all vehicles on the market, always check the coverage and compatibility with us before your purchase.
TS508WF is an upgraded version of TS508, adding WIFI connection function, bringing customers a faster and more convenient update experience, eliminating the trouble of computer update. From now on, you only need to be in a Wi-Fi environment.
Read and Erase DTCs: Scan TPMS system, retrieve ECU information, locate problems， Read fault code, find out the problems, and turn off the TPMS light.
Autel TS508WF = TPMS Tool + Code Reader
Autel MaxiTPMS TS508WF is a powerful all-in-one TPMS scan tool, not only it can program/activate/relearn the sensors, but also can scan the TPMS system, do TPMS diagnostics, and read/clear the codes.
TS508WF TPMS diagnostic tool: TS508WF can quickly scan the TPMS system to check TPMS and sensor state and pinpoint the problems so that users could timely repairs and maintenance. TS508WF Code Reader: TS508WF will read TPMS faulty codes and give specific code descriptions to facilitate clearing the code and turning off the light.
TS508WF TPMS programming tool can be likened to a signal transmitter. The key fob test function designed on TS508WF can be used to check the frequency of the key fob and battery electricity to determine whether it needs to be charged or replaced
The TS508WF is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
Quick Mode Service: Scan Sensor & Vehicle Identification Activate All the TPMS Sensor Relearn Sensor: Automatic Relearn Program Sensor: Copy by Activation, Copy by Manual Input, Auto Create Sensor Information: Sensor ID, Frequency, Voltage, Hardware Version, OE Manufacturer, etc
Advanced Mode Service: TPMS Diagnostics: Check TPMS and Sensor State, Trigger Sensors, Read/Erase DTCs, Re-check ECU, Turn off the Light Program Sensor: Copy by OBD, Copy by Activation, Copy by Manual Input, Auto Create Position Relearn: OBD Relearn, Automatic Relearn, Stationary Relearn Information: OE Sensor and MX-Sensor Information, OBD2 Port Location Read/Write Tire Type and Tire Pressure
Autel TS508WF TPMS Relearn Tool can relearn all known sensors (both OEM and aftermarket) on TPMS enabled vehicles(American, European and Asian) to the vehicle’s ECU. It can perform 3 ways of TPMS sensors relearning:
Stationary Relearn: This relearn way requires the vehicle to be placed in the “Learn Mode” and follow the instructions to finish “Relearn”.
Automatic Relearn: For some vehicles, the “Relearn” function can be completed automatically by driving, which makes it quite easy to do a complete set of sensor replacement operations on your own.
OBD Relearn: OBD relearn allows the TS508WF TPMS relearn tool to directly write the TPMS sensor IDs to the TPMS module via the OBD connector to make the on-board TPMS modules recognize the new sensors. That is so convenient! (Note: TS401& TS408 not available with OBD Relearn)
Copy by Activation: If the old sensors are not completely broken, you can activate or trigger the old sensors and retrieve the old ID, and then write it into the new MX-Sensors. The new MX-Sensors can be replaced directly in the original position without relearning.
Copy by Manual Input: If the original sensor is completely bad or can’t be activated, you can find the old ID from the cover of the old sensors, and manually input the old sensor ID to new MX-Sensors.
Auto Create: If the old sensor is completely broken or the original sensor ID can’t be obtained, you can use the TS508WF TPMS programming tool Auto create new unique ID to 1-16 MX-Sensor.
Copy by OBD: Compared to Autel TS408 & TS401, TS508WF can read/clear TPMS DTCs and has an OBD2 connector. You can connect the OBD cable and read ECU information to receive the old sensor data like sensor ID previously stored in TPMS ECU module and copy it to MX-Sensors.
With Autel TS508WF Tire Pressure Monitoring System Tool, you can wirelessly activate all OEM/Universal TPMS sensors on the market, helping you easily get all sensor data.sensor ID, tire pressure, tire temperature, sensor battery, sensor position.
With Autel TS508WF reads the sensor ID and shows you exactly which specific tire is having problems, which is a useful feature to quickly and precisely identify problematic tires without having to remove the tyres to check them all. You can also check tire pressure, temperature, and battery condition with this TPMS tool to determine if the tire is in good condition.
 |  |  |  |  | |
|---|---|---|---|---|---|
| Autel MaxiTPMS TS408 | Autel MaxiTPMS TS508WF | Autel MaxiTPMS ITS600 | Autel MaxiTPMS TS608 | Autel MaxiSYS MS906TS | |
| Customer Reviews | 86 | 44 | 4 | 54 | 83 |
| Price | — | $279.00 | — | — | — |
| CONNECTION | Wired | Bluetooth MaxiVCI 200 | Bluetooth MaxiVCI MINI | Bluetooth MaxiVCI V100 | |
| Read Sensor data | ✓ | ✓ | ✓ | ✓ | ✓ |
| Activate TPMS sensors, Read sensor data, Scan TPMS sensor ID and copy ID into MX-Sensor | ✓ | ✓ | ✓ | ✓ | ✓ |
| Configuration | 2.8-inch /320 x 240 dpi /16GB Memory/3,200 mAh Battery | 2.8-inch /320 x 240 dpi /16GB Memory/3,200 mAh Battery | Android 9.0/ Quad-core processor (1.5 GHz)/ 5.0-inch /1280x720 LCD /64GB Memory/5,000 mAh Battery | Android 4.4.2/Cortex-A9 processor(1.6 GHz) / 7.0-inch /1024x600 LCD /64GB Memory/5,000 mAh Battery | Android 4.4.2/Samsung Exynos 5260 hexa-core（2*A15 1.7G + 4*A7 1G） / 8.0-inch /1024x768 LCD /64GB Memory/10,000 mAh Battery |
| Read/clear TPMS DTCs; on-screen DTC description | ✓ | ✓ | ✓ | ✓ | |
| Relearn by OBD function | ✓ | ✓ | ✓ | ✓ | |
| TPMS diagnose, one step for complete TPMS health check/Tire Type/Pressure selection | ✓ | ✓ | ✓ | ✓ | |
| Other TPMS special functions, TPMS Toolkit (other function) | ✓ | ✓ | ✓ | ||
| All System Diagnostics & All Maintenance Service | Free OLS, SAS, BMS, EPB; Optional purchase of Pro Upgrade for All System Diagnostics & All Maintenance Service | All System Diagnostics &32+ Service | All System Diagnostics &34+ Service | ||
| Software Update | free | free | free | 1 year free | 1 year free |
