1.54 Inch E-Paper Display Three Color EPaper Screen for Raspberry Pi/Arduino/Jetson Nano/STM32 200x200 Pixels Red Black White SPI Interface E-Ink

Bán tại: Mỹ
4.4
793,880đ
Sản phẩm có thể phát sinh phụ phí vận chuyển
-
+
Dự kiến giao hàng từ Mỹ về Việt Nam ngày 28-12-2025 - 03-01-2026
*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay
Giá bạn thấy bằng giá bạn trả
Yên tâm mua sắm, giải tỏa rủi ro
Hàng chất lượng, rõ nguồn gốc
Sản phẩm nhập khẩu chính ngạch
Liên tục cập nhật hành trình
Miễn phí giao hàng trong nước
Cam kết giá bán niêm yết chính xác trên website
Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng
Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán
An toàn, minh bạch hợp pháp, không sợ rủi ro
Theo dõi và cập nhật quá trình vận đơn thường xuyên
Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu
Thương hiệu XICOOLEE là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm 1.54 INCH E-PAPER DISPLAY THREE COLOR EPAPER SCREEN FOR RASPBERRY PI/ARDUINO/JETSON NANO/STM32 200X200 PIXELS RED BLACK WHITE SPI INTERFACE E-INK là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.
Tính năng sản phẩm
Sản phẩm 1.54 Inch E-Paper Display Three Color EPaper Screen for Raspberry Pi/Arduino/Jetson Nano/STM32 200x200 Pixels Red Black White SPI Interface E-Ink của thương hiệu xicoolee với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product description

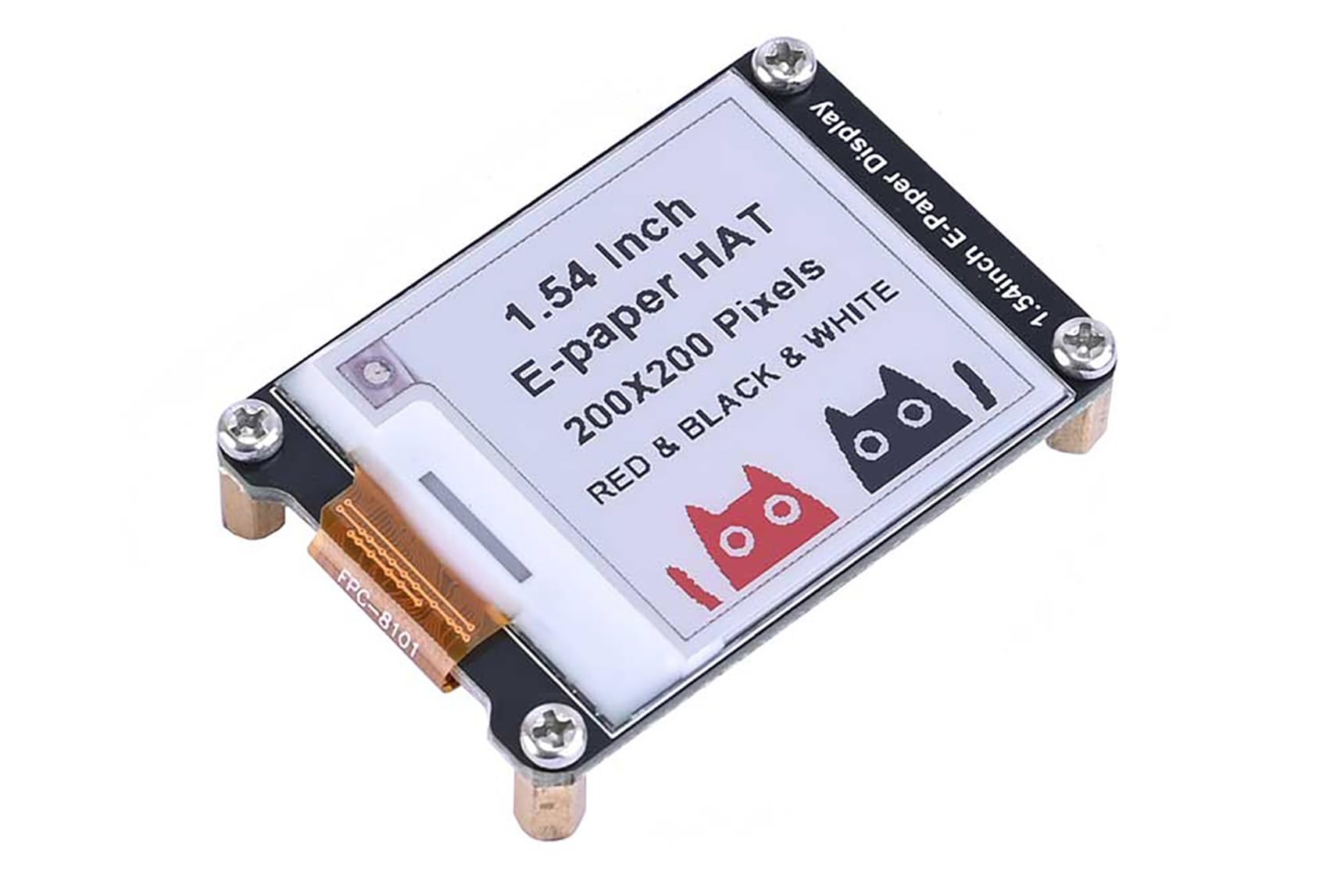

1.54inch E-Paper Display RBW

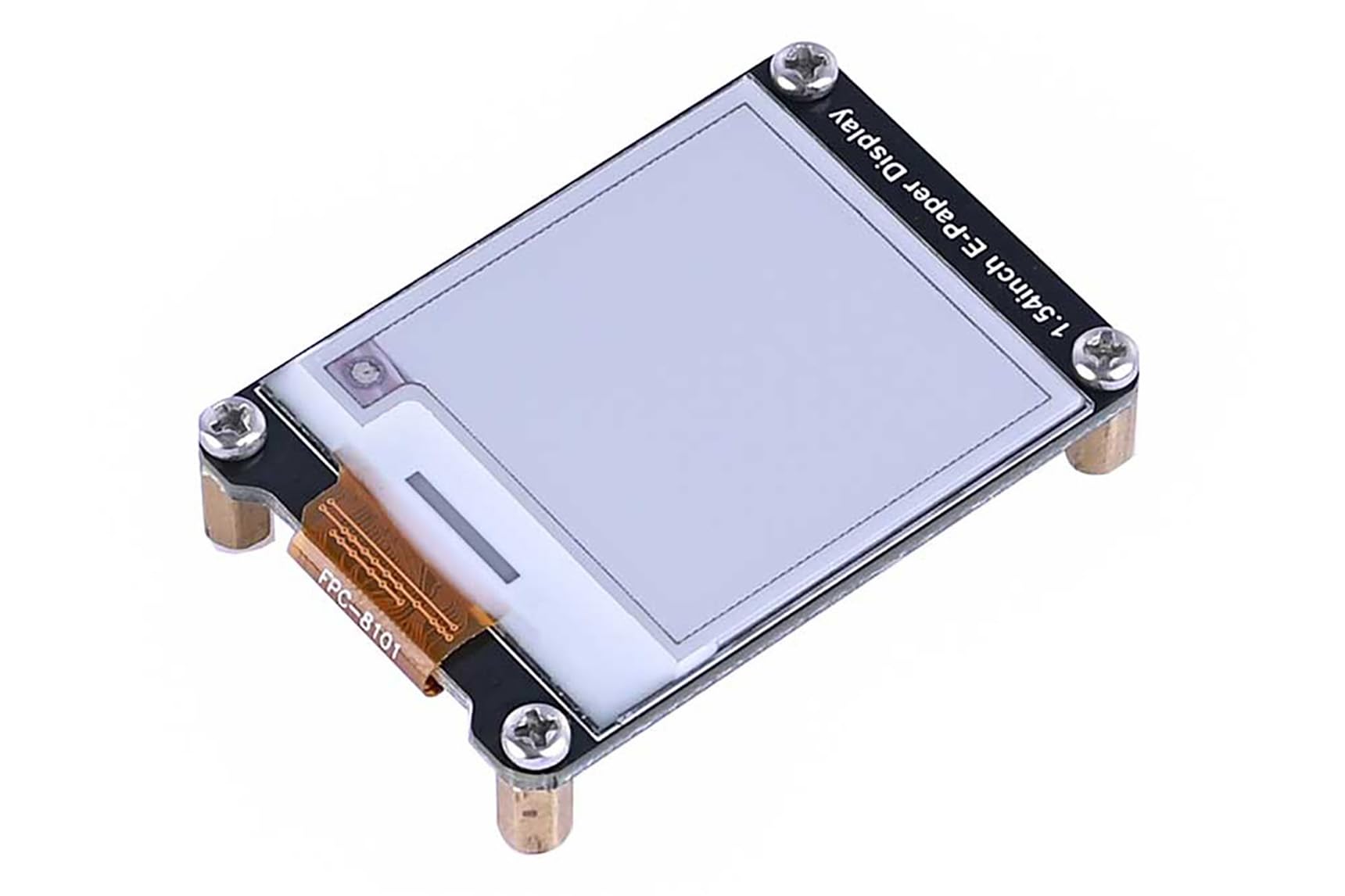

1.54inch E-paper Display

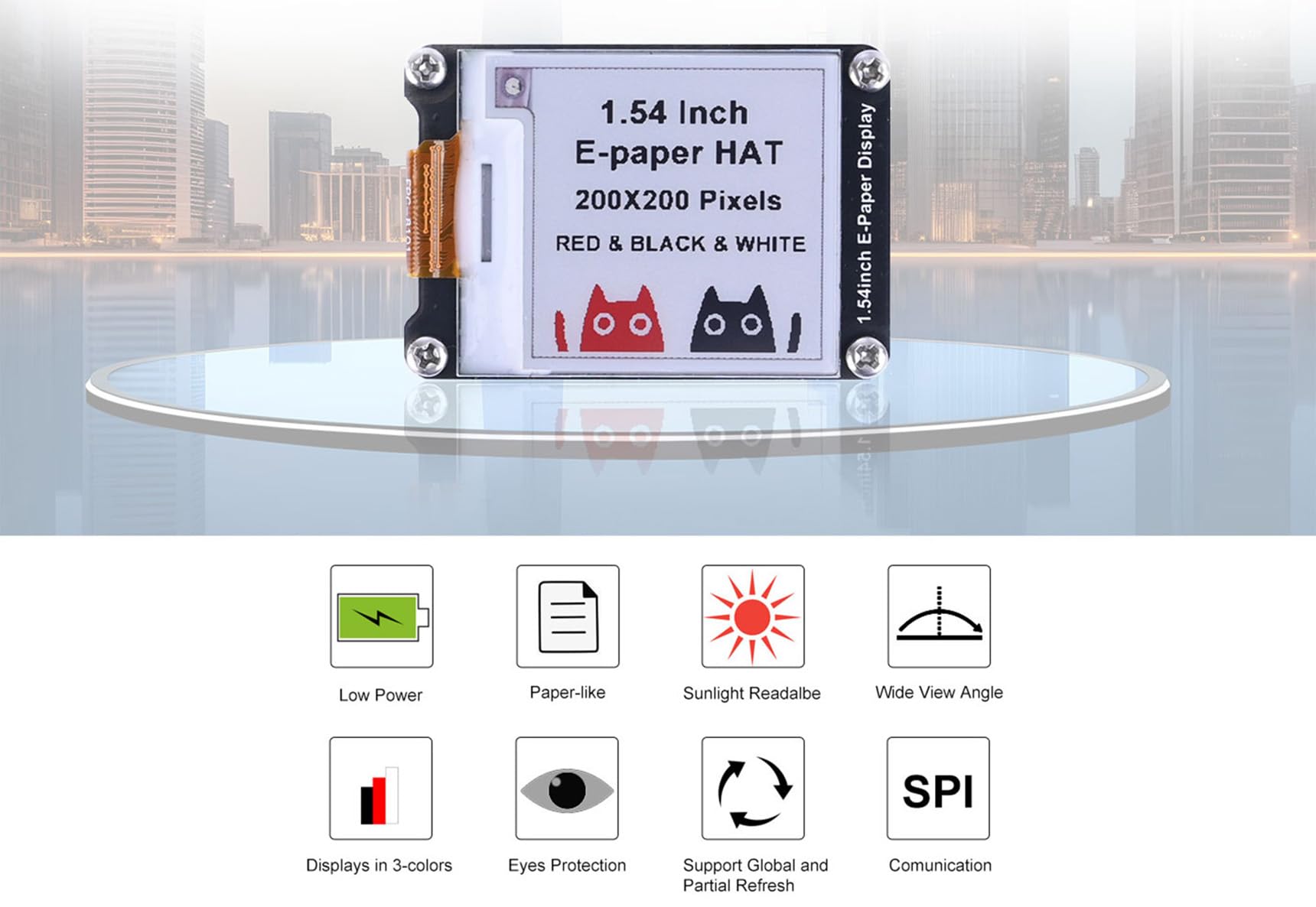

Low power, wide view angle, can display 3 colors (Red & Black & White)

Product Features

This product is a 1.54inch red, black and white three-colour e-ink screen expansion module, suitable for Raspberry Pi series, Arduino, STM32 and other main control boards. We provide C and Python version demo codes for Raspberry Pi as well as example programs for Arduino, STM32, ESP32. The example programs can realize picture display, English and digital character display, and point, line, rectangle, circle drawing.

  • 200 x 200 pixels, can display three colors: red, black, and white
  • SPI interface, minimal pin usage
  • Onboard Voltage Translator, compatible with both 3.3V and 5V microcontroller interfaces
  • Open-source example programs available for Raspberry Pi, Arduino, STM32 and ESP32 development boards

Product Specifications

Size 48mm (Length) x 33mm (Width)
Pixels 200 x 200
Display Color Monochrome
Level Conversion Chip TXS0108EPWR
Signal Interface SPI
Power Supply Voltage 5V/3.3V
Display Area 27mm (H) x 27mm (W)
Grayscale 2
Full Refresh Time 20S
Power Consumption 7.5mW
Standby Power Consumption 0.003mW

Details & Dimensions

1.54 inch E-Paper Display RBW

3-Colors Display

This is a 1.54inch Red&Black&White three-colour e-ink screen expansion module, can realize picture display, English and digital character display

1.54 inch E-Paper Display RBW

Resource allocation

High-quality and richly resourced, Making it easier to use

1.54 inch E-Paper Display RBW

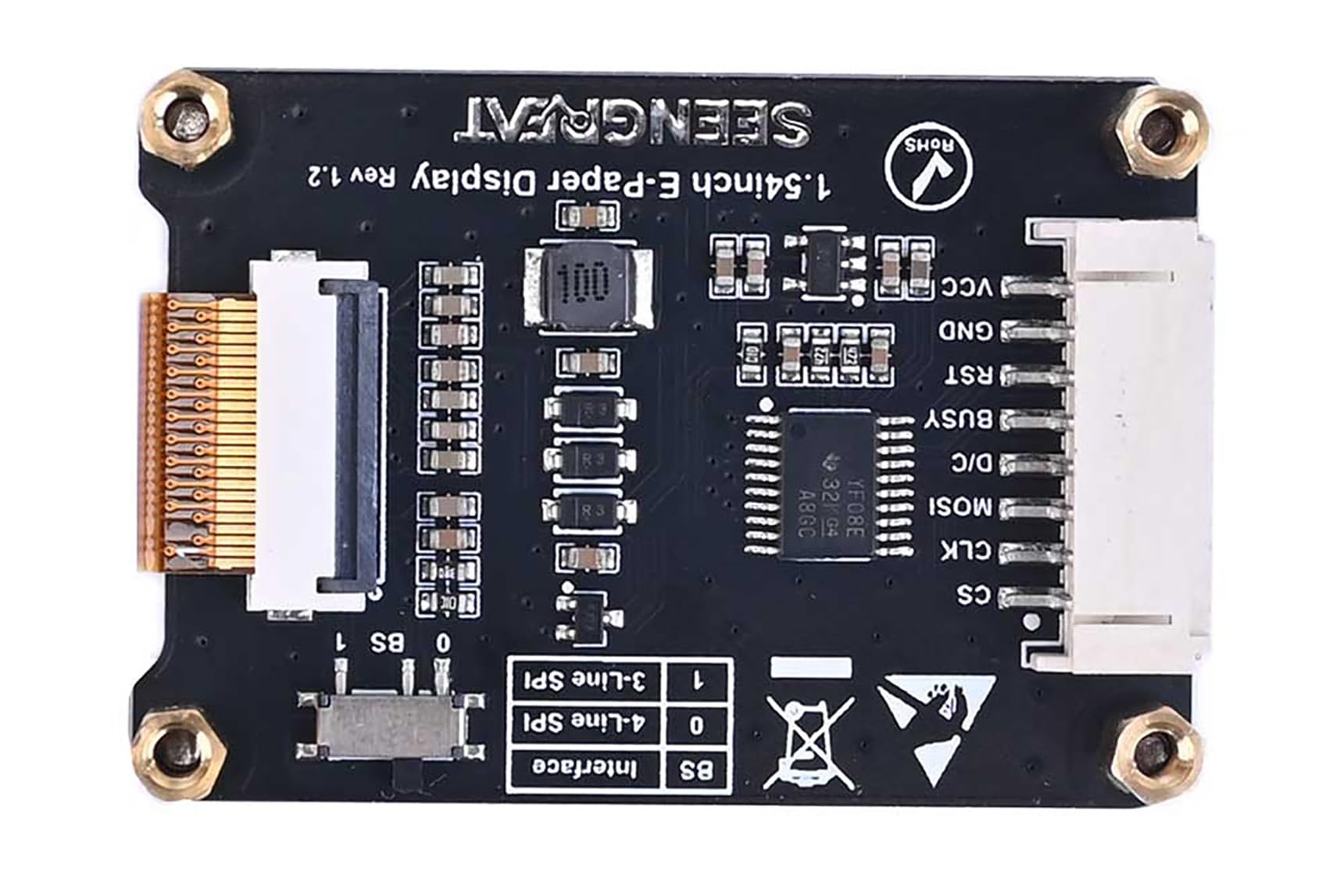

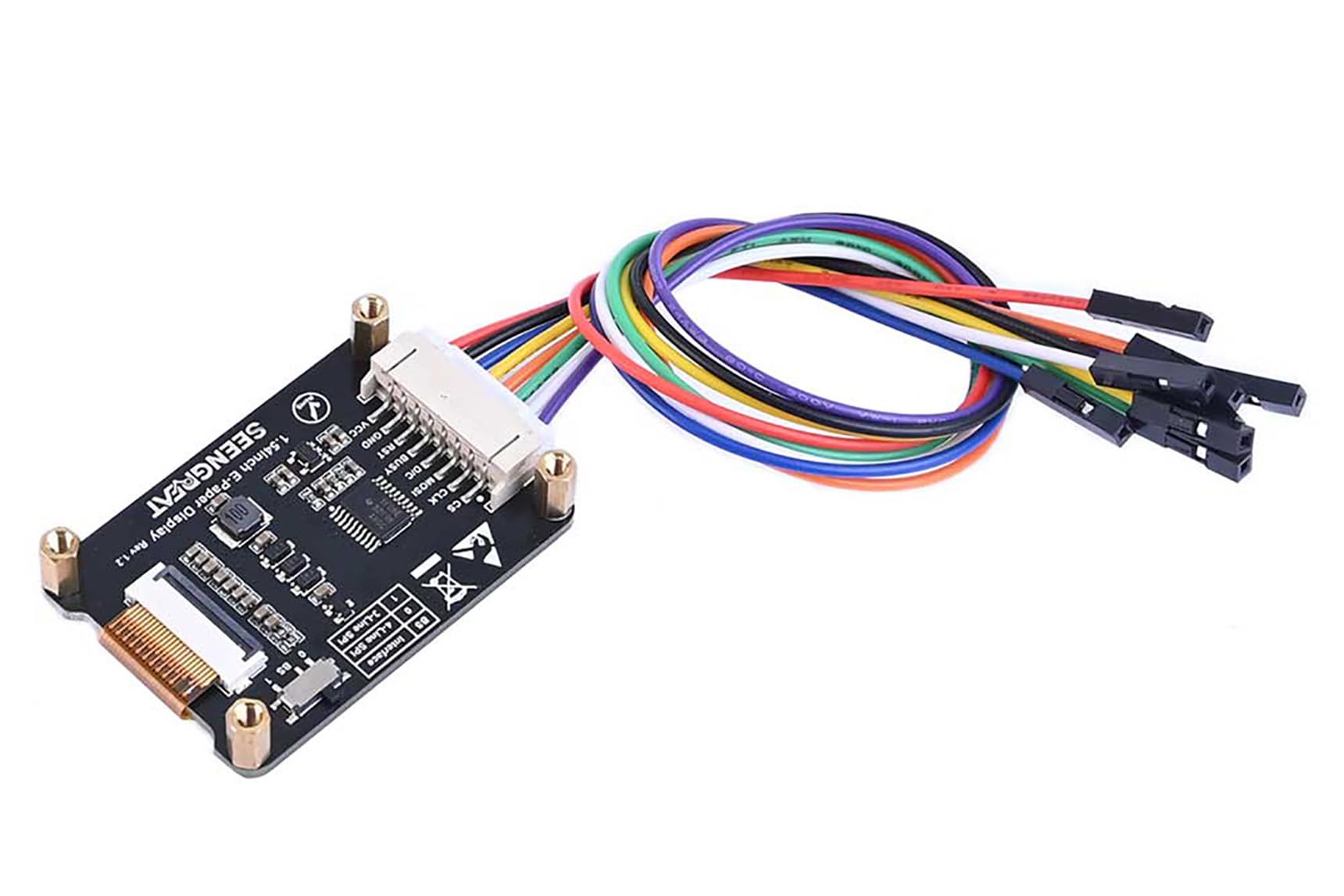

SPI interface

SPI communication interface is reserved to facilitate connect to Arduino/STM32 and other control boards

1.54 inch E-Paper Display RBW

Resource Profile

Compact design, more convenient for users to DIY.

Sunlight Readability

7.5inch E-paper Display

This E-paper display can be read directly, unlike LCD screens that require brightness adjustment or backlight to read, can better protect the eyes and overall health.

Application

7.3inch E-Paper Display

This 1.54inch 3-color e-paper display can be used for price tags, shelf labels, industrial instruments, handheld devices, public information systems, and digital signage equipment, as well as shipping container labels, shop floor conveyor systems, warehousing operations, and more.

Mô tả
Thông tin chi tiết sản phẩm:
  • 1.54inch E-ink display for Raspberry Pi, 200 * 200 pixels, can display three colors: red, black, and white
  • 1.54 inch eink screen, SPI interface, minimal pin usage
  • 1.54 inch e-paper module, onboard Voltage Translator, compatible with both 3.3V and 5V microcontroller interfaces
  • Color E paper display, open-source example programs available for Raspberry Pi, Arduino, STM32 and ESP32 development boards
