| Brand | MSI |
| CPU socket | LGA 1700 |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR5 |
| Compatible processors | i9, i7, i5, i3 |
| Chipset type | Intel Z790 |
| Memory clock speed | 7200 MHz |
| Platform | Windows 11 |
| Model name | MAG Z790 TOMAHAWK WIFI |
| Memory storage capacity | 256 GB |
| RAM memory maximum size | 128 GB |
| Main power connector type | 24-Pin |
| Graphics card interface | PCI Express |
| Memory slots available | 4 |
| System bus standard supported | SATA 3 |
| Number of USB 2 ports | 12 |
| Total HDMI ports | 1 |
| Total PCI-e ports | 1 |
| Product Dimensions | 8 x 3 x 2 cm; 1.54 kg |
| Item model number | 4711377025492 |
| Manufacturer | MSI COMPUTER |
| Colour | black |
| Form Factor | ATX |
| Processor Socket | LGA 1700 |
| Computer Memory Type | DIMM |
| Connectivity Type | Wi-Fi |
| Voltage | 1 Volts |
| Are Batteries Included | No |
| Lithium Battery Energy Content | 225 Milliamp Hours (mAh) |
| Lithium Battery Packaging | Batteries contained in equipment |
| Lithium Battery Weight | 0.19 g |
| Number Of Lithium Ion Cells | 1 |
| Number of Lithium Metal Cells | 1 |
| Item Weight | 1.54 kg |
| Guaranteed software updates until | unknown |
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

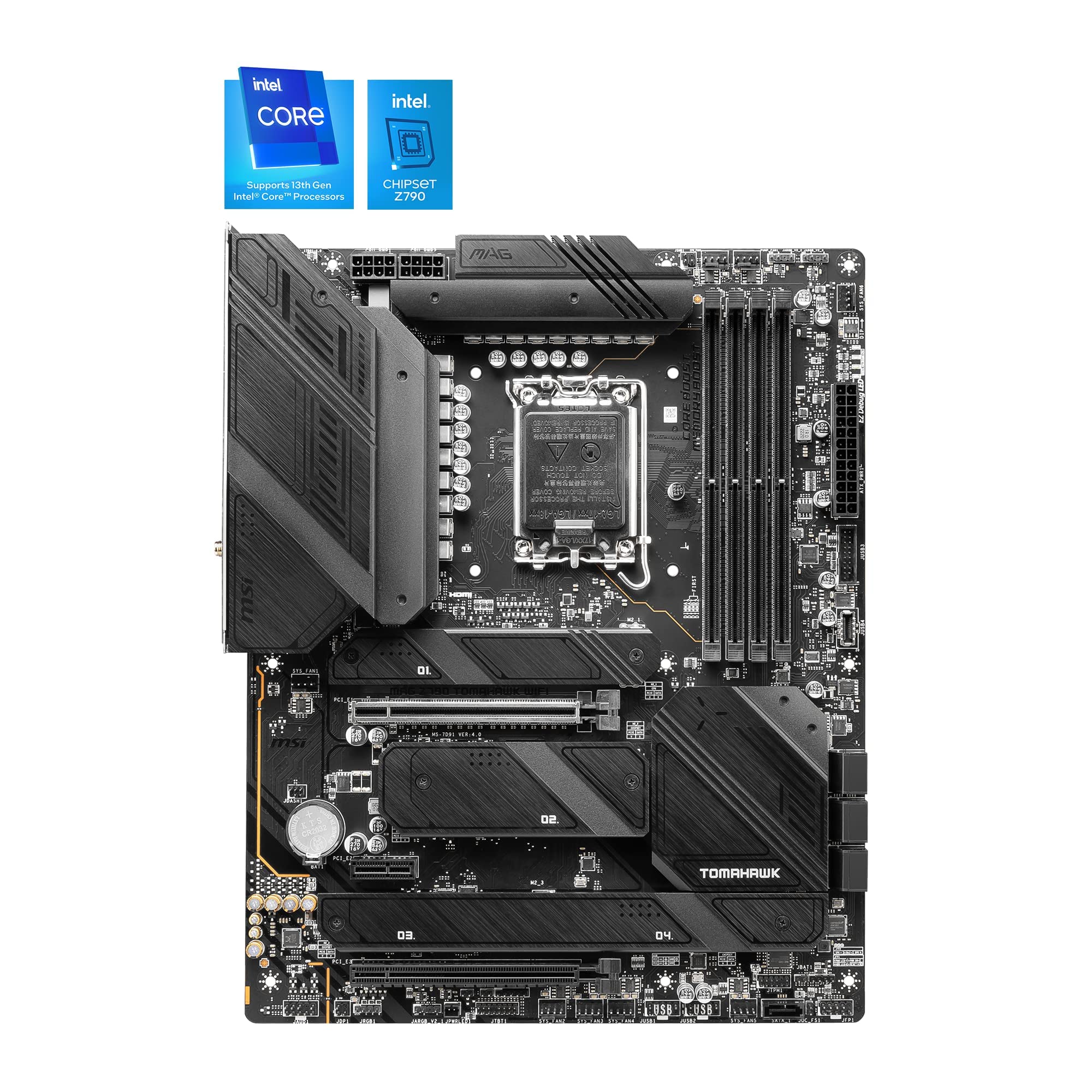

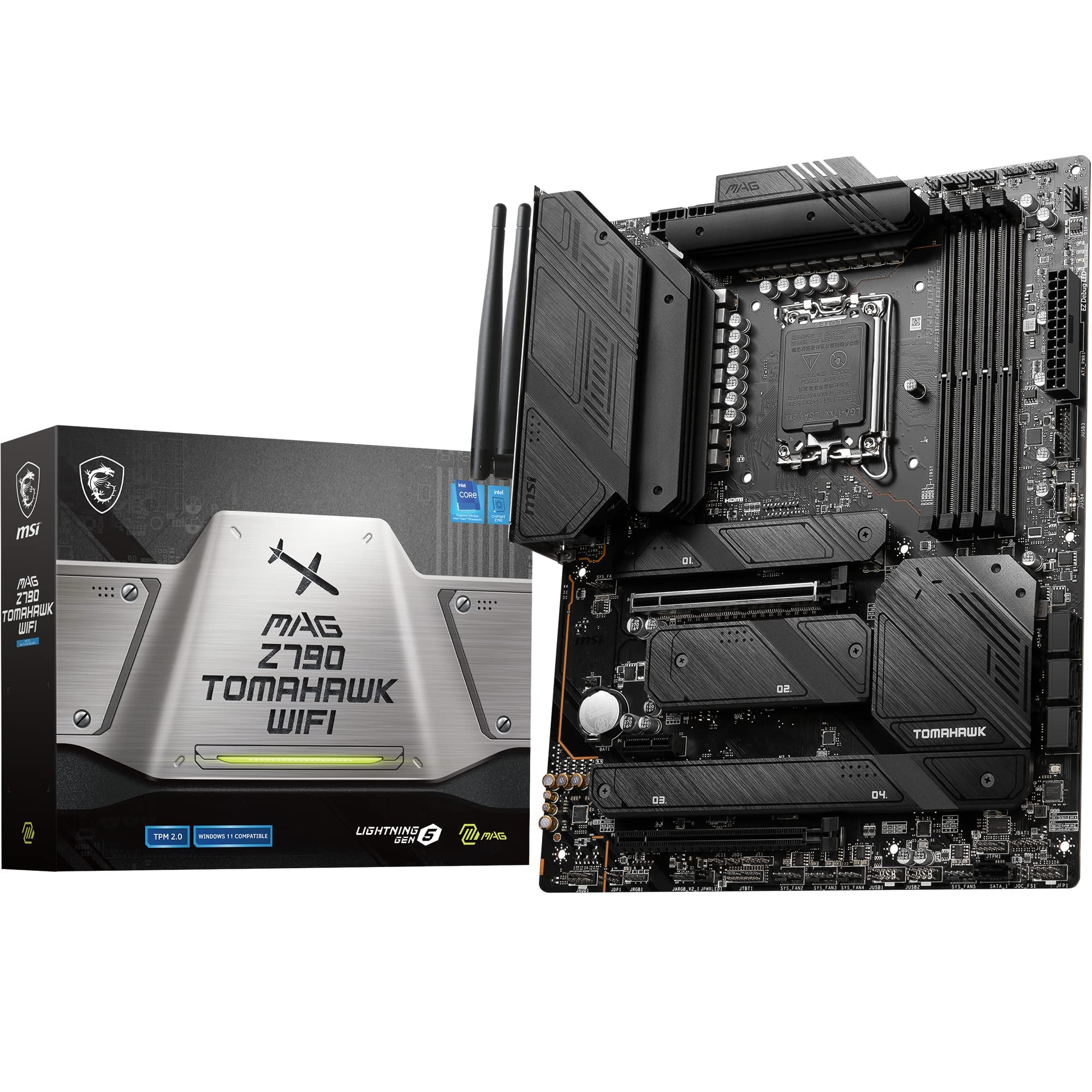

The MAG Z790 TOMAHAWK WIFI DDR4 is a gaming oriented ATX motherboard constructed around the latest Intel Z790 chipset that balances value with premium hardware.
The MAG Z790 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Socket Type: LGA 1700
Chipset: Intel Z790
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**)
1 x PCI-e 4.0/3.0 x16 slot*
*Supports x16/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG Z790 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

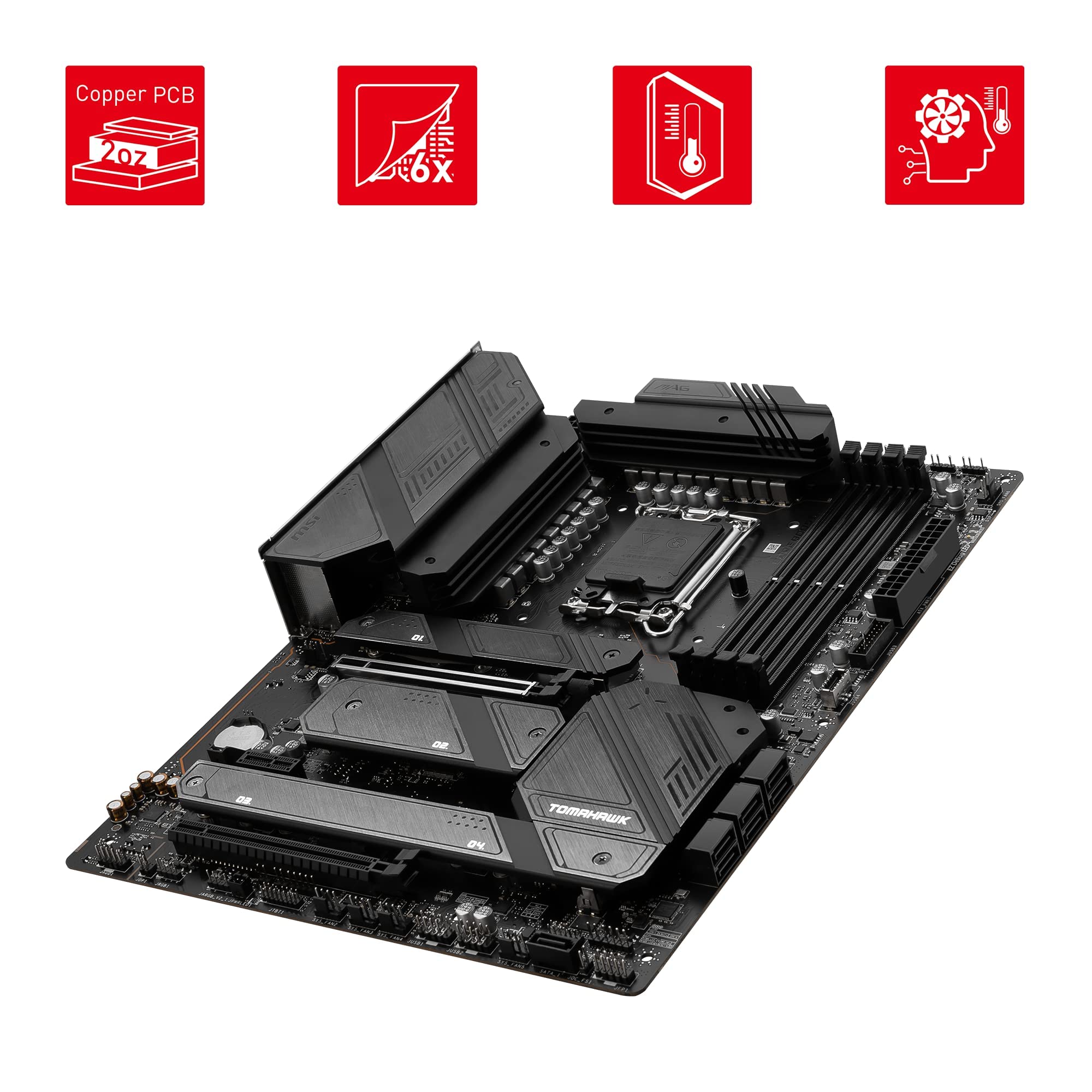

PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

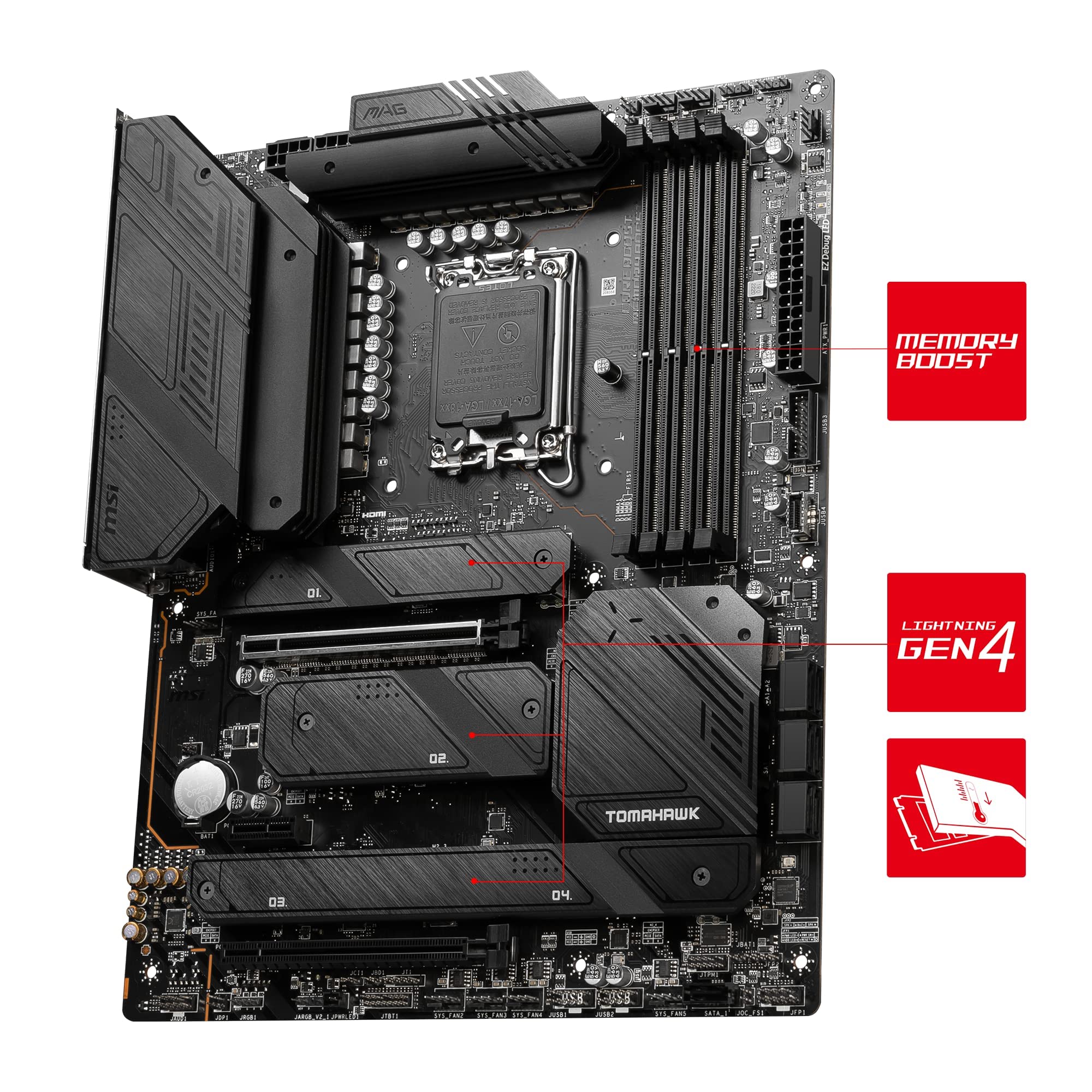

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 7200+ MHz, supports Intel XMP.
The MAG Z790 TOMAHAWK WIFI motherboard features MSI's Gen4 M.2 slots:
4 x Gen4 x4 64Gb/s slots
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
USB Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.
 |  |  |  | |
|---|---|---|---|---|

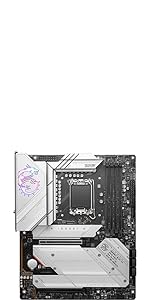

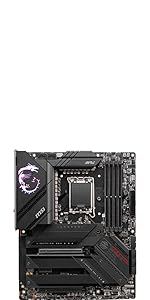

| MAG Z790 TOMAHAWK WIFI DDR4 | MAG Z790 TOMAHAWK WIFI | MPG Z790 EDGE WIFI DDR4 | MPG Z790 CARBON WIFI | |
| Customer Reviews | 960 | 960 | 43 | 960 |
| Price | USD 331.50 | USD 284.56 | USD 429.89 | USD 437.34 |
| MSI Gaming Series | MAG | MAG | MPG | MPG |
| Form Factor | ATX | ATX | ATX | ATX |
| VRM | 16 Duet Rail Power System / 90A SPS | 16 Duet Rail Power System / 90A SPS | 16 Duet Rail Power System / 90A SPS | 19 Direct Out / 105A SPS |
| DIMM Slots | 4 x DDR4 (5333+MHz/OC) | 4 x DDR5 (7200+MHz/OC) | 4 x DDR4 (5333+MHz/OC) | 4 x DDR5 (7600+MHz/OC) |
| PCI-e x16 Slots | 1 x 5.0 / 1 x 4.0 | 1 x 5.0 / 1 x 4.0 | 1 x 5.0 / 1 x 4.0 | 1 x 5.0 / 1 x 4.0 |
| M.2 Slots | 4 x Gen4 x4 | 4 x Gen4 x4 | 5 x Gen4 x4 | 1 x Gen5 x4 / 4 x Gen4 x4 |
| M.2 Shield Frozr | Single-sided | Single-sided | Single-sided | Single-sided |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 | 8-Channel (7.1) HD Audio with Audio Boost 5 | 8-Channel (7.1) HD Audio with Audio Boost 5 | 8-Channel (7.1) HD Audio with Audio Boost 5 |
| LAN | Intel I225V 2.5G LAN | Intel I225V 2.5G LAN | Intel I225V 2.5G LAN | Intel I225V 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6E module, Bluetooth 5.2 | Intel Wi-Fi 6E module, Bluetooth 5.2 | Intel Wi-Fi 6E module, Bluetooth 5.2 | Intel Wi-Fi 6E module, Bluetooth 5.2 |
