| Brand | MSI |
| CPU socket | Socket AM5 |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR5 |
| Compatible processors | AMD Socket AM5 Processors |
| Chipset type | AMD B650 |
| Memory clock speed | 6600 MHz |
| Platform | Windows 11 |
| Model name | MAG B650 TOMAHAWK WIFI |
| CPU model | Ryzen 7 |
| Memory storage capacity | 128 GB |
| RAM memory maximum size | 64 GB |
| Main power connector type | ATX |
| Graphics card interface | PCI-Express x16 |
| Memory slots available | 4 |
| Number of ports | 31 |
| Product dimensions | 24.4L x 5W x 30.5H centimetres |
| System bus standard supported | SATA 3 |
| Total SATA ports | 4 |
| Number of USB 2 ports | 6 |
| Total USB ports | 17 |
| Total Ethernet ports | 1 |
| Total HDMI ports | 1 |
| Total PCI-e ports | 1 |
| Manufacturer | MSI COMPUTER |
| Product Dimensions | 24.4 x 5 x 30.5 cm; 1 kg |
| Batteries | 1 Lithium Ion batteries required. (included) |
| Item model number | 7D75-001R |
| Colour | MAG B650 TOMAHAWK WIFI |
| Form Factor | ATX |
| Processor Socket | Socket AM5 |
| Computer Memory Type | DIMM |
| Connectivity Type | Wi-Fi |
| Wireless Type | Bluetooth |
| Voltage | 1 Volts |
| Are Batteries Included | Yes |
| Lithium Battery Energy Content | 225 Milliamp Hours (mAh) |
| Lithium Battery Packaging | Batteries contained in equipment |
| Lithium Battery Weight | 0.19 g |
| Number Of Lithium Ion Cells | 1 |
| Number of Lithium Metal Cells | 1 |
| Item Weight | 1 kg |
| Guaranteed software updates until | unknown |
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

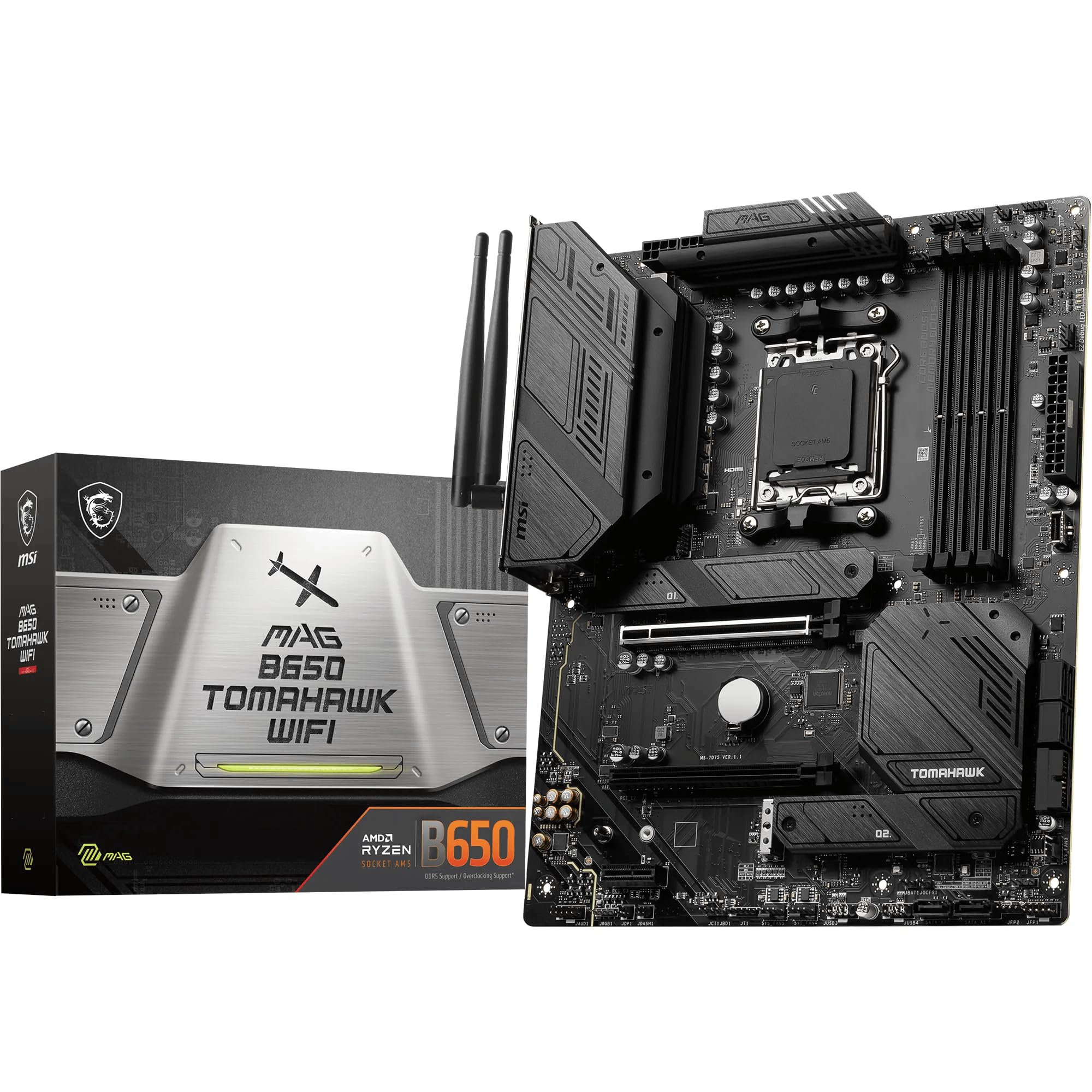

The MAG B650 TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest AMD B650 chipset that unites value with premium hardware.
The MAG B650 TOMAHAWK WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B650
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

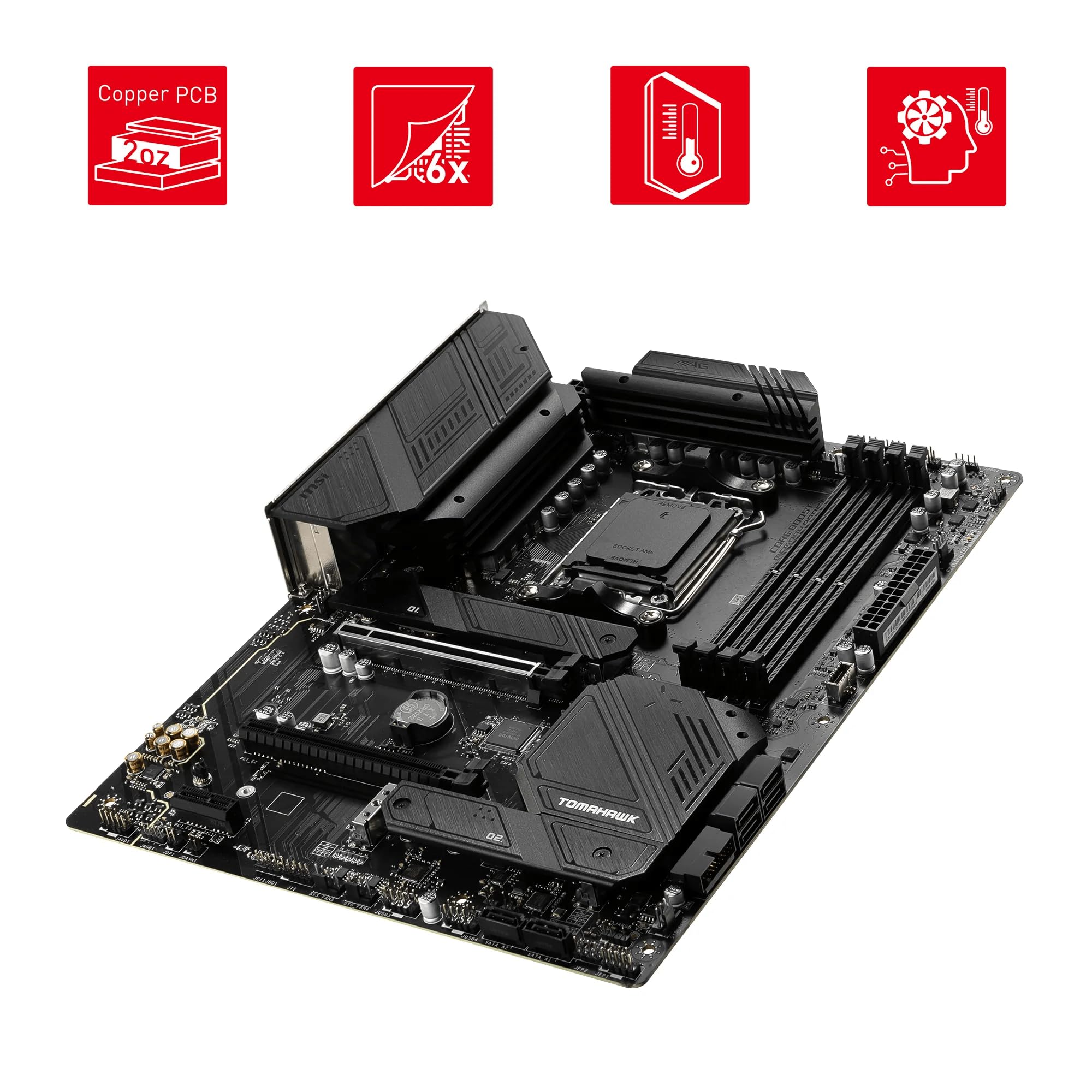

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

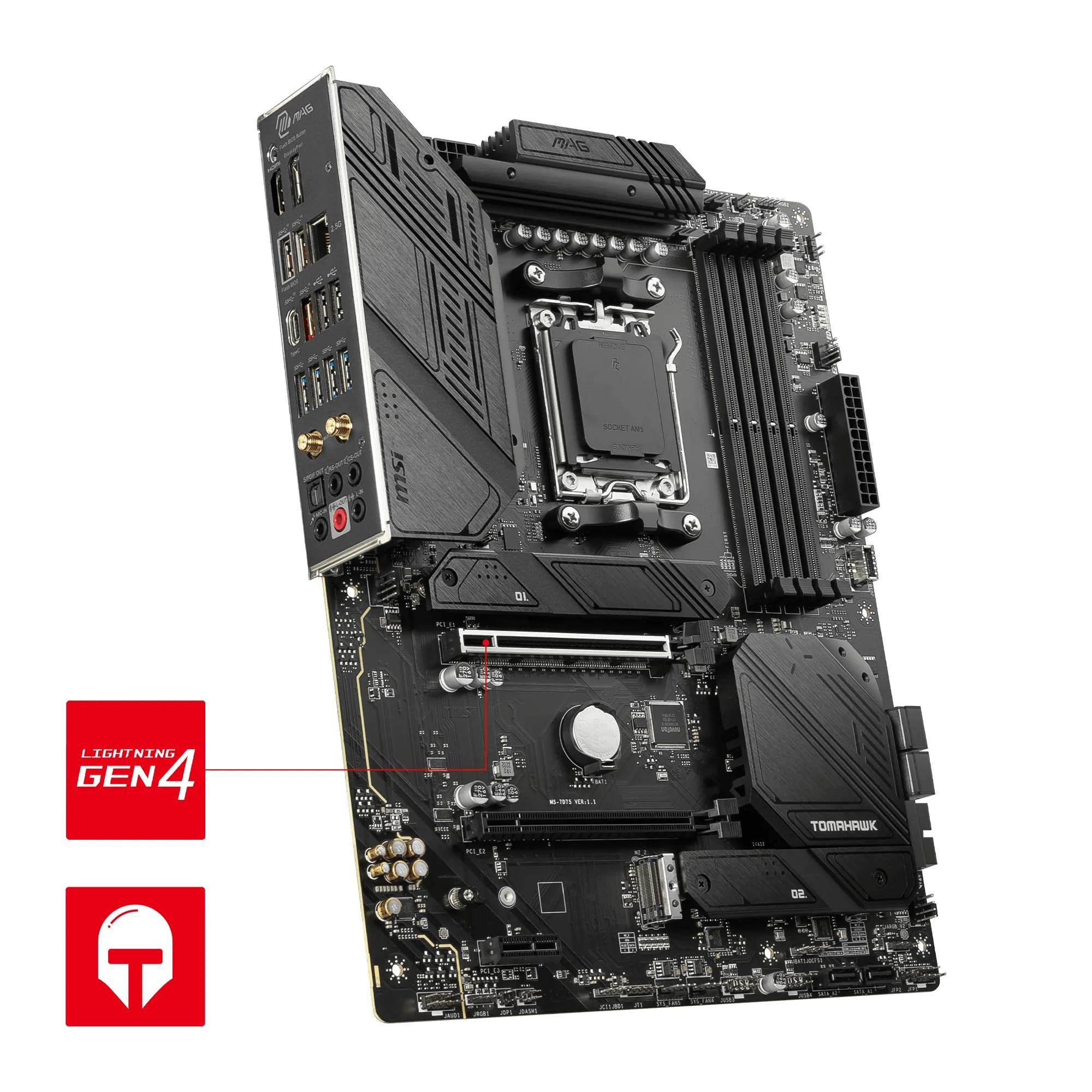

2 x PCI-e 4.0/3.0 x16 slots* (primary with Steel Armor)
*Supports x16/x4

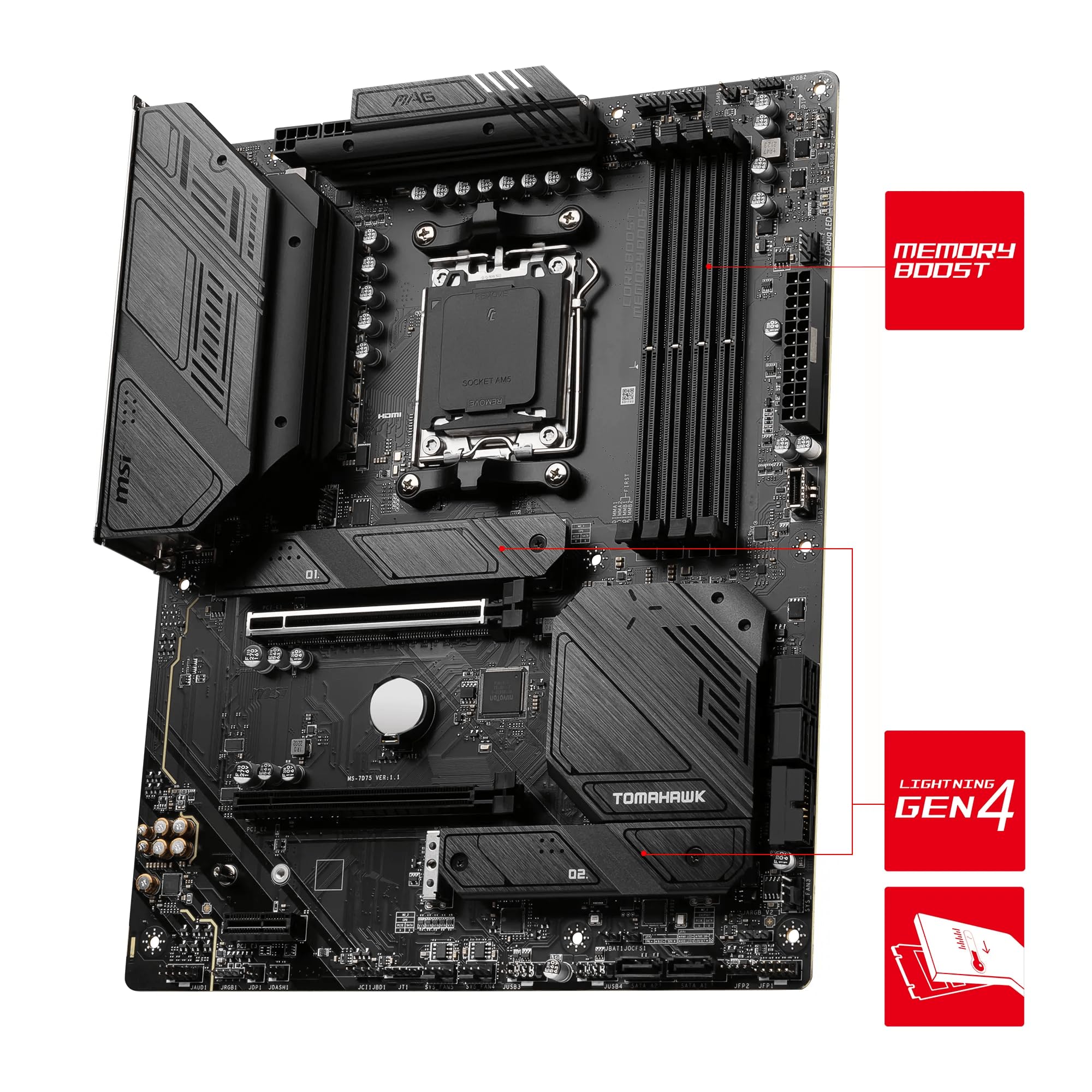

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6000 MHz, supports AMD EXPO.
The MAG B650 TOMAHAWK WIFI motherboard features MSI's latest M.2 slots:
3 x Gen4 x4 64Gb/s slots
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

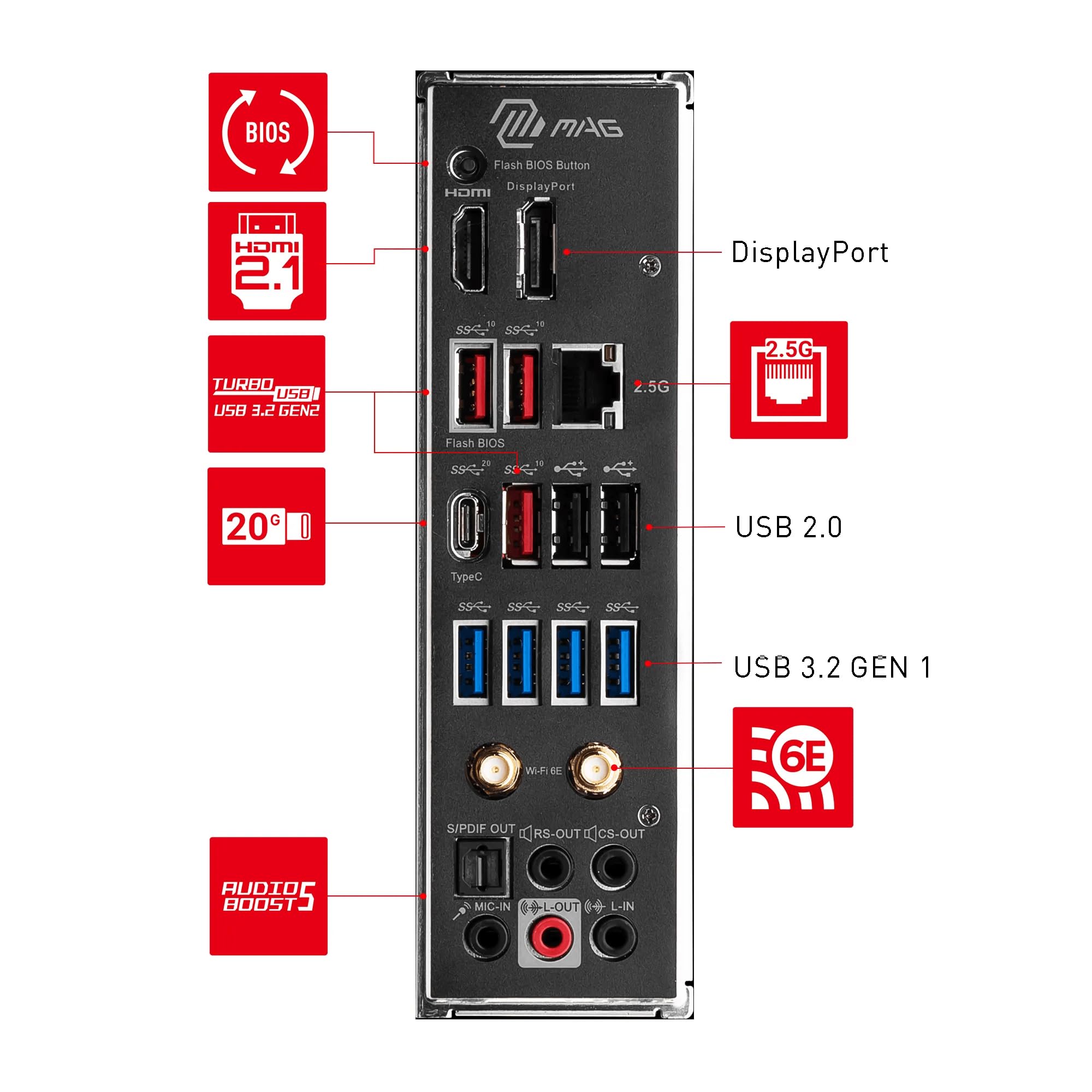

2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
USB Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B650 TOMAHAWK WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings:
1. Digital PWM IC
2. 14-Phase Duet-Rail CPU Power (80A)
3. 2-Phase SOC Power
4. 1-Phase MISC Power
