MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

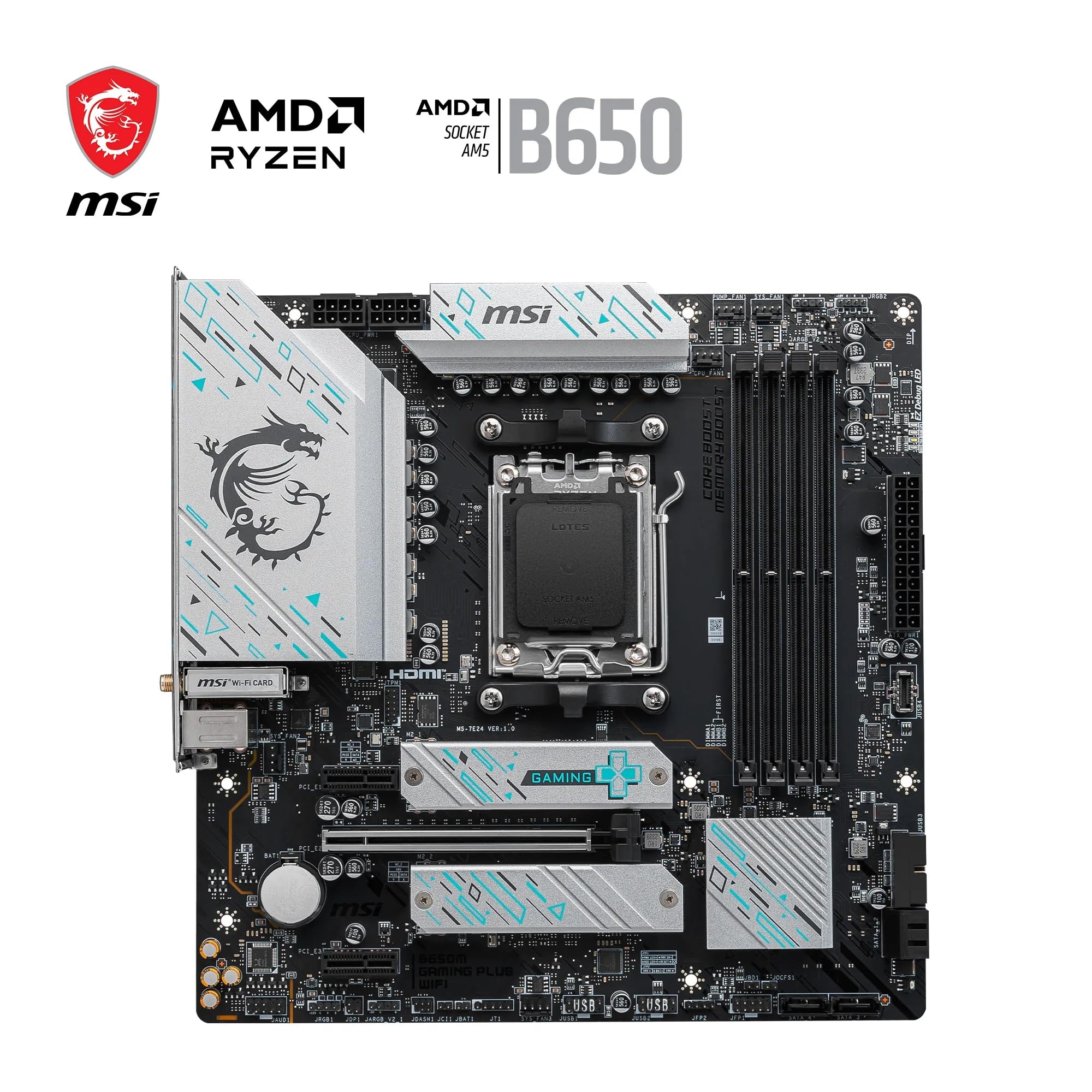

The B650M GAMING PLUS WIFI is a gaming oriented mATX motherboard constructed around the latest AMD B650 chipset that balances value with premium hardware.
The B650M GAMING PLUS WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 processors.
Form Factor: mATX
Socket Type: AM5
Chipset: AMD B650
With its dual 8 pin power connectors and exclusive Core Boost technology, the B650M GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 7200 MHz, supports AMD EXPO.

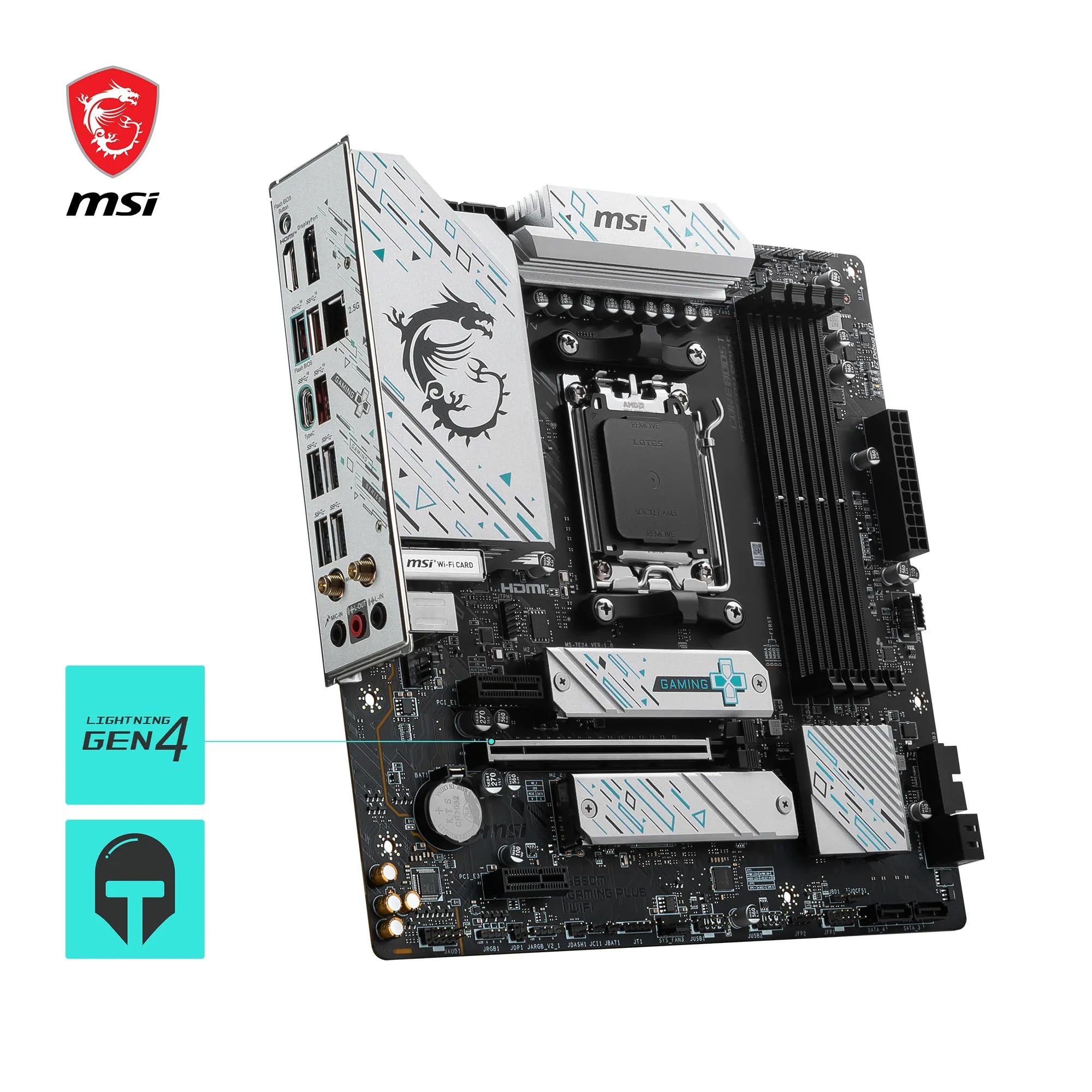

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 4.0 x16 slot (with Steel Armor)
2 x PCIe 3.0 x1 slots
The B650M GAMING WIFI motherboard features MSI's latest M.2 slots:
2 x Gen4 x4 64Gb/s slots
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

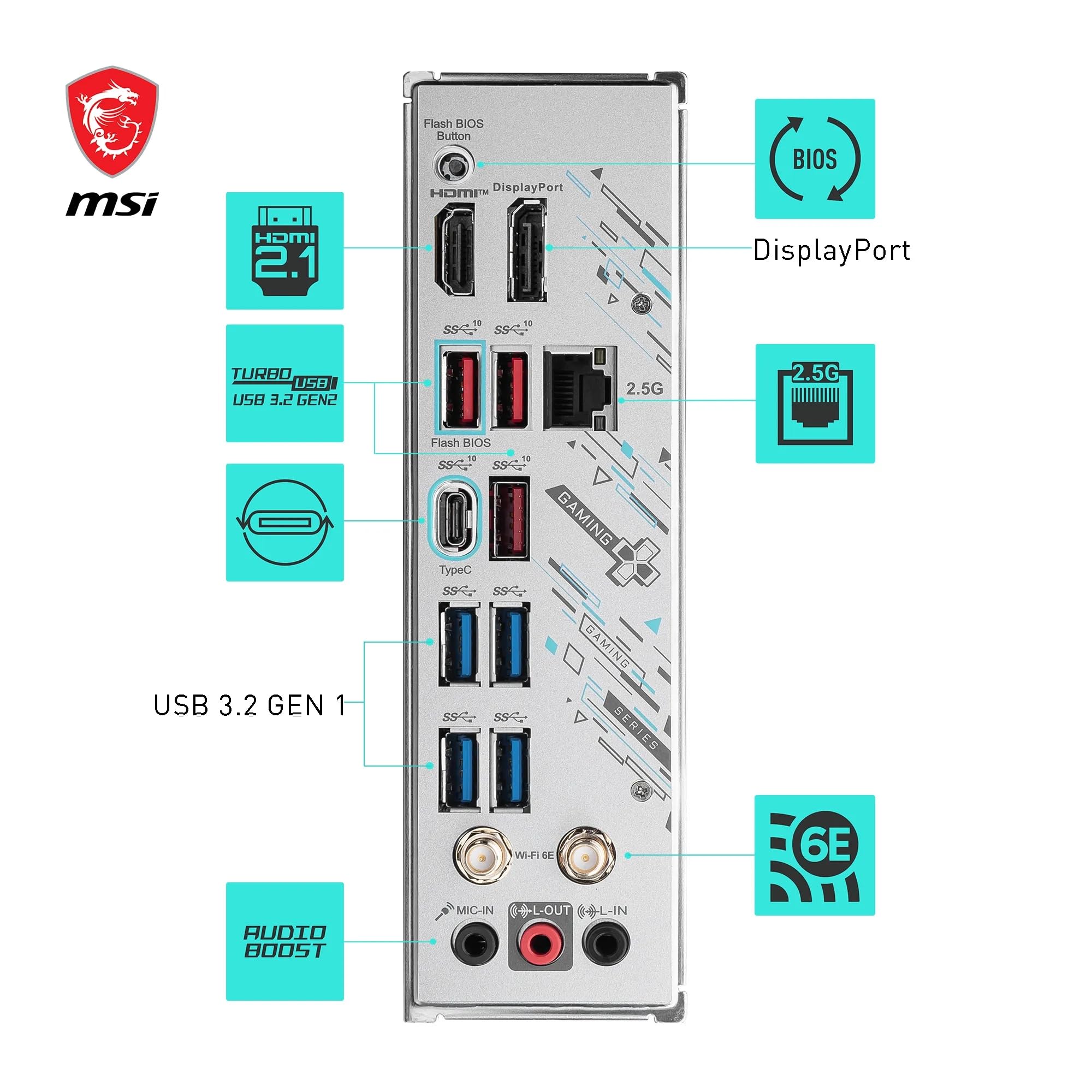

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
HD Audio: 8-Channel (7.1) HD Audio with Audio Boost
