| Memory clock speed | 6000 MHz |
| Platform | Windows 11 |
| Model name | B650 Gaming Plus WiFi |
| CPU model | Others |
| Memory storage capacity | 192 GB |
| RAM memory maximum size | 64 GB |
| Graphics card interface | PCI-Express x16 |
| Memory slots available | 4 |
| Product dimensions | 26.9L x 6.5W x 34.6H centimetres |
| Number of USB 2 ports | 2 |
| Total USB ports | 15 |
| Total HDMI ports | 1 |
| Manufacturer | MSI |
| Product Dimensions | 34.6 x 26.9 x 6.5 cm; 1.19 g |
| Item model number | 7E26-001R |
| Colour | Black |
| Form Factor | ATX |
| Processor Socket | Socket AM5 |
| Computer Memory Type | DIMM |
| Connectivity Type | Wi-Fi |
| Wireless Type | Bluetooth |
| Are Batteries Included | No |
| Lithium Battery Energy Content | 220 Milliampere Hour (mAh) |
| Lithium Battery Packaging | Batteries contained in equipment |
| Number Of Lithium Ion Cells | 3 |
| Item Weight | 1.19 g |
| Guaranteed software updates until | unknown |
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.
The B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, a convenient Wi-Fi solution and DDR5 memory support for gamers who want it all.
The B650 GAMING PLUS WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B650
With its dual 8 pin power connectors and exclusive Core Boost technology, the B650 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
1. Digital PWM IC
2. 12-Phase Duet-Rail CPU Power
3. 2-Phase SOC Power
4. 1-Phase MISC Power
VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.

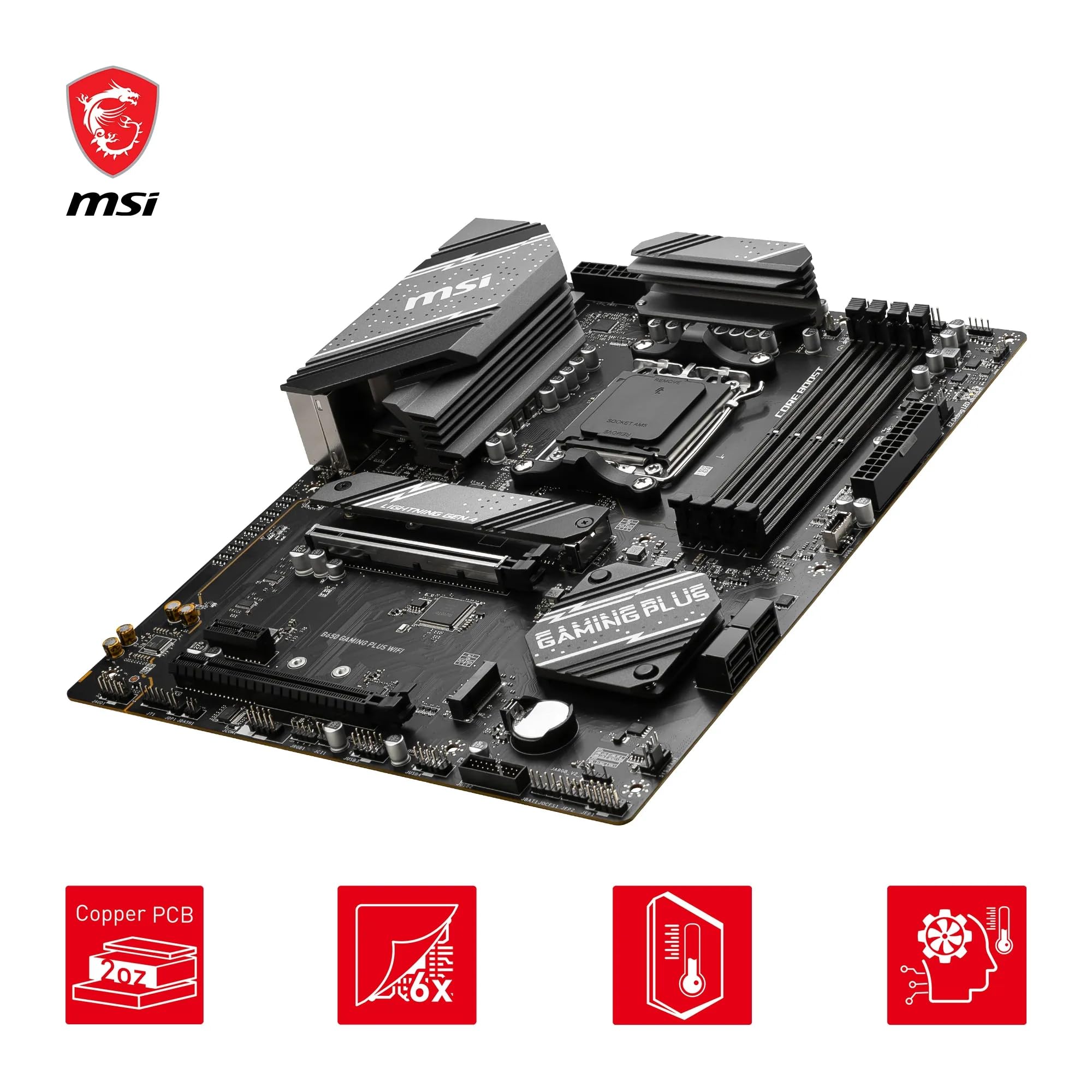

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

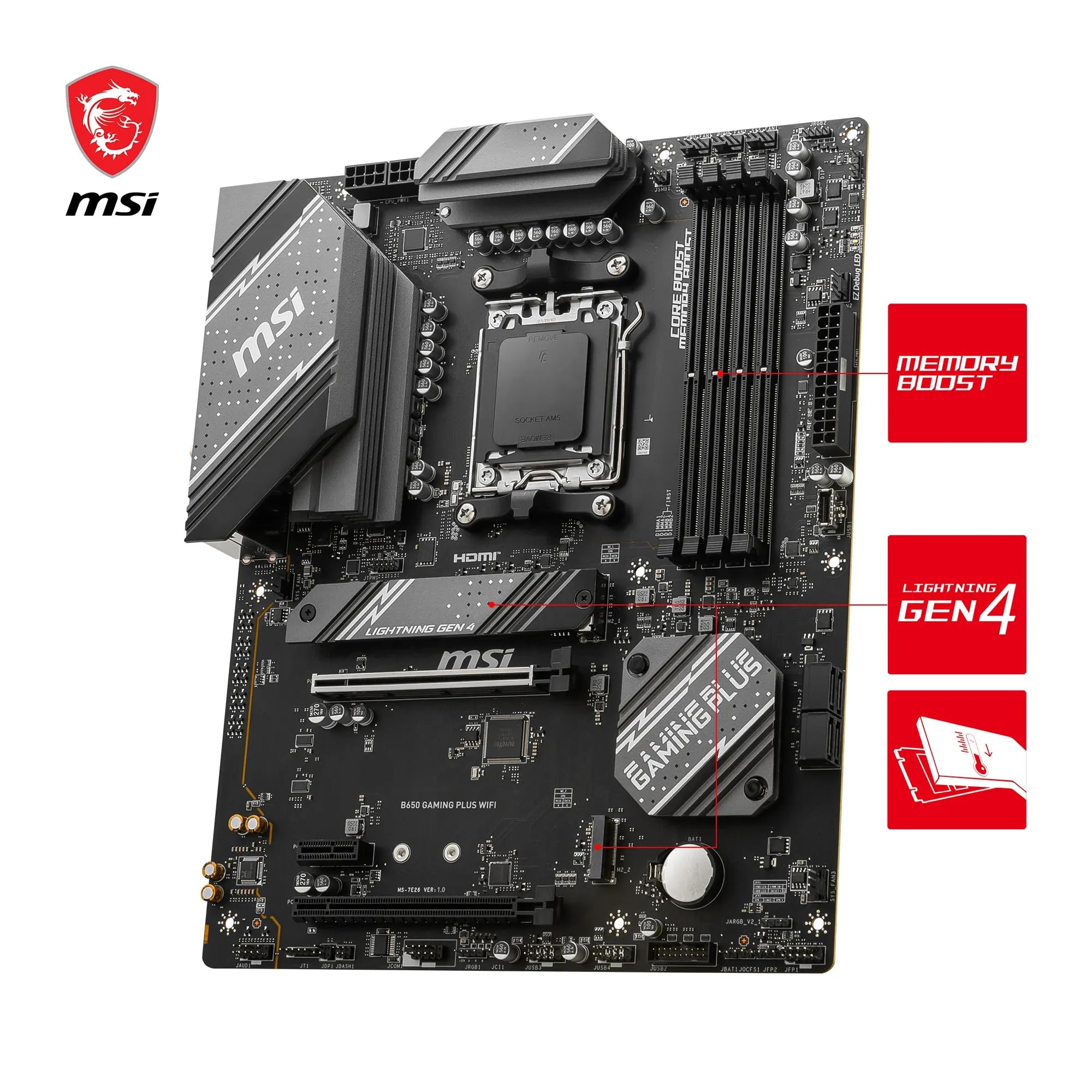

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6000 MHz, supports AMD EXPO.

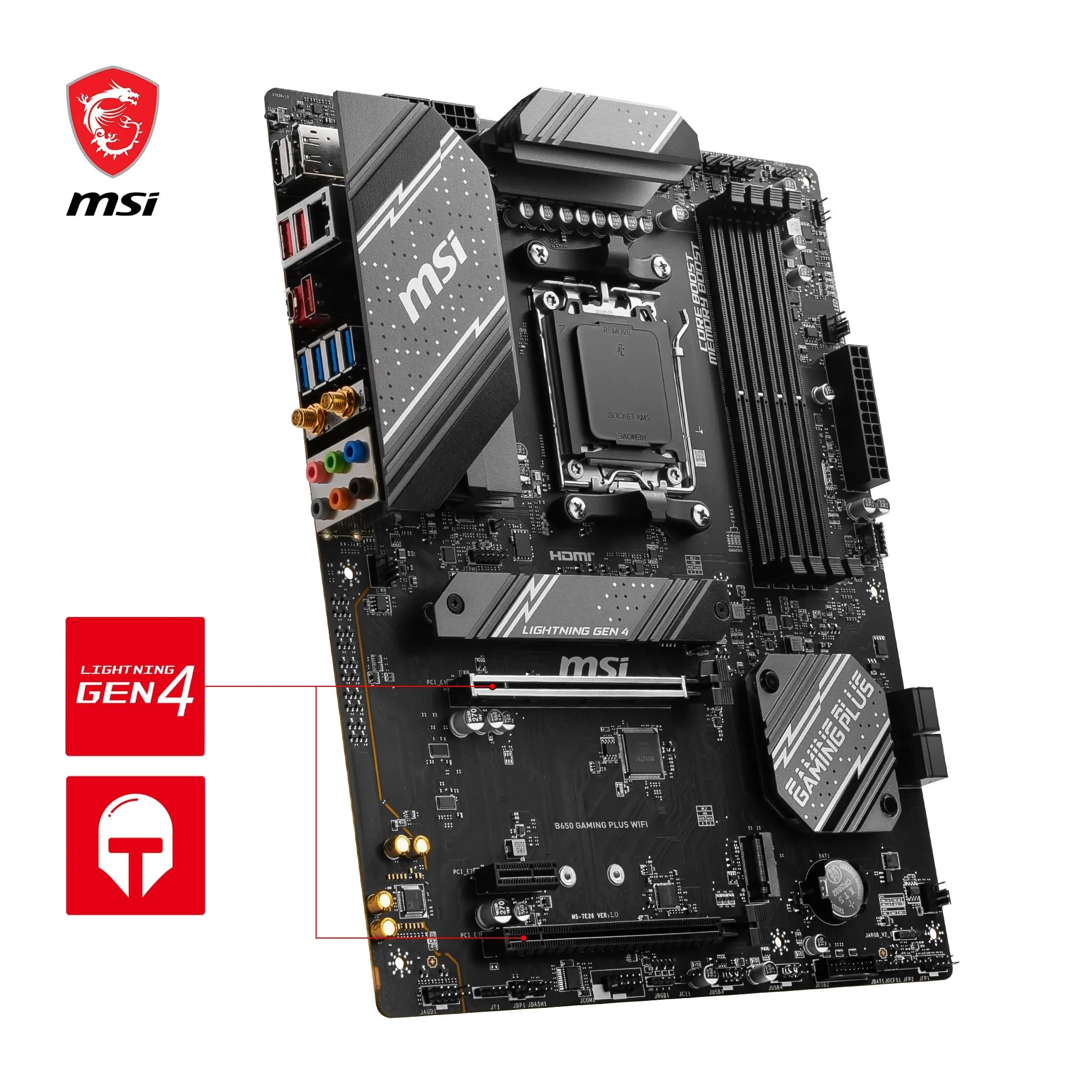

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
2 x PCI-e 4.0/3.0 x16 slots* (primary with Steel Armor)
*Supports x16/x4
The B650 GAMING PLUS WIFI motherboard features MSI's Gen4 M.2 slots:
2 x Gen4 x4 64Gbps slots*
*1 with M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps.
Wi-Fi 6E: Features the latest AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
