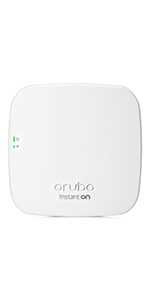

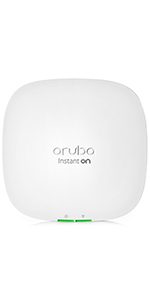

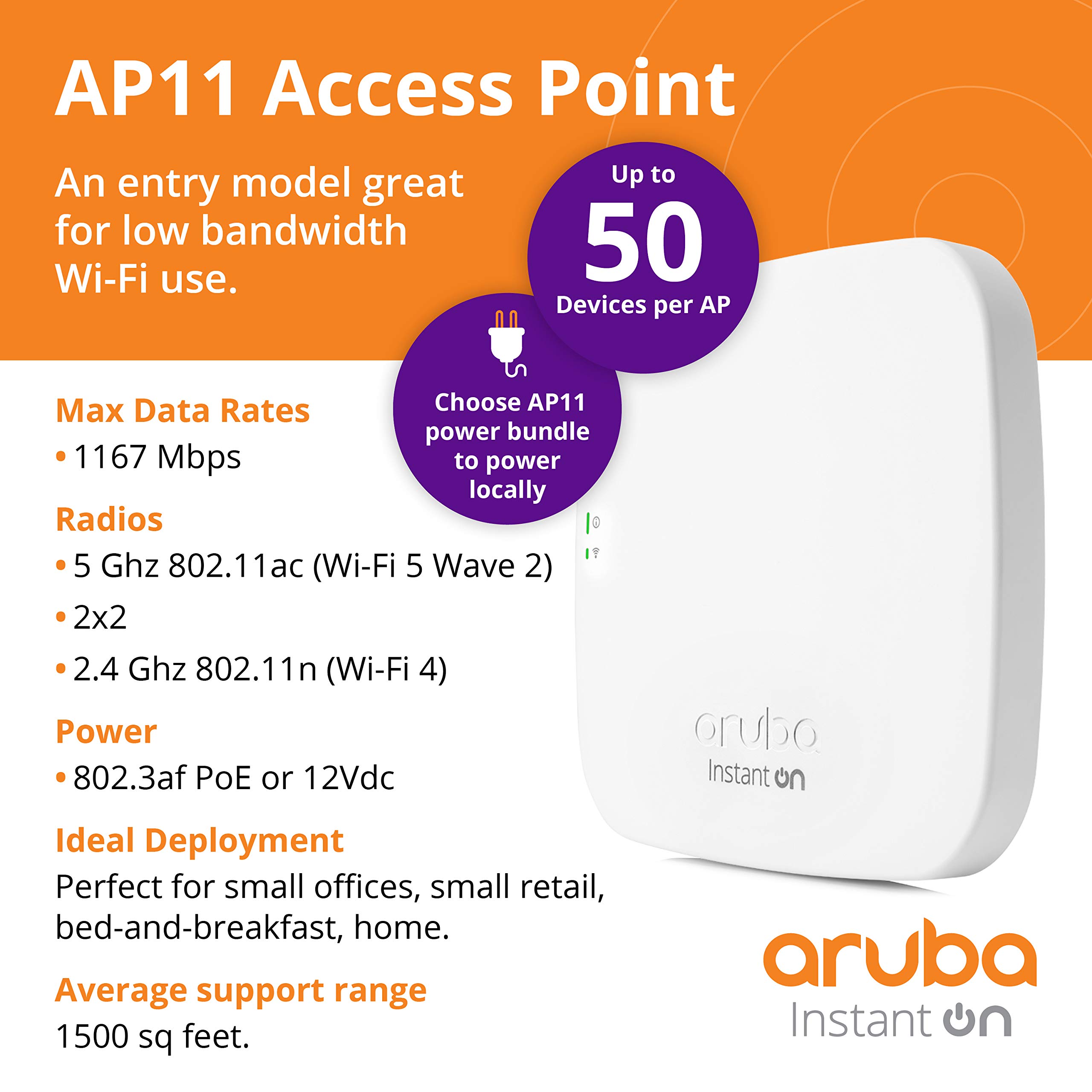

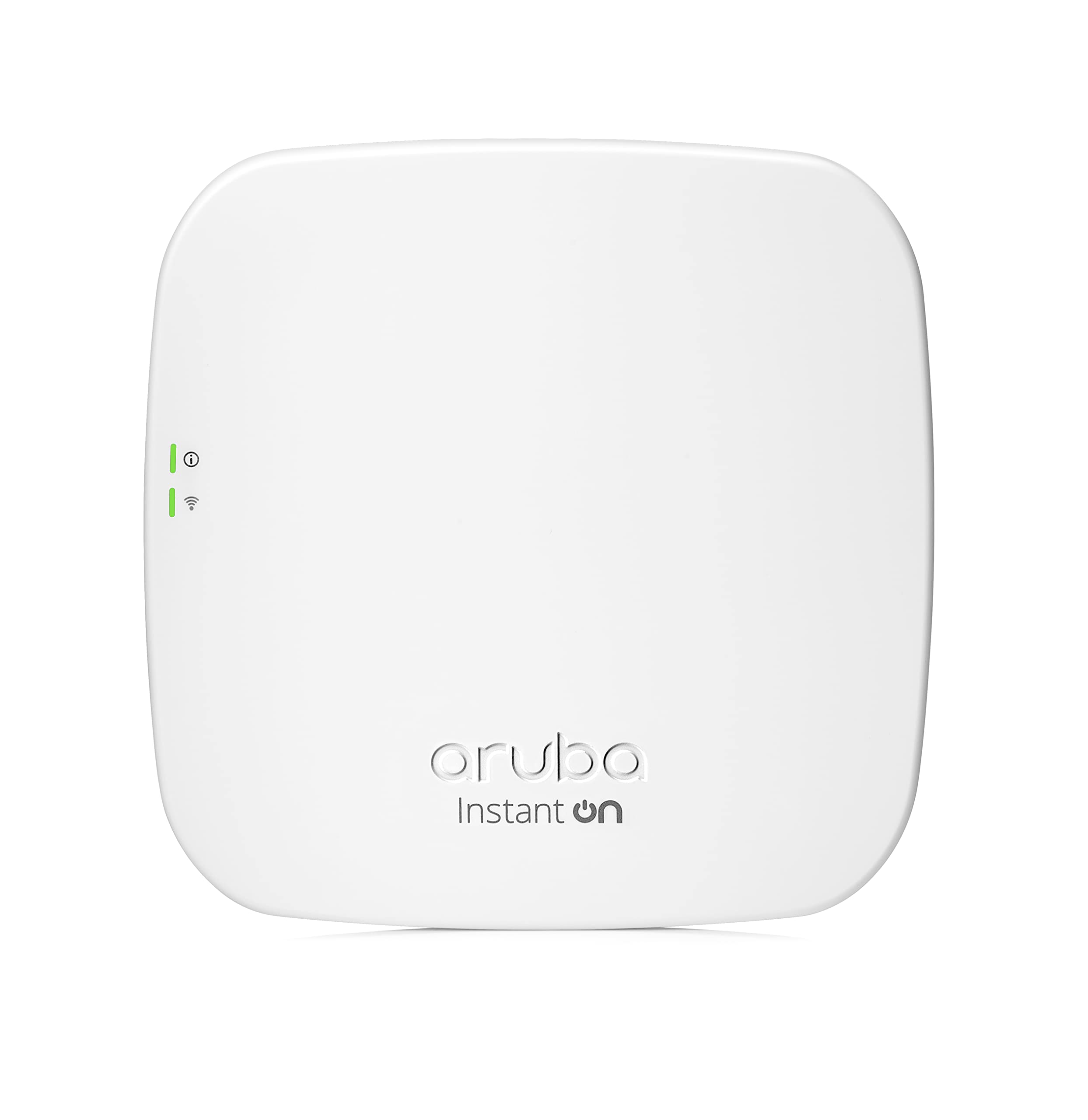

| Aruba Instant On AP11 | Aruba Instant On AP11D | Aruba Instant On AP12 | Aruba Instant On AP15 | Aruba Instant On AP22 | Aruba Instant On AP25 |
---|
| | | | | | |
---|
Customer Reviews | | | | | | |
---|
Price | USD 102.55USD102.55 | USD 149.03USD149.03 | USD 117.66USD117.66 | USD 171.51USD171.51 | USD 137.33USD137.33 | — |
---|

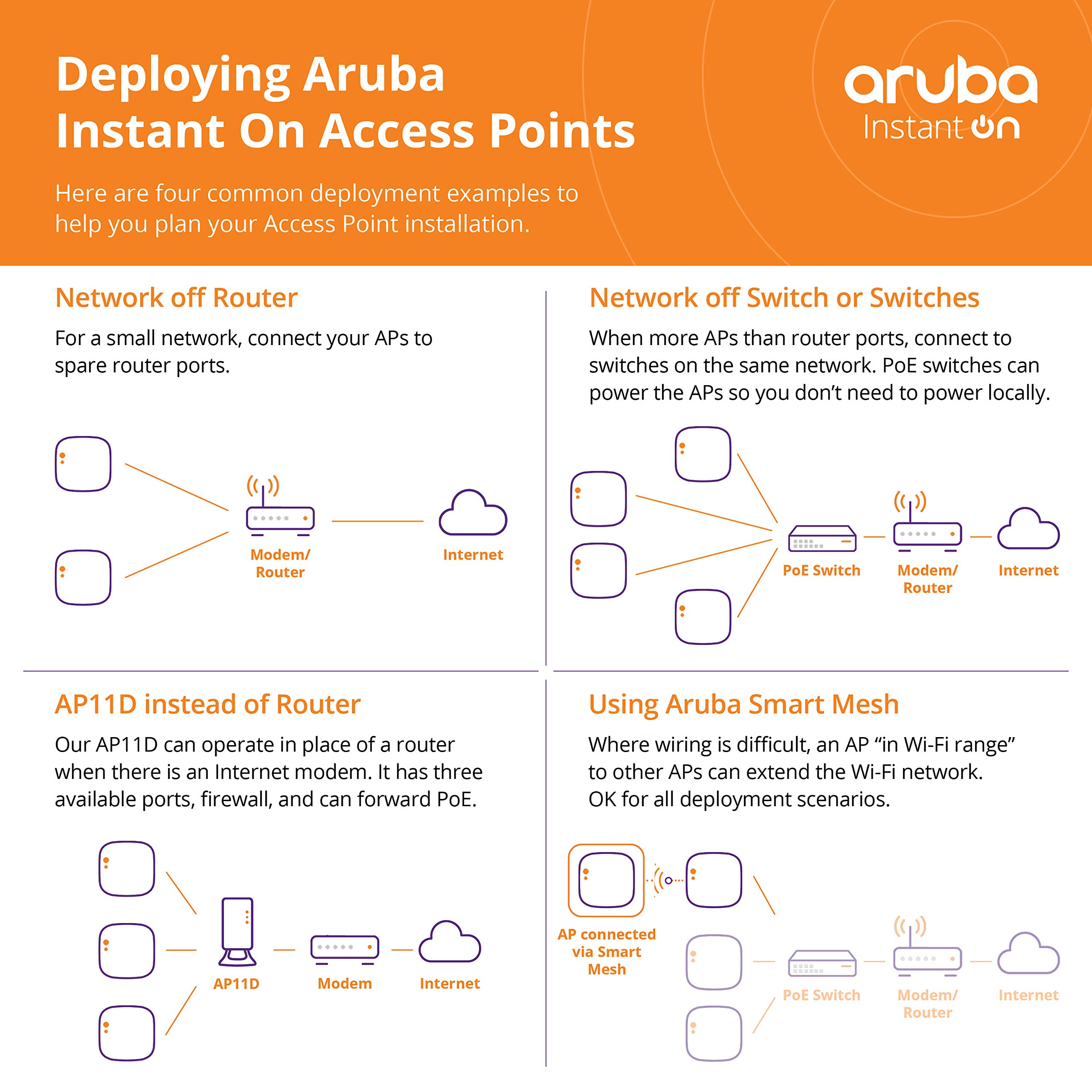

Ideal deployment | SOHOs, boutiques, retail shops | SOHOs, boutiques, retail shops | Medical offices, cafés, restaurants, or boutique hotels | Animation firms, tech start-ups | Boutique hotels, independent schools, restaurants, and professional offices | Gaming, boutique hotels, professional offices |
---|
Recommended max number of active devices per AP | 50 | 50 | 75 | 100 | 75 | 100+ |
---|
Max data rates | 1167 Mbps | 1167 Mbps | 1600 Mbps | 2033 Mbps | 1774 Mbps | 5374 Mbps |
---|
MIMO | 2x2 | 2x2 | 3x3 | 4x4 | 2x2 | 4x4 |
---|
Weight | 193g | 313g | 483g | 674g | 500g | 775g |
---|
Radios | 2.4 Ghz 802.11n (Wi-Fi 4); 5 Ghz 802.11ac (Wi-Fi 5 Wave 2) | 2.4 Ghz 802.11n (Wi-Fi 4); 5 Ghz 802.11ac (Wi-Fi 5 Wave 2) | 2.4 Ghz 802.11n (Wi-Fi 4); 5 Ghz 802.11ac (Wi-Fi 5 Wave 2) | 2.4 Ghz 802.11n (Wi-Fi 4); 5 Ghz 802.11ac (Wi-Fi 5 Wave 2) | 2.4 GHz 802.11ax (Wi-Fi 6); 5 GHz 802.11ax (Wi-Fi 6) | 2.4 GHz 802.11ax (Wi-Fi 6); 5 GHz 802.11ax (Wi-Fi 6) |
---|
Dimensions | 152mm (W) x 152mm (D) x 34mm (H) | 150mm (W) x 86mm (D) x 40mm (H) | 157mm (W) x 157mm (D) x 34mm (H) | 183mm (W) x 183mm (D) x 41mm (H) | 160mm (W) x 160mm (D) x 37mm (H) | 200mm (W) x 200mm (D) x 45mm (H) |
---|

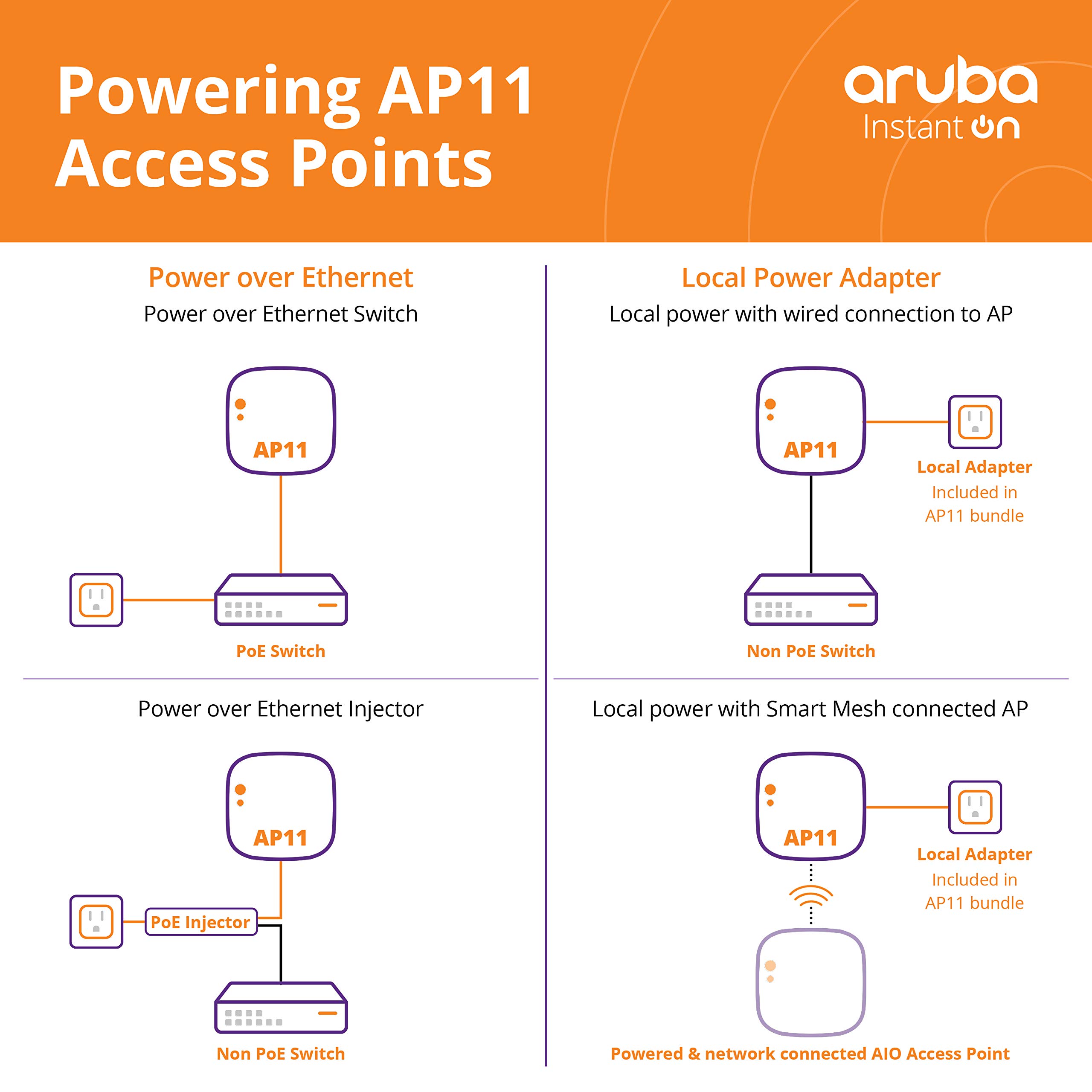

Power | 802.3af PoE, 10.1W Max, or 12Vdc | 802.3af PoE, 9.7W Max to 25.3W Max, or 48Vdc | 802.3af PoE, 13.0W Max, or 12Vdc | 802.3af PoE, 14.4W Max, or 12Vdc | 802.3af PoE, 10.1W Max, or 12Vdc | 802.3af PoE, 14.4W Max, or 12Vdc |
---|
