ELEGOO Relay Module 4 Channel DC 5V with Optocoupler for Arduino UNO R3 MEGA Project 1280 DSP ARM PIC AVR STM32 Raspberry Pi

Thương hiệu: ELEGOO

ELEGOO Relay Module 4 Channel DC 5V with Optocoupler for Arduino UNO R3 MEGA Project 1280 DSP ARM PIC AVR STM32 Raspberry Pi

Bán tại: Anh

4.5

Nhận ưu đãi lên đến 6% khi tham gia Fado VIPClub Giảm 1% trên đơn hàng (tối đa 200,000đ) khi thanh toán bằng FadoPay Đổi trả sản phẩm 24 giờ - Chi tiết

Giá về Việt Nam đã bao gồm các loại thuế phí, không phát sinh phụ phí

Nhập khẩu tiêu dùng

475,904đ | GIẢM 11%

446,430đ

Size Name

4 channels

8 channels

*Chiết khấu trực tiếp hấp dẫn cho Platinum và Super VIP. Nâng cấp ngay

Giá bạn thấy bằng giá bạn trả

Yên tâm mua sắm, giải tỏa rủi ro

Hàng chất lượng, rõ nguồn gốc

Sản phẩm nhập khẩu chính ngạch

Liên tục cập nhật hành trình

Miễn phí giao hàng trong nước

Cam kết giá bán niêm yết chính xác trên website

Bảo vệ quyền lợi Khách Hàng, hỗ trợ đổi trả nhanh chóng

Chất lượng đảm bảo, nguồn gốc rõ ràng, có đánh giá từ người mua và thẩm định độ uy tín người bán

An toàn, minh bạch hợp pháp, không sợ rủi ro

Theo dõi và cập nhật quá trình vận đơn thường xuyên

Miễn phí giao hàng trong nước, áp dụng cho đơn hàng từ 1,5 triệu

Thương hiệu ELEGOO là cái tên nổi tiếng được rất nhiều khách hàng trên thế giới chọn lựa. Sản phẩm ELEGOO RELAY MODULE 4 CHANNEL DC 5V WITH OPTOCOUPLER FOR ARDUINO UNO R3 MEGA PROJECT 1280 DSP ARM PIC AVR STM32 RASPBERRY PI là sự lựa chọn hoàn hảo nếu bạn đang tìm mua một món cho riêng mình.

Thông tin chi tiết

Contact type	Normally Closed
Current rating	10 Amps
Brand	ELEGOO
Operation mode	Automatic
Coil voltage	5 Volts
Contact current rating	10 Amps
Maximum switching voltage	250 Volts
Manufacturer	ELEGOO
Part number	UK-EL-SM-006
Item Weight	60 g
Product Dimensions	7.01 x 5.99 x 2.01 cm; 60 g
Item model number	UK-EL-SM-006
Size	4 channels
Batteries included?	No
Batteries Required?	No

Tính năng sản phẩm

Sản phẩm ELEGOO Relay Module 4 Channel DC 5V with Optocoupler for Arduino UNO R3 MEGA Project 1280 DSP ARM PIC AVR STM32 Raspberry Pi của thương hiệu ELEGOO với nhiều tính năng nổi bậc, là một sản phẩm được nhiều khách hàng trên thế giới lựa chọn.

Product Description

ELEGOO 4 Channel&8 Channel DC 5V Relay Module with Optocoupler

· Switching capacity available by 10A in spite of small size design for highdensity P.C. board mounting technique.

· UL,CUL,TUV recognized.

· Selection of plastic material for high temperature and better chemical solution performance.

· Sealed types available.

· Simple relay magnetic circuit to meet low cost of mass production. Widely used for Domestic appliance, office machine, audio, equipment, automobile, etc. ( Remote control TV receiver, monitor display, audio equipment high rushing current use application.)

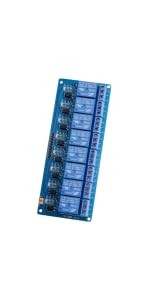

ELEGOO 8 Channel DC 5V Relay Module with Optocoupler for Arduino UNO R3 MEGA R3 Project

Power Supply : 5V

Load Voltage : AC 250V 10A,DC 30V 10A

Current Rating: Typical current for 4-channel relay is around 400mA; for 8-channel relay, approximately 700mA. Strongly recommend using an external 5V 1A power supply and common ground with the control board.

Total Size : 134mm x 52mm x 17mm/ 5.3" x 2.0" x 0.7" (L*W*H)

Mounted Hole Size : 3mm/ 0.12"

Upper Mounted Hole Center Distance : 129.2 x 46.7mm/5.1" x 1.8"(L*W)

Lower Mounted Hole Center Distance : 128.5 x 46.7mm/5.1" x 1.8"(L*W)

Material: Electric Part

Weight: 122g

Notice: The input signal trigger mode is a low-level effective mode that ‘closes’ the normally open (NO) switch at low-level input. The advantages of a low-level drive, are the system power reset, the load will not work, and high security.

..................FAQ..................

Q1: Why some channels of the four-channel/eight-channel relay module do not work?

A1: The relay module is triggered by a low-level voltage. The relay module requires nearly 70ma current per channel. This problem will occur if the power supply is insufficient. Please use a 5V/1A or higher power supply to power the relay module.

Q2: Is the relay module a high-level trigger or a low-level trigger? What is the working voltage? What is the operating current?

A2: This module is low-level triggered, and the current on the IO pin is less than 2ma when low-level triggered. The module is compatible with 3.3V TTL level, but the power supply voltage must be 5V, and the operating current of one relay is 70ma.

Q3: Cannot insert the relay into the breadboard?

A3: You have to bend the middle pin of the relay slightly to the right before you can insert it into the breadboard.

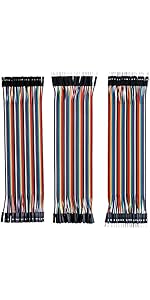

	ELEGOO Relay Module DC 5V	ELEGOO DC 5V Relay Module	ELEGOO UNO R3 Board	ELEGOO Multicolored Dupont Wire	ELEGOO 830 Points Breadboard	ELEGOO Upgraded 37 in 1 Sensor Modules Kit

Customer Reviews	388	388	244	13,465	1,174	532
Price	USD 9.82	USD 13.51	USD 18.42	USD 8.59	USD 12.28	USD 36.86
Compatibility with Arduino	✓	✓	✓	✓	✓	✓
Amount	4 Channels	8 Channels	1 PCS	120 PCS	3 PCS	37 PCS
Occasion	Circuit protection, high power and automation control	Circuit protection, high power and automation control	Standard entry-level development board, suitable for basic experiments and learning	Connection to breadboards, easy for prototyping and development boards	Can be used for electronic circuit experiments without soldering	Collect and sense data from the external or internal environment

Mô tả

Thông tin chi tiết sản phẩm:

5V Active Low Operation: This relay module operates at 5V and should not be powered by 3.3V, as it may not drive the relays effectively. Ensure the power supply current exceeds 1A for reliable performance.
High Current Handling: Each relay can handle maximum contact ratings of AC250V 10A and DC30V 10A, making it suitable for controlling various appliances and devices requiring high current. Working status indicator lights are conducive for the safety use
Standard Microcontroller Interface: Features a standard interface for direct connections with microcontrollers such as Arduino IDE, Raspberry Pi, STM32, AVR, PIC, and ARM, allowing for easy integration into projects.
GPIO Low-Level Logic Control: This 4-channel relay module utilizes low-level logic voltage to drive the relays, which reduces power consumption and protects the control board from damage. This allows ESP32 and Raspberry Pi GPIOs to directly control the relays without the need for external transistors or logic-level converters.
Applications: Widely used for all MCU control, industrial sector, PLC control, smart home control.

Xem thêm
