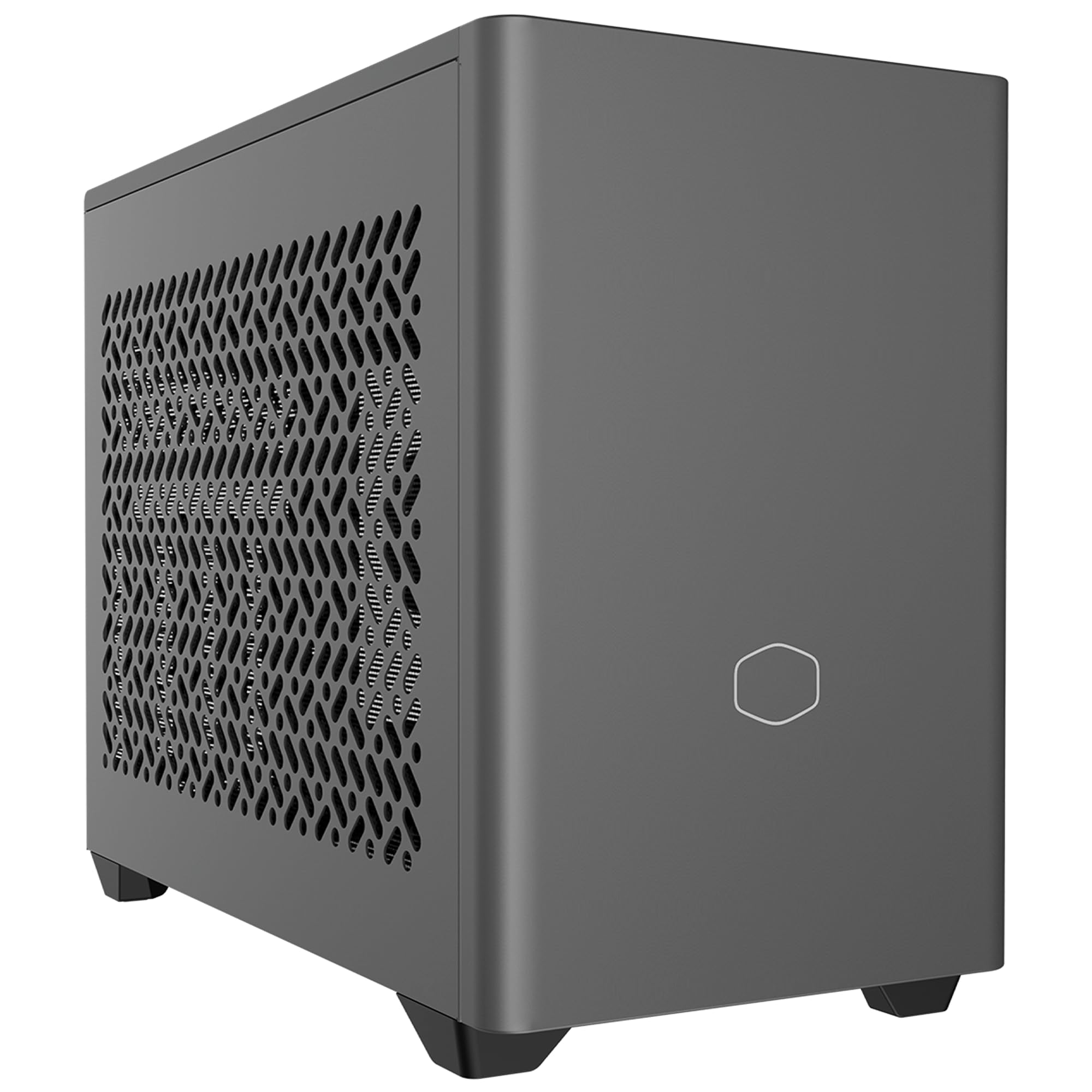

The Cooler Master NR200P MAX V2 is an enhanced variant of the popular original with improved ventilation, an upgraded 850W ATX 3.0 compliant PSU with 90-degree 12VHPWR cable, expanded GPU capacity, and 20Gbps USB 3.2 Gen 2x2 Type-C connectivity.
The NR200P MAX V2 retains all the core features of its iconic predecessor including high-quality materials, easy-to- build chassis, compact form, and excellent airflow.
Both the left* and right perforated side panels feature Cooler Master's NCORE pattern, designed to enhance ventilation capacity by up to 30% for even better airflow and heat dissipation.

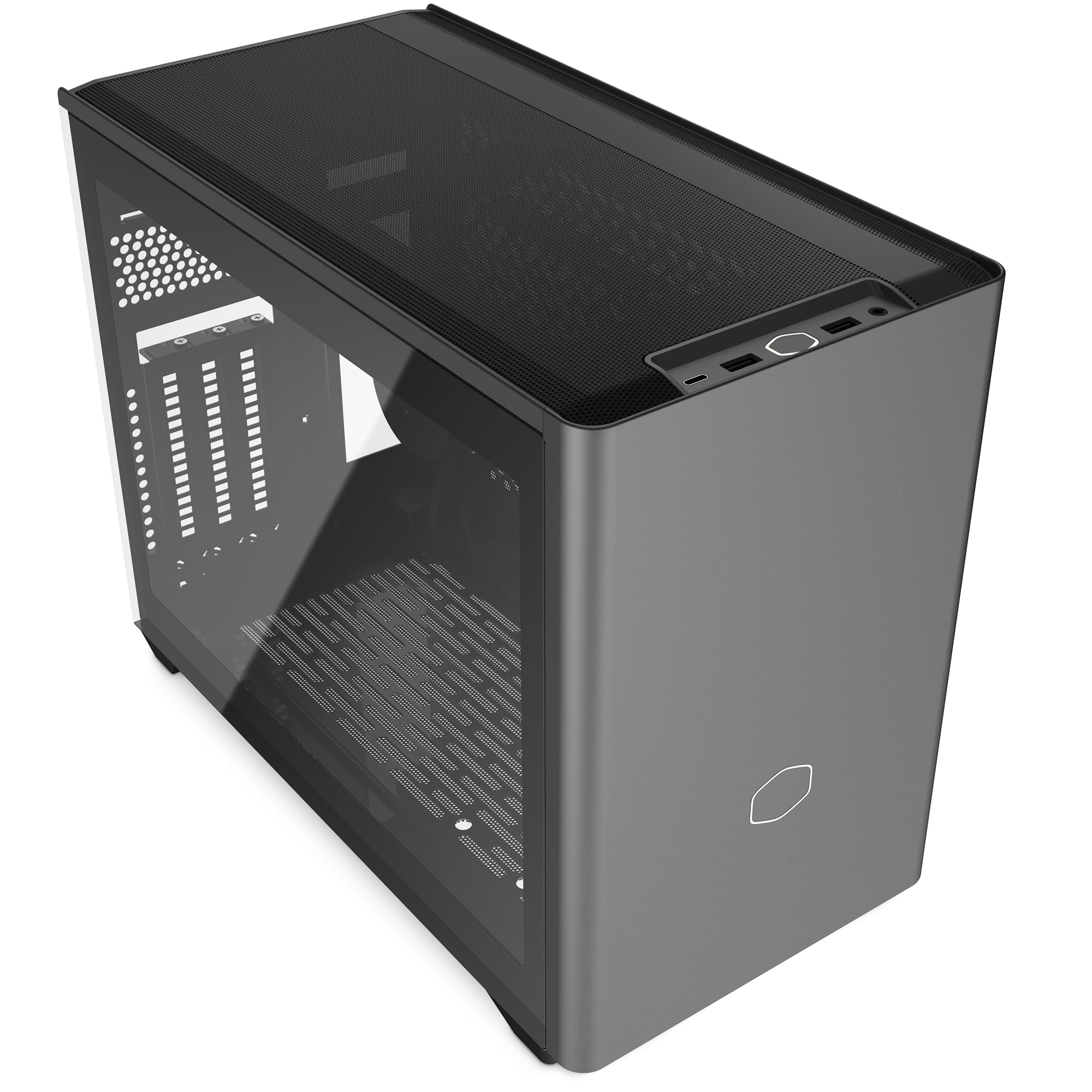

*The left side panel can be exchanged for a tempered glass option (included) for full system display.
NR200P MAX V2 features a new front panel bracket cut-out that supports extra-large graphics cardsincluding most RTX 4090 series GPUs:
As next-gen systems become increasingly power hungry, the NR200P MAX V2 includes an ATX 3.0 compliant, 850W 80-PLUS Gold certified, SFX PSU with custom-length sleaved cables.
Includes a 12VHPWR cable with 90-degree connector for high-end graphics cards.
Unlike its predecessor, the NR200P MAX V2's front I/O includes a high-speed 20Gbps USB Type-C port:

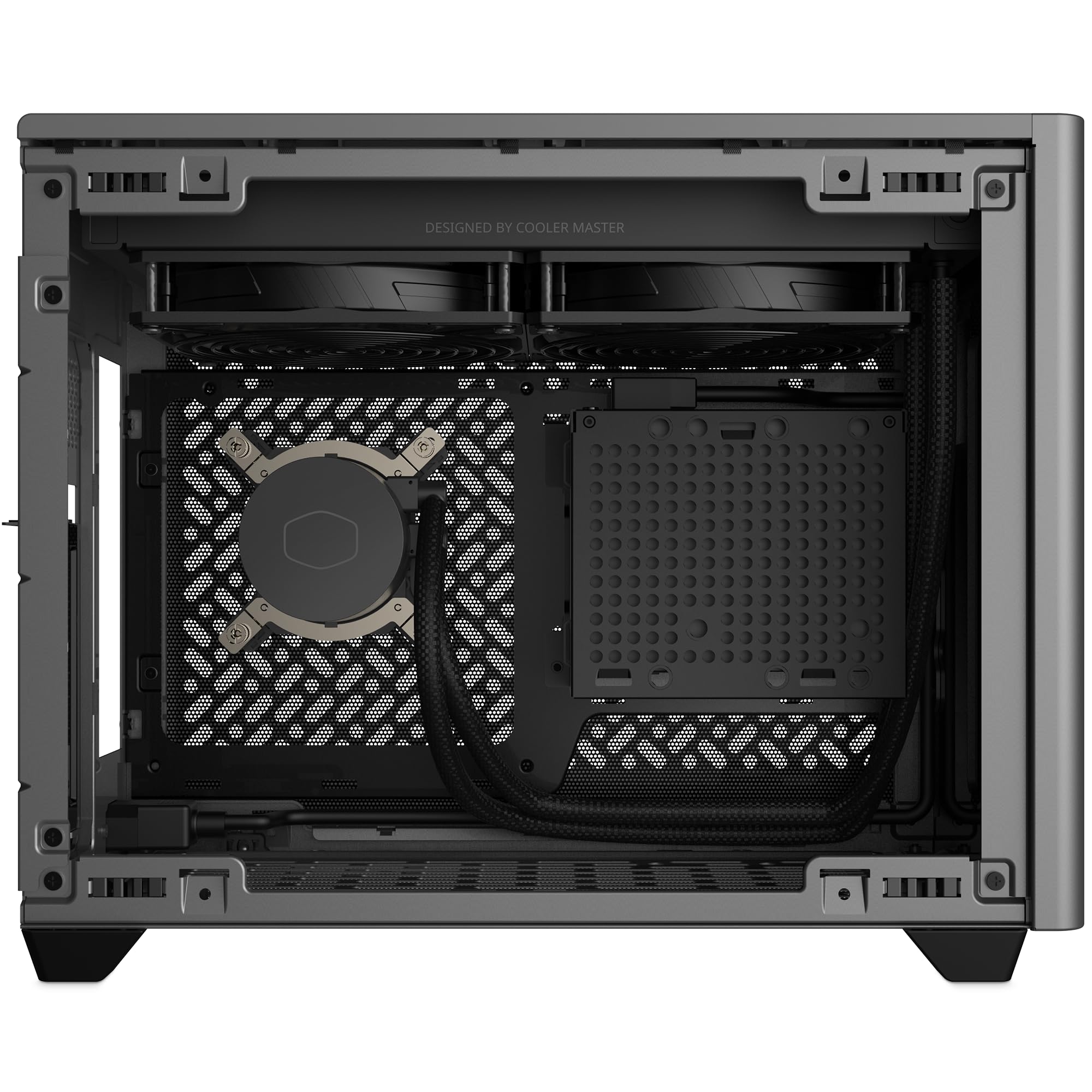

The NR200P MAX V2 is a compact SFF case outfitted with pre-installed AIO thermal and SFX power delivery system designed to support high-end mini-ITX systems:
*Supports Intel LGA 1700 / 1200 / 1156 / 1155 / 1151 / 1150 / 2066 / 2011-v3 / 2011
*Supports AMD AM5 / AM4 / AM3+ / AM3 / AM2+/ AM2 / FM2+ / FM2 / FM1

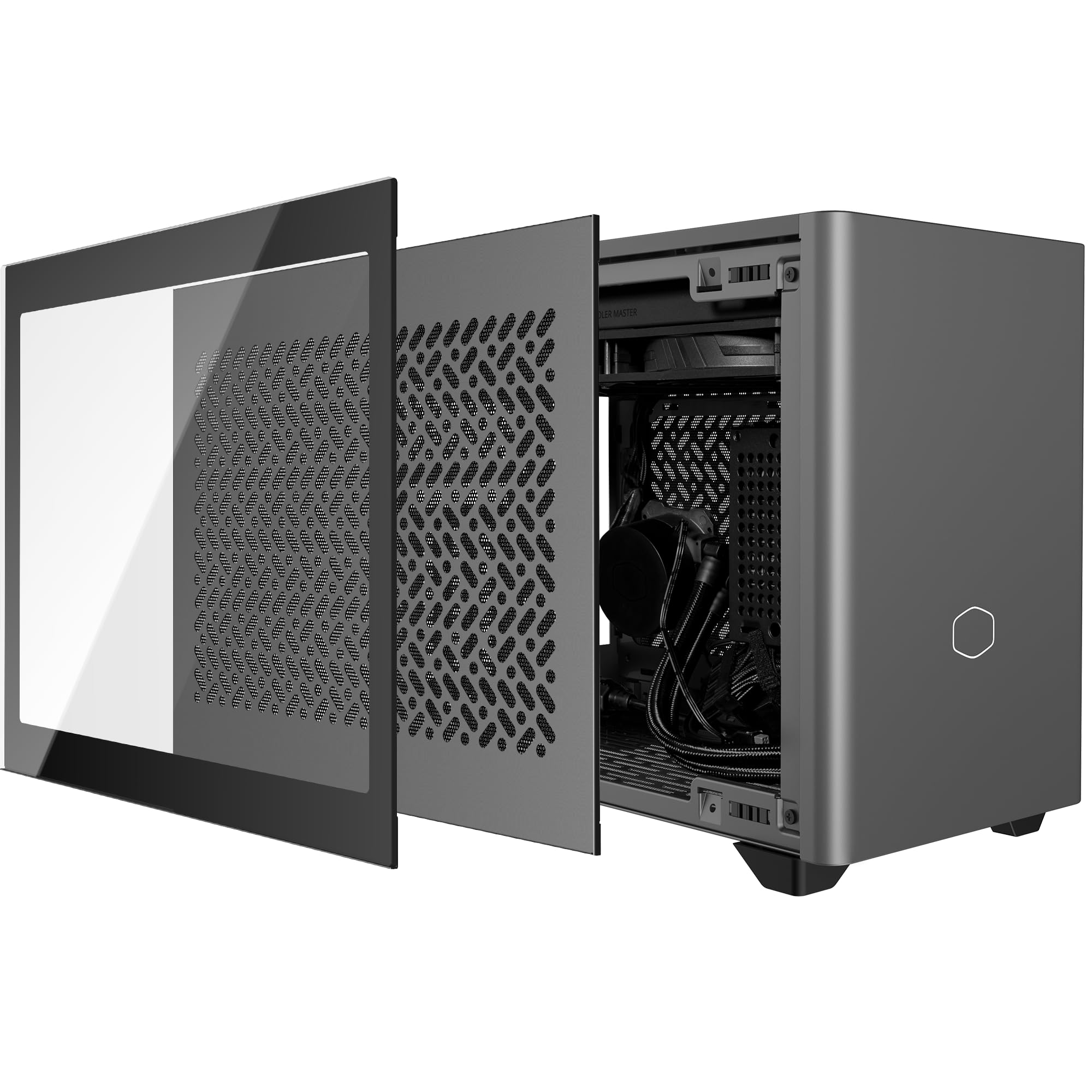

Each of the exterior panels can be removed for easier component installation and cable management (top/bottom/left/right with dust filters), while the inner frame can be further disassembled for advanced access and freedom of customization when building complex systems.
Includes three dedicated 2.5" drive bays, and two optional 3.5" drive bay mounting locations.
A removable PCIe expansion slot panel at the back greatly simplifies the process of maneuvering and mounting a large graphics card into a SFF case.
Includes a custom-length PCIe 4.0 riser cable and a tiny height-adjustable mini-stand to prevent graphics card sag.
The NR200P MAX V2 is designed to take the headache out of cable management:
 NR200P MAX (UK) | NR200P MAX V2 (UK) |  NCORE 100 MAX (UK) |  NCORE 100 MAX Bronze (UK) | |
|---|---|---|---|---|
| Customer Reviews | 60 | 60 | 60 | 60 |
| Form Factor | SFF (377 x 185 x 292mm, 18.3L) | SFF (372 x 185 x 292mm, 18.325) | SFF Tower (Standard: 155 x 212 x 481mm, 15.8L) | SFF Tower (Standard: 155 x 212 x 481mm, 15.8L) |
| Motherboard Capacity | Mini-ITX (max. 170 x 180mm) | Mini-ITX (max. 170 x 180mm) | Mini-ITX | Mini-ITX |
| Graphics Card Capacity | Max. 336 x 75 x 160mm (incl. power connector) | Max. 357.6 x 73 x 160mm (incl. power connector) or 334 x 80 x 160mm | Standard: 337 x 62 x 180mm, Expanded: 357 x 79 x 180mm (incl. power connector) | Standard: 337 x 62 x 180mm, Expanded: 357 x 79 x 180mm (incl. power connector) |
| Included Accessories | PCIe 4.0 x16 Riser Cable - 35mm | PCIe 4.0 x16 Riser Cable - 35mm, mini-stand for GPU | PCIe 4.0 x16 Riser Cable - 240mm | PCIe 4.0 x16 Riser Cable - 240mm |
| Included AIO CPU Cooler | 280mm Radiator with 2 x 140mm fans | 280mm Radiator with 2 x 140mm fans | Custom 120mm Radiator (38mm thick) with enhanced 120mm PWM Fan (max. 2400RPM) | Custom 120mm Radiator (38mm thick) with enhanced 120mm PWM Fan (max. 2400RPM) |
| Included PSU | V850 SFX Gold 850 Watt (modular) | V SFX Gold 850W ATX 3.0 (modular) | V SFX Gold 850W ATX 3.0 (modular) | V SFX Gold 850W ATX 3.0 (modular) |
| Storage Bays | 1 x 3.5", 2 x 2.5" | 2 x 3.5", 2 x 2.5" | 1 x 2.5" | 1 x 2.5" |
| Side Panels | 1 x Tempered Glass, 1 x Perforated Steel | 1 x Tempered Glass, 1 x NCORE Perforated Steel | Perforated Anodized Aluminium (expandable) | Perforated Anodized Aluminium (expandable) |
| Dust Filters | Bottom, Left, Right, Top Panels | Bottom, Left, Right, Top Panels | Side, Top Panels | Side, Top Panels |
| I/O Connectivity | 2 x USB 3.2 Gen 1 Type-A (5Gbps), 3.5mm Audio jack (combo) | 1 x USB 3.2 Gen 2x2 Type-C (20Gbps), 2 x USB 3.2 Gen 1 Type-A (5Gbps), 3.5mm Audio jack (combo) | 1 x USB 3.2 Gen 2x2 Type-C (20Gbps), 2 x USB 3.2 Gen 1 Type-A (5Gbps), 3.5mm Audio jack (combo) | 1 x USB 3.2 Gen 2x2 Type-C (20Gbps), 2 x USB 3.2 Gen 1 Type-A (5Gbps), 3.5mm Audio jack (combo) |
