Building a PC is a highly personalized journey. We know that components are carefully chosen based on performance, functionality, and aesthetic preference. Your personality is embedded in each of those choices, transcending from hardware to an immersive, custom-built experience. From custom PCs to all-out gaming rooms, we encourage every decision to reflect who you are.
All the external panels (excluding the bottom panel) employ tool-free pin-to-clip fasteners.
Never has building or replacing components been easier in a cubic / shoebox mini-ITX case.

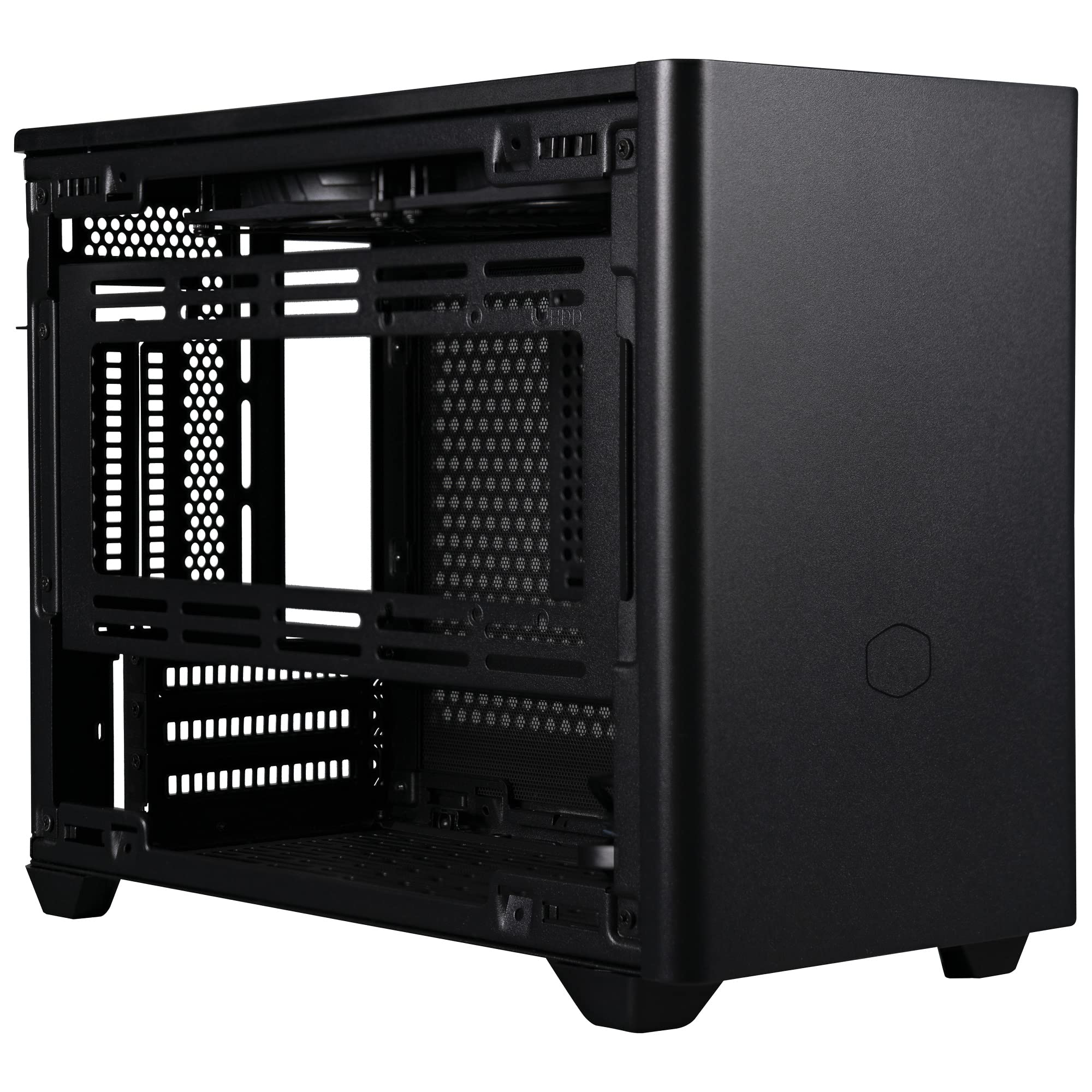

The case can be disassembled all the way down to its modular elements.
This makes small form factor (SFF) system installation far less fiddly, especially when maneuvering components like GPU cards (rear cutout included).

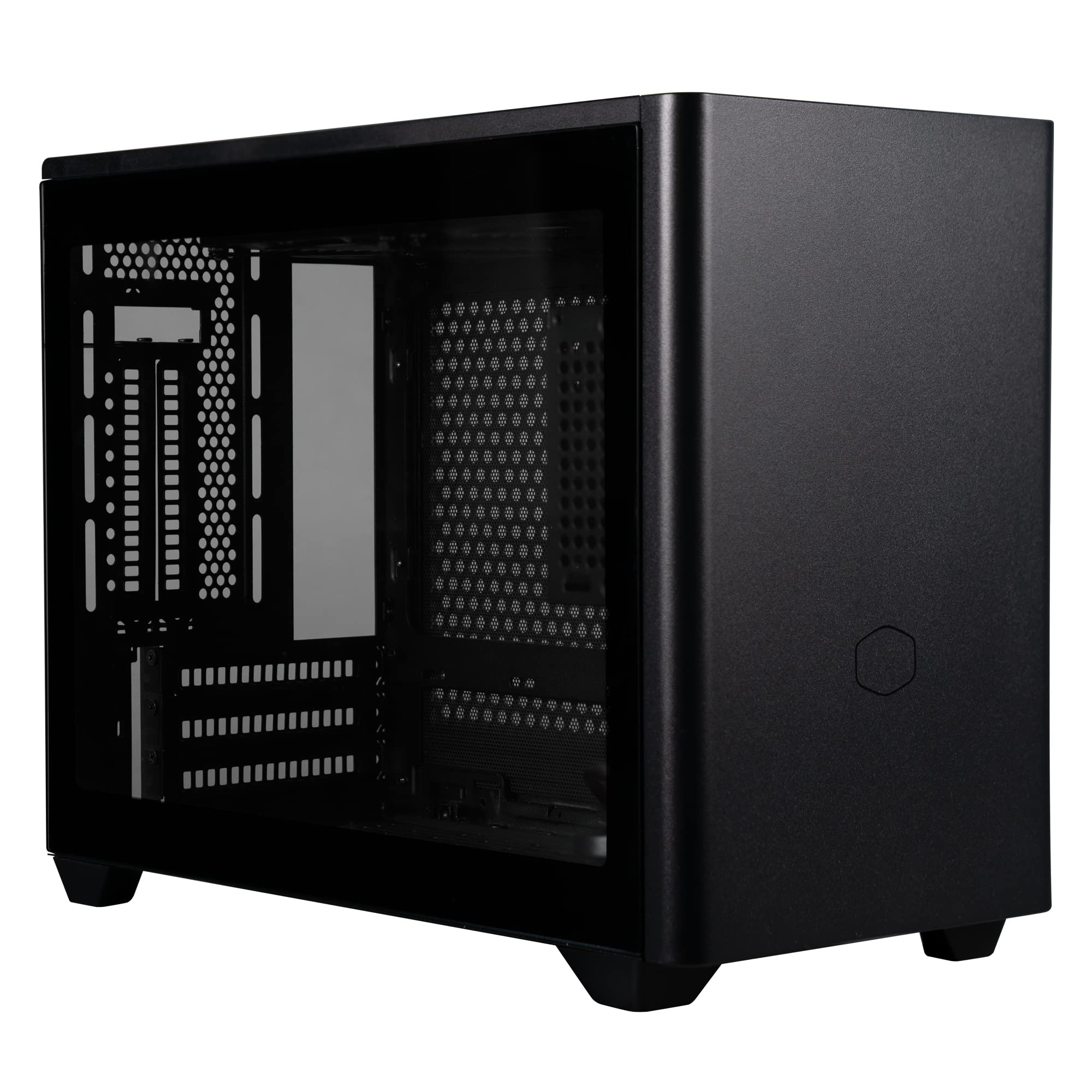

The NR200P offers 2 side panel options, each with its own advantages:
With its powder-coated cold rolled steel panels, the case can handle a few bumps over time, and includes a Kensington lock to make it harder for others to 'borrow' without permission.
The I/O panel features 2 x USB 3.2 Gen 1 ports and a 3.5mm headset jack (audio & mic).
A Side-Mounted PSU configuration enables SFX or SFX-L power supply units, and allows for cleaner cable management (hook-and-loop straps underneath the bracket). This is a good layout for displaying graphic cards vertically or showing off RGB lighting through the tempered glass side panel.
A Front-Mounted PSU configuration frees up airflow through the perforated steel side panel and creates extra space non-standard motherboards (max. 244 x 226mm). This is better for larger side-mounted water radiators (280mm) or maximizing the number of case fans (7).
The MasterBox NR200P supports multiple cooling solutions:
Pumps that use DDC & D5 spacing can be mounted either to:
A removable side radiator bracket clicks securely into its vertical position, ensuring that the components stay locked in place throughout operations.
Designed to fully support vertical graphics card mounting, the NR200P includes a custom-length riser cable and pre-installed PCI covers (unlike the NR200, the rear fan does not need to be removed). - supports the following graphics card clearances:

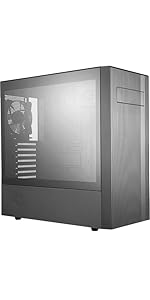

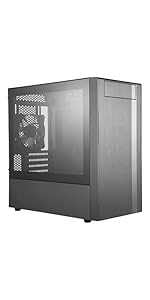

 NR200P |  NR400 |  NR600 | |
|---|---|---|---|
| Customer Reviews | 1,017 | 190 | 222 |
| Price | USD 125.63 | — no data | — no data |
| From Factor | Mini-ITX Case | Mini Tower | Mid Tower |
| Dimensions (L x W x H) | 376 x 185 x 292 mm | 411 x 210 x 411 mm | 478 x 209 x 473 mm |
| Motherboard Support | Mini DTX, Mini ITX (Max. 244 x 226 mm) | Micro ATX, Mini ITX | ATX, Micro ATX, Mini ITX |
| Graphics Card Length Max. | 330 mm (incl. power connector) | 346 mm | 410 mm |
| CPU Height Clearance | 155 mm (vented), 153 mm (glass), 75 mm with vertical graphics card | 166 mm | 166 mm |
| PSU's Support | SFX, SFX-L | Bottom mount, ATX PS2 | Bottom mount, ATX |
| Expansion Slots | 3 | 4 | 7 |
| Max. Radiator Support | 92 mm (Rear), 240 mm (Bottom), 280 mm (Side) | 280 mm (Front), 120 mm (Top), 120 mm Rear | 240 mm (Front), 280 mm (Top), 120 mm (Rear) |
| Fans Support | 7 (2 pre-installed) | 4 (2 pre-installed) | 4 (2 pre-installed) |
| Side Panel | Tempered Glass / Perforated Steel | Tempered Glass | Tempered Glass |
