| Brand | AZDelivery |
| CPU socket | LGA 1151 |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR3 |
| Compatible processors | Linux |
| Chipset type | Intel B360/H310/H370 |
| Memory clock speed | 24 MHz |
| Platform | Linux, Windows |
| Model name | ASDIOFJ1 |
| Main power connector type | Mini USB |
| Graphics card interface | PCI Express |
| Memory slots available | 2 |
| Product dimensions | 5.5L x 2.8W x 1.4H centimetres |
| Total SATA ports | 4 |
| Number of USB 2 ports | 1 |
| Total USB ports | 1 |
| Total PCI-e ports | 2 |
| Manufacturer | AZDelivery |
| Part number | Logic Analyser 8 CH |
| Item Weight | 60 g |
| Product Dimensions | 5.5 x 2.8 x 1.4 cm; 60 g |
| Item model number | ASDIOFJ1 |
| Size | Logic Analyzer |
| Item Package Quantity | 1 |
| Batteries included? | No |
| Batteries Required? | No |

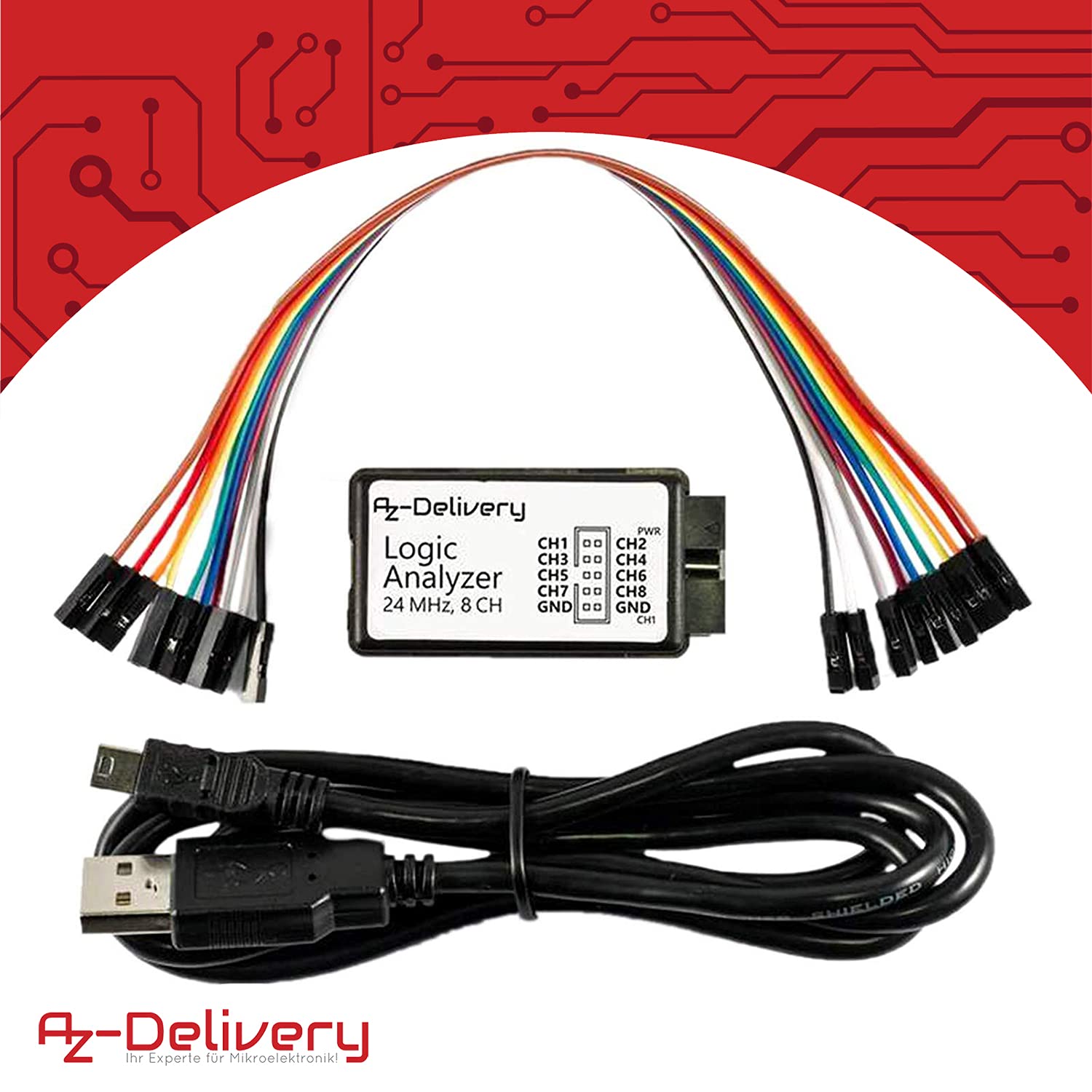

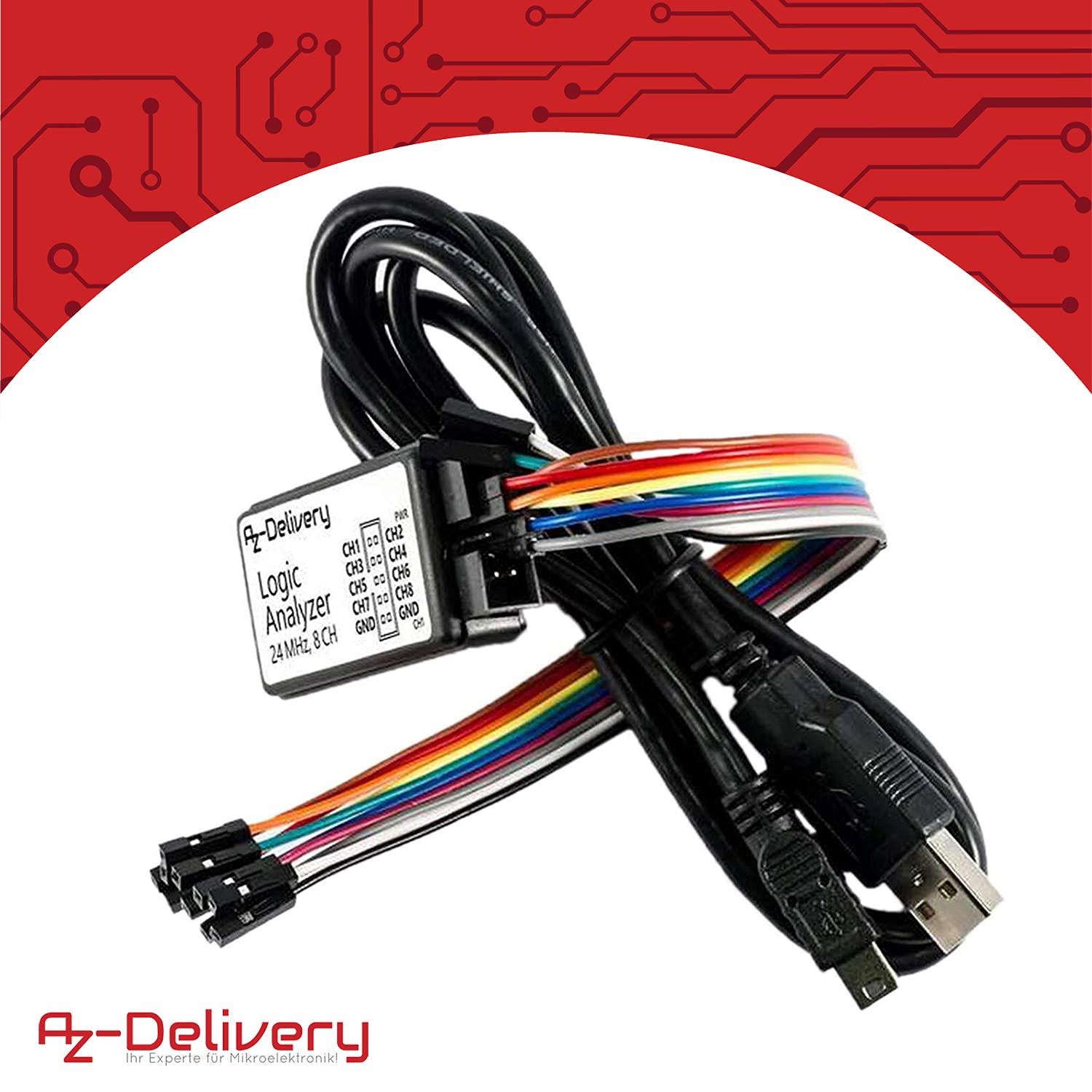

The AZ Delivery Logic Analyzer is an 8-channel logic analyzer. The device is connected to a PC via a USB port and uses the Saleae Logic Software for recording signals.
Bundled signals from data transfer protocols such as the serial connection, I²C or SPI are no problem. The measuring range of the Logic Analyzer is 0-5 Volts, and the threshold values for digital low and digital high are <0.8 V and> 2V.
The high compatibility with various open-source programs such as B. Sigrok ensures quick and easy use of the Logic Analyzers.

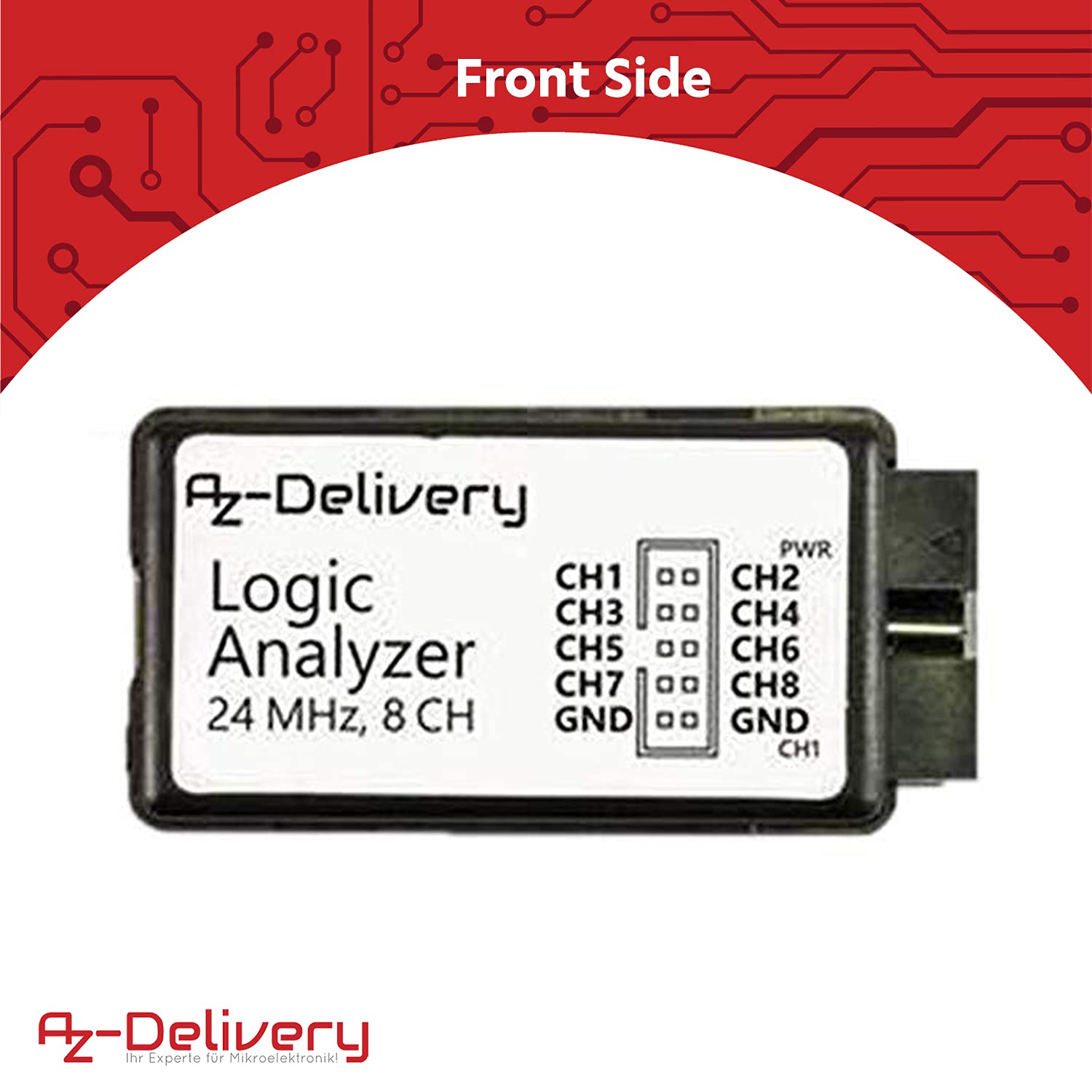

The analyzer has 8 inputs - it can monitor 8 different digital signals at the same time. For many microcontroller-based designs, this is sufficient.

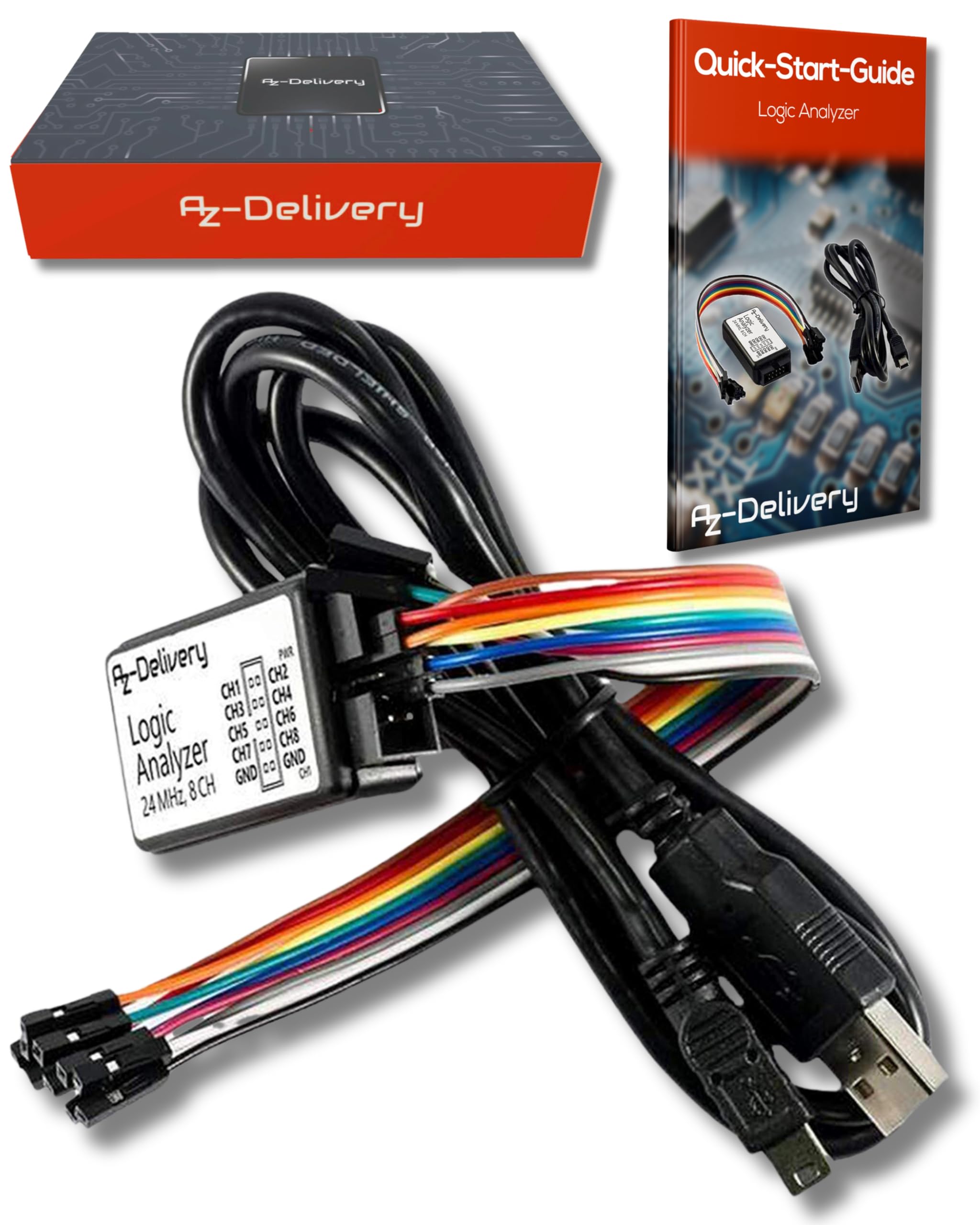

When buying one of our high-quality products, you will also receive an inclusive e-book for a quick introduction to the world of Microelectronics.
You can find many craft projects in our blogs on the topics of programming and microelectronics. Every week, we present you with new DIY ideas and product applications.
Find all technical details about these products in our e-books and blog posts. If you have any further questions, please do not hesitate to contact our tech support at your disposal.
Because client satisfaction and trust are our top priority, we always offer fast, safe, and reliable delivery with the highest quality standards.
