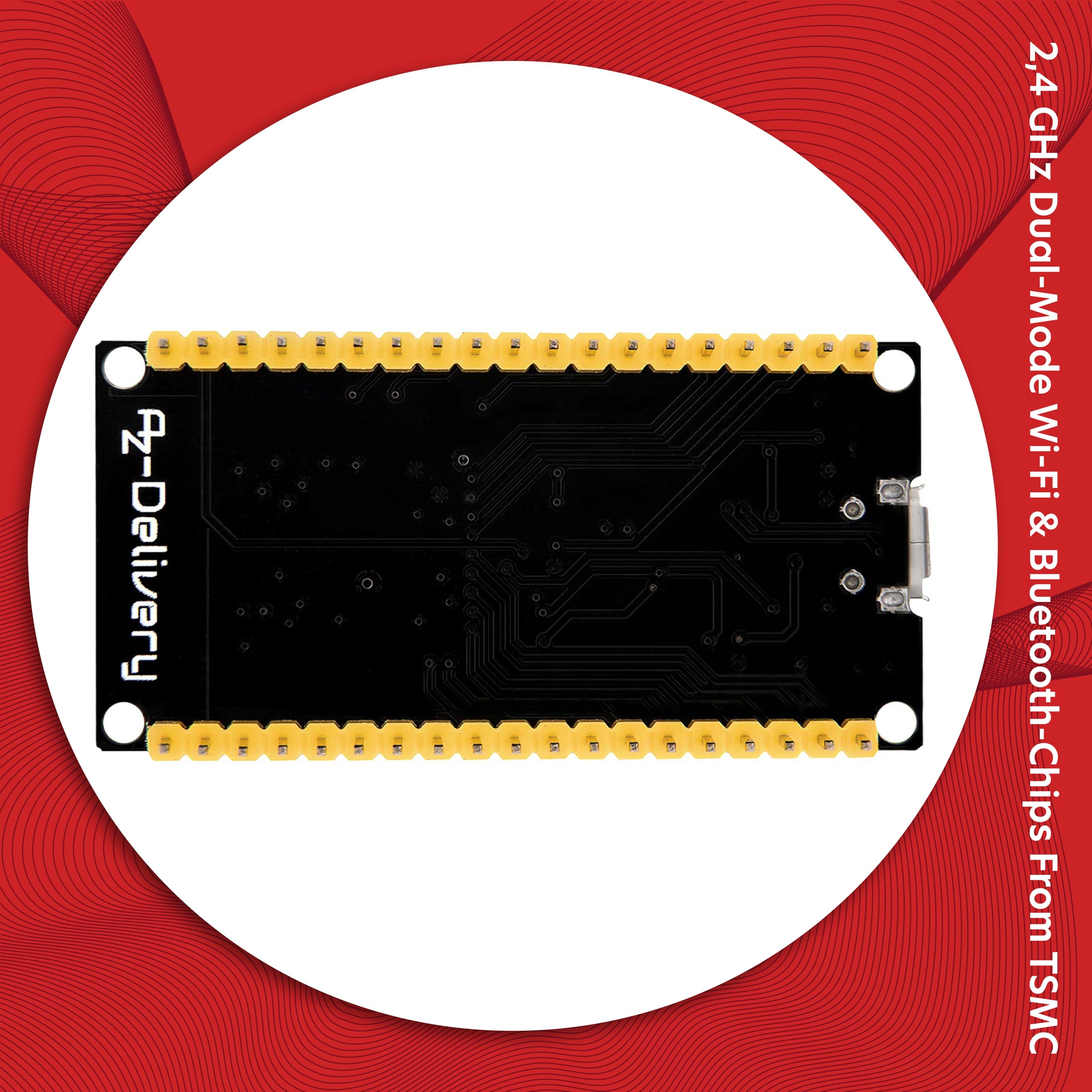

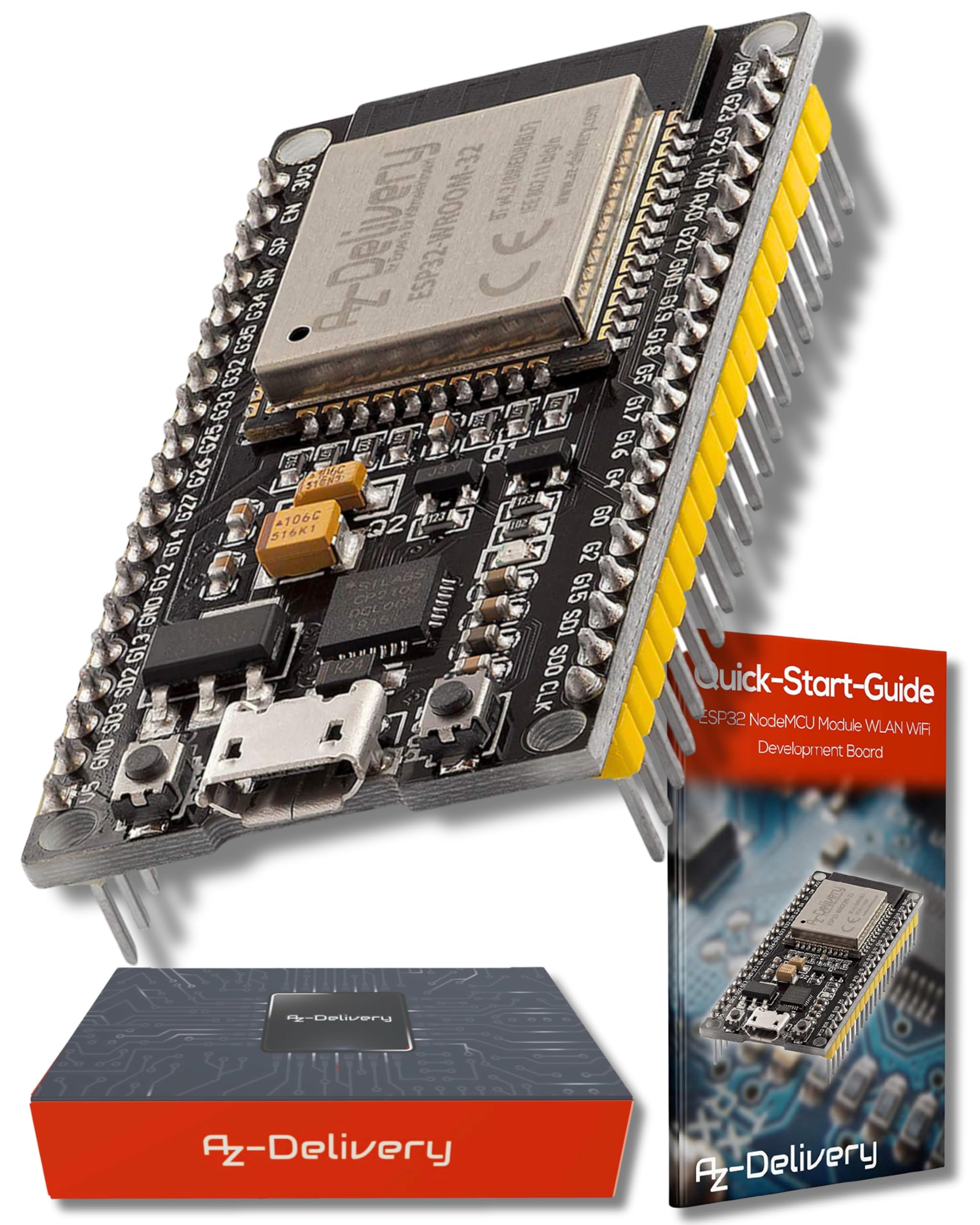

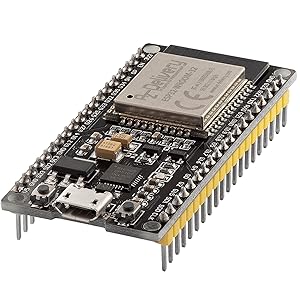

The AZ-Deliver ESP32 NodeMcu WiFi CP2102 Module is 100% identical in construction to the original by the manufacturer Espressif. With many sensors and functions, this board opens up new possibilities in IoT development.
Like its predecessor ESP8266, the WLAN functionality is implemented directly in the SoC, but with additional Bluetooth functionality (incl. BLE).
The WLAN function supports all common encryption methods such as WPA2, it can also act as an access point or sniffer in passive mode in WLAN.
NodeMCU is an open source IoT platform. ESP32 is a series of low cost, low power system-on-chip (SoC) micro-controllers with integrated Wi-Fi & dual-mode Bluetooth.
The ESP32 series employs a Tenscillica Xtensa LX6 microprocessor in both dual-core and single-core variations, with a clock rate of up to 240 MHz and 512 kilobytes of SRAM.
ESP32 is highly integrated with built-in antenna switches, RF balun, power amplifier, low-noise amplifier, filters, and power management modules.
Features:
✔️Able to achieve ultra-low power consumption

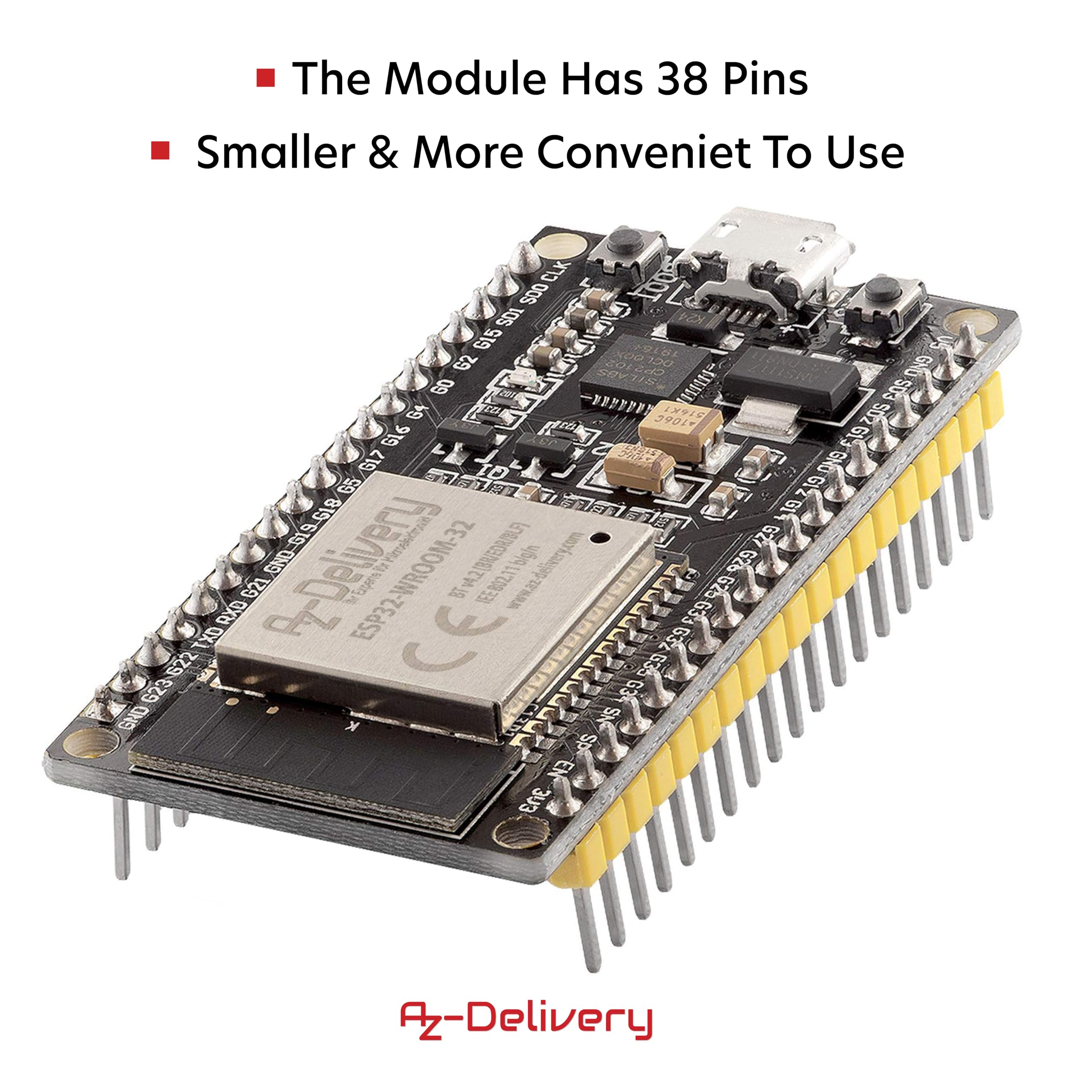

✔️Built-in ESP-WROOM-32 chip
✔️Breadboard Friendly module
✔️Light Weight and small size
✔️On-chip Hall and temperature sensor
✔️Uses wireless protocol 802.11b/g/n and Bluetooth (Classic and LE).
✔️Built-in wireless connectivity capabilites
✔️Built-in PCB antenna on the ESP32-WROOM-32
✔️Capable of PWM, I2C, SPI, UART, 1-wir, 1 analogue pin
✔️Uses CP2102 USB Serial Communication interface module
✔️Programmable with ESP-IDF Toolchain, LuaNode SDK supports Eclipse project (C language)
