| Product dimensions | 12L x 1.5W x 12H centimetres |
| Brand | ARCTIC |
| Power connector type | 4-Pin |
| Voltage | 12 Volts |
| Wattage | 1.44 watts |
| Cooling method | Air |
| Compatible devices | Desktop |
| Noise level | 0.3 Sones |
| Material | Polycarbonate |
| Maximum rotational speed | 2100 RPM |
| Air flow capacity | 41 Cubic Feet Per Minute |
| EU Spare Part Availability Duration | 1 Years |
| UPC | 840033400930 |
| Manufacturer | ARCTIC |
| Part number | ACFAN00187A |
| Item Weight | 9 g |
| Product Dimensions | 12 x 12 x 2.5 cm; 9 g |
| Item model number | ACFAN00187A |
| Size | 120 mm |
| Colour | black |
| Style | Single |
| Item Package Quantity | 1 |
| Included components | P12 Slim PWM PST |
| Batteries included? | No |
| Batteries Required? | No |

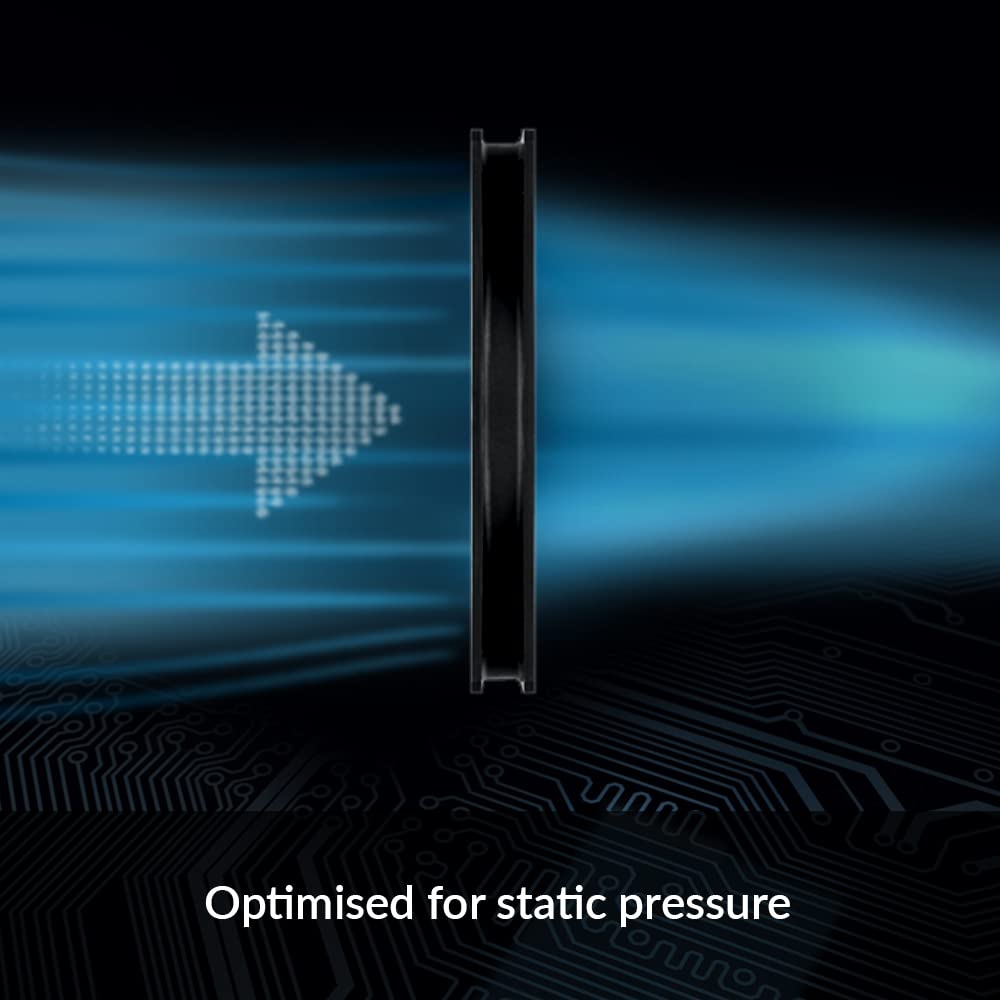

Because the fan design of the P12 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow— even with increased air resistance. This makes the P12 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.
The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.

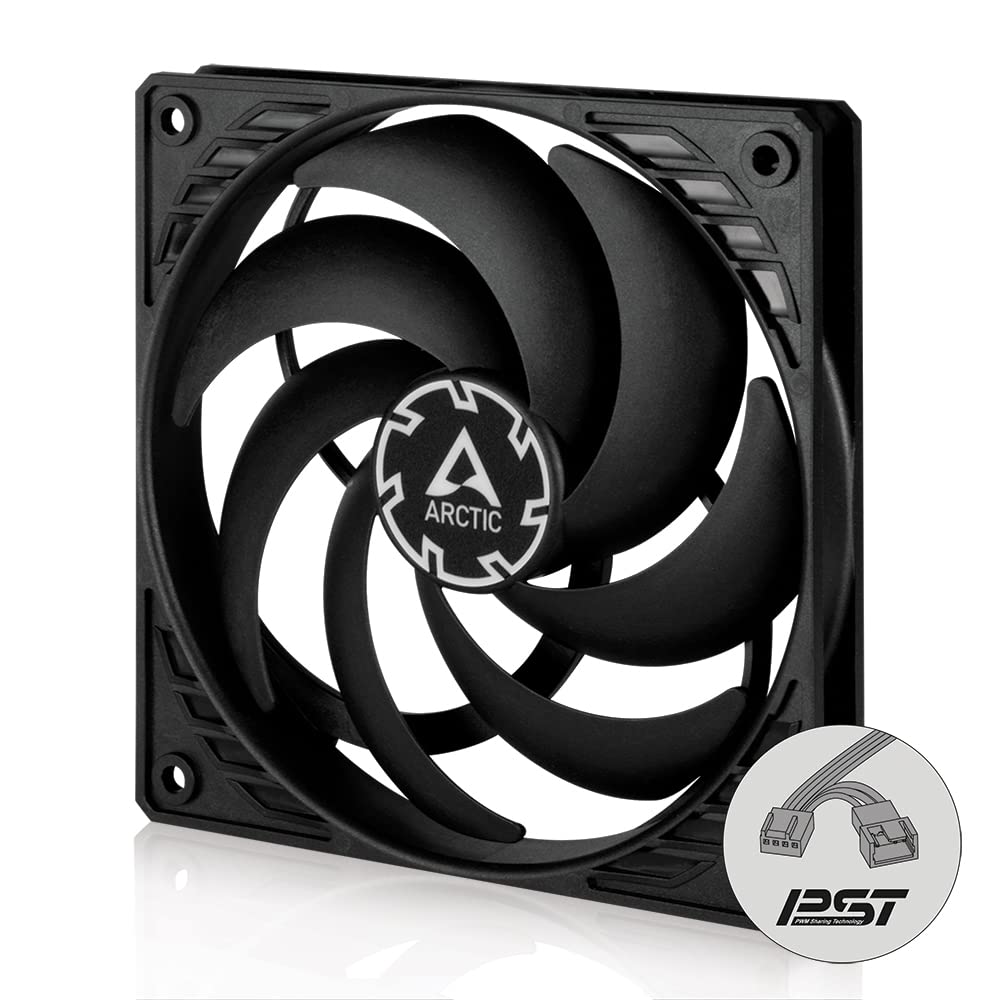

With a wide speed range and innovative PWM Sharing Technology (PST), the P12 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to 4 other PST fans can be connected in series.

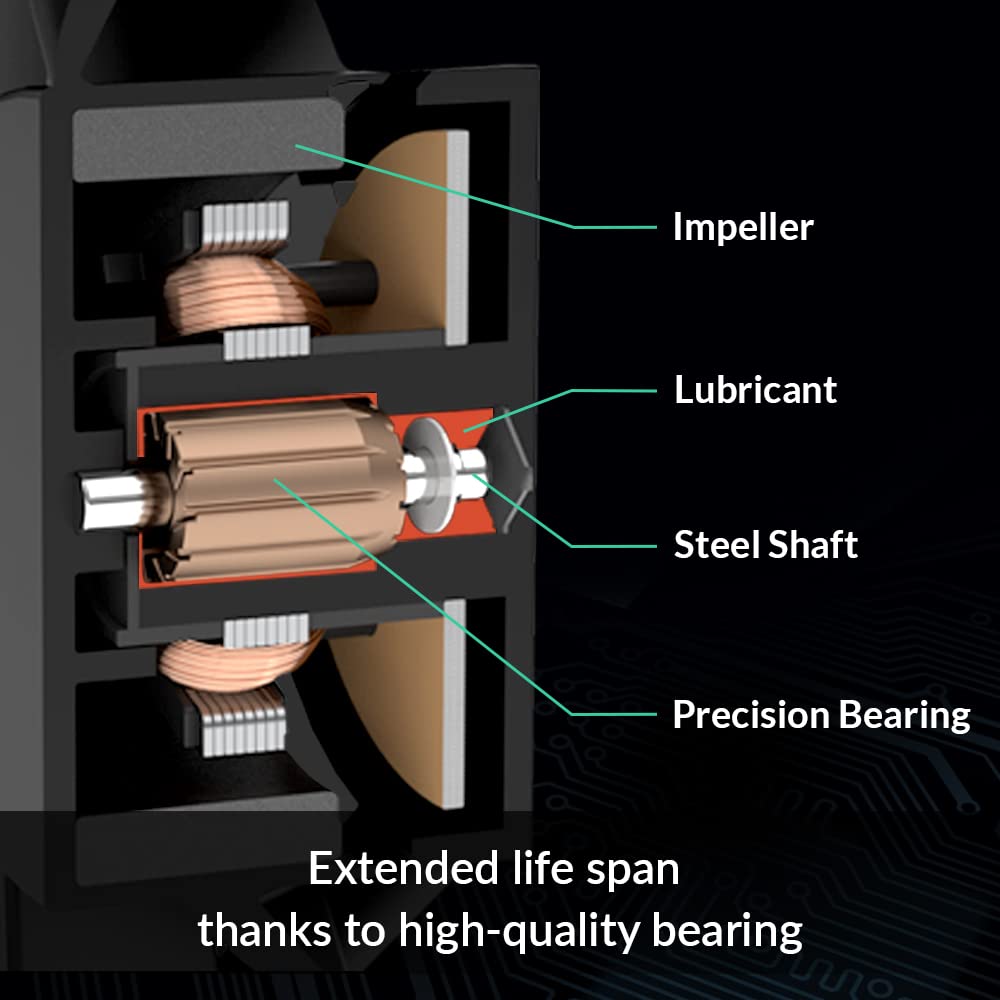

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.

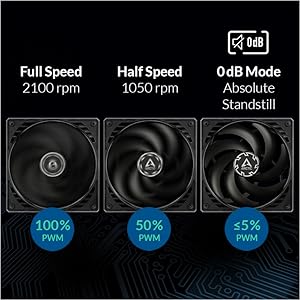

The speed of the P12 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while ensuring maximum performance on demand.
Fan Speed: 300–2100 rpm
Airflow: 42.1 cfm | 71.53 m³/h
Static Pressure: 1.45 mmH₂O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan Frame: Standard
RPM-Control: PWM
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Startup Voltage: 4 V
Current: 0.12 A
Cable Length: 400 mm
 |  |  |  |  | | |
|---|---|---|---|---|---|---|

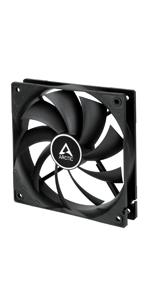

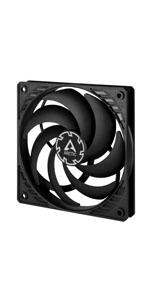

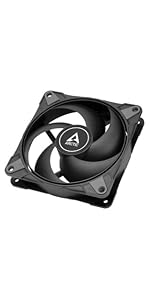

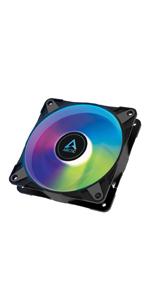

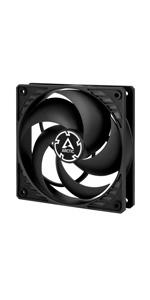

| P12 Slim PWM PST | P12 Max | P12 PWM PST A-RGB | F12 | P12 PWM PST | P12 Silent | |
| Customer Reviews | 1,364 | 1,131 | 2,124 | 1,268 | 2,692 | 2,496 |
| Price | USD 10.30 | USD 12.80 | USD 19.59 | USD 9.42 | USD 11.39 | USD 10.88 |
| Size | 120 x 120 x 15 mm | 120 x 120 x 25 mm | 120 x 120 x 25 mm | 120 x 120 x 25 mm | 120 x 120 x 25 mm | 120 x 120 x 25 mm |
| Fan Speed | 300–2100 rpm | 200–3300 rpm | 200–2000 rpm | 1350 rpm | 200–1800 rpm | 1050 rpm |
| Airflow | 42.1 cfm | 71.53 m³/h | 81.04 cfm | 137.69 m³/h | 48.8 cfm | 82.91 m³/h | 53 cfm | 90.1 m³/h | 56.3 cfm | 95.65 m³/h | 24.1 cfm | 41 m³/h |
| Noise Level | 0.3 Sone | 0.6 Sone | 0.45 Sone | 0.3 Sone | 0.3 Sone | 0.08 Sone |
| Control Type | PWM PST | Pulse Width Modulation - PWM | PWM PST | Fixed Speed | PWM PST | Fixed Speed |
| Bearing | Fluid Dynamic Bearing | Dual Ball Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 85 g | 184 g | 131 g | 109 g | 145 g | 139 g |
| Static Pressure | 1.45 mmH₂O | 4.35 mmH₂O | 1.85 mmH₂O | 1.0 mmH₂O | 2.2 mmH₂O | 0.5 mmH₂O |
