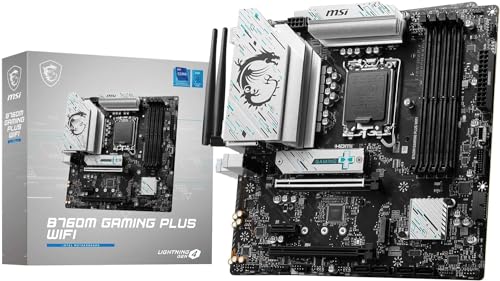

intel 12th, 13th, and 14th Core Processors Support LGA1700 DDR5 Memory Expansive Micro-ATX motherboard with two HDMI and DisplayPort and 3 PCIE slots.
Form Factor: Micro-ATX (9.6 x 9.6 inches (243.9 x 243.9 mm)
Chipset: intel B760
CPU Socket/Compatible CPU: LGA1700, intel 14, 13, 12 Gen Core Processor
Power Phase: 12+1+1 PPAK Digital Power Phase
Memory Socket: 4x DDR5 UDIMM up to 192GB
Supported Memory: DDR5 4800-6800+ XMP3.0
Expansion Slots: 2x PCIE x16 (1x PCIe 4.0 x16, 1x PCIe4.0 x4), 1x PCIE3.0 x1
●Storage: 2x M.2 (PCIe 4.0x4), 4x SATA3
Video Output: 2x Displyay Port (1.4), 2x HDMI (2.1)
USB (Rear): 2x USB3.2 Gen2 Type-A, 2x USB3.2 Gen1 Type-A, 2x USB2.0 Type-A
USB (front): 1 x USB3.2 Gen1 Type-C, 4 x USB3.2 Gen1 Type-A, 4 x USB2.0
Sound: 7.1ch HD Audio Codec (Realtek ALC897)
Network: Wired LAN: 1x 2.5GbE, Wireless LAN: intel WiFI 6E, Bluetooth 5.3
Other features and features: Large heat sink (VRM, M.2), water cooling CPU cooler connection only with large capacity power connector
Supported operating systems: Windows 10/11 64-bit
Accessories: Quick start guide, accessory kit, WiFI antenna.
MSI is one of the trusted manufacturers in the game industry and e-Sports industries.We always support renowned gamers and reflect feedback on our products.We continue to design products that gamers will be more satisfied.
The B760M GAMING PLUS WIFI is a dedicated gaming motherboard for DDR5 memory, which supports high-speed, low-latency 2.5G LAN, Wi-Fi communication, and a rich interface.
B760M GAMING PLUS WIFI is a Micro-ATX motherboard compatible with Intel Core Processors (14th Generation)/13th/12th Gen Core Processors and Pentium Gold and Celeron Processors.
Form Factor: Micro-ATX CPU Socket: LGA 1700 Chipset: Intel B760

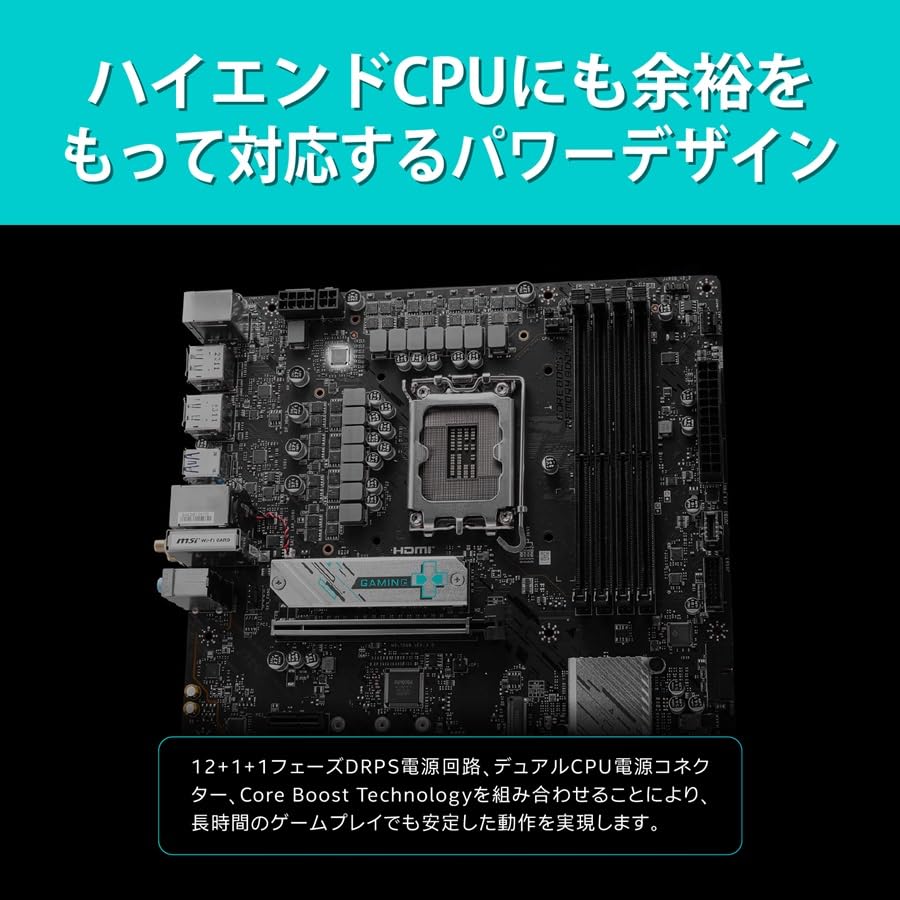

B760M GAMING PLUS WIFI features 12+1+1 phase DRPS P-PAK power circuit.Dual CPU power connectors and Core Boost Technology allow for multi-core CPUs to be supported and stable operation even in high load conditions.
Digital PWM IC12 Phase Duet Rail Power System (P-PAK) 1 Phase GT Power1 Phase AUX Power

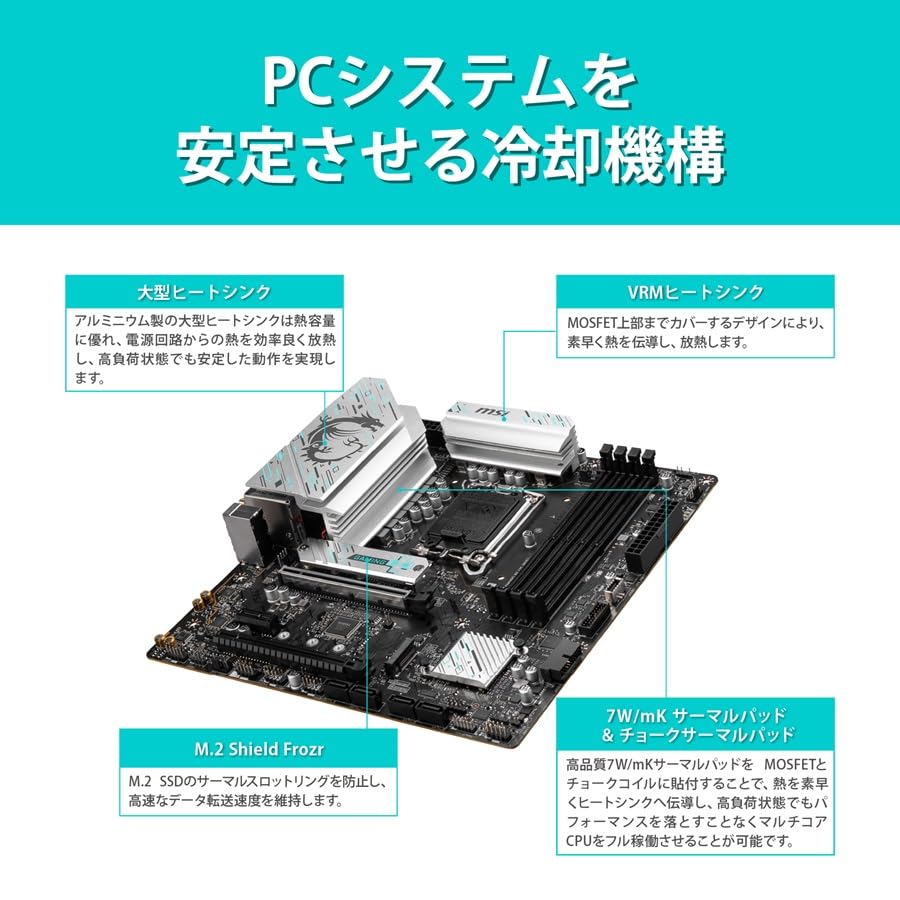

VRM Cooling: 7W/mK thermal pad for efficient heat transfer. PCB Cooling: Server-grade 6-layer PCB with 2oz thick copper layer provides efficient cooling for your motherboard and increased circuit reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttle of M.2 SSD. System Cooling: Wire-focused pin header position allows cable management without impeding air flow.

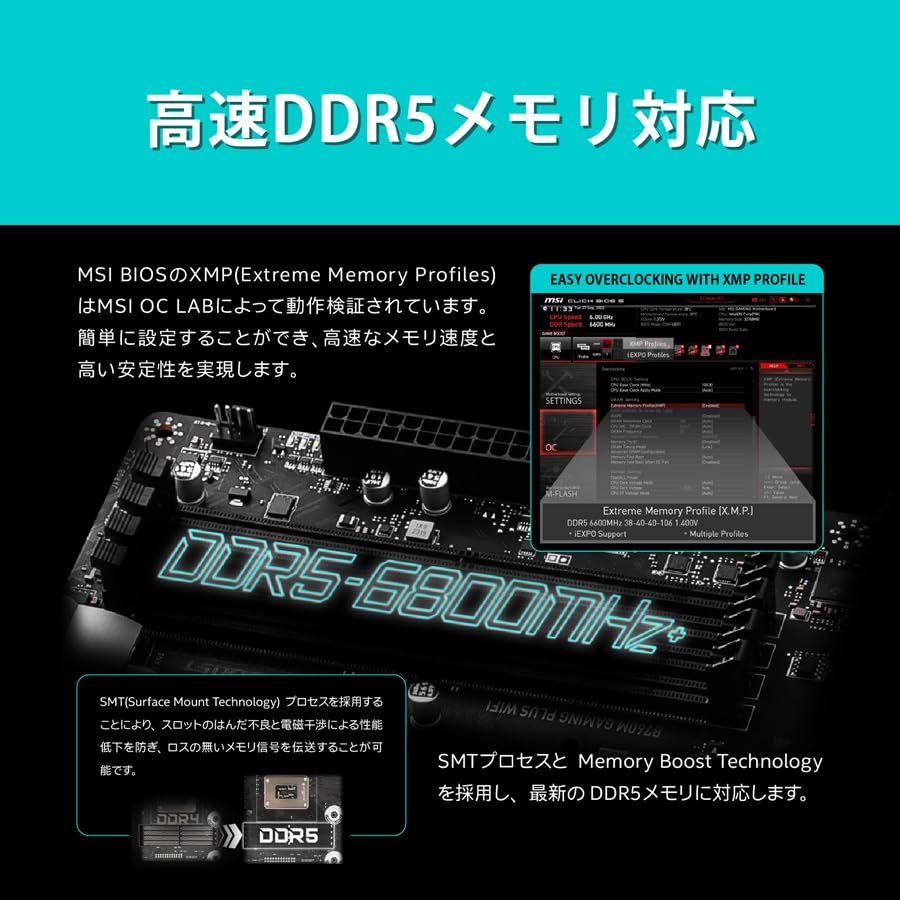

Memory Boost: Adopts a unique circuit that allows the transmission of lossless memory signals for high-speed frequencies. XMP Profile: Validated to work under various conditions by MSI OC LAB and easily activated in the BIOS menu, allowing you to speed up Intel XMP-enabled memory. *1DPC 1R Max. Overclock frequency up to 6800+ MHz, Intel XMP support
MSI PCI Express Steel Armor slot with more soldering points than ever before, compatible with heavier graphics cards.In addition, it protects contact from electromagnetic interference and prevents performance degradation.
2 x PCIe 4.0/3.0 x16 Slot* (PCI_E1 with Steel Armor) 1 x PCIe 3.0 x1 Slot *Supports x16/x4
B760M GAMING PLUS WIFI supports fast M.2 SSDs: 2 x Gen4 x4 64Gbps Slot* *1 with M.2 Shield Frozr
The M.2 SSD boasts high-speed data transfer rates but at the same time generates a larger amount of heat and may cause thermal throttle rings. The M.2 Shield Frozr provides powerful cooling for the SSD, preventing thermal throttling of the M.2 SSD, and maintains high-speed data transfer rate.

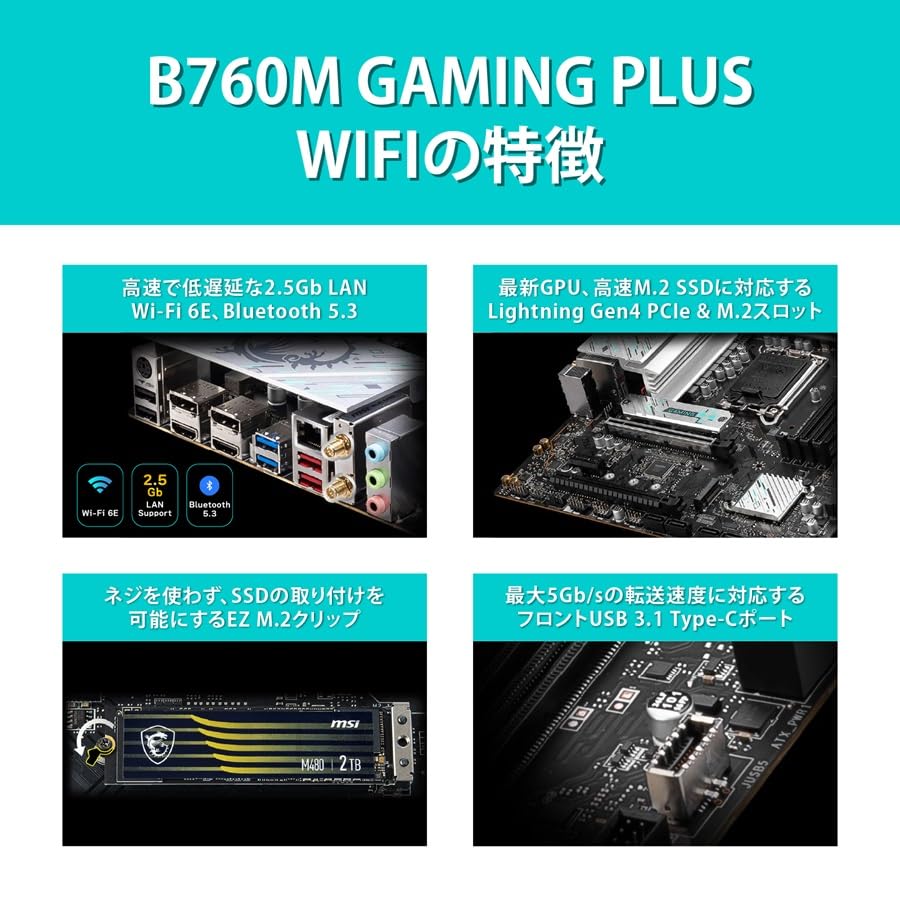

2.5G LAN: Equipped with Realtek 2.5G LAN for fast network communication with less latency. USB 3.2 Gen 2 Type-A: Equipped with a USB port that supports 10Gb/s transfer rate. Wi-Fi 6E: Latest Wi-Fi 6E (6Ghz band) & Bluetooth 5.3 HD Audio: With S/PDIF output, Audio Boost supports 7.1 channel HD audio.
