We live the IoT connected world.Last year, MeLE released MeLE PCG02 PC Stick, MeLE Quieter2Q, Quieter3Q, PCG35 Fanless Processor J4125 N4020 N4000 N4500 N5105 Customers told us that they wanted a mini PC with PD protocol and a full featured USB-C The origin of the MeLE Quieter 3C Fanless Desktop.
Based on high demand for PD protocol and USB-C ports, MeLE has improved heat dissipation of this model by adding aluminum and silicone pads inside the housing case.
10 Reasons to Buying MeLE Quieter3C Small Computers:
1.Wi-Fi 6/ Bluetooth 5.2/ 2.4GHz+5.0GHz Dual Band Wi-Fi / Gigabit Ethernet Multiple connectivity to provide a more stable and faster Internet experience anywhere.
2.Full function Type C can fill power input, data transmission, video display with one cable. PD3.0
3. Small form factor pre-installed win11 pro, also support win10 pro, dual OS operation, support Windows and Linux, Ubuntu, Debian
4.More performance celeron Jasper Lake N5105, 8GB LPDDR4, 7*24 hours stable performance.
5. Supports 5TB expandable storage via M.2 ssd slot, USB and micro SD slot.
6.Multi I/O ports for computer peripherals, 3*USB3.0, 1*Full Function Type C, 1*Mini DP, 1*HDMI2.0
7. Support 1*HDMI2.0, 1*Full Function Type C, 1*Triple Display 4K HDR via Mini DP
8.0.44lb/230g 18.5mm*81mm*131mm/0.71"3.2"5.2" Pocket PC

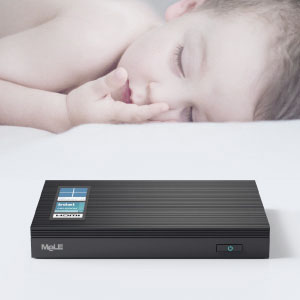

9. Fanless design silent PC, 0 bd noise while working.
10. Support Unlocked Bios, Wake on LAN / PXE / Auto Power on / RTC Wake
Unique corrugated sink, double the heat dissipation surface for cooling, 0dB quiet, no disturbing while working.
High Thermal Conduction Engineering Plastic Housing Case, Thermal Conductivity 5.0W/mK, 20 times more than ordinary ABS and PC plastic
Ultra-thin portable pc,
13.1*8.1*1.83cm/5.15*3.18*0.72inch (L*W*T)
Product Net Weight: 203g/0.44lb
Small and lightweight, keep your desk organized and convenient for business trips.

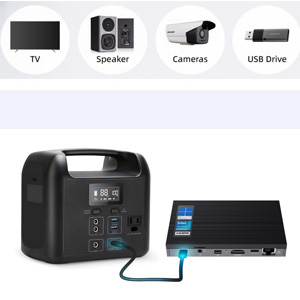

Power input, data transfer, video display with one cable. Uses PD3.0 protocol USB 3.1 Gen 1 Standard Display Port allows the transmission of 4K video signals and supports 4KThis Meré Windows PC will organize your workspace and improve your work efficiency.
Note: The USB-C port only supports 12V-18V PD power supply.

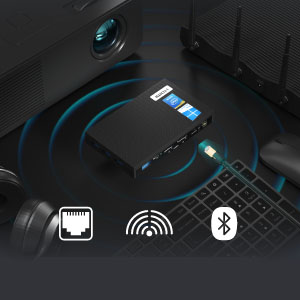

Support WiFi 6 (802.11ax), MU-MIMO, Support 2.4Ghz, 5Ghz, Bluetooth 5.2 Built-in,
Supports Enhanced Attribute Protocol (EATT), LE Power Control Feature (LEPC), and Isochronous Channels (ISOC)
More stable connection, stronger signal transmission, less impact of interference
2*HDMI 2.0+ 1*USB-C Video Display
Previously Quieter3C supports 1* Mini DP port 1* USB-C port and 1* HDMI port for video output.The new Quieter3C supports video output of 1*USB-C port and 2*HDMI ports.In the new version, the mini DP port has been replaced by HDMI port in response to customer high requests.

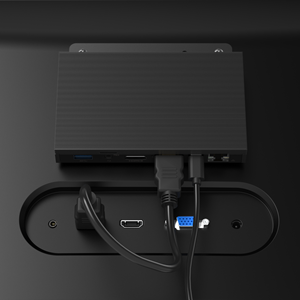

The MeLE mini computer comes with a vesa mount that allows you to mount your mini PC to a monitor or TV back with a standard hole distance of 70mm, 75mm, 80mm, and 85mm.
Effective for keeping your office or home organized.
Why 256GB eMMC storage only shows 228GB storage on your computer?
This is due to the different matrix methods between PC and HDD/SSD/eMMC.Computer matrix format: 1KB=1024Byte, 1MB=1024KB, 1GB=1024MB
HDD/SSD/eMMC Supplier Matrix:1KB=1000Byte,1MB=1000KB,1GB=1000MB
How to set automatic power with MeLE Quiter3C Fanless Mini PC?
Press the power button, press F7 or Delete consecutively to enter the selection menu of launch devices--> Enter Setup, press Enter to enter BIOS settings menu--->Advanced---->Customer Exclusive Functions--->Auto Power On---->Enable--->Save and exit the change-->Yes, you can complete this setting.
Why 4K performance is late?
4k displays are affected by many factors such as net speed, HDMI cable, monitor settings, graphic cards, video decoding, video format, video resolution, etc.Our mini PC adopts integrated graphics.Video may require a more advanced processor and a delicate graphic card.We also recommend lowering the resolution to 1080p for fluent video playback.
Does the heating temperature affect the performance of the mini pc?
Special ABS plastic material for higher heat dissipation.On the other hand, the patented heat dissipation system prevents the mini PC from overheating while working.The maximum CPU temperature is 105 degrees.When the CPU temperature reaches 90 degrees, the CPU will automatically lower the frequency.Reduces power consumption.Temperature data for reference: Operating Ambient Temperature: 0℃-40℃, Storage Ambient Temperature: -10℃-80℃, Mini PC Operating Temperature: 0℃-77℃
Why the mini PC is composed of a plastic housing case?
In order to make noise and absorb dust, we developed a fanless mini PC and designed the engineering plastic shell with high thermal conductivity.Do not burn people's hands like aluminum alloy surface. MeLE adopts the creative design of corrugated heat sink, which enlarges the heat dissipation surface by twiceFurthermore, thanks to the fanless design, MeLE Mini PC works in dusty environments (IP20) to extend working life, but average PC is suffering from the aging and noise of the fan.
Why does the mini PC failed to start the PXE?
If the processor is N5105, you need to upgrade the server to the latest version.
 Quieter2Q |  Quieter3Q |  Quieter3C | |
|---|---|---|---|
| Customer Reviews | 52 | 6 | 4 |
| ram/rom | 8GB LPDDR4/128GB eMMC | 8GB LPDDR4/128GB eMMC | 8GB LPDDR4/128GB eMMC |
| Processor | Celeron J4125 | Celeron N5105 | Celeron N5105 |
| Connectivity | Wifi5 2.4G/5.0G | Wifi6 2.4G/5.0G | Wifi6 2.4G/5.0G |
| Unlocked Bios | ✓ | ✓ | ✓ |
| PCIe 2280 SSD | Support | Support | Support |
| Seven 2280 SAD | Support | Does not support | Does not support |
| USB port | 4*USB 3.0 | 4*USB 3.0 | 3*USB 3.0 |
| Mini DP | No | No | 1 x Mini DP |
| HDMI Ports | 2*HDMI 2.0 | 2*HDMI 2.0 | 1 x HDMI 2.0 |
| USB-C | For DC-IN only. | For DC-IN only. | DC-IN PD3.0/Data Transfer/Video Display |
