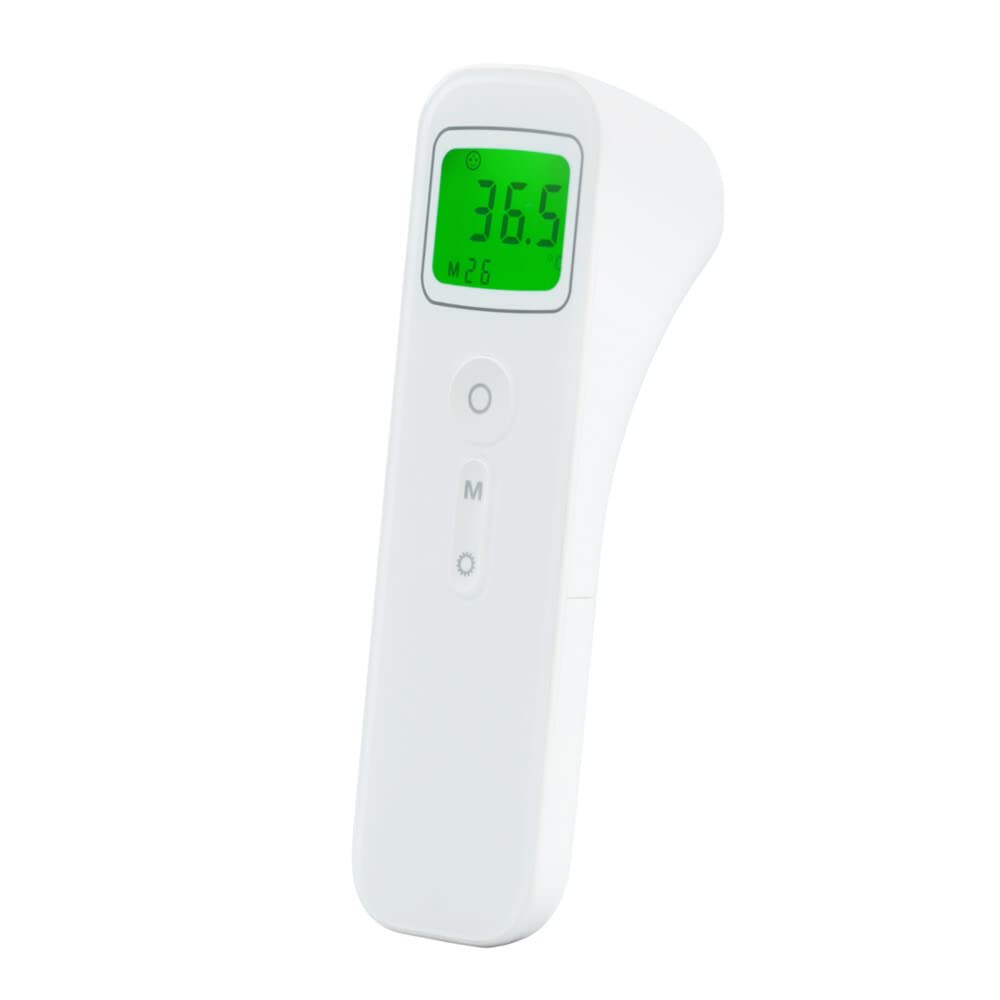

Iris Ohyama Non-Contact Thermometer Stick Type DT-104

Please refer to the instruction manual (English language not guaranteed). ]

1. General Name

Skin Infrared Thermometer
2. Product Name

DT-104 Thermometer Stick Type
3. Prevention and prohibit

Do not self-diagnose or treat temperature results. [This may cause symptoms to worse. ]
Keep out of reach of infants. Also, please do not use it by children. [This may cause suffocation or injury. ]
Do not use in situations that do not meet the usage conditions mentioned in the usage warnings, or do not repair, modify or re-alter other than the manufacturer seller. Manufacturer seller is not responsible for any damages resulting from these damages 4. Item specifications, etc.

1. Body temperature measurement range (measurement part: forehead): +32.0°C to +43.0°C
2. Temperature Measurement Accuracy: Within ±0.2 °C, at +35.5 to +42.0 °C, Otherwise within ±0.3 °C
3. Operating Environment Temperature: 15 - +40 °C
4. Operating Humidity: Less than 85% RH
5. Storage environment temperature and humidity: -4 to 122°F (-20 to 55°C), 93% RH or less (condensation is not included).
6. Mechanical shock: Do not exceed the temperature measurement accuracy.
7. Long-term stability effect: Do not exceed the temperature measurement accuracy.
8. Minimum display unit: 0.1°C
9. Measurement range notification: When measuring body temperature, display "Lo" when the temperature is lower than +32.0 °C, display "Hi" when +43.0 °C higher, and "Er1" display when ambient temperature is out of use.
Operating at low voltage: When the battery voltage is low, the "" will be displayed.
5. Precautions for Use:

1. Do not measure your body temperature on any part other than your forehead.
1. When the "" mark appears, replace the battery.
1. After exercising or bathing, please allow for more than 30 minutes before checking the temperature.
If there is a temperature difference between the storage location of this product and where it is measured, please leave it in a place for 30 minutes or more before measuring it.
❷ If your forehead is cold, wait until it is warm before measuring.
1. Please note that the correct temperature may not be displayed.
✓ Do not measure your forehead temperature if there is an injury on the patient's forehead. Please do not measure the part of the tissue damaged by scar tissue or skin diseases as the body temperature is detected, so do not measure the tissue that has been damaged by scar tissue or skin diseases.
✓ When measuring near air conditioner or in a windy area
✓ If exposed to direct sunlight on your forehead
✓ If your forehead is wet when you swim, bath, shower, sweat etc.
✓ Immediately after exercise
✓ If you are in a temperature location that is different from where you measured until just before you measure it.
✓ If you are in a temperature location that is different from where the body is measured until just before measuring.
✓ If there is something that is interfering with measurement such as hair or foundation between the forehead and the sensor
✓ If you find other parts such as hands near the measurement area (forehead)
Avoid damaging IR sensor.
1. Do not put the main unit into water.
1. Ambient temperature is between 15 and 40 degrees Celsius.
1. To ensure the accuracy of the measurement data, do not measure the temperature in environments with high electromagnetic interference (such as microwave and radio frequency operating environments).
6. Manufacturer name or name

Manufacturer: ICST Co., Ltd.
Foreign Manufacturer: Bioland Technology Ltd.
7. Purpose or Effect

This product is used to measure the body temperature of your skin on the surface.

The temperature is completed in about 1 second without touching.
Contactless thermometer.

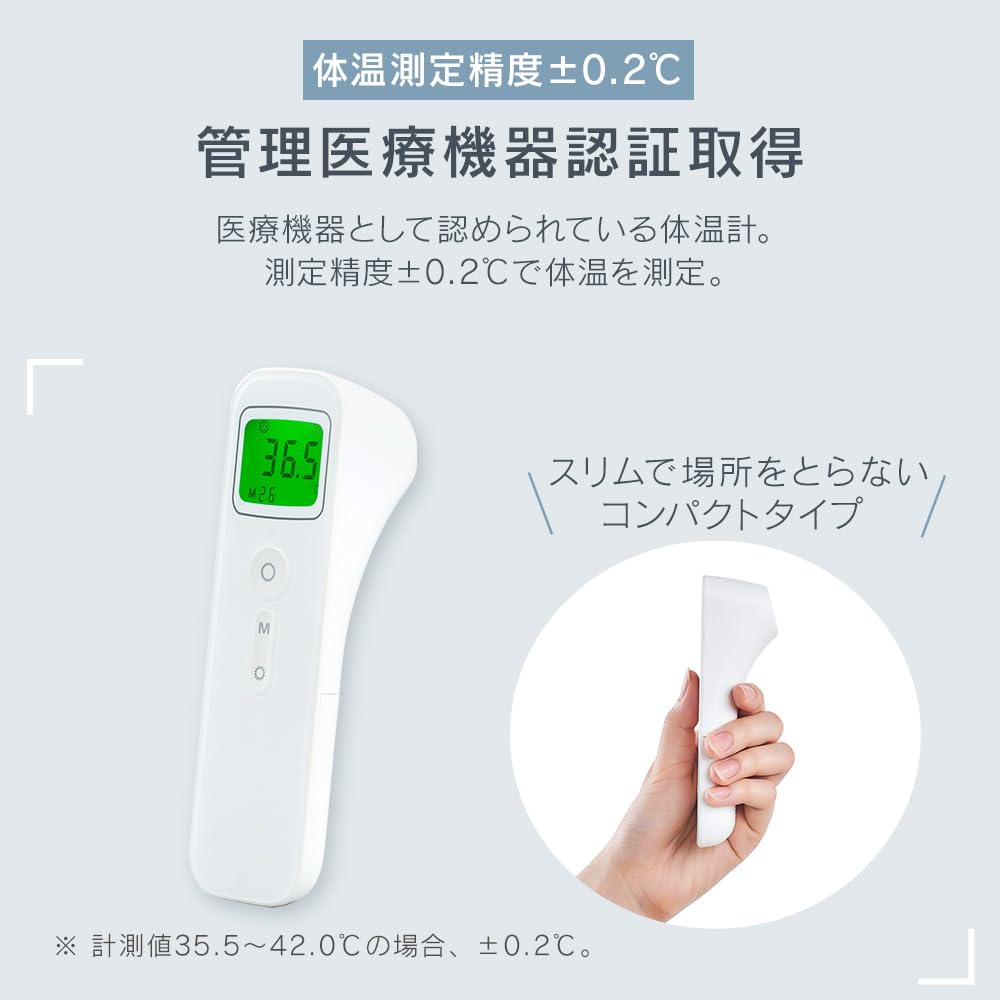

(Certified for Medical Management Devices)
This thermometer is recognized as a medical device by a third-party agency recognized in the country.

【Small error for more accurate measurement】
Medical equipment thermometer, is strictly set by law, within ±0.2 °C to 104 °F (35.5 °C to 42.0 °C), measuring tolerance within ± 0.2 °C, regardless of body temperature.

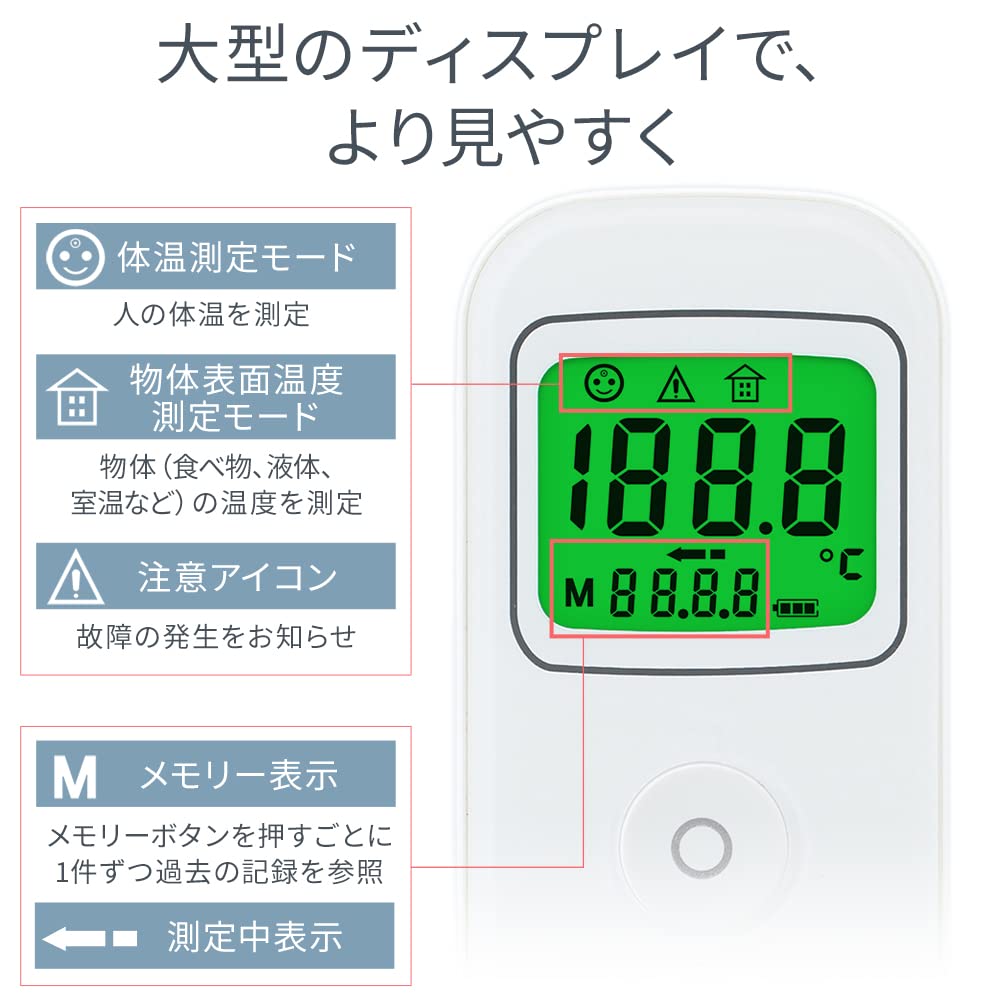

Easy to read LCD display:

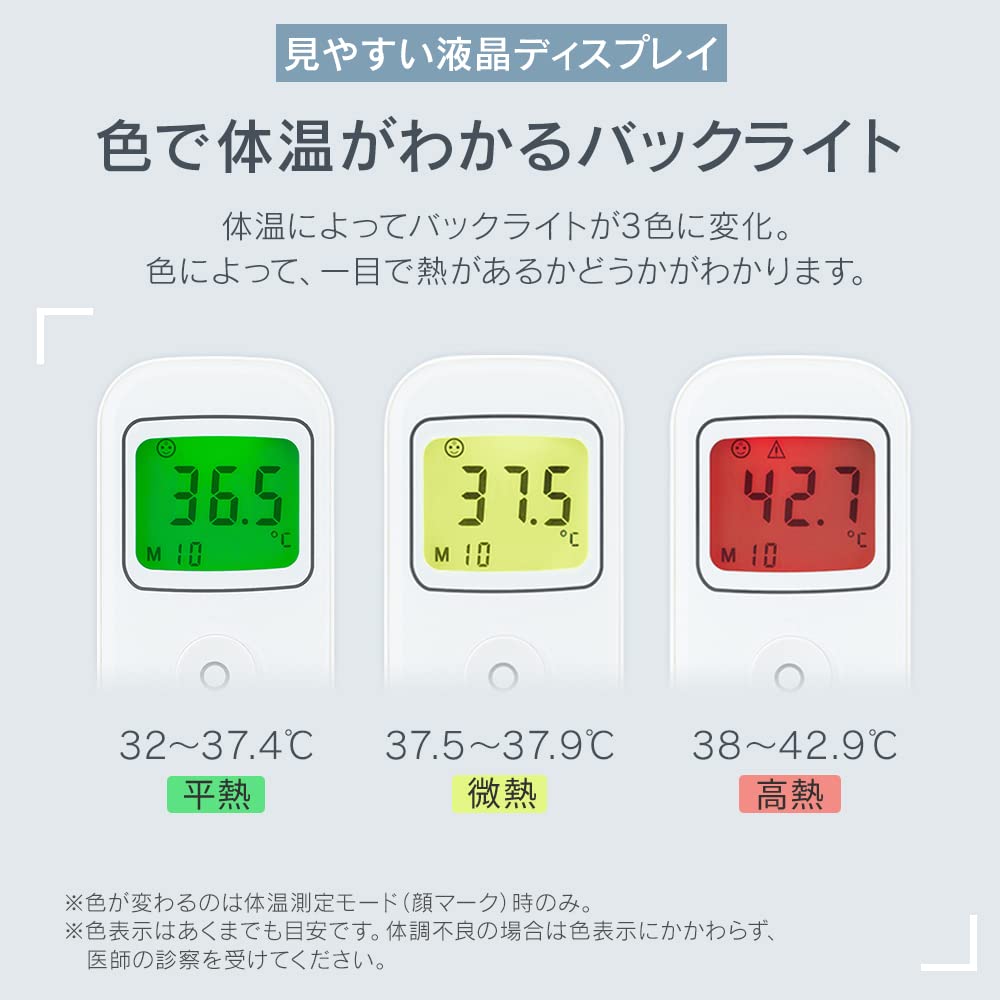

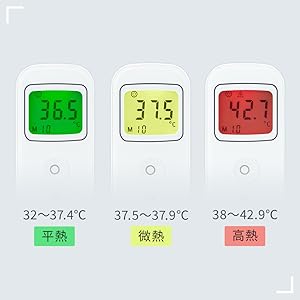

Back light with color to see body temperature
The back monitor changes to 3 colors depending on your body temperature.
Depending on the color, you can see if it is hot at a glance.
Large LCD display for better viewing

Measures in approximately 1 second.
Measuring instantly with a single button.
Body temperature is one of the important information to judge your physical condition.
This is why we provide a more accurate measuring thermometer.
Measuring in about 1 second, you can quickly measure your daily temperature.

[Non-contact for peace of mind]
Hygienic measuring without overflowing.
The contactless type allows you to measure your skin without feeling too much so you can always use it clean.
Since it is measured by forehead, it is easy and convenient to measure in any situation, whether you're sleeping or going out.

Memory Function:
It can record your body temperature.

Automatic power off function:
If you do not operate it for 15 seconds, it will turn off automatically.

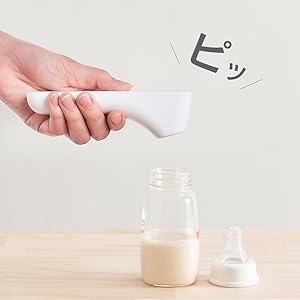

[Switch between measurement mode]
By switching between modes, you can measure your body temperature as well as your baby's milk, meals, and the water temperature in the bath.

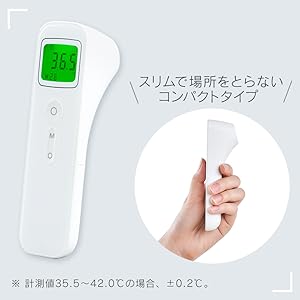

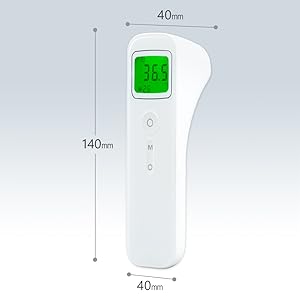

Thin type that does not add bulk and is convenient to carry.
If you have this unit in a variety of temperature settings
Requires 2 AAA alkaline batteries.
