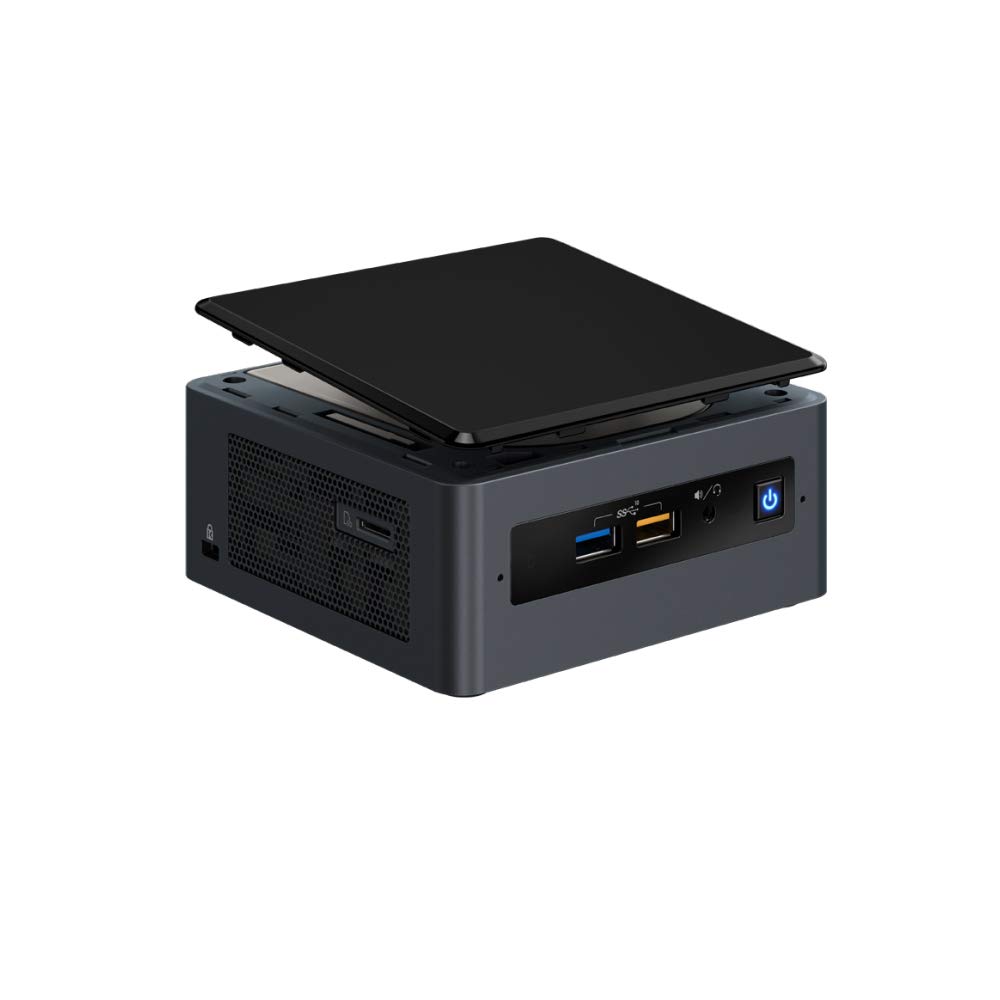

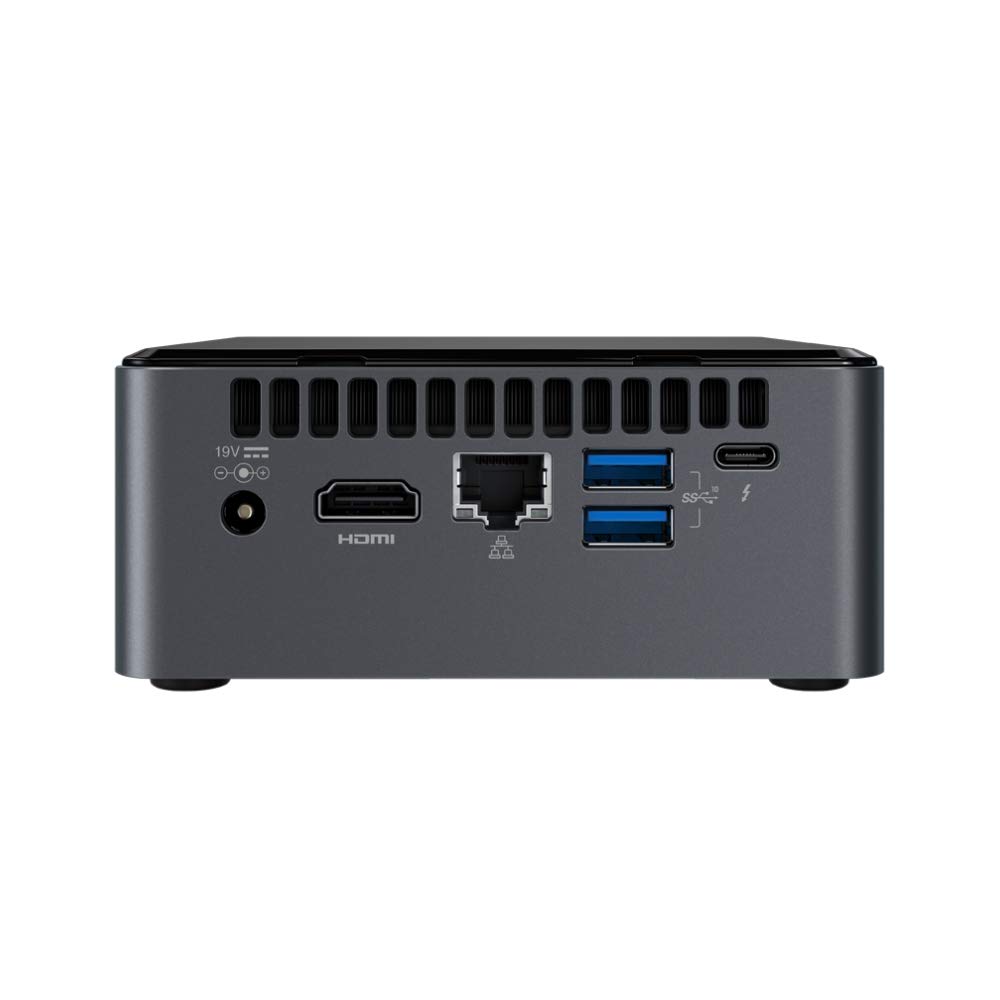

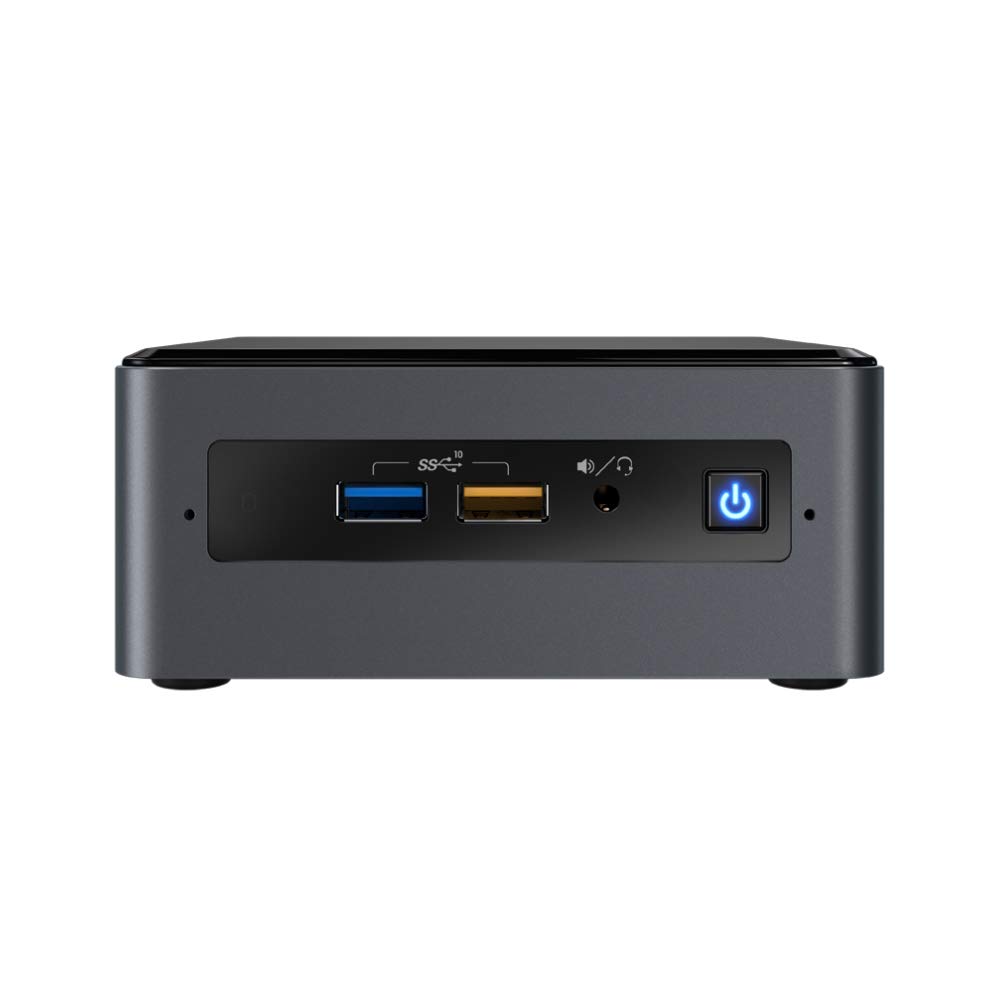

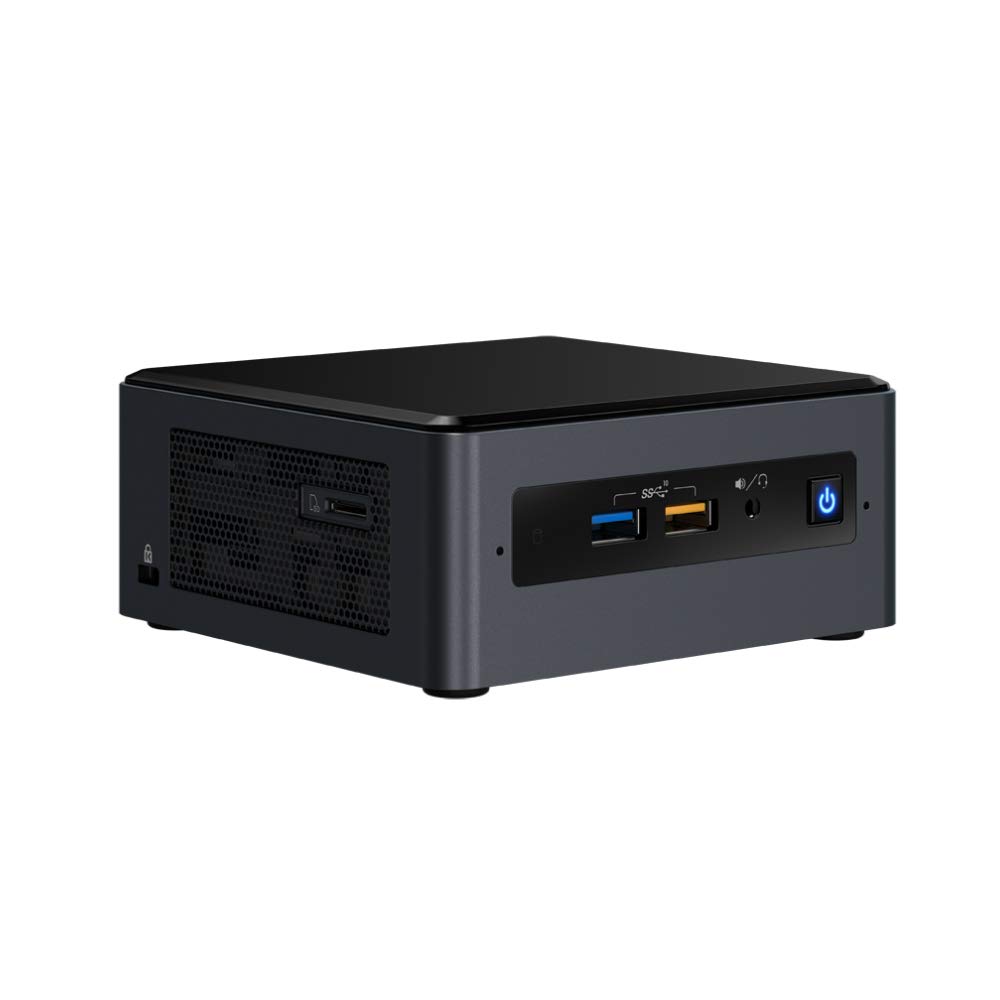

Intel NUC Kit BOXNUC8i7BEH1 i7-8559U Single Pack retailessentialsc
Product Collection: Intel NUC Kit with 8th Generation Intel Core Processor
Code Name: Product, Formerly Bean CANYON
Board Form Factor: ucff (4 x 4)
Number of Internal Drives Supported: 2
Lithography: 14nm
tdp: 28W
Processor Included: Intel Core i7-8559U Processor (8M cache, up to 4.50 supplementary information c
Embedded options not available
Description Other Functions: Microsoft card slots including Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C, dual microphone memory, and storage.
Maximum Memory Size (varies by Memory Type): 32GB
Maximum Memory Channels: 2
Maximum Memory Bandwidth: 38.4Gb/s
Maximum number of DIMMs: 2
EC Memory Support: No processor graphics
Integrated Graphics:Yes
pci Express Revision: Gen3
pci Express Configuration: M.2 slot with PCIe x4 lane
m.2 card slots (storage): 22 x 42 / 80i / O specifications
Number of USB Ports: 6
Maximum number of SATA 6.0 Gb/s ports: 2
RAID Configuration: 2.5 HDD/ SSD + M.2 SATA/ PCIe SSD (raid-0 raid-1)
Audio (back channel + front channel): 7.1 digital (HDMI mDP) L + R microphone (F)
Integrated LAN: 10/100/1000
