Description:
The Pi Camera Module 3 is a high quality camera compatible with all boards of the Raspberry Pi. Equipped with 12 megapixel Sony IMX708 sensor and HDR to provide excellent image quality.
Autofocus is achieved through the combination of PDAF and CDAF to ensure crisp, crisp images. Fully supported by libcamera & Picamera2, but will not work with legacy OS such as raspivid and raspistill.
The minimum focusing distance is 5cm and 10cm, suitable for a wide range of applications including close-up photography.
Highlights:
● Based on 12MP Sony IMX708 CMOS sensor
● IMX708 is a rolling shutter sensor with rolling shutter on all V3 cameras.
● All V3 cameras have auto focus.
● Autofocus is achieved by a combination of PDAF and CDAF.
● There are 5cm MOD (minimum focal length) in both the standard and NoIR wide are 3.9 inches (10 cm).
● 4608 x 2592 is the highest resolution you can get in still images and video up to 1080p50.
● All cameras support HDR capturing (up to 3 million pixel output).
● All 4 cameras are the same board size as V1.3 and V2 cameras.
Excludes Raspberry Pi 400.

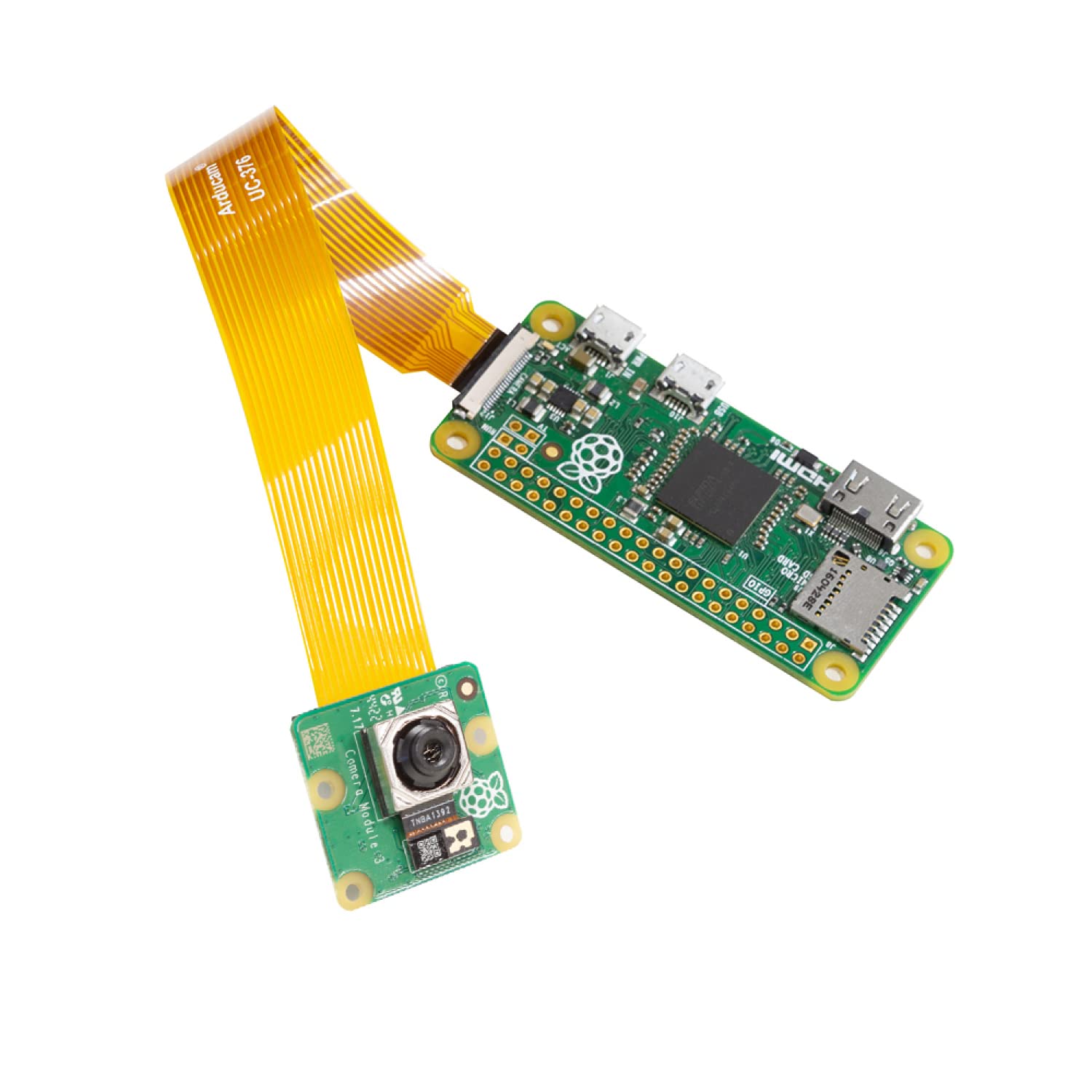

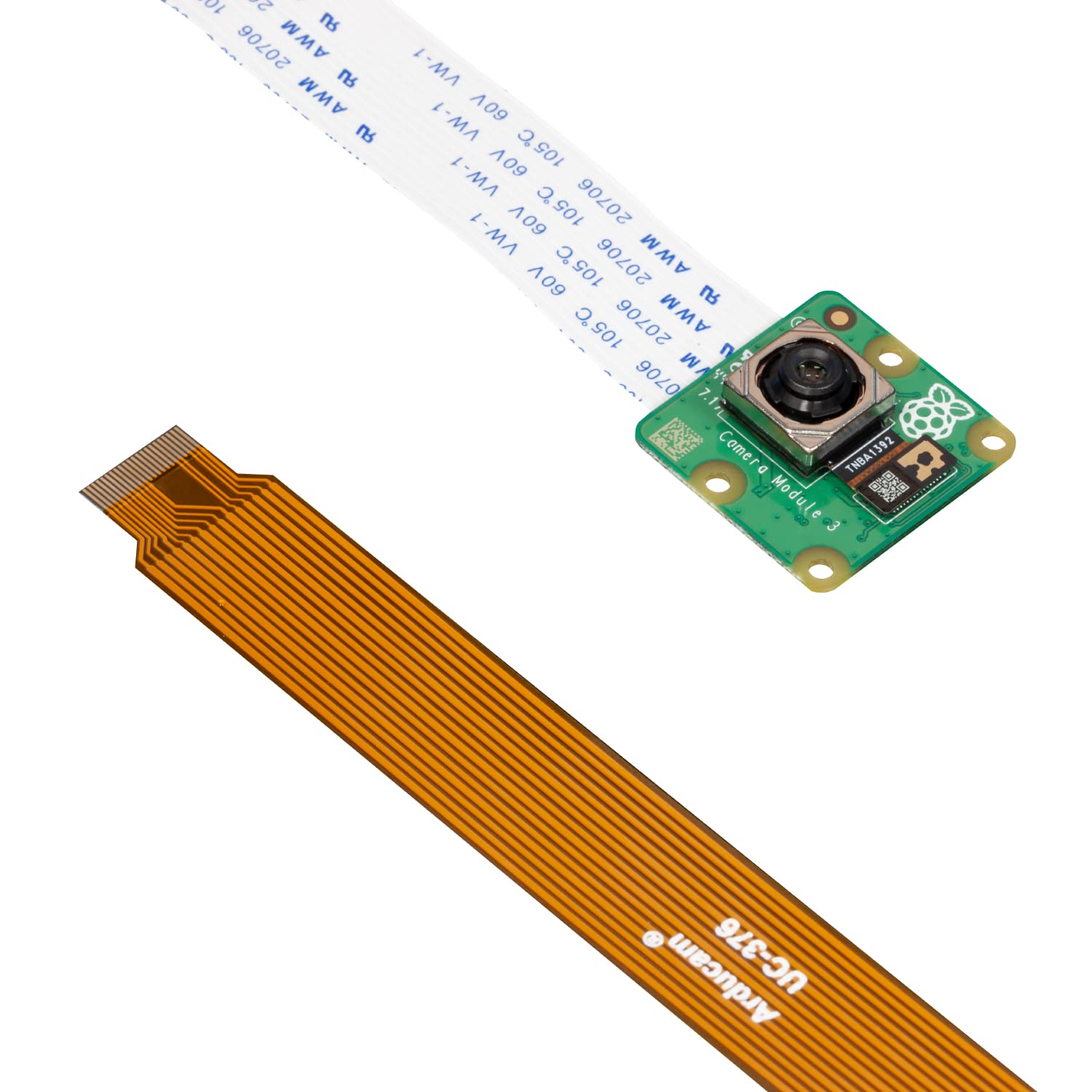

● To use the V3 camera on Pi Zero models, an additional camera cable is required.
● Compatible with both libcamera & Picamera2, but will not work with legacy software (Raspivid, raspistill, etc.) )
Specifications:
Sensor: Sony IMX708
Resolution: 11.9 megapixels
Sensor Size: 7.4mm Sensor Diagonal
Pixel size: 1.4μm x 1.4μm
Horizontal/Vertical: 4608 x 2592 pixels
Diagonal field of view: 75° General video modes: 1080p50, 720p100, 480p120
Output: RAW10
IR Cut Filter: Integrated
Dimensions: 25 x 24 x 11.5mm
