Waveshare ST-LINK / V2 CN for STM32 STM8 MCUs USB JTAG SWD In-Circuit Programmer Debugger Emulator

Description:

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full speed interface to communicate with STMicroelectronic's ST Visual Develop (STVD) or ST Visual Program (STVP) software.

STM32 applications use the USB full speed interface to communicate with Atollic, IAR, Keil or TASKING integrated development environments.

Key features:

5 V power supplied by a USB connector

USB 2.0 full speed compatible interface.

USB standard A to mini B cable

SWIM specific features

• 1.65 V to 5.5 V application voltage supported on SWIM interface
• SWIM low-speed and high-speed modes supported.
• SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed.
• SWIM cable for connection to the application via an ERNI standard vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector
• SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector

JTAG specific features

• 1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs

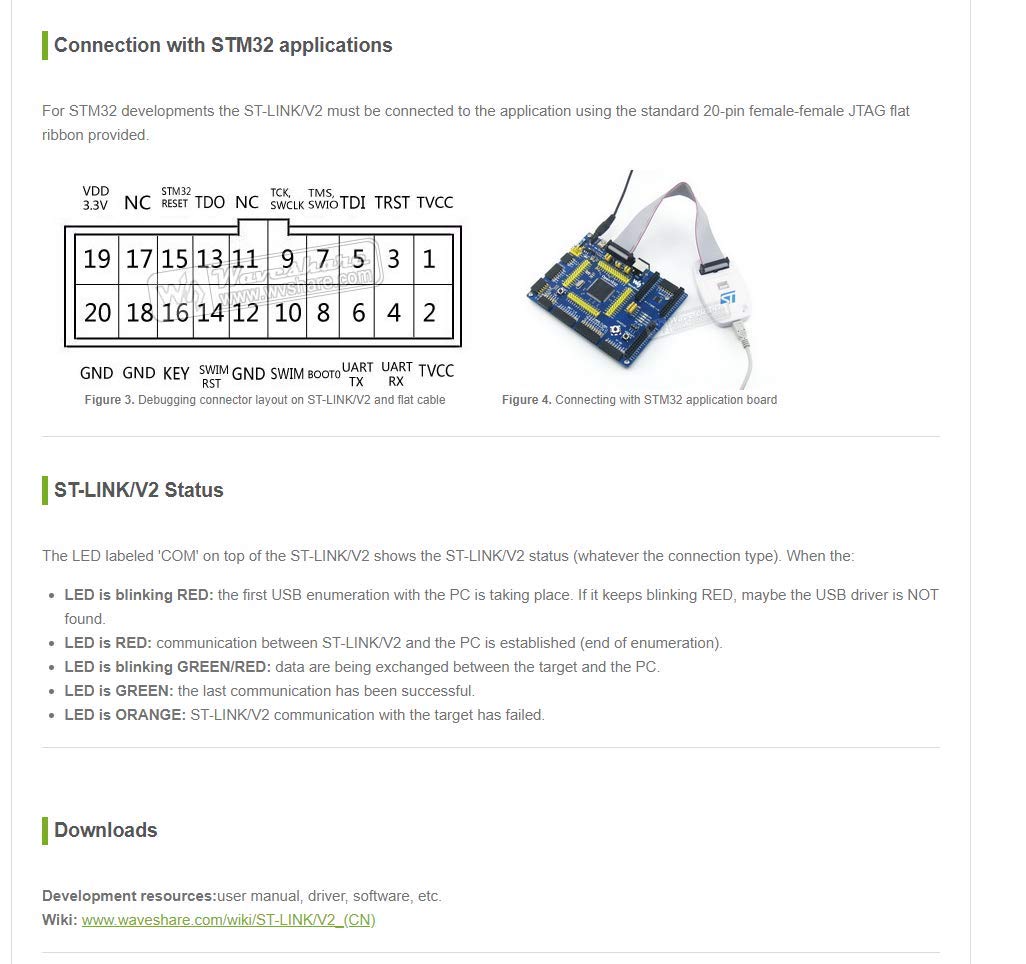

• JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector

Direct firmware update feature supported (DFU)

Status LED which blinks during communication with the PC

Operating temperature 0 to 50 °C.

Package contents:

1. ST-LINK/V2 × 1
2. 1 x USB type A to Mini-B cable.
3. 1 x 20-pin JTAG/SWD flat ribbon.
4. 1 x 4-pin swim cable.
5. 1 x 4-pin SWIM custom connector cable.
